PRODUCT RANGE
RN-6901
H264 video server
Integrate analogue cameras in H264
IP systems
MVS-14
MPEG4 video server
Integrate analogue cameras in MPEG4
IP systems
MVS-14W
MPEG4 video server
as above with Wi-Fi
CONNECTIONS
Connections from left: Alarm I/O and RS485 connector for speed dome cameras, LAN, 12VDC
power supply
Connections from left: Video output, Video input, Audio input
CONTROL VIA BROWSER AND VIDEORECORDING
IP installer tool for configuring IP address
Access via LAN or Internet using Internet Explorer
Internet Explorer configuration pages

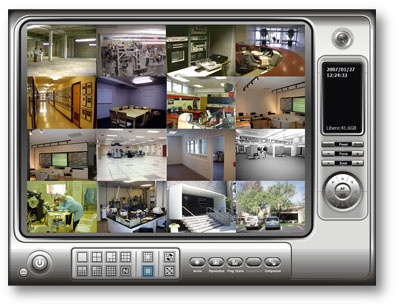

IP VIDEO RECORDING SOFTWARE
All video servers include a professional NVR software for monitoring and recording of up to 16 channels.
All software is suitable for
Windows 2000
Windows XP
Windows Vista
Windows 7
iPHONE/PDA CONTROL
Only RN-6901
INCLUDED IN THE PACKAGE:
Video server
12VDC power adaptor
RCA
audio cable
I/O and RS485 cable
LAN
cable
CD with configuration software, 16 ch recording software and user manual
TECHNICAL DATASHEETS
technical data |
|
Video-servers convert and analogue video signal, for example the output of an
analogue camera or DVR, into a digital video streaming that can be transmitted over a LAN network and
managed by personal computers.
Why to buy a video server
Integrating analogue cameras into IP systems.
Today, CCTV systems can be developed using 2 different technologies: analogue TV or IP network TV.
Both technologies are up-to-date and satisfy different marketing needs (see
General Notes on IP cameras)
Video servers are used to connect an analogue video source to a digital IP network so that it can be received by any PC on the net.
It is important to clear that all DSE video-recorders for analogue cameras include a video server function and come with LAN port.
This means that any PC of the LAN can access the analogue cameras through the DVR exactly as they were IP cameras.
This range of video server can be useful to connect to IP network an analogue camera were a DVR cannot be installed.
Besides they can be used to integrate an analogue camera into a system made of IP cameras and control all of them from a single monitoring software.
Software compatibility
You do not need a special software to be used with the video servers.
You can receive video and configure the device just using an internet browser like Internet Explorer.
Anyway if you are planning to develop an IP CCTV system made of IP cameras and video servers on the same network,
please consider that
the recording software supplied with the RN-6901 H264 model also supports all DSE
H.264 megapixel IP cameras.
How the
video-server works
Easy
installation
The DSE
video-servers are compact (120x146x46 mm.) stand-alone unit.
On the camera side there are 1 video input (BNC) and 1 audio input (MInijack/RCA) which can be connected
to any analogue camera ot composite video source.
An analogue video output is also available to connect external devices. On the network side there is
the RJ45 connector for the LAN network, the 12VDC power plug (adaptor included), and an RS485 port which can be used for
sending commands to SD Speed Dome cameras.
Wi-Fi
version (MVS-14W)
The model MVS-14W includes a Wi-Fi transmitter for connection to IEEE 802.11g wireless LAN.
The device includes the site survey
feature that detects all available access points in the area. The
MVS-14W video server supports WEP encryption to protect the video streaming
from unauthorized access.
Instant
configuration with software tool
Once the
LAN network is connected you can set the IP address of the video server. We
provide an IP INSTALLER software which enables any PC in the network
to detect the video servers on the network, and configure the network settings according to your needs. .
LAN
Access with Internet Explorer
Camera images can be monitored from any PC in
the network and even over the Internet, just by entering the IP address of the video server into the
address box on Internet Explorer. A clear Active-X graphic interface is used to display the video and configure, if authorized, all device settings.
All DSE video servers supports RTSP protocol so they can be monitored also using RTSP players like
REAL PLAYER, QUICKTIME, VST etc.
iPhone control (only RN-6901)
RN-6901 video servers can be monitored by mobile devices, like i-Phone or PDA.
Cameras can be watched full screen on your phone over internal LAN or over the Internet.
Local recording via USB (only RN-6901)
The RN-6901 video server, the latest development of the range,
come with 2USB ports that can be used to connect USB drives like pen drive or Hard Disks.
It is possible to record video locally on the base of the built-in weekly scheduler, without depending on the network
Recording video within the video server can be very useful for example if you do not have a network video recorder or if you want to keep a security backup of your videos.
Main features
Dual-codec compression
In order to keep the video streaming light in terms of bandwidth, all DSE video servers include dynamic compression chips.
The MVS models use MPEG4 compression while the RN-6901 uses the H264 compression.
All models support also the MJPEG format, in case you prefer minimum compression and you are ready to dedicate large bandwidth.
Full D1 resolution
720x576 pixels
All DSE videoservers produce the highest resolution allowed by an analogue video signal: the D1 resolution - 720x576 pixels (same as DVD).
The video streaming is crystal clear and you can watch it full-screen and zoom in.
Frame Rate of 25
frames/second real-time
Thanks to the use of dynamic compression the video streaming is
smooth and never jerky, even at maximum D1 resolution.
Long-term operative
stability
The main parameter to take into account when choosing an IP video
server is operative stability. In video over IP there is nothing worse than
an unstable device, subject to firmware crash
and needing reboot from time to time.
The firmware of the DSE video server undergoes lengthy testing and
careful beta-testing before each new release. You can confidently install
the device, safe in the knowledge that it is not going to bring you troubles.
Firmware updates can be downloaded from any PC over the network.
Synchronized audio
The video-server has an audio input for transmitting PCM compressed audio
signals.
The audio quality is maximum fidelity, without gaps or interference
of any kind.
The audio is reproduced on the remote PC perfectly in sync with
the video images, without any delays or echoes caused by IP transmission.
Video conference
All cameras connected to video servers can be used for video conference.
Up to 10 colleagues can talk to each other with non need of personal computers.
PTZ commands for
speed dome cameras
Video servers come with an RS485 port in order to control speed dome cameras via internet explorer. The most
common communication protocols PELCO P/D are included for perfect compatibility with DSE speed dome cameras.
Password protection
The remote access to videos and configuration is password protected in order to avoid unwanted access.
DDNS
You wish to watch your cameras over the Internet, but you have no fixed IP address? No problem.
DSE IP video servers support the most common DDNS services like DYNDNS.ORG
PPPoE Straight
connection to ADSL modem
(only RN-6901)
Integrating the PPPoE protocol the RN-6901 video server can be connected straight to an ADSL modem and log-in to the Internet without the need of
other equipment like PC or routers.
This is useful if you wish to create stand-alone
surveillance spots that just need an ADSL cable to connect to the world
(e.g. CCTV in public sites)
Motion detection
and E-mail/FTP notification
IP video server include motion detection analysis and can start an alarm in case an intruder
brake-in.
In case of alarm, the unit can switch a local alarm output and send pictures or videos via e-mail or FTP protocol.
Pictures and videos can be also uploaded regularly on a time base for example to update a web site page.
Alarm I/O
Video servers come with 1 alarm input and 1 alarm output.
Input can be used to connect alarm contact and sensors. Outputs can activate other equipments like lights etc. in case of alarm or by manual activation from remote.
Advanced WEB services
(RN-6901)
The RN-6901 video server, the latest development of the range, includes many features which make Internet use easier and is compatible with the most advanced WEB technologies.
In case of alarm, generated by motion detection or external input, a video clip can be automatically uploaded to a YOU TUBE account.
This is a very convenient feature to create a remote back up video storage, easy to access from anywhere.
When uploading files to You Tube you can choose to TWEET a TWITTER account in order to be informed in real time.
The video server also supports the YOICS service which make the remote access over the Internet very easy and convenient even if you do not have a static IP address or cannot
set the router ports.
|
 |

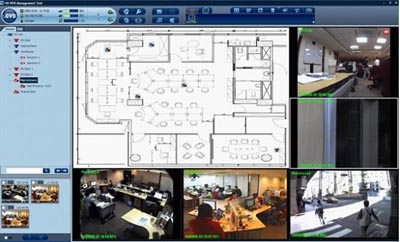

Recording software
Unlike analogue systems that need all cameras to be connected to video-recorders, in IP CCTV the video-recording is usually operated over the network by IP surveillance software.
All DSE video servers come with a free professional NVR software for Windows XP/Vista/7 to watch and record up to 16 cameras.
The video-recording software supplied with the RN-6901 is also suitable for all
DSE H264 megapixel IP cameras.
The software include many control features like:
AUTO CONFIGURATION - The program search for DSE video servers within the network and configure them automatically.
ADVANCE MONITORING - Monitoring screen can be configured and you can set zoom and play speed when watching the cameras.
SCHEDULE RECORDING - With programmable weekly scheduler
MOTION DETECTION - To start recording in case of intrusion
ADVANCED SEARCHING - Time line based searching make video
management easy and convenient.
DSE video servers are also compatible with most multi-protocol IP recording software on the market.
|
