Power supply units and UPS for CCTV systems


Products


POWER ADAPTORS

RE-AL1S/C
220VAC/12VDC 1A power adaptors

RE-AL6
220VAC/12VDC 1A adaptor - PCB type

RE-AL3C
220VAC/12VDC 3A power adaptor

RE-AL5M
220VAC/12VDC 5A power adaptor - 4 output

RE-AL4USB
USB
220V 5VDC adaptor

RE-AL125
12VDC/5VDC
adaptor

POWER UNITS

RE-AL15
220VAC/12VDC 15A power supply distribution box

RE-AL3B
220VAC/12VDC 3A power supply distribution box with UPS battery bay

RE-AL10B
220VAC/12VDC 10A power supply distribution box with UPS battery bay

RE-NP712
12VDC 7Ah battery for RE-AL--B

UPS

RE-UPS5
220VAC UPS 500VA


Further information
Technical data


Prices
Price list


Place an order
How to order




POWER ADAPTORS

1A power adaptor
RE-AL1S
220VAC/12VDC 1A adaptor


RE-AL1C
220VAC/12VDC 1A adaptor with cable

3A power adapter
RE-AL3C
220VAC/12VDC 3A adaptor


RE-AL5M
220VAC/12VDC 5A adaptor
with 4 output terminal board

SPECIAL ADAPTORS


RE-AL6
220VAC/12VDC 1A board adaptor



USB power adaptor

RE-AL4USB
220VAC/5VDC 1A USB adaptor



DC DC power adaptor 5VDC 12VDC

RE-AL125
12VDC to 5VDC power adaptor

POWER SUPPLY UNITS

RE-AL20
RE-AL20
220VAC/12VDC 20A power supply unit

UPS function

RE-AL3B
RE-AL3B
220VAC/12VDC 3A power supply unit with UPS battery bay

UPS function

RE-AL10B
RE-AL10B
220VAC/12VDC 10A power supply unit with UPS battery bay

220VAC UPS

UPS function


RE-UPS5
220VAC UPS 500VA
For 220VAC backup

TECHNICAL DATA

power adaptors datasheet





Most of the products in the DSE range are designed to be powered at 12 V Direct Current, for safety purposes.
These power units are useful to convert 220VAC mains voltage to 12VDC.
Models with mains power plug are usually installed closed to the device, as a local, stand-alone power unit.
Models with metal casing are more often used as a central power supply unit for the whole CCTV system, with optional battery backup.

All DSE power adaptors are REGULATED, which means they always supply 12 V power, independently of the load applied. Please do not use non-regulated adaptors with our cameras, because they the most frequent cause of camera problems.
More information on powering a CCTV system is available in the tutorial section.

 12VDC POWER ADAPTORS

RE-AL1S (12V/1A)
Regulated adaptor 220VAC to 12VDC, 1A with built-in plug.
This adaptor supplies 1A at 12VDC and is suitable for powering most DSE equipment, except those requiring high power supply, like PTZ cameras or DVR.
The DC output plug is 5.5 mm outside diameter and 2.1 mm inside, positive inside. AC plug is built-in.

RE-AL1C (12V/1A with cable)
Regulated adaptor 220VAC to 12VDC, 1A with cable plug.
This adaptor is in most aspects similar to the previous model, but it comes with the 220V plug mounted on a cable instead of being built-in.
This model is recommended when the adaptor is not plugged onto a mains socket, like inside junction boxes. In such a case the mains plug may be removed, connecting the wires straight to the terminal board.

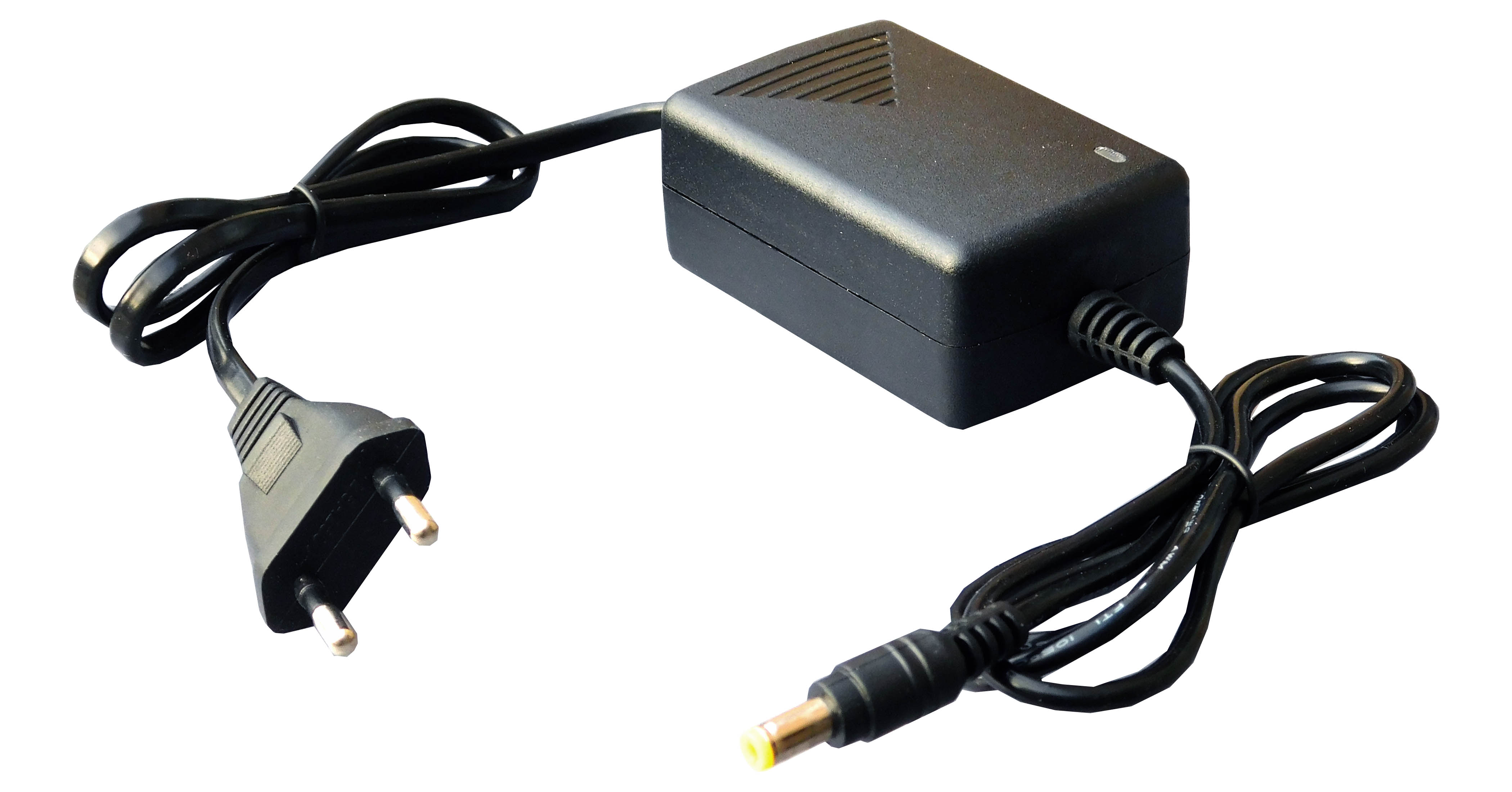

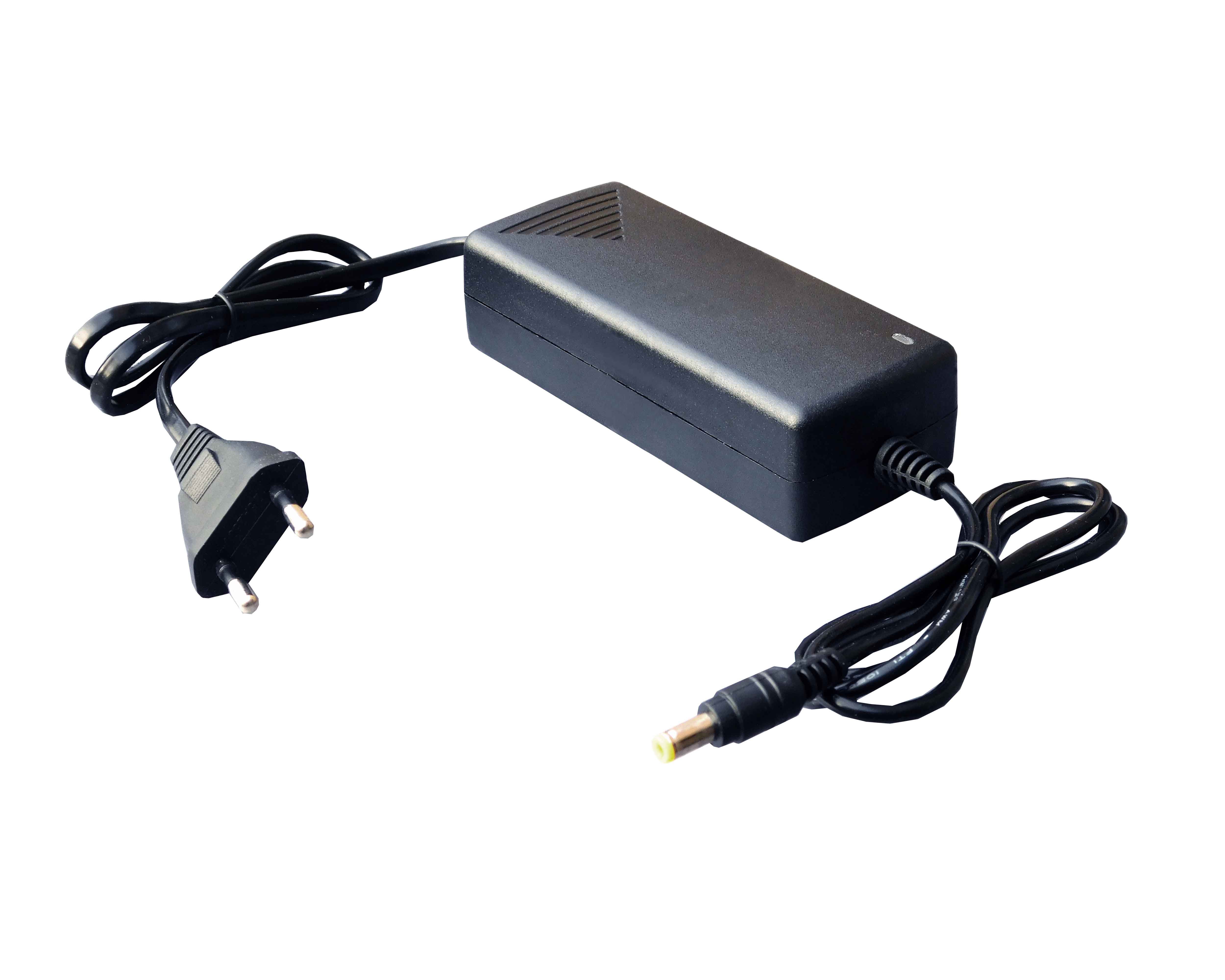

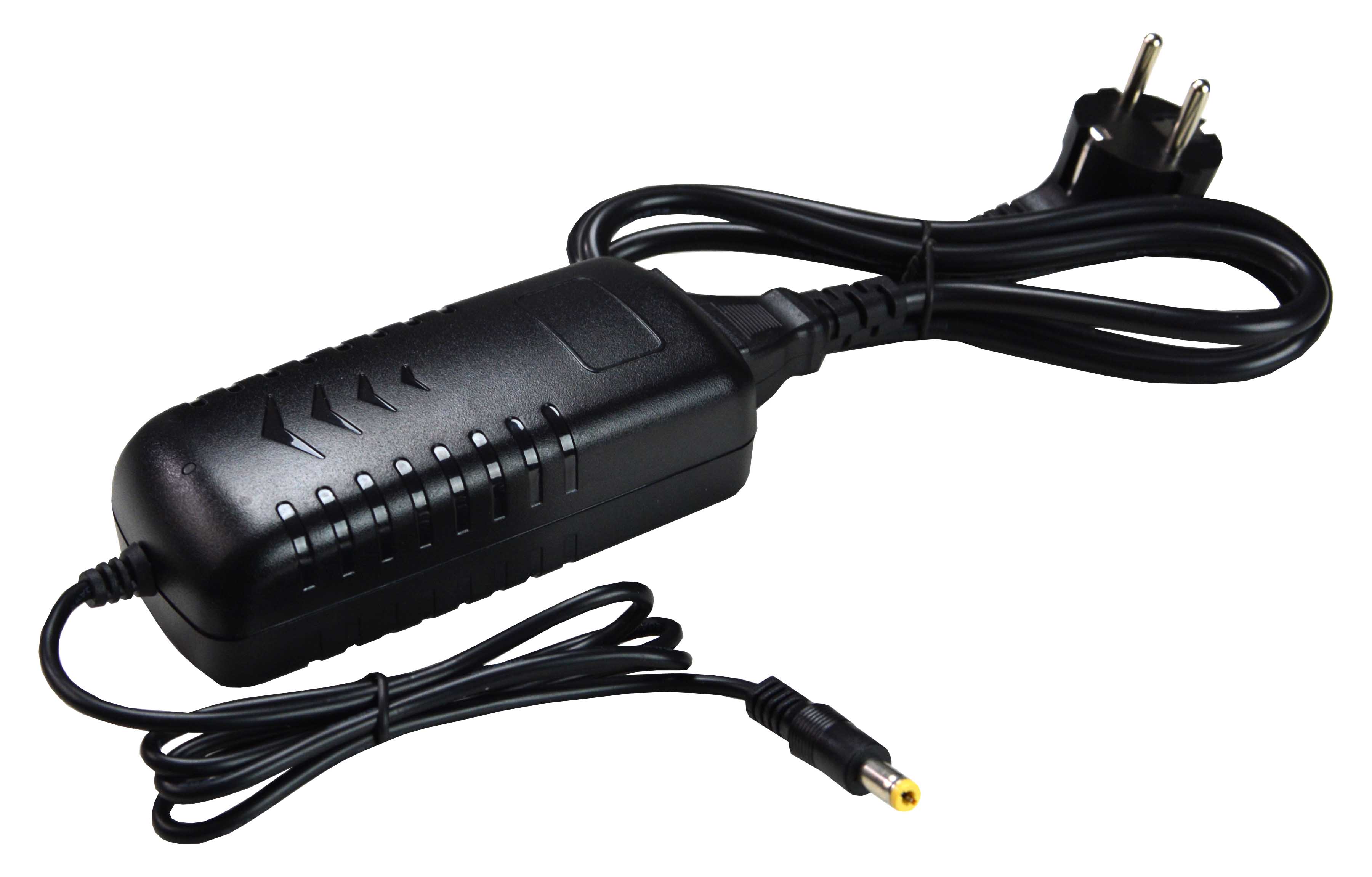

RE-AL3C (12V/3A with cable)
Regulated adaptor 220VAC to 12VDC, 3A with cable plug.
Like previous model, but higher power (3A). Ideal for powering high consumption devices like PTZ cameras or DVR.
Supplied with separate power cord.

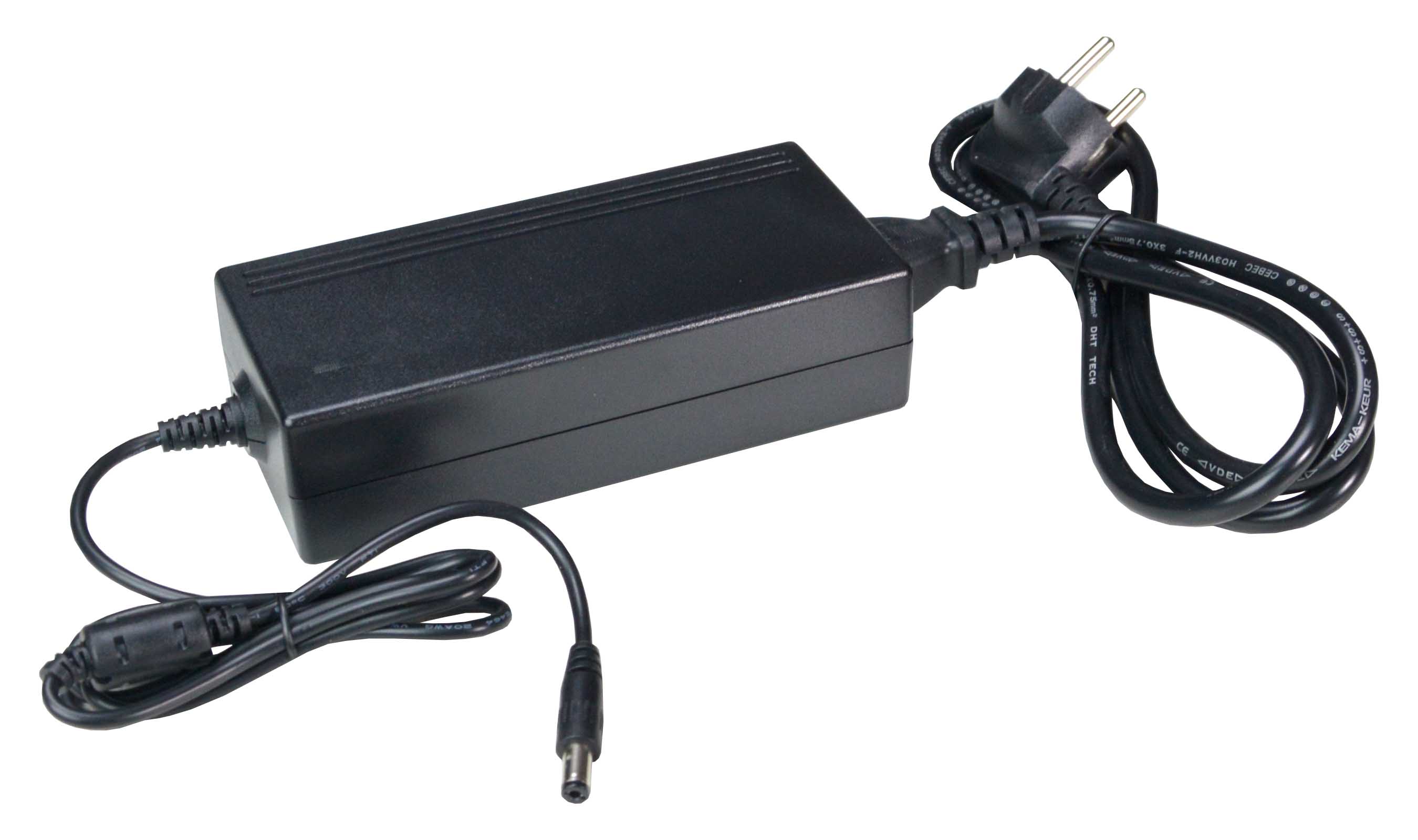

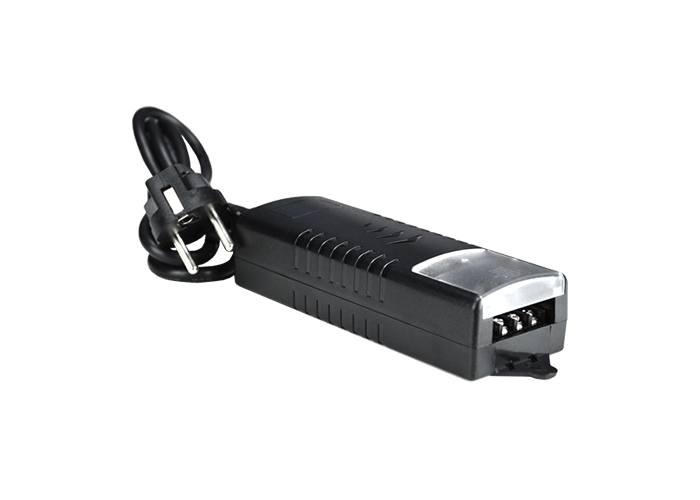

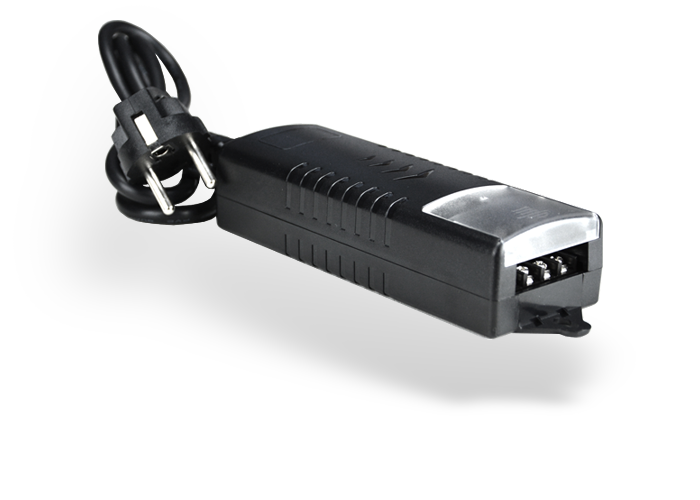

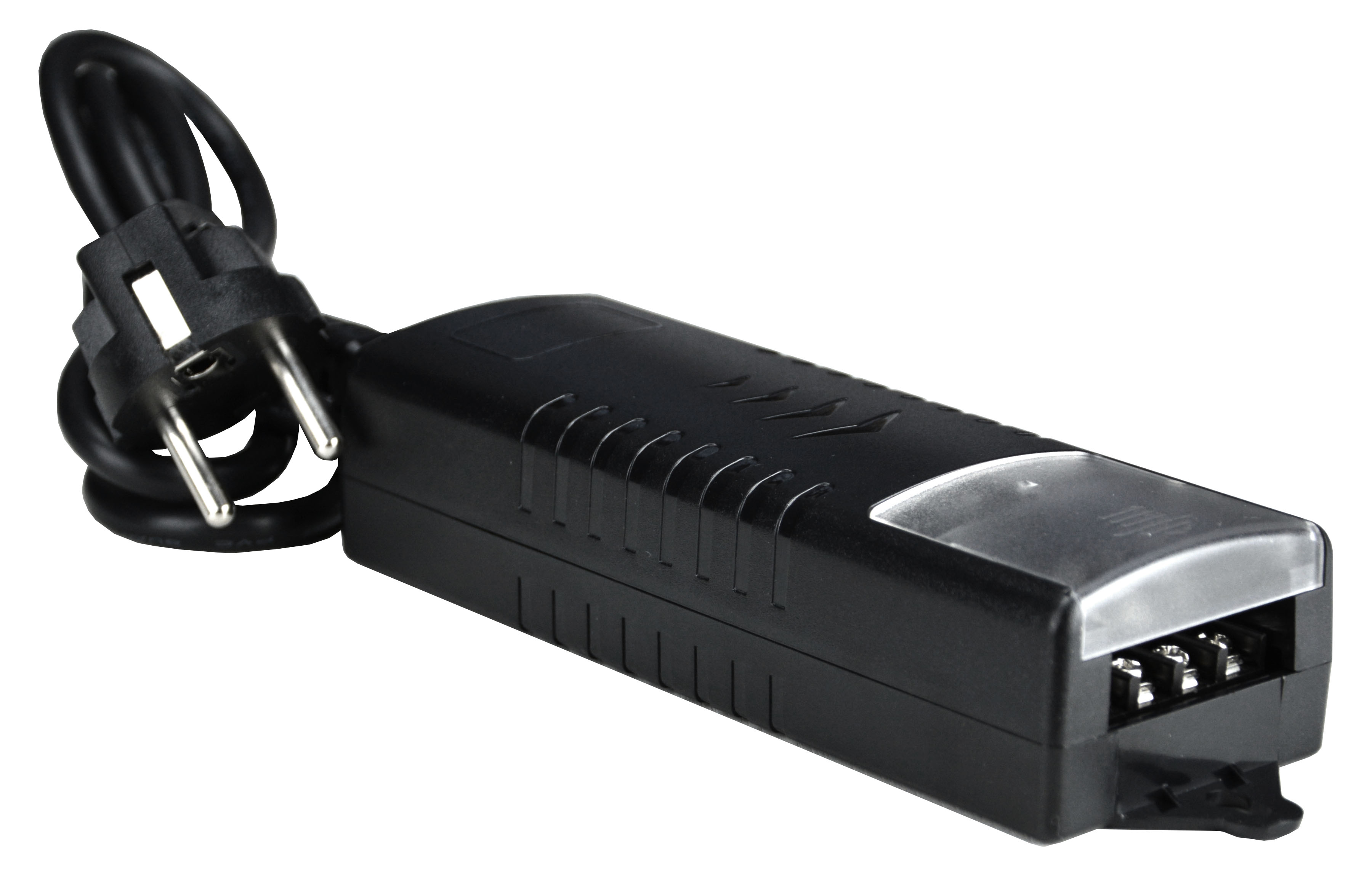

RE-AL5M (12V/5A with cable - 4 output)
Regulated adaptor 220VAC to 12VDC, 5A with cable plug and terminal board.
This high power adaptor is designed to power a few devices like, for example, 3 or 4 cameras. It comes with built-in 4 output terminal board. It is also a good central power supply unit for small systems up to 4 cameras.
Supplied with separate power cord.

 SPECIAL POWER ADAPTORS

RE-AL6 (12V/1A)
Regulated adaptor 220VAC to 12VDC, 1A PCB type.
Like RE-AL4S, but supplied as a printed circuit board only.
This 1A switching adaptor is supplied without protection casing and is meant to be installed inside boxes.
RE-AL6 size is just 45x60 mm. It comes with a terminal board to connect the 220V mains input and the classic 5.5 mm jack for powering the 12VDC device.
A double side adhesive strip is placed on the back of this adaptor which sticks securely when pressed onto any surface.
RE-AL6 is ideal for installation in junction boxes, even when small (eg. BTicino 503), or inside the camera housing.

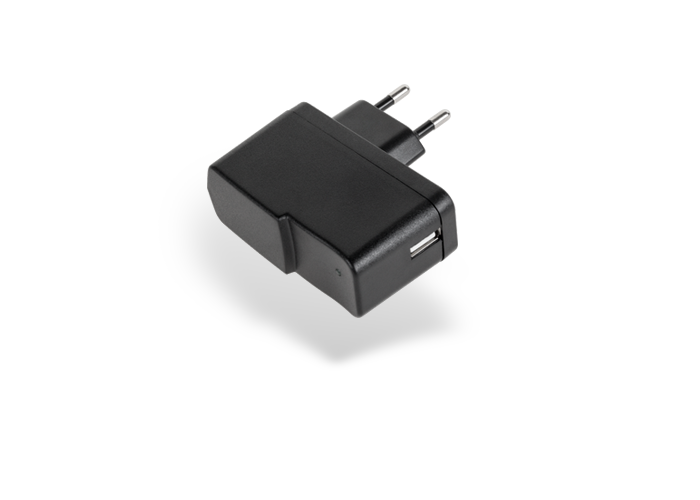

RE-AL4USB (5V/1A USB)
Stabilized adaptor suitable for any USB device.
RE-AL4USB supplies 1A at 5VDC and is suitable for powering our battery power USB equipment that can be recharged without the need of a PC.
Suitable to all DSE minicameras with built-in memory.
USB cable is not included (normally sold with the device)

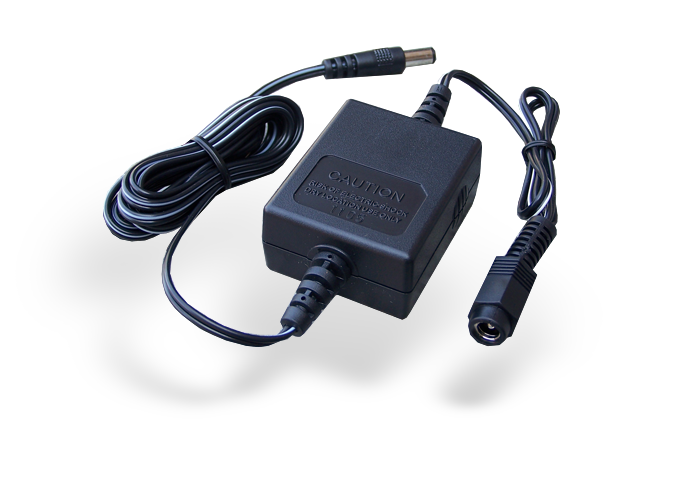

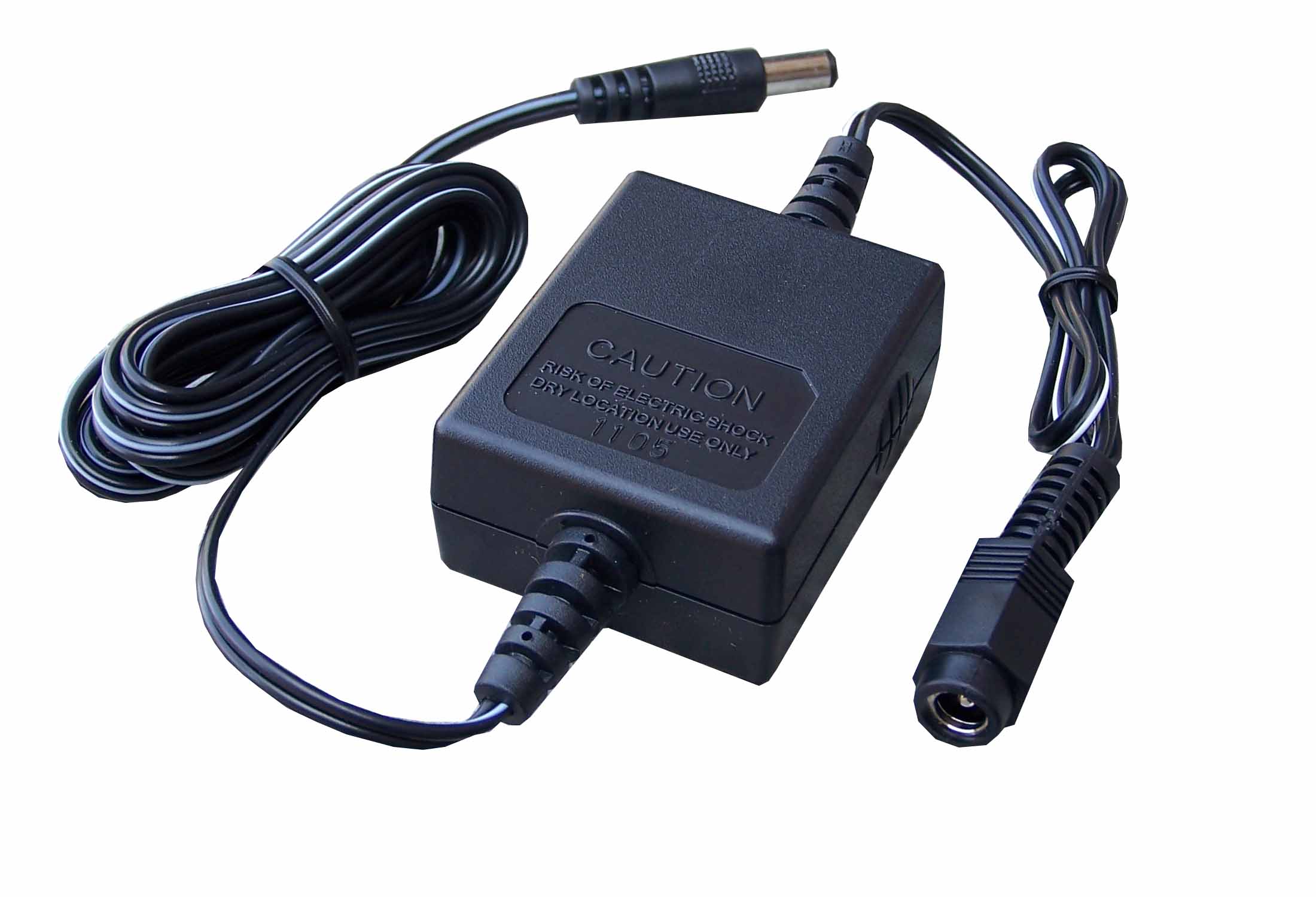

RE-AL125 (12VDC/5VDC voltage adaptor)
Voltage adaptor to power 5VDC devices with 12VDC power units. 1A power.
5VDC devices are getting more and more popular. If you have to connect one of these equipment to your 12VDC power line, then this adaptor is good for you.
12VDC input: 5.5 mm jack
5VDC output: 5.5 mm plug

 12VDC POWER SUPPLY UNITS

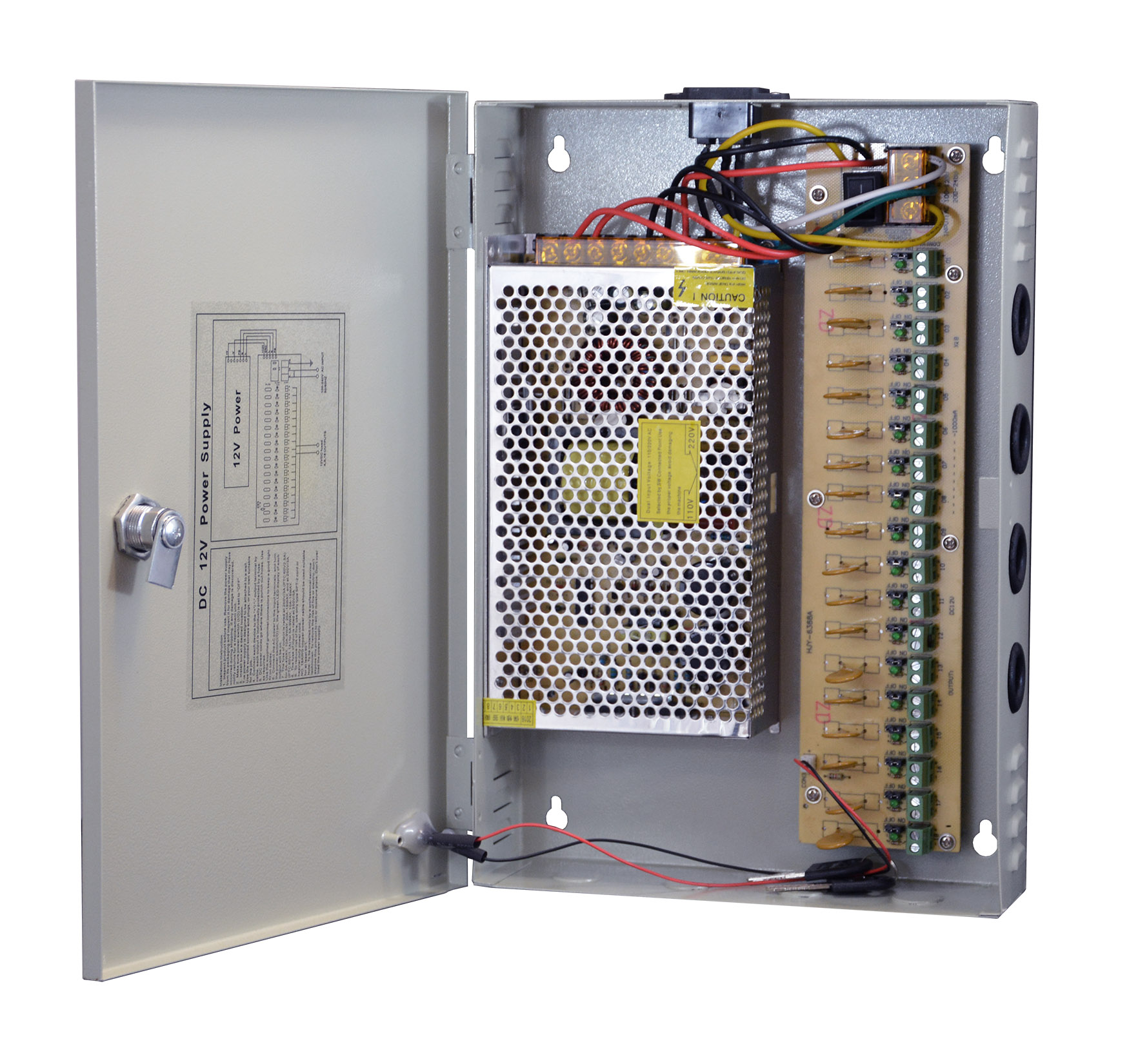

RE-AL20 (12V/20A distribution box)
This power supply distribution box is ideal for powering several cameras with a single power source. It has 18 12VDC output for cameras and 1 AC input (from 100 to 240 VAC).
All outputs have a PTC protection against overload and short circuit which, unlike fuses, does not need to be replaced.
ON/OFF main switch is also included.
The RE-AL15 power box comes in a metal casing suitable for wall mounting with cable holes and key lock.

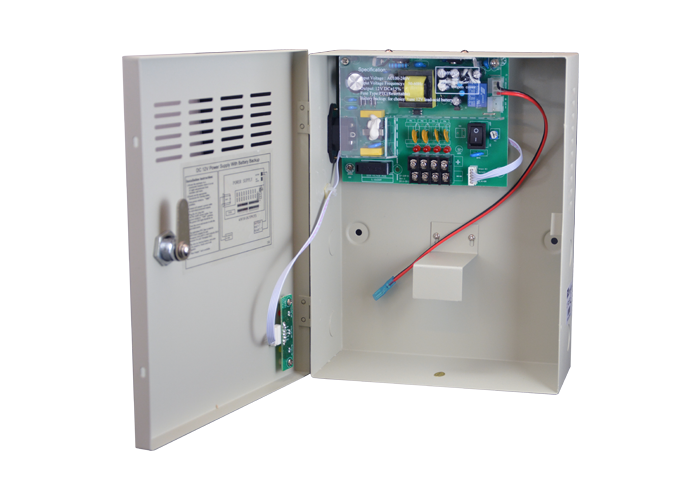

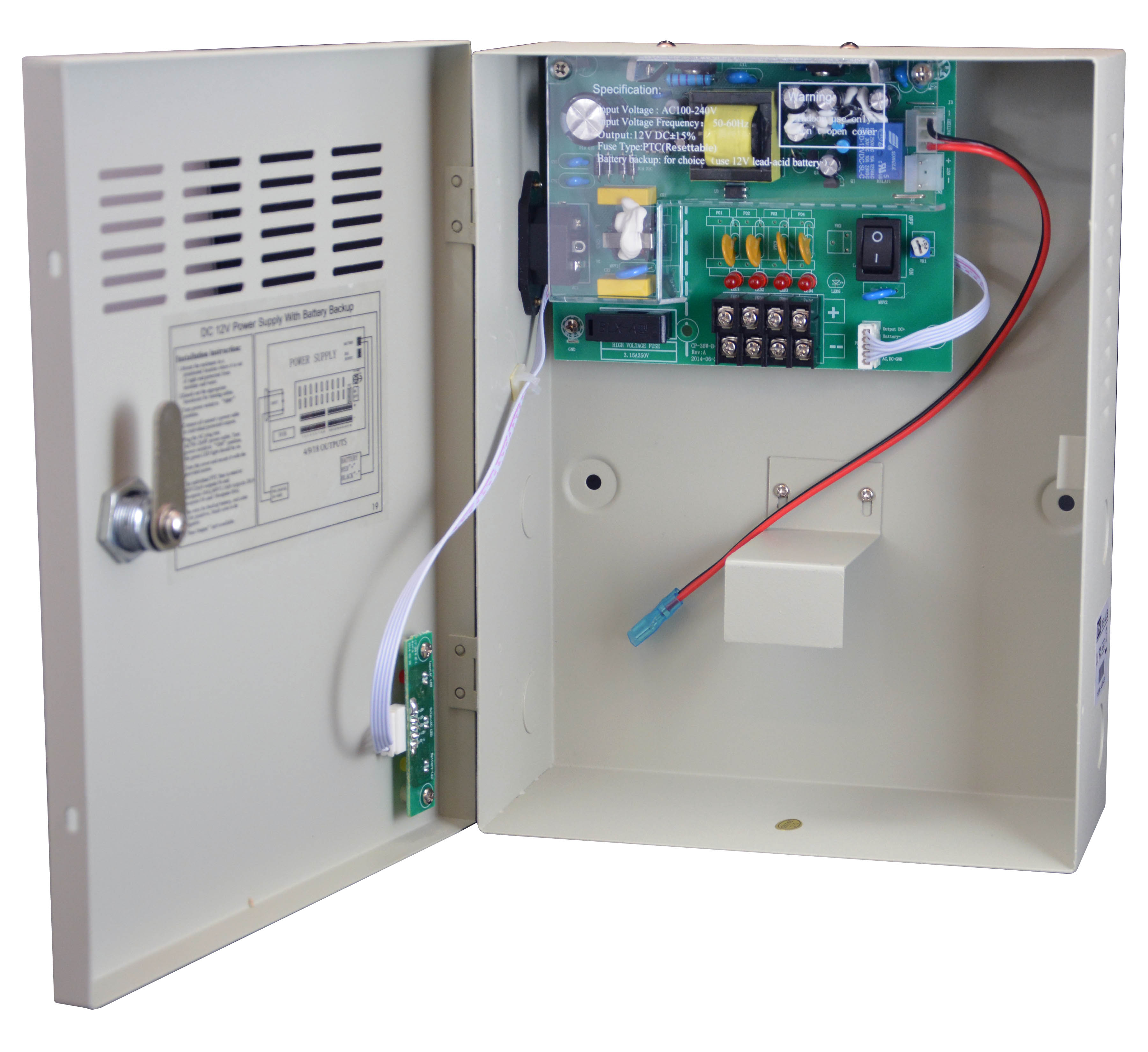

RE-AL3B (12V/3A distribution box + UPS battery bay)
This power supply distribution box is ideal for powering several cameras with a single power source if UPS function is required. This PSU has 4 12VDC outputs for cameras and 1 AC input (from 100 to 240 VAC). All outputs have a PTC protection against overload and short circuit which, unlike fuses, does not need to be replaced.
ON/OFF main switch is also included.
The power supply unit includes a battery bay for a 7Ah 12VDC battery (not included) which keep the system alive in case of power failure. The battery is automatically recharged once mains power is restored. Battery for CCTV 12V 7Ah
RE-AL3B has UPS feature, so there is no output power interruption during AC/DC switching. This make this power unit also suitable to power DVR/NVR.
This power box comes in a metal casing suitable for wall mounting with cable holes and 3 status LED's on the front door.

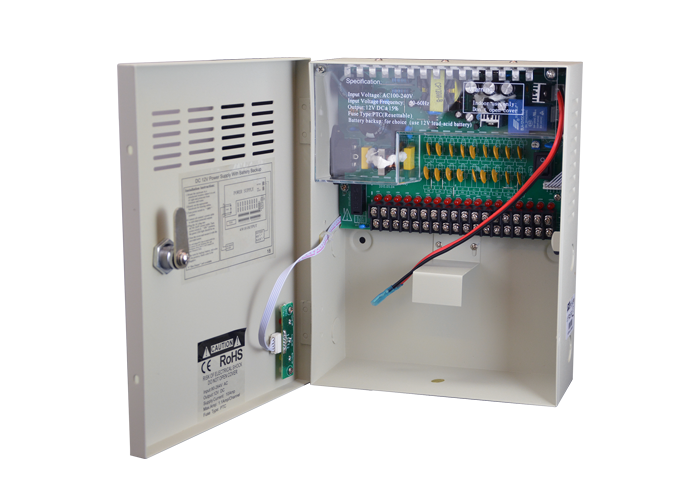

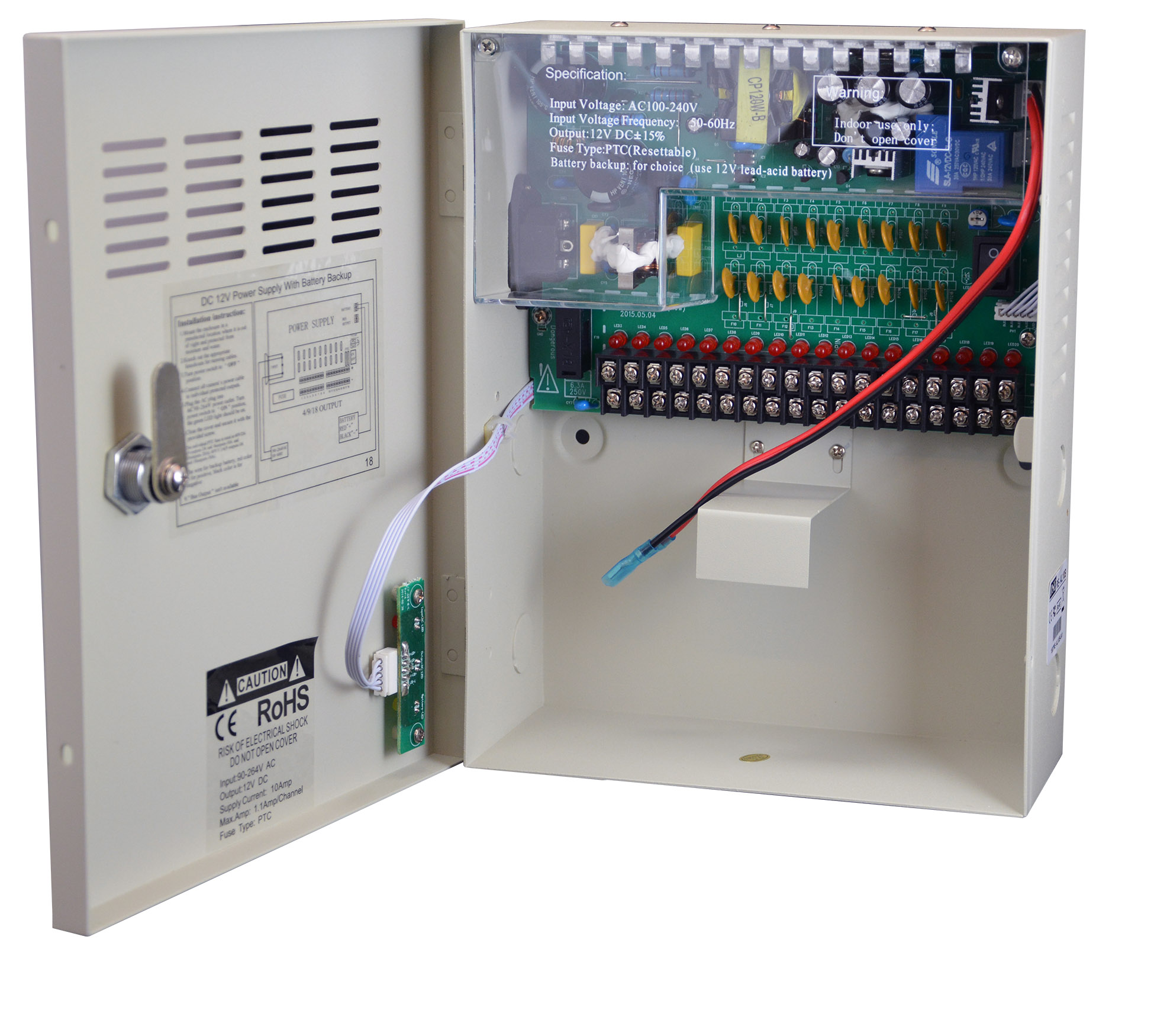

RE-AL10B (12V/10A distribution box + UPS battery bay)
This power supply unit is like the one above, but provides 10A power and come with 18 outputs.

 220VAC UPS

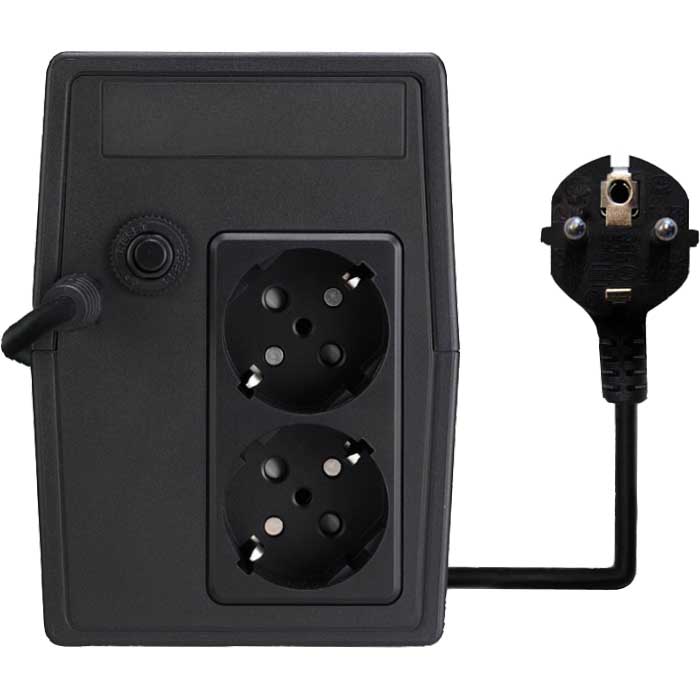

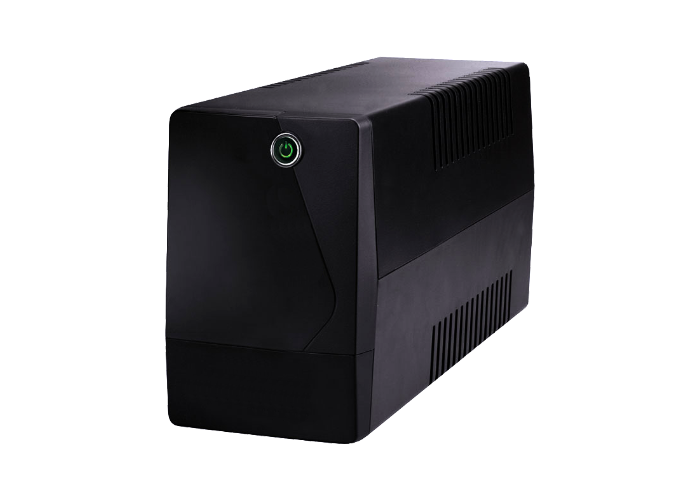

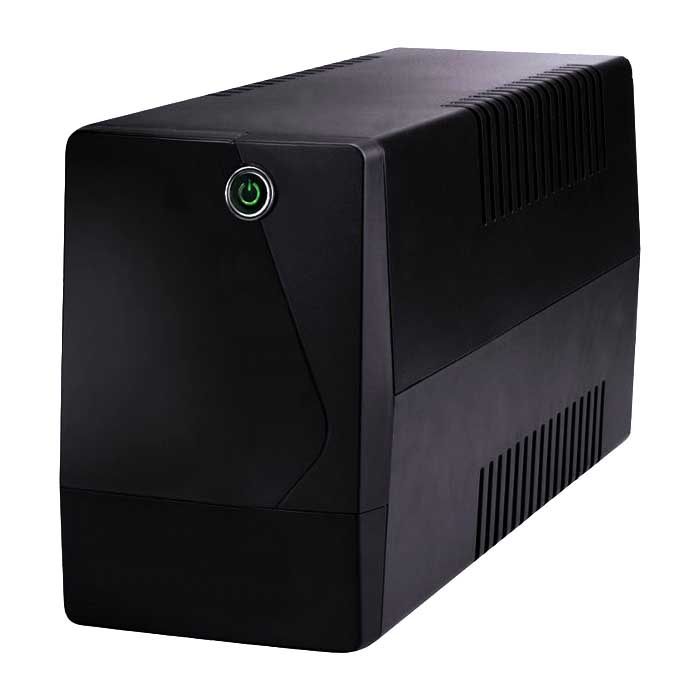

RE-UPS5
UPS stand for Uninterruptible Power Supply. In fact, this UPS is made to supply 220VAC power in case of mains failure.

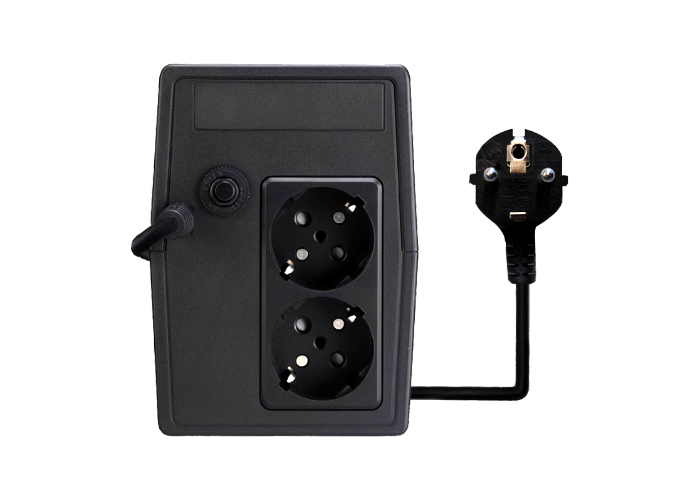

This UPS come with a 220VAC mains input and 2 x 220VAC output to connect the devices to backup. Inside this device, there is a 7Ah 12VDC rechargeable battery.
In case of mains failure, this UPS supplies 220VAC power to the devices which are connected to the 2 outputs. There is no gap between the power failure and the backup battery bower, therefore this UPS can be used to back up sensitive equipment like PC, DVR, router, switch etc.
This UPS is able to provide max 500VA power (300W) and comes with LEDs and buzzer to warn about power status and technical troubles.Battery for CCTV 12V 7Ah Besides, this UPS provides electrical protection against overvoltage, overload and short circuit.
Unlike other UPS on the market, this device use standard 12VDC 7Ah rechargeable batteries for burglar alarms, which are much cheaper to replace then special batteries (Our Ref. RE-NP712).



Further information on powering CCTV systems is available in the tutorials section. For more technical data please consult the datasheet.
