Accessories for High Speed Dome cameras

ORDER REFERENCES

SD-CON1
Controller for Speed Dome cameras

SD-CON2
Low-cost controller for Zoom cameras and Speed Dome cameras

SD-CON1
Controller for High Speed Dome cameras

SD-CON2
Low-cost controller for Zoom cameras and High Speed Dome cameras


SD-232485
RS232/RS485 adaptor for controlling high speed dome cameras from PC

SD-USB232
USB/RS232 adaptor for controlling high speed dome cameras from PC that do not have COM ports.

 Controllers for High Speed Dome cameras

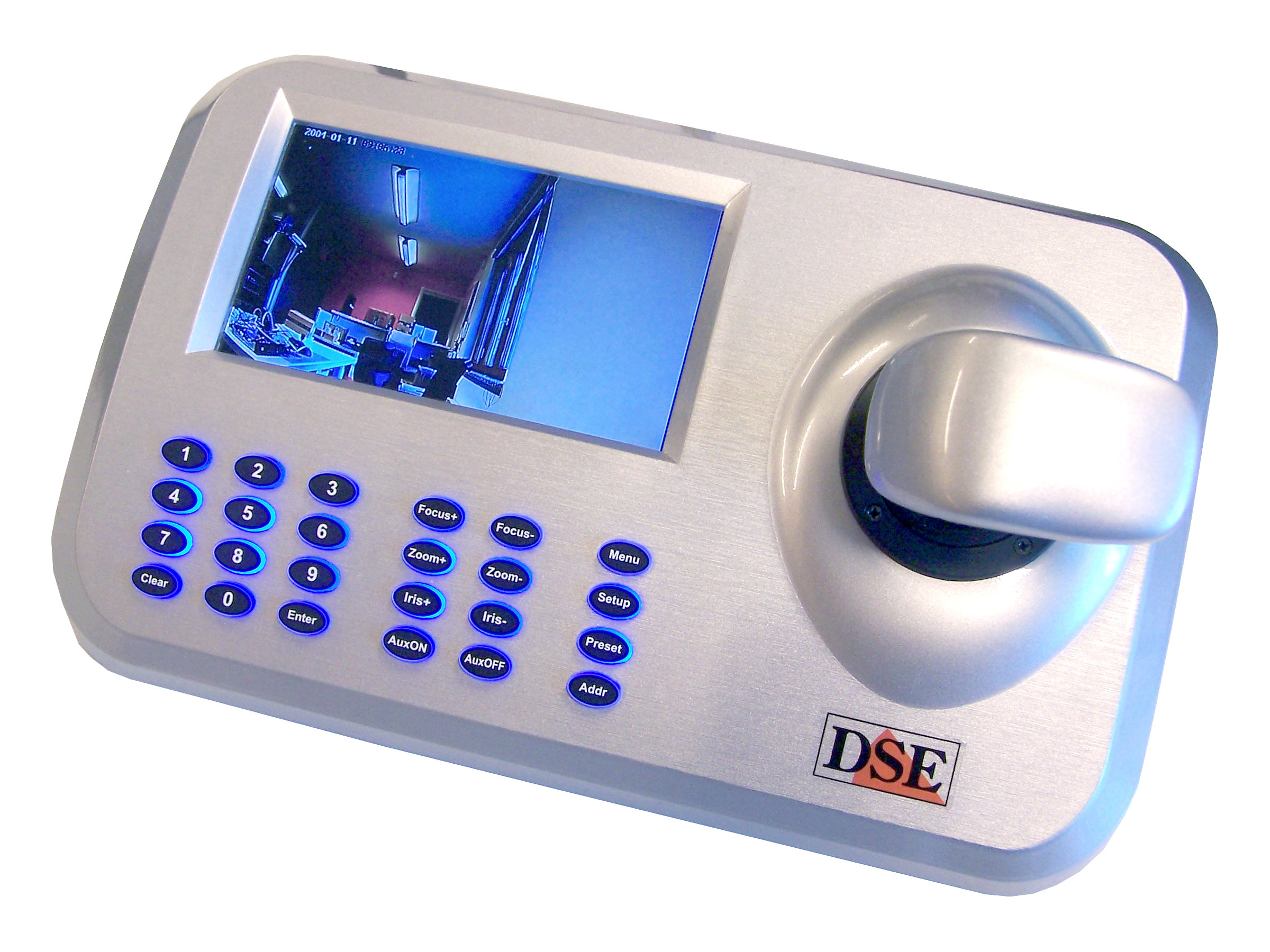

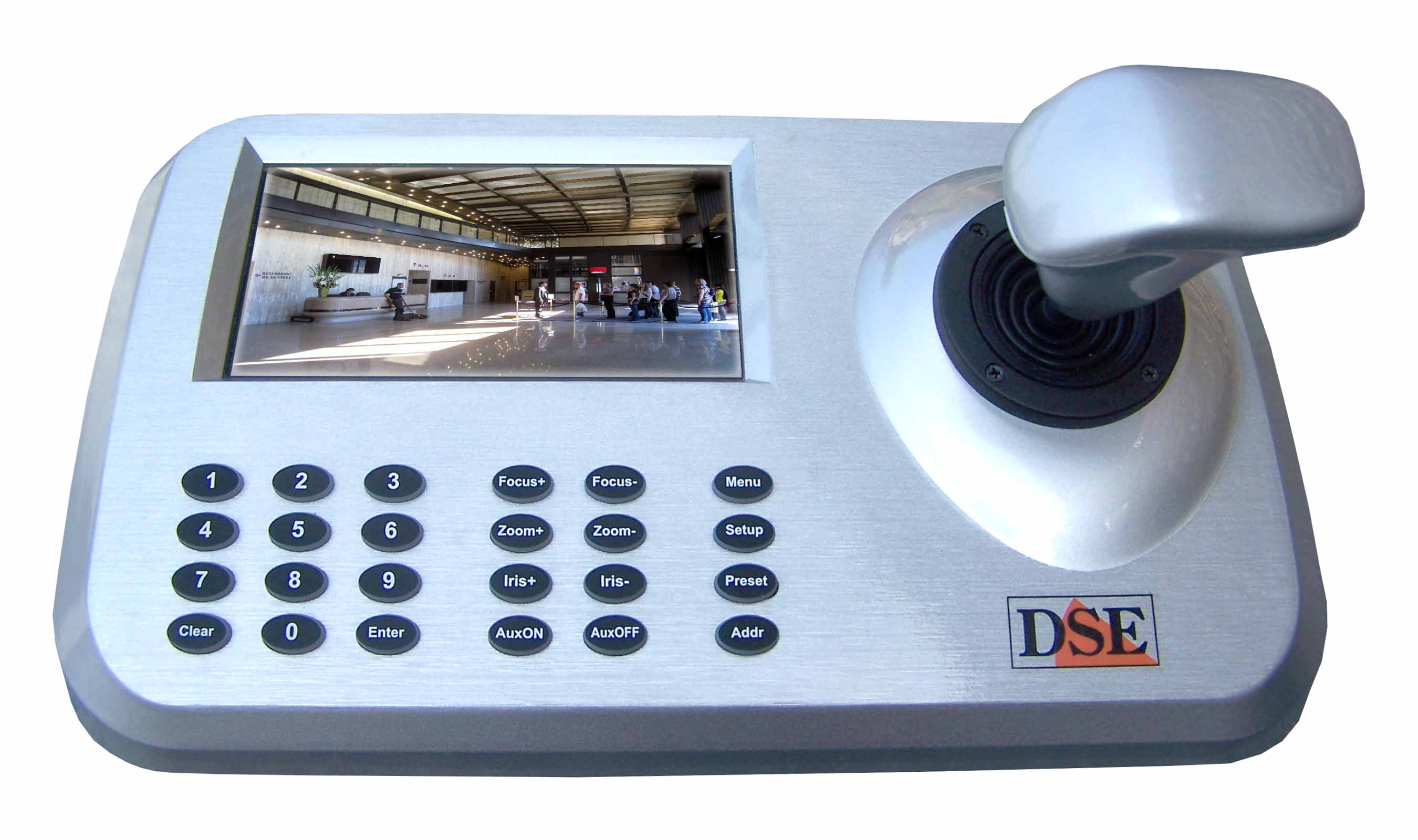

SD-CON1

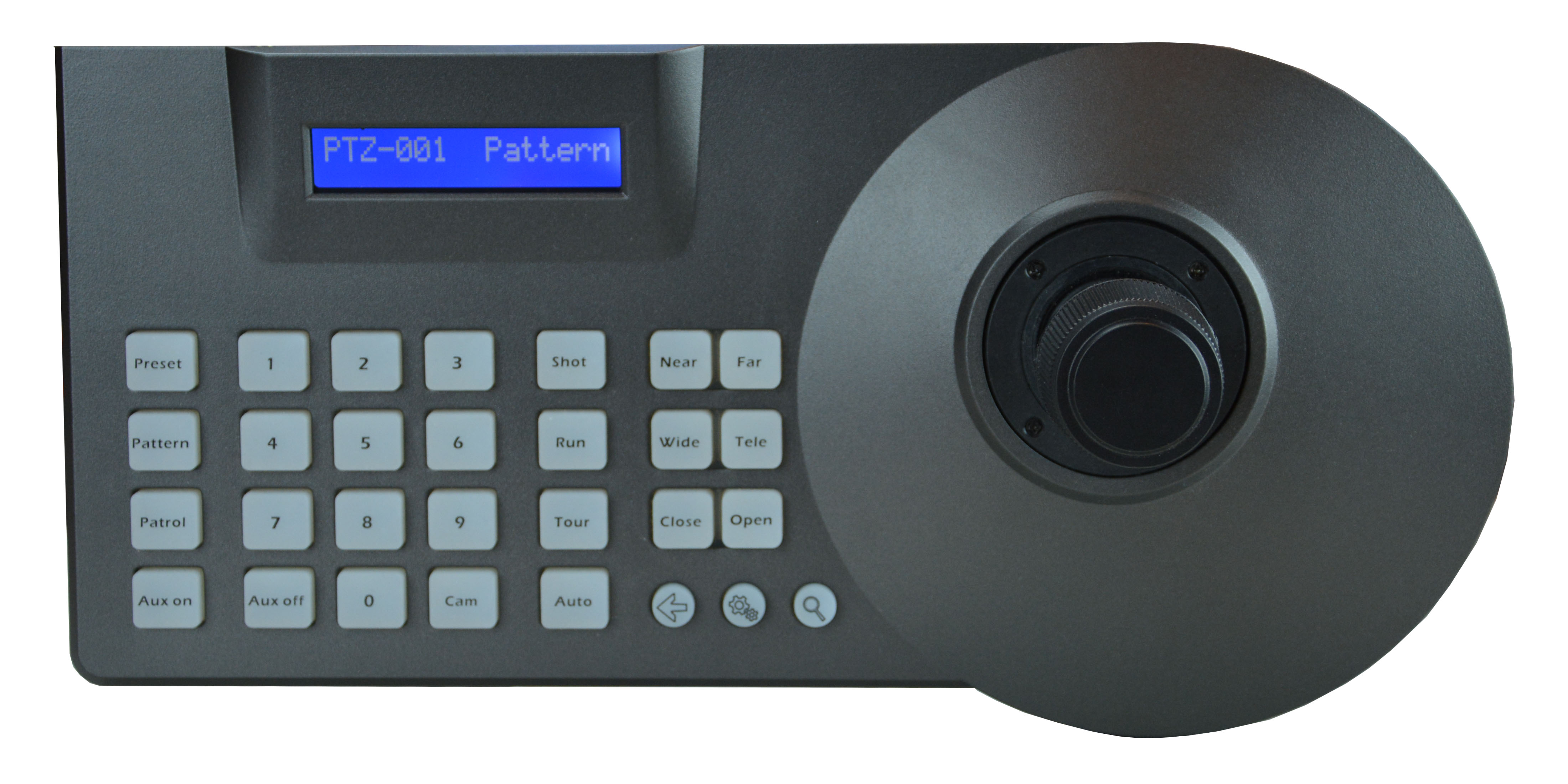

A control panel is used to control the movements and lens of high speed dome cameras. Control panel SD-CON1 can be used with all DSE high speed dome cameras in the SD-22 and SD-27 ranges.
With one control panel it is possible to control up to 64 different cameras, and up to 32 cameras can be installed on one twisted pair cable.
The control panel has a precision joy-stick for movement control and buttons for controlling zoom, focus and lens iris functions.
The keyboard can be used to set the preset positions and all automatic movements of speed dome cameras
The MENU button enables you to software the internal parameters of each individual camera.

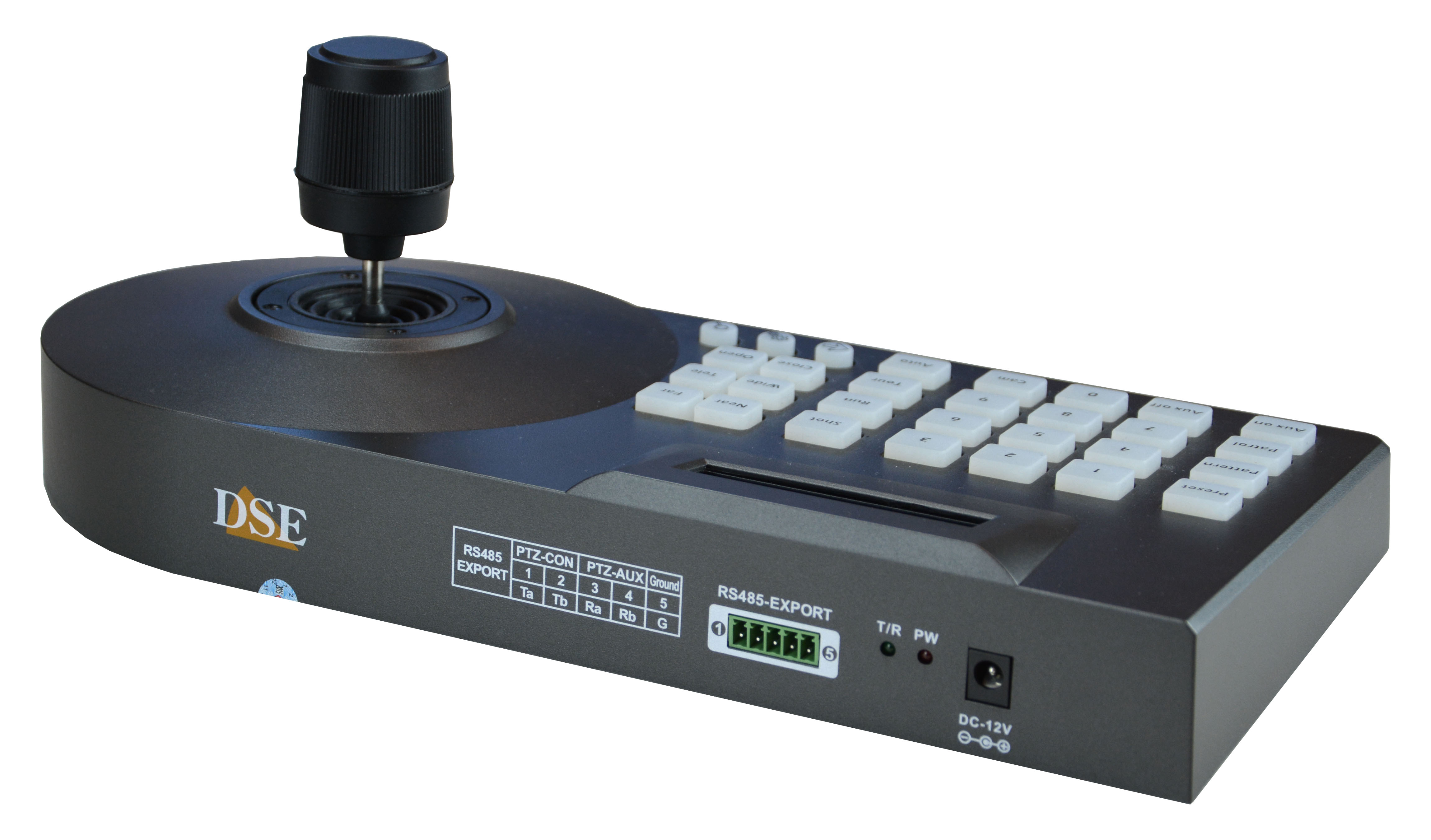

The control panel connects to the cameras by means of a twisted pair cable (RS485 serial line), and takes a 9VDC power supply using the adaptor included. The transmission protocol is the PelcoD, widely used in the CCTV industry.
A spacious back-lit display provides clear information on the operations being performed.

SD-CON2
This is a low cost controller, designed to control DSE zoom cameras. It can also be used for speed dome cameras but it has some limitation and cannot control a few advanced functions (no control of Auto-flip, Tour, Cruise), all of them not required by most applications. Excepting these few functions, the SD-CON1 can operate all controls usually required by speed dome cameras, including the access to the camera programming menu.
As the SD-CON1, also this low-cost version connects to cameras by a single twisted pair (RS485) and uses PelcoD communication protocol. 12VDC power (adaptor RE-AL4S to be bought separately).

 RS232/RS485 interface to control High Speed Dome cameras from PC

SD-232485
DSE high speed dome cameras can also be controlled from a PC using software D-VisionXP/RT software. The powerful D-vision capture card records images in real time and also controls high speed dome cameras with a simple click. It is necessary to make a conversion in order to connect the PC to the cameras, as the serial port of a PC is normally RS232, while the standard used by DSE high speed dome cameras is RS485.
This conversion is required in view of the fact that an RS232 connection would only reach a few dozen metres from the PC, while RS485 reaches up to 1200 m, enabling complex systems to be installed.
Adaptor SD-232485 connects to the COM port (RS232) of the PC and has a terminal board to connect to the twisted pair cable used for the cascade connection of all the cameras.


SD-USB232
This interface can transform any USB port of your PC into a RS232 COM port that can be connected to the RS232485 converter to control speed dome cameras. This is useful if your PC has no COM ports, like most laptops.
