Brackets and supports for High Speed Dome cameras
ORDER REFERENCES
SD-ST2
Long
wall
bracket suitable for cameras
SD-xxEX
SD-ST3
Ceiling
bracket for cameras
SD-xxEX
SD-ST4
Collar for
pole-mounting brackets SD-ST2
Further information
Technical data
Tutorial on PTZ and high speed dome cameras
User manual
Prices
Price list
Place an order
How to order
|
|
SD-ST2
Long wall
bracket
SD-ST3
Ceiling
bracket
SD-ST4
Collar for pole-mounting
brackets SD-ST2
|
|

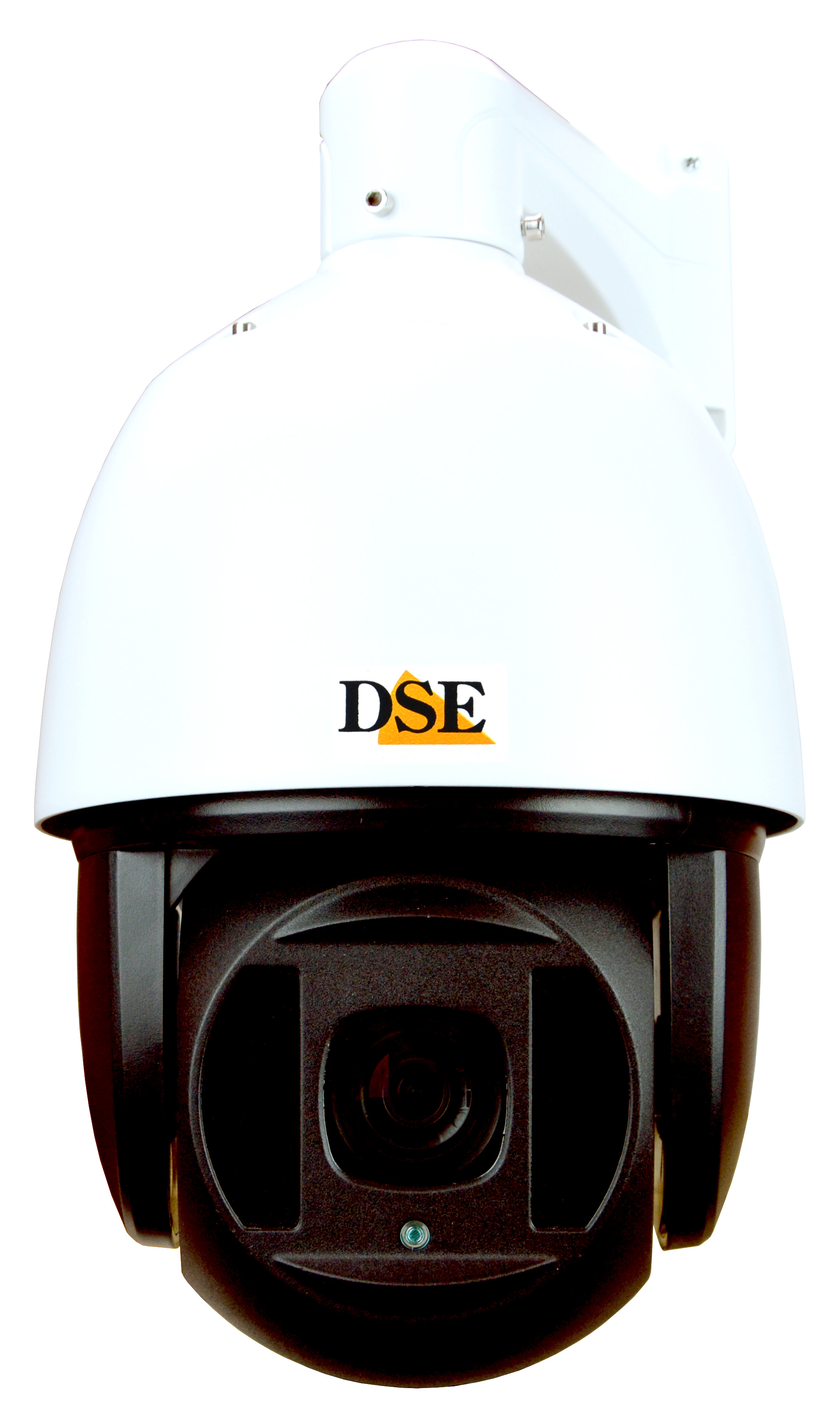

High Speed Dome cameras SD-27EX for outdoor mounting are
mounted on a bracket which is fixed to a wall or ceiling. The
brackets are secured in place with screws and have a easy
attachment for the camera.
All DSE High Speed Dome camera brackets are hollow for cables to
pass through (video cables, 12VDC power supply and commands on
twisted pair cable), thus eliminating unsightly visible wiring.
The robust, elegant design gives the finished installation great
class.
SD-ST1
Short bracket for indoor
and outdoor mounting.
Fixes to the wall using 3 screws and features a spacious central
cable conduit.
Measures 172 mm and is suitable for all bracket-mounted cameras such as SD-xxEX.
Attractive design well suited to prestigious settings.
|
SD-27EX
mounted on bracket SD-ST1 |
SD-ST2
Long wall bracket suited
for all bracket-mounted cameras such as SD-xxEX.
With a generous length of 332 mm, this is ideal for
outdoor use. The camera stand far from the wall and any obstacles along the wall do not present a
problem.

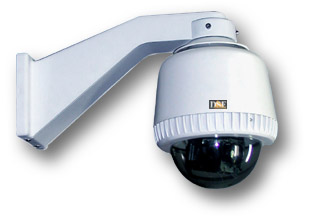

SD-27EX mounted on bracket SD-ST2

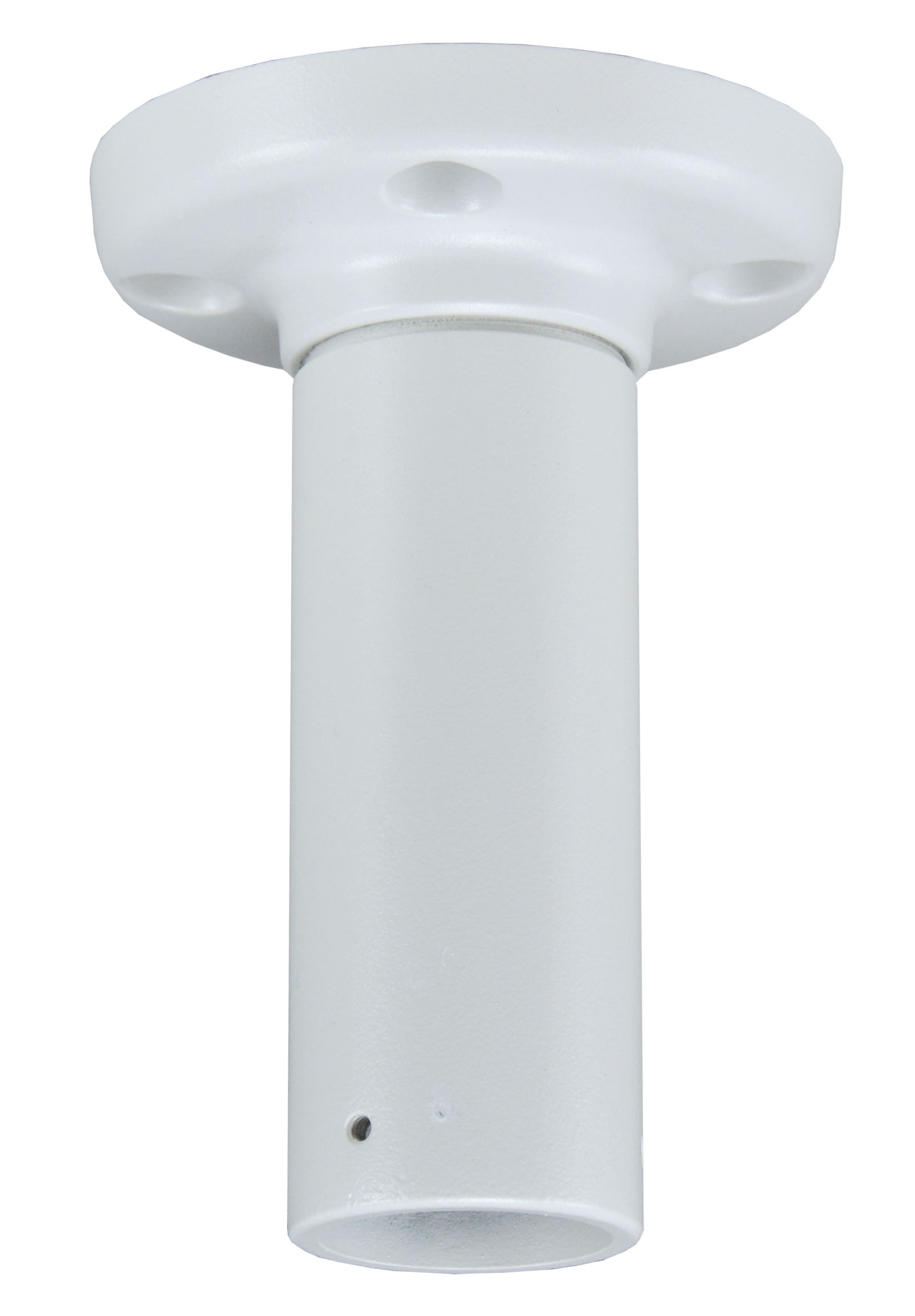

SD-ST3
Bracket for indoor and
outdoor ceiling mounting.
Fixes to the ceiling using 3 screws. Cables are protected inside the bracket.
Measures 150 mm and is suitable for all bracket-mounted cameras such
as SD-xxEX.
Attractive design well suited to prestigious settings.

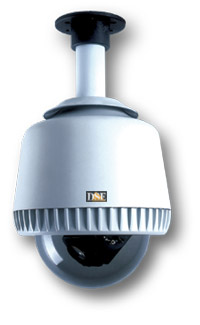

SD-27EX mounted on bracket SD-ST3
SD-ST4
Collar for pole-mounting
brackets SD-ST1 and SD-ST2. 3 robust metal strips for fixing
onto poles up to 15 cm in diameter.
|
