POE switch and accessories





Product codes


10/100

IN-SW4M
IP network switch 10/100 Mbps
4 POE ports +
1 Uplink port

IN-SW8MX
IP network switch 10/100 Mbps
8 POE ports +
1 Uplink port

IN-SW16M
IP network switch 10/100 Mbps
16 POE ports +
2 Uplink ports (10/100/1000)

10/100/1000

IN-SW4
IP network switch 10/100/1000 Mbps
4 POE ports +
1 Uplink port

IN-SW8
IP network switch 10/100/1000 Mbps
8 POE ports +
1 Uplink port

IN-SW16
IP network switch 10/100/1000 Mbps
16 POE ports +
2 Uplink port

POE INJECTORS

IN-POE1
Stand-alone POE injector

POE SPLITTERS

IN-POE-SP2
POE splitter to power non-POE 12VDC cameras

POE INJECTORS WITH SPLITTER

IN-POE-SP1
POE injector + splitter to power non-PoE 12VDC cameras with non- PoE switches


Prices
Price list


Place an order How to order





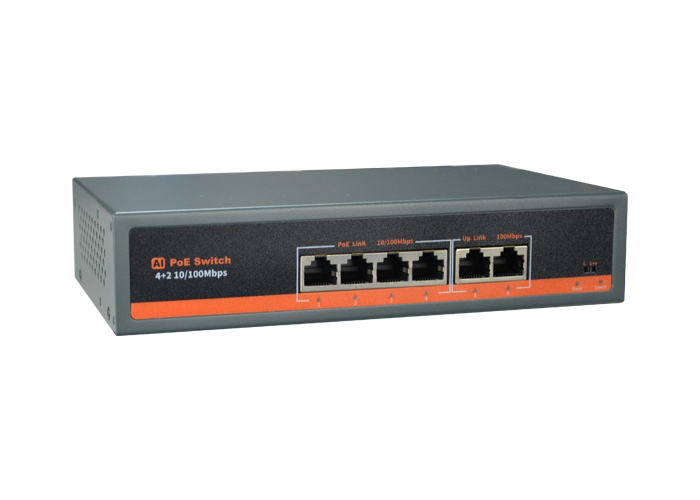

10/100 SWITCH


switch poe 4 porte

IN-SW4M
Ethernet switch with 4 POE + 1 uplink port

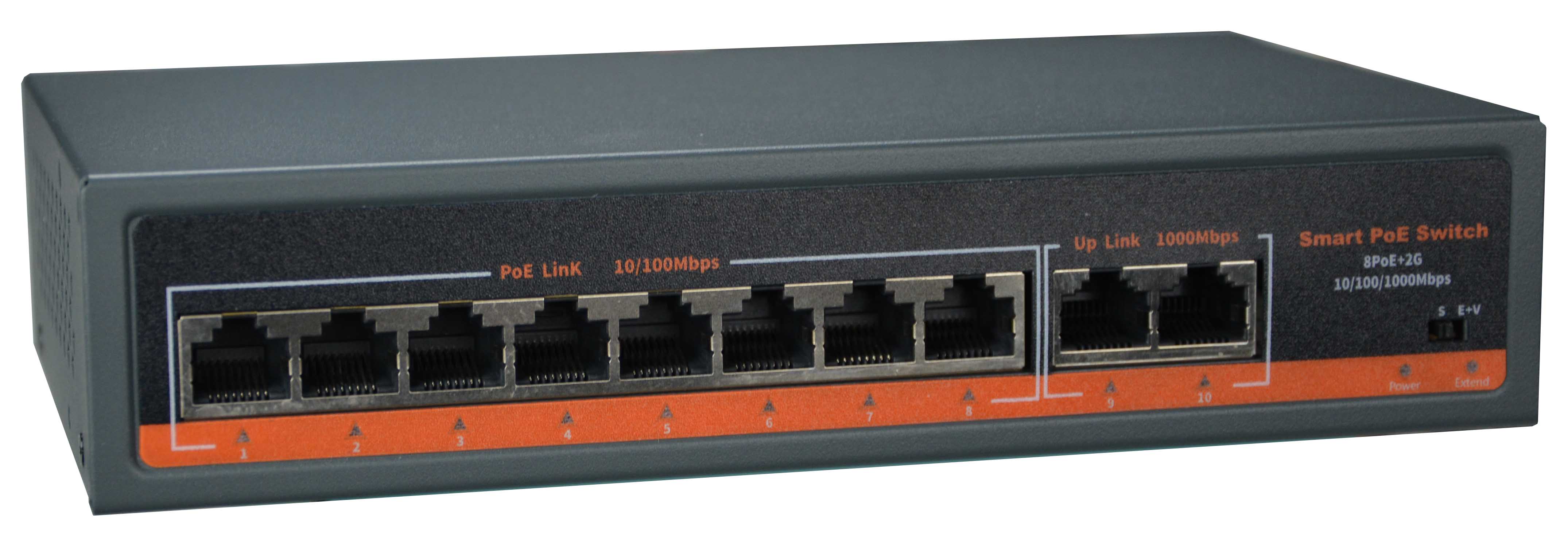

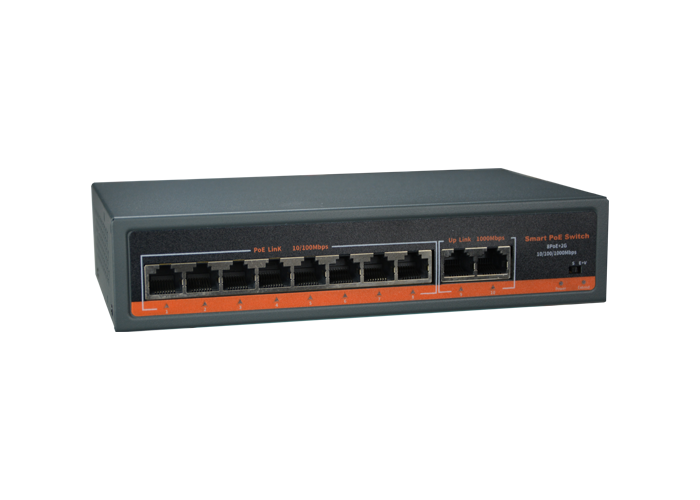

switch poe 8 porte

IN-SW8MX
Ethernet switch with 8 POE + 1 uplink port
250 m. extended POE mode

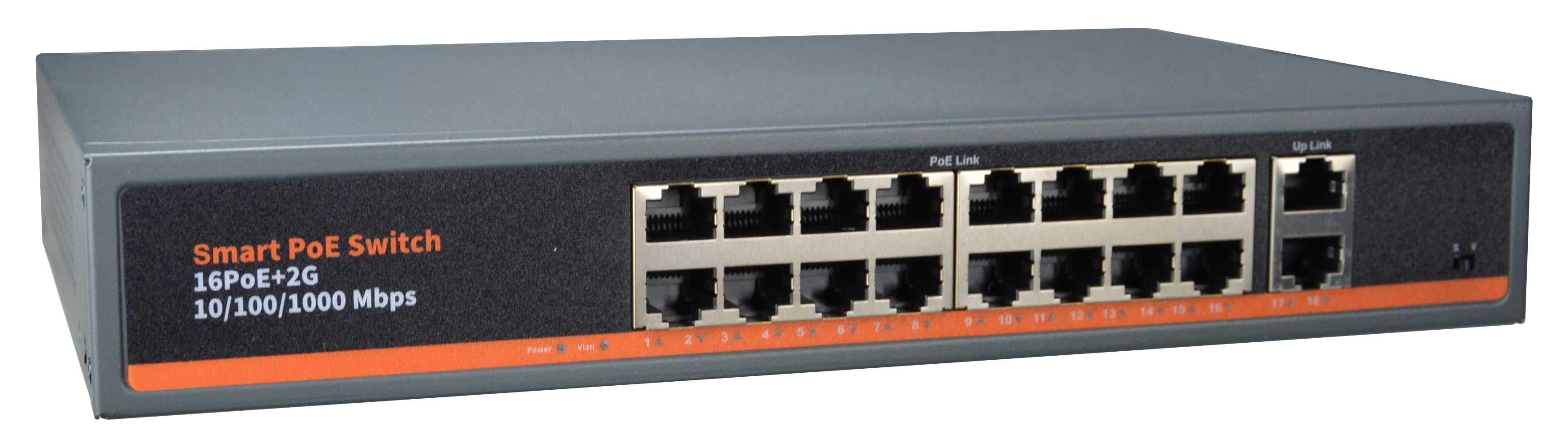

switch poe 16 porte

IN-SW16M
Ethernet switch with 16 POE + 2 uplink ports
(10/100/1000)

10/100/1000 SWITCH


IN-SW4
Ethernet switch with 4 POE + 1 uplink port

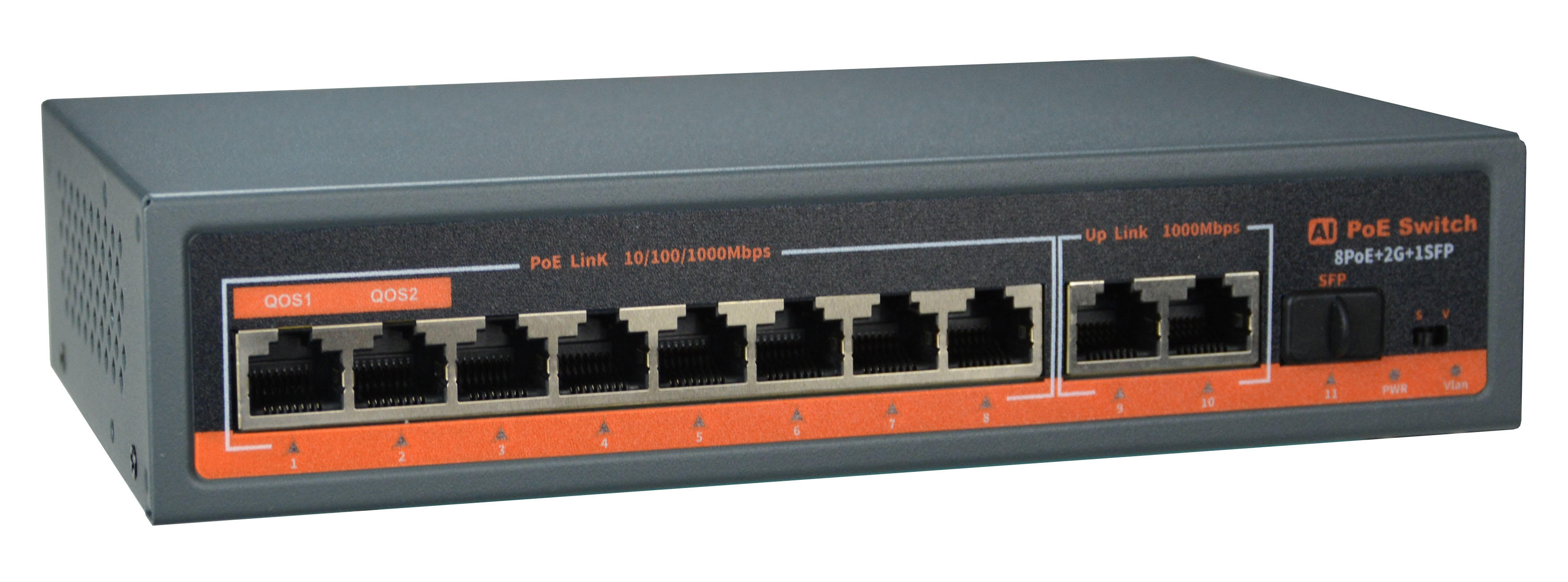

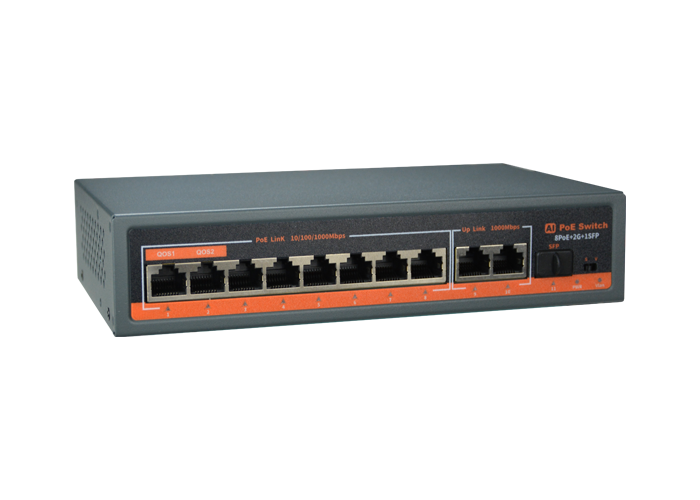

switch poe 8 porte

IN-SW8
Ethernet switch with 8 POE + 1 uplink port

switch poe 16 porte

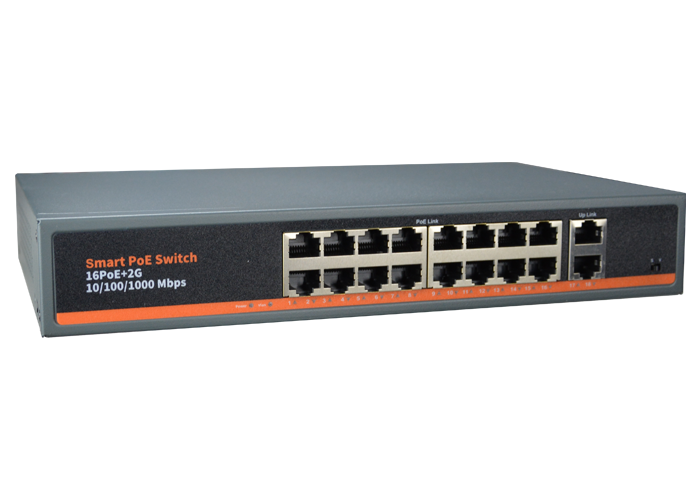

IN-SW16
Ethernet switch with 16 POE + 2 uplink ports

POE INJECTOR

switch poe 4 porte
IN-POE1
POE injector
100 m. POE range

POE SPLITTER

splitter poe
IN-POE-SP2
POE splitter for 12VDC, non-POE, IP cameras

DC INJECTOR WITH SPLITTER

splitter poe
IN-POE-SP1
POE injector with splitter (2 units) to power 12VDC, non-POE, IP cameras with non-POE switches

HIGHLIGHTS

IEEE 802.3af PoE
10/100 or 10/100/1000 Mbps
Uplink port
Plug&Play - No configuration

Specific design for IP cameras



  GENERAL INFO

CCTV over IP network
In IP CCTV systems all cameras are connected to an Ethernet network that can be built on purpose or already existent.
In this kind of systems, the most important  components are IP cameras and NVR , of course. Anyway the real center of the system is the ETHERNET SWITCH.
In every ethernet network there must be at least one switch, but most of the time there are also a few additional switches connected to the main one.   In fact, several switches can be wired together in order to cover the whole area. This is the main advantage of IP CCTV technology: unlike analog CCTV, there is no need to bring all wires to a central place.
tutorial telecamere ip megapixel di reteIf you need more basic information on how an IP surveillance system actually works, please click the icon on the right and watch our video tutorial which helps to understand how a CCTV system can be based over an IP network. (only Italian version available so far)

PoE - Power over Ethernet
In modern IP CCTV systems, cameras are most of the time powered by Power Over Ethernet (PoE). Thanks to POE technology, cameras can be powered along the network cable, without need of extra wiring and power adaptors.
In PoE systems, the power for the cameras come from the switch or, alternatively, from POE injectors.
All our POE switches support IEEE 802.3af PoE standards which is suitable for all our IP cameras.

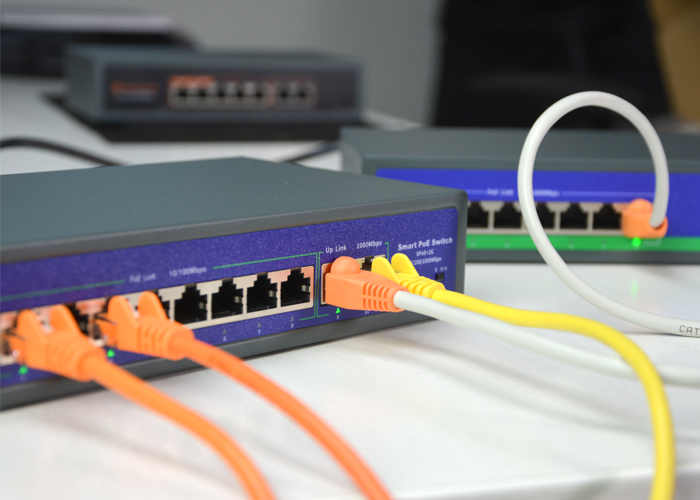

  POE SWITCH

4/8/16 POE PORTS + UPLINK
Being designed for CCTV systems, our switches support POE power supply on every port in order to connect IP cameras.
This make our range rather different to general purpose switches that usually support POE on a few ports only.
In any case, you are free to connect non-poe devices, like PC or NVR, to POE ports, since our switches detect automatically the device power need.

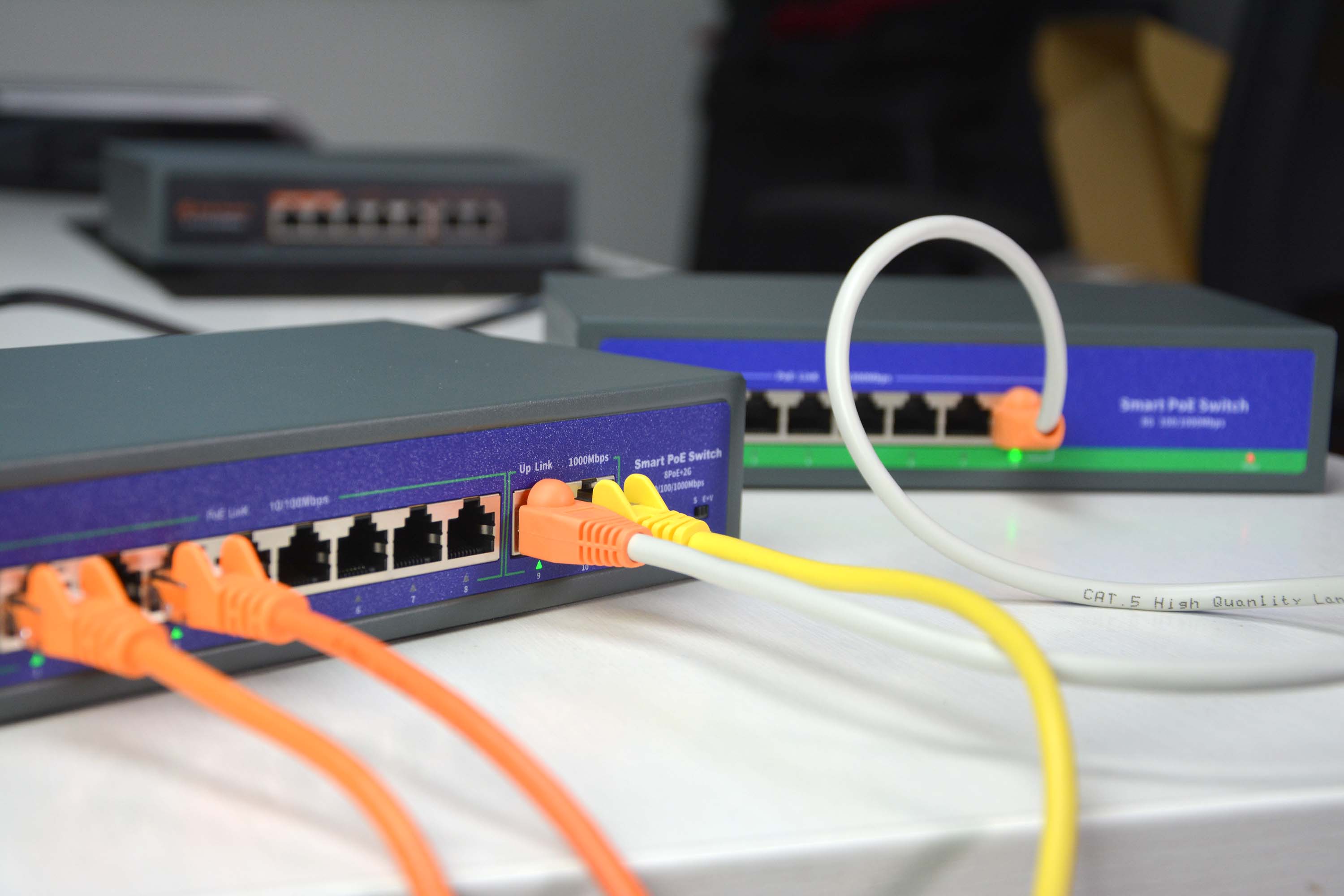

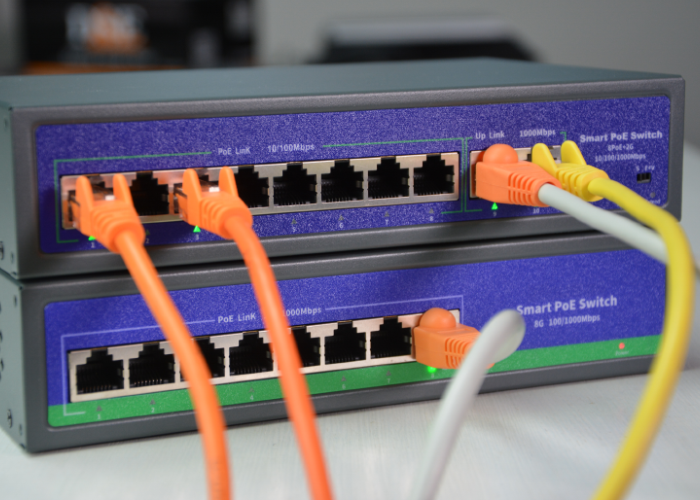

Besides POE ports, all switches have one or two additional, non-poe, uplink ports  that are useful to connect incoming signal from other network devices like router or other switches.

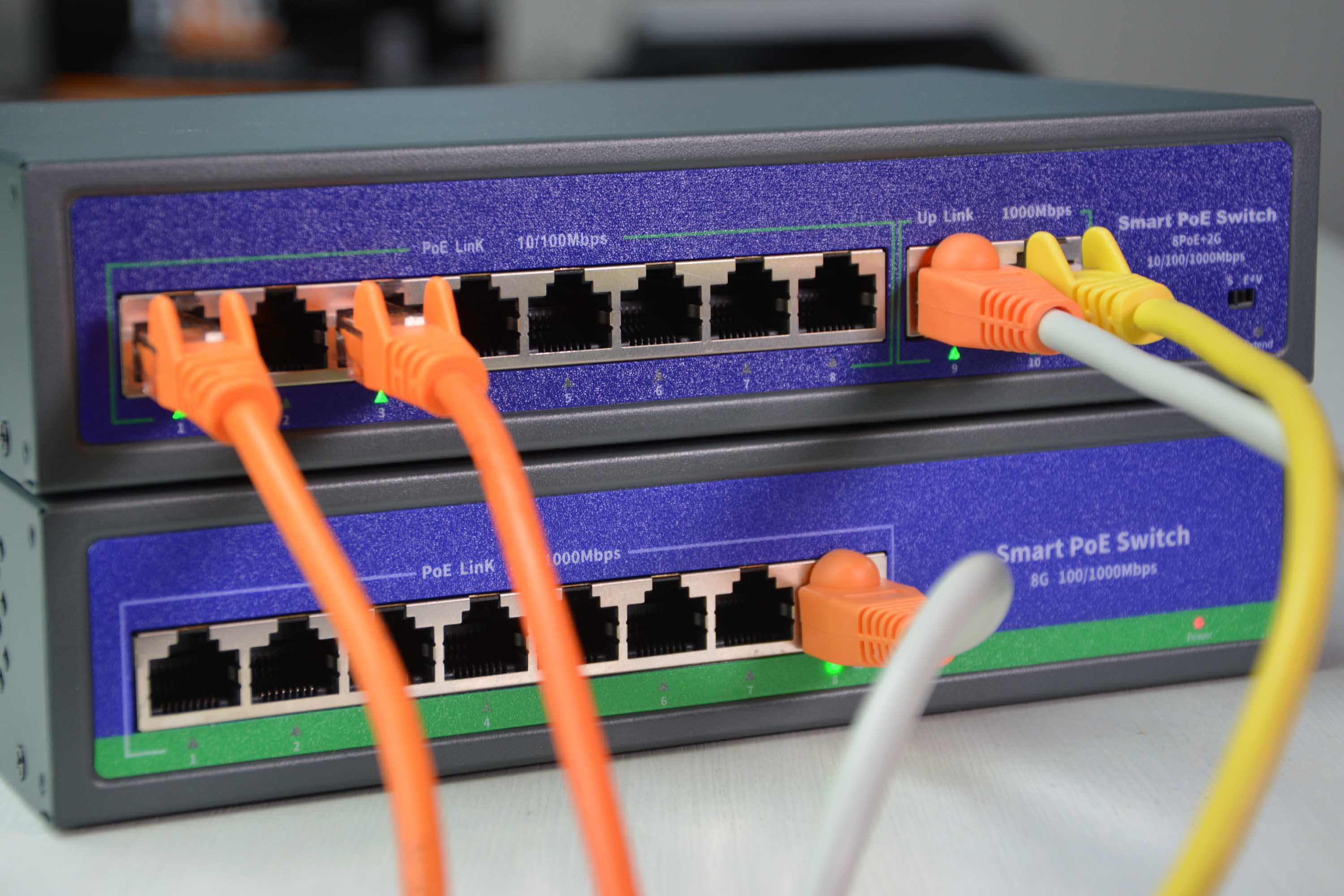

10/100 switch and 10/100/1000 switch
Our range includes 10/100 and 10/100/1000 switches, these also called: Gigabit switches.
Gigabit switches are clearly more powerful, but are more expensive and quite often bought for duties that 10/100 switches could do as well.
Our 10/100 switches get up to 100 Mbps (Megabit per second) with enough backpanel bandwidth according to the number of ports. They are ideal to connect IP cameras which also have 10/100 Ethernet interface.
Our IP cameras take very little bandwidth: approximately 4 Mbps for 2MP cameras and 8 Mbps for 4MP cameras. Looking at these figures 10/100 switches, with 100 Mbps, can easily manage 4 or 8 cameras. If you connect more than 10 cameras to a switch, you could exceed 100 Mbps, and for this reason our 10/100 16-port switches come with 10/100/1000 uplink ports in order to provide adequate bandwidth.
10/100/1000 switches are essential for large systems where several peripheral switches, each with a few cameras, are connected to a main switch. This main switch is asked to manage several cameras so the total bandwidth could easily exceed 100 Mbps. In this case, a Gigabit switch is the best choice.
Please do not forget that Gigabit switches needs to connect to Gigabit devices to maintein maximum speed. When designing a large network, Gigabit devices must be used in the network core, while 10/100 switches should be limited to peripheral areas, close to the cameras.

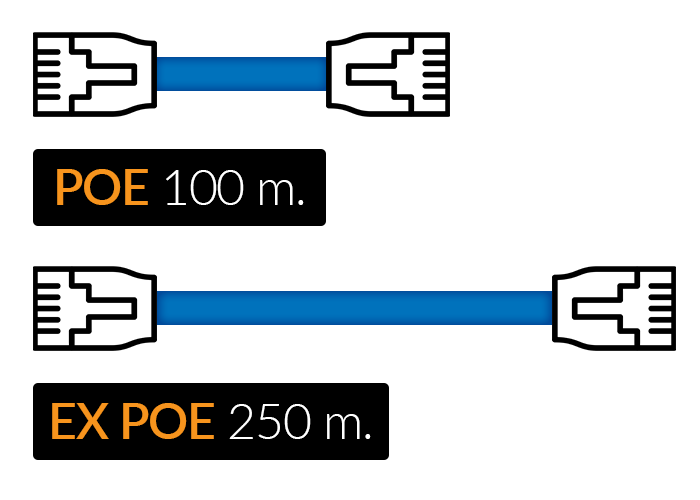

100 m POE and 250 m. Extended POE
All our switches allow to connect IP cameras up to 100 m. using ordinary UTP cables. A few switches also support Extended POE which can connect IP cameras up to 250 m.

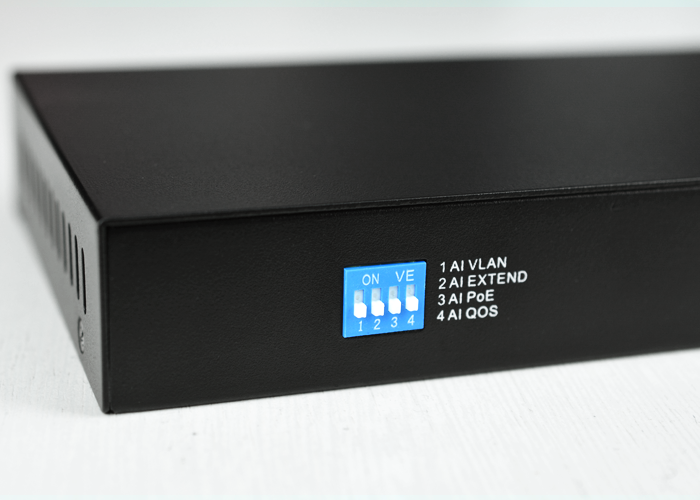

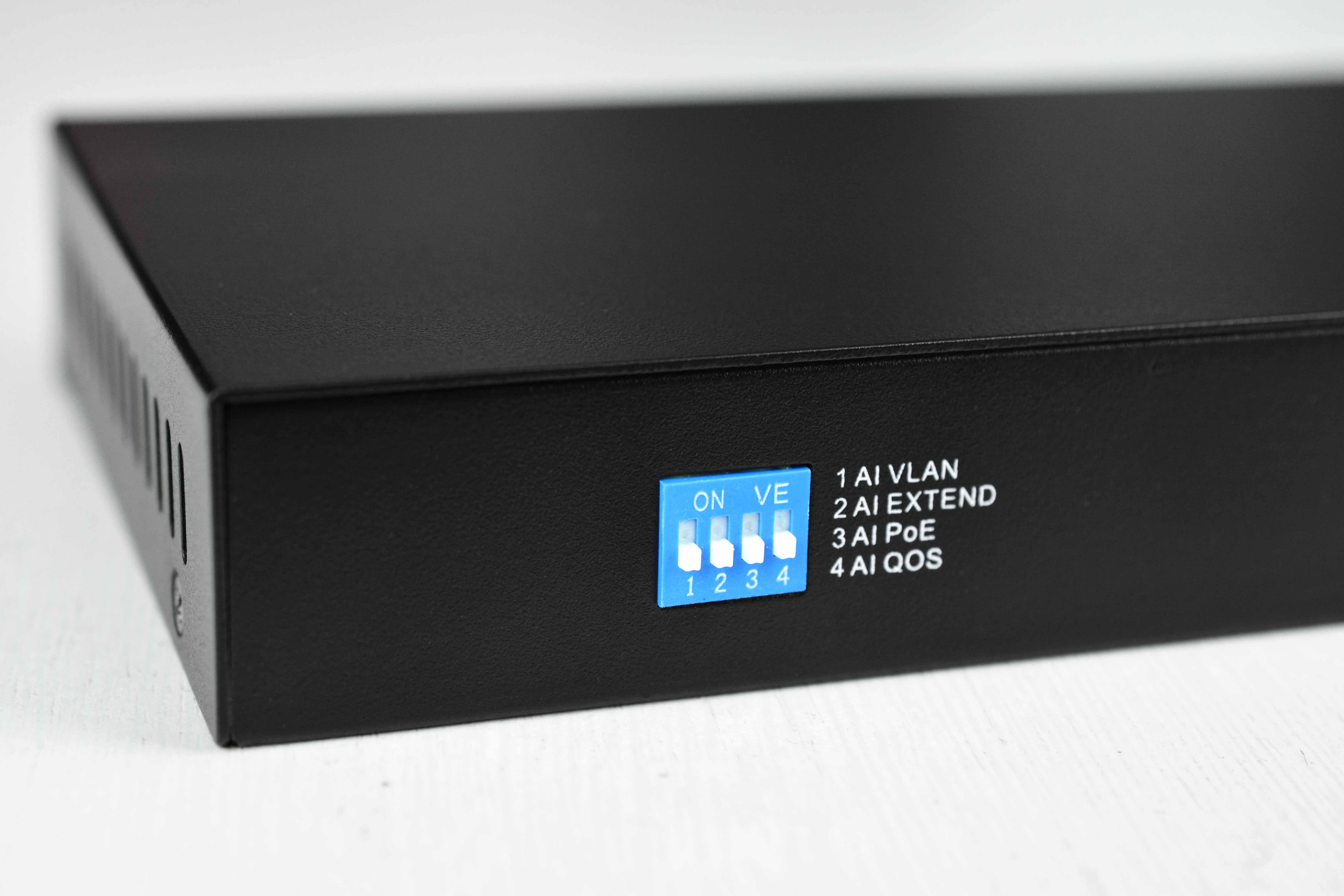

These models come with a built-in switch to select standard POE or Extended POE. When extended POE is selected, these switches may power up cameras up to 250 m. with UTP CAT5 cables and the bandwidth is reduce to 10 Mbps.

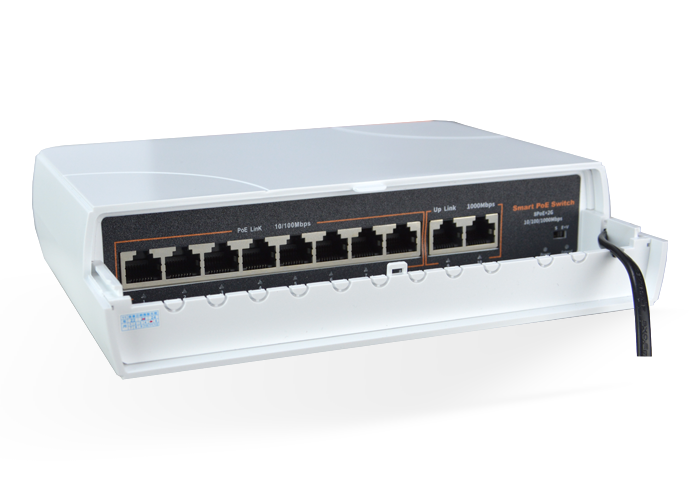

Small size
Our CCTV switches are smaller then ordinary switches in order to fit conveniently most boxes and enclosures.
IN-SW4M, with 92x82x22 mm. casing, is the smallest POE switch of this kind on the market suiting perfectly most junction boxes.
Remember that a switch does not need to be continually accessible, except for maintenance, so you can install in any convenient place like junction boxes, false ceilings etc.

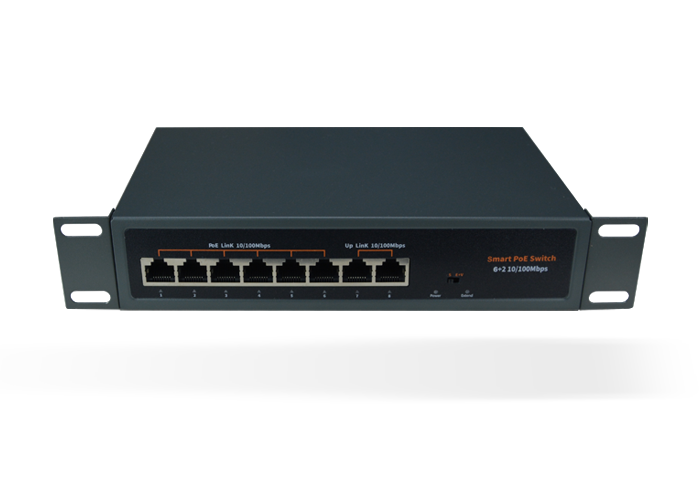

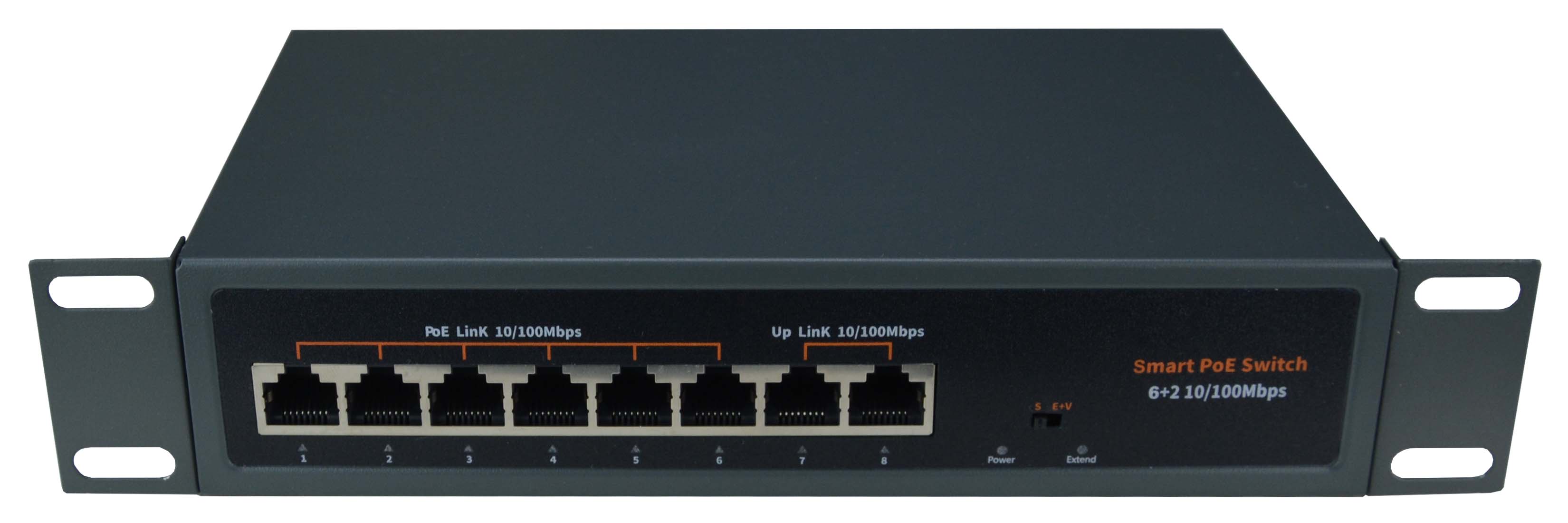

Rack mounting
Our 16-port switches come with 19 "rack removable mounting brackets (1 unit).
Our 4 and 8-port switches are supplied in a small desktop enclosure for easy installation even in small spaces

Our POE switch range
See our switches range in the table at the end of this page.

  POE INJECTORS

IN-POE1
IN-POE1 injector is used when an IP device needs POE power supply and the incoming Ethernet line cannot support it.
Injectors can be used for example when a POE IP camera must be connected to a switch that does not have POE ports, like most routers.
IN-POE1 is a very simple device that comes with 2 RJ45 ports (IN/OUT). The input port comes from the switch and has no PoE power, while the output port goes to the camera and includes PoE power supply.
Obviously IN-POE1 injector must be powered at 220V AC with the power cord included.
IN-POE1 is suitable for any POE device, IEEE.802.3af as well as IEEE802.3at (for high power devices up to 30W).
Overall dimensions: 160x60x36 mm.

  POE SPLITTERS

IN-POE-SP2
Although almost all of our IP cameras support POE power through the network cable, some models, for technical reasons, require separate 12VDC power supply. This is the case, for example, of our IP mini cameras, where the POE circuit is too big for the casing. Also several of our PTZ cameras do not support POE and require separate power. This POE splitter allows to power a 12VDC camera that does not have the built-in POE, like it was a normal POE camera.
This device has an RJ45 network input port that is connected to the POE switch and two separate outputs to the camera: RJ45 network plug and 12VDC power plug
Obviously the outgoing network port to the camera  does not supply POE power to the device, as input POE power is used to provide the 12VDC output
IP-POE-SP2 is suitable to 10/100 and 10/100/1000 Ethernet network. IN-POE-SP2 also supports our mini speed dome and mini PTZ cameras, while it is not suitable for big speed dome cameras due to high power consumption.

  DC INJECTORS WITH SPLITTER

IN-POE-SP1
This accessory is used to power any 12VDC IP cameras (not POE) via the network cable starting from a non-POE switch. The product consists of 2 identical and reversible pieces to be used as an injector (at the start of the network cable) and as a splitter (near the camera).
Each element has 2 network ports as well as a 12VDC plug. The DC plug of the transmitter must be connected to a 12VDC power supply (not included) while the DC plug of the receiver will supply power to the camera (cable included). This power supply system, with a powered transmitting element and a passive receiver, is a low-cost solution which can also be used in place of a more expensive single-element POE injector.
The size of each element is really tiny, only 57x28x21 mm. The package includes 2 units and a DC cable with 4 plugs for the equipment.
12VDC power adaptor is not included. You can choose a suitable power adaptor according to the device consumption.



POE switches table

IN-SW4M IN-SW8MX IN-SW16M IN-SW4 IN-SW8 IN-SW16
Network interface 10/100 Mbps 10/100 Mbps 10/100 Mbps
(10/100/1000 uplink)
10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps
Supported standard IEEE 802.3 10 Base-T
IEEE 802.3u 100 Base-Tx
IEEE 802.3af PoE
IEEE 802.3x Flow control

IEEE 802.3 10 Base-T
IEEE 802.3u 100 Base-Tx
IEEE 802.3af PoE
IEEE 802.3x Flow control

IEEE 802.3 10 Base-T
IEEE 802.3u 100 Base-Tx
IEEE 802.3af PoE
IEEE 802.3x Flow control

IEEE 802.3i 10 Base-T
IEEE 802.3u 100 Base-Tx
IEEE 802.3ab 1000 Base-T
IEEE 802.3af PoE
IEEE 802.3x Flow control

IEEE 802.3 10 Base-T
IEEE 802.3u 100 Base-Tx
IEEE 802.3ab 1000 Base-T
IEEE 802.3af PoE
IEEE 802.3x Flow control

IEEE 802.3 10 Base-T
IEEE 802.3u 100 Base-Tx
IEEE 802.3ab 1000 Base-T
IEEE 802.3af PoE
IEEE 802.3x Flow control

Ethernet POE ports 4 x 10/100 8 x 10/100 16 x 10/100 4 x 10/100/1000 8 x 10/100/1000 16 x 10/100/1000
Ethernet Non-POE ports 1 x 10/100
Uplink
1 x 10/100
Uplink
2 x 10/100
Uplink
1 x 10/100/1000
Uplink
1 x 10/100/1000
Uplink
2 x 10/100/1000
Uplink
POE max. range 100 m. 100/250 m. 100 m. 100 m. 100 m. 100 m.
Connectors RJ45 RJ45 RJ45 RJ45 RJ45 RJ45
POE total power 60W max. 96W max. 120W max. 60W max. 96W max. 300W max.
POE power per port 15W max. 15W max. 15W max. 15W max. 15W max. 15W max.
Backpanel max. bandwidth 1 Gbps 1,6 Gbps 7,2 Gbps 10 Gbps 18 Gbps 32 Gbps
Overall dimensions (mm) 92x82x22  184x94x27  440x187x45
(without brackets)
140x91x28  225x121x35  430x260x45
(without brackets)
19" rack mounting - - - -
Power supply External adaptor
AC 100-240V
DC 48V / 1.25A
External adaptor
AC 100-240V
DC 48V / 2A
AC 220V External adaptor
AC 100-240V
DC 48V / 1.25A
External adaptor
AC 100-240V
DC 48V / 2A
AC 220V
