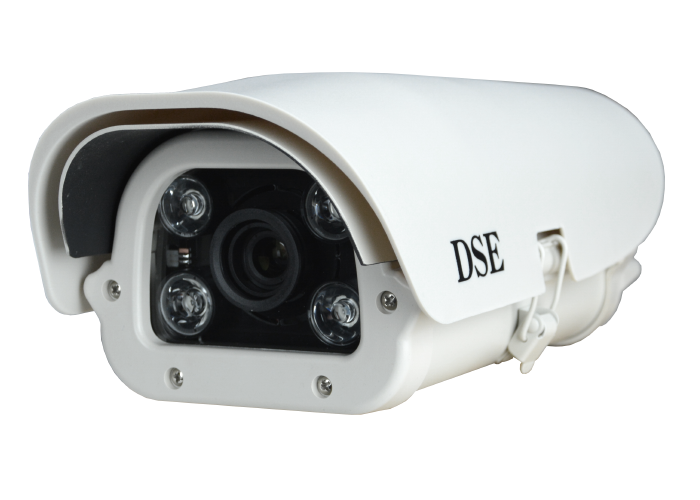

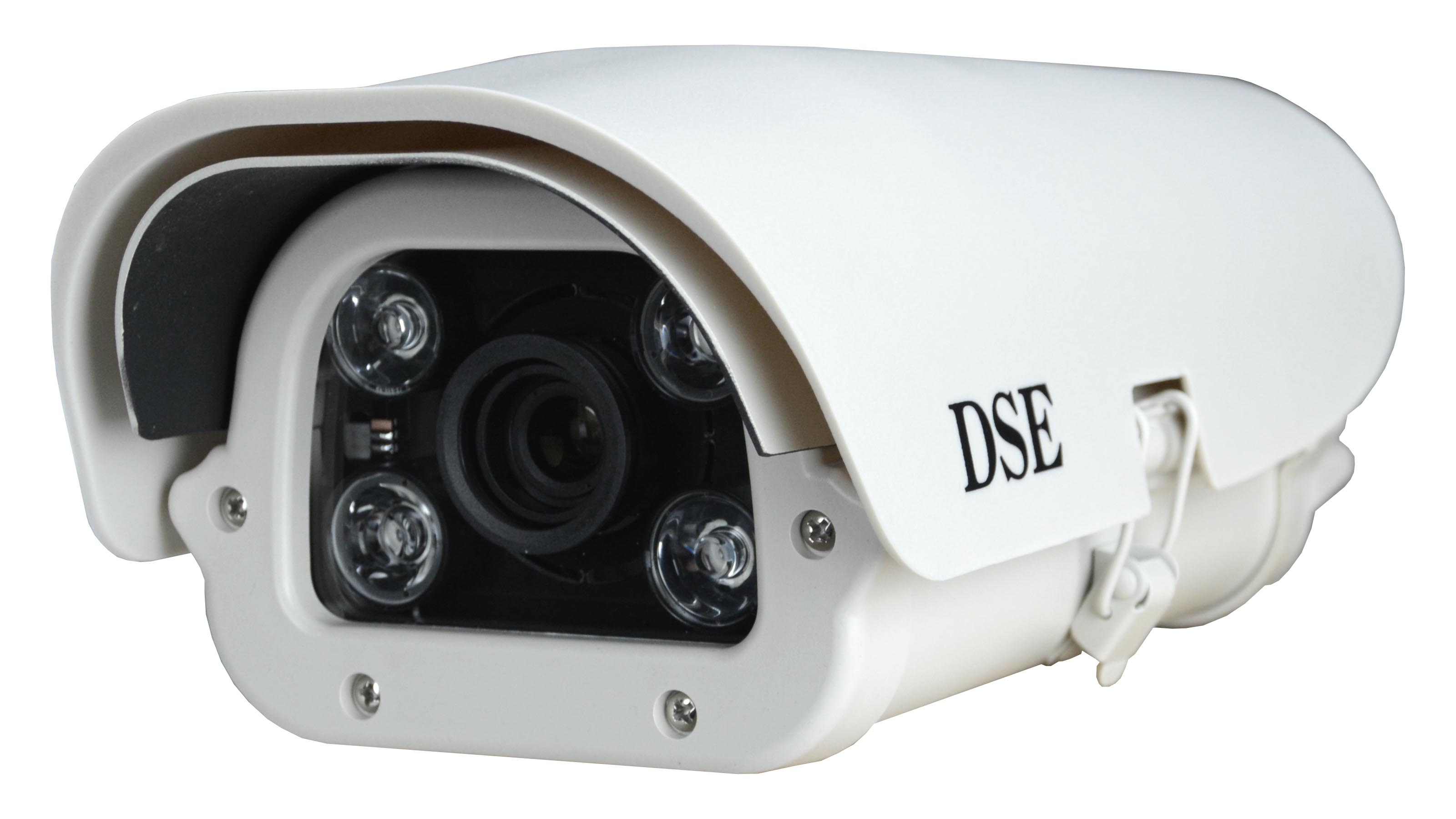

ANPR LPR car plate camera
RY-BCC8FDM
Water-proof, 1080P IP camera
with IR illuminators and headlights compensation for license plate recognition.
Max. vehicles speed 150 Km/h
Optimal view at 5-30 m.
6-22 mm. motor lens

Full HD resolution 1920x1080 pixels Waterproof casing for outdoor mounting 30 m white illuminator 5 to 50 mm. varifocal lens Remote zoom control Power Over Ethernet

ANPR LPR car plate camera
RY-BCC8FDM
Water-proof, 1080P IP camera
with IR illuminators and headlights compensation for license plate recognition.
Max. vehicles speed 150 Km/h
Optimal view at 5-30 m.
5-50 mm. motor lens

Full HD resolution 1920x1080 pixels Waterproof casing for outdoor mounting 30 m white illuminator 5 to 50 mm. varifocal lens Remote zoom control Power Over Ethernet

ANPR LPR car plate camera
RY-BCC8FDL
Water-proof, 1080P IP camera
with IR illuminators and headlights compensation for license plate recognition.
Max. vehicles speed 150 Km/h
Optimal view at 5-30 m.
6-22 mm. motor lens

Full HD resolution 1920x1080 pixels Waterproof casing for outdoor mounting 30 m white illuminator 6-22 mm. varifocal lens Remote zoom control Power Over Ethernet

HIGHLIGHTS



Full HD 1080P resolution
   ONVIF protocol
   Suitable to ONVIF NVR
   24h car plate reading
   motorized zoom lens
   headlights suppression
   IR LED up to 30 m.
   200 Km/h car speed
   5 to 30 m. working range
   PoE - 12VDC power supply
   No configuration required

TECHNICAL DATA

datasheet

DETAILS

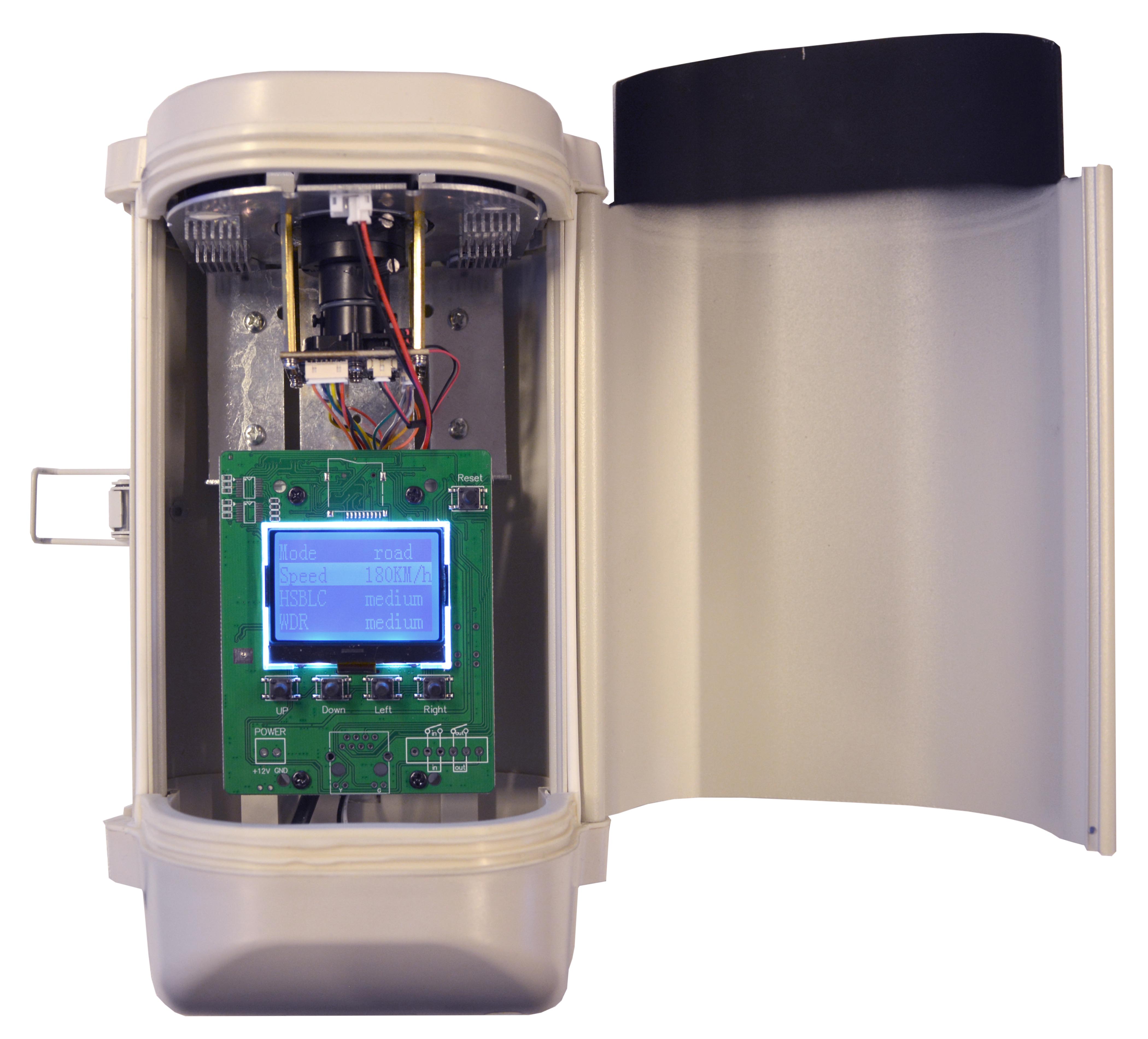

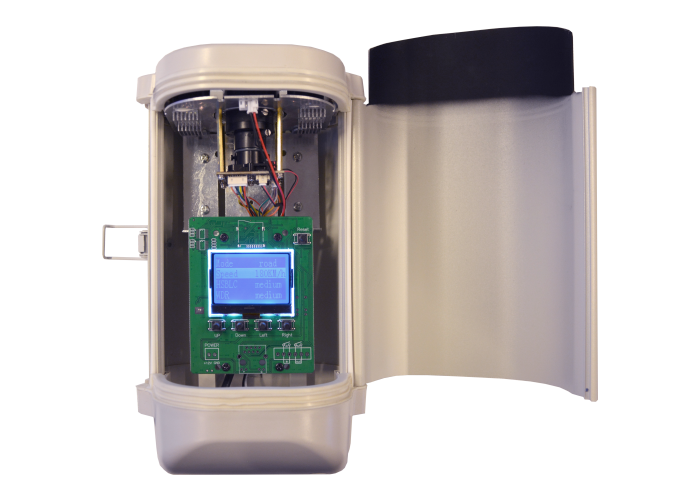

RY-BCC8IR inside casing

lpr camera anpr car plate OCR

Unlike other products on the market, this ANPR is not based on a standard camera body. We have developed a dedicated piece of electronic for LPR applications with superior quality/price ratio.

Videorecording



This is is a "naked" IP camera.
All DSE cameras of this kind are not able to record video on SD card or NAS and are supplied without any software or mobile app.
These cameras are designed to be connected to NVR or IP recording software which are essential to provide all video security features.
If you choose a NAKED camera, please do not forget to order an NVR as well.
Ideal with these cameras, is our DN NVR range, nevertheless,  this camera range is also suitable to other NVR and IP software supporting the ONVIF standard.

Remote configuration

All camera settings are managed by means of the configuration software included.
Several detection mode can be set according to the environment and vehicle speed.

Zoom motor lens



The varifocal lens must be adjusted according to the vehicles distance. This camera come with a motorized lens that can be adjusted remotely.

Free SDK, CGI and API for developers


Free libraries available for system integrators

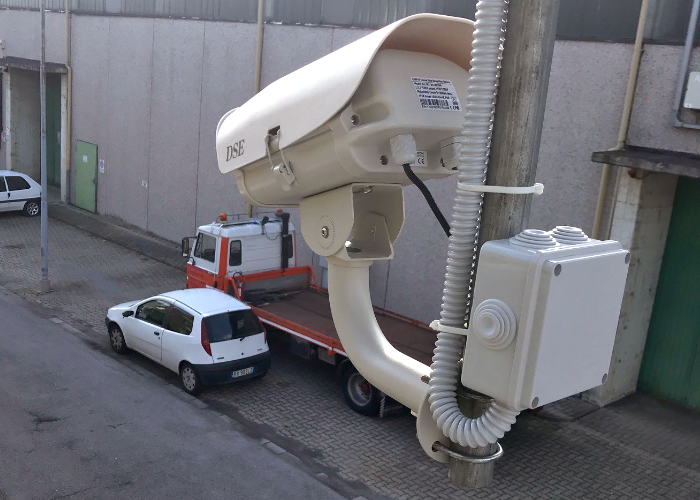

MOUNTING



WIRING

connessioni telecamere ip
This camera requires RJ45 network connection and support POE power supply over Etherhet cable. 12VDC power supply is also supported.

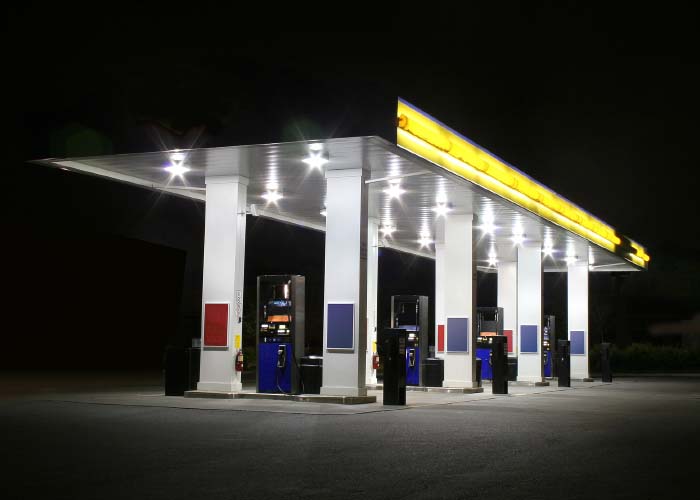

The Automatic Number Plate Recognition (ANPR) is nowadays essential in several CCTV applications. From company's access controls to petrol station surveillance, the clear recognition of car's license plate may add a great value to CCTV video-recording systems.

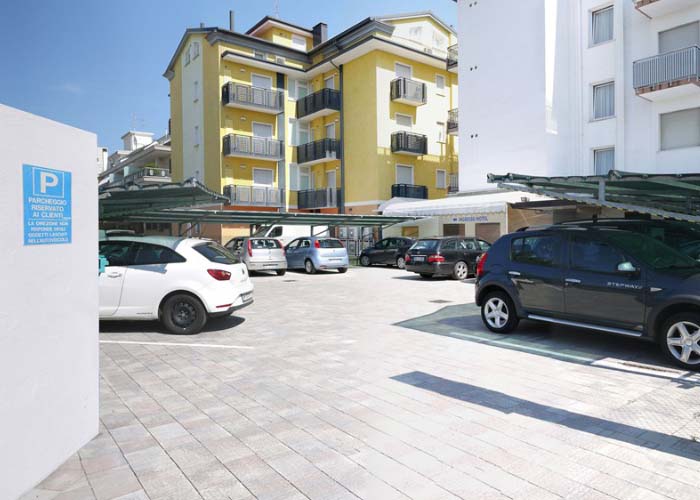

Even in domestic or commercial surveillance systems, license plate recognition cameras can be used to monitor the access road to the property, providing vital information in several circumstances.
State-of-the-art technologies make RY-BCC8 the most advanced plate recognition IP camera available today.
Include one or more of these cameras in your CCTV system and you will be sure that the car plate of all vehicles will be stored in your videorecorder, never mind if it is day or night, headlight on or off, low or high speed.
These camera are "NAKED" IP cameras. They come without any software or app and must be used with NVR.

ANPR camera on IP network
First of all, this cameras are IP cameras designed to be connected to a network.
Using IP technology, modern CCTV systems provide very high video quality standards over IP network.
An IP CCTV system is very different than an analogue one: cameras connect to an IP network that can be made on purpose or already existent. Managing and video recording is done by suitable Network Video Recorders (NVR) tutorial telecamere ip megapixel di rete
Should you need more basic information on how an IP surveillance system actually works, please click the icon on the right and watch our video tutorial which helps to understand how a CCTV system can be based on an IP network. (only Italian version available so far)

Automatic Number Plate Recognition
(LPR ANPR)

Reading a vehicle number plate is a too difficult job for a standard CCTV camera. The main problem is the exposure caused by headlight at night, but even during the day the light reflection on the number plate can make a clear number recognition virtually impossible.
RY-BCC8 are special cameras, which have been specifically designed for car plate recognition, also called ANPR  (Automatic Number Plate Recognition) or LPR (License Plate Recognition).

Extra light suppression
To avoid exposure caused by car's headlights these cameras use a high-light suppression system to compensate the visible light coming from the vehicle towards the camera.
These cameras provide clear characters recognition in any light condition and are not effected by the car's headlights.

ONVIF protocol
onvif members ITALY IP camerasAll DSE IP cameras communicate using the ONVIF protocol.
ONVIF is a very important international standard in the IP video industry, resulting from the cooperation among the most important manufacturers. Using this protocol, DSE cameras can be connected to any IP surveillance software or NVR which comply to the ONVIF standard.
DSE is one of the very few Italian companies being member of ONVIF (see ONVIF MEMBER LIST). Only ONVIF members have the tools to test the full product compliance to the most updated ONVIF standards.  Please bear this in mind when you are choosing your IP surveillance provider.

5 times more resolution than analogue CCTV
ip cameras full hd 1080p
RY-BCC8 cameras provide Full HD 1080P video resolution.  Compared with analogue systems, Full HD cameras, at 1920x1080 pixel, display 5 times better video quality.
Thanks to their resolution, this IP ANPR cameras can be used to monitor up to 3 traffic lanes.

Up to 200 Km/h vehicle speedAmbarella chipset
RY-BCC8 IP cameras produce   25 frames/second video streaming which means real time view. This is a key factor in ANPR applications where cameras have   to monitor high speed targets.
This superior performance is achieved by using Ambarella micro-processor, the stat-of-the art chip in video digital processing.
RY-BCC8IR cameras also  include a high speed shutter control which provide  the clear characters recognition of front or back car plate up to 200 Km/h. Of course these cameras work great for low speed or parked vehicles as well.
Software tool is included to set the maximum vehicle speed of the real application.

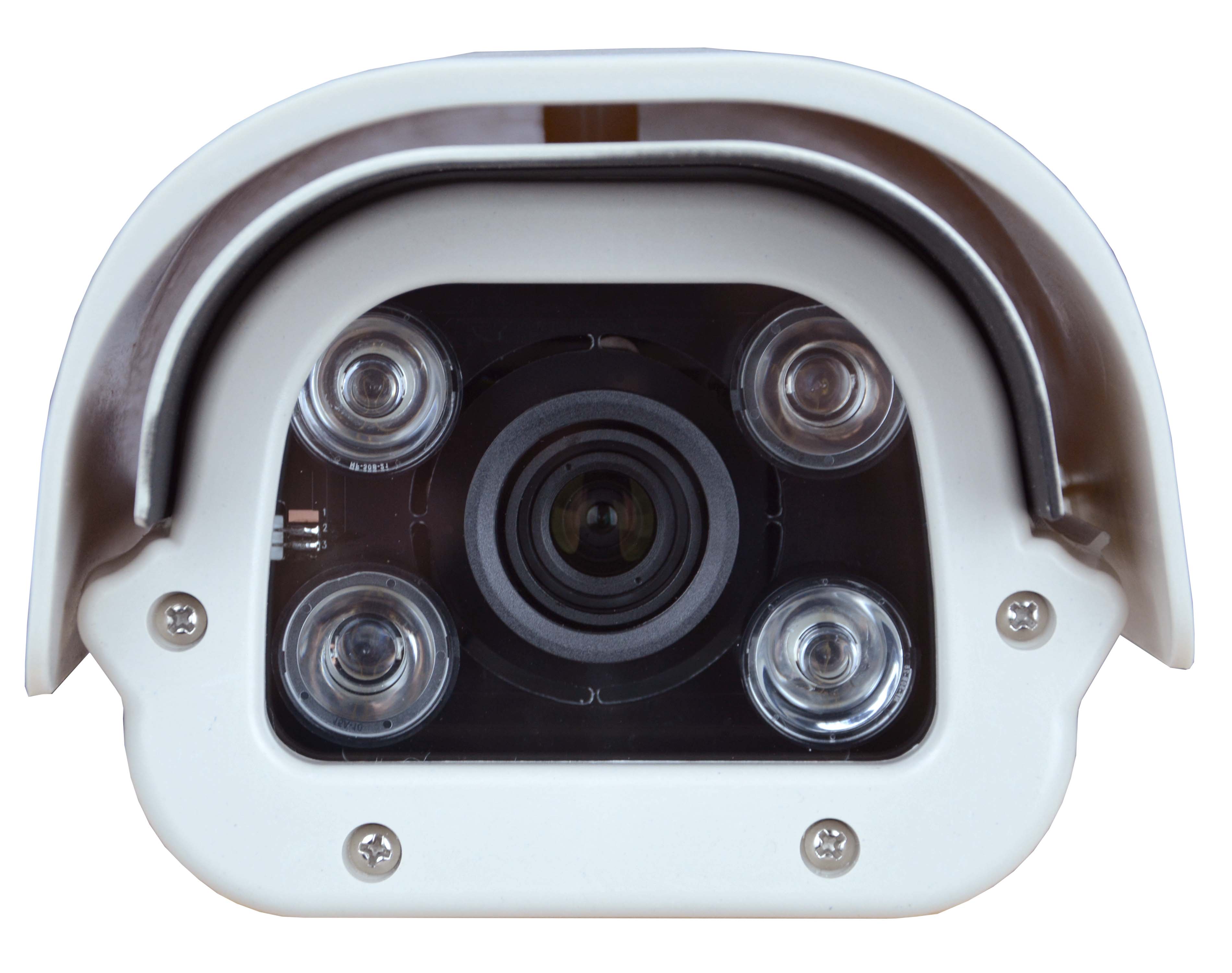

The infrared illuminator

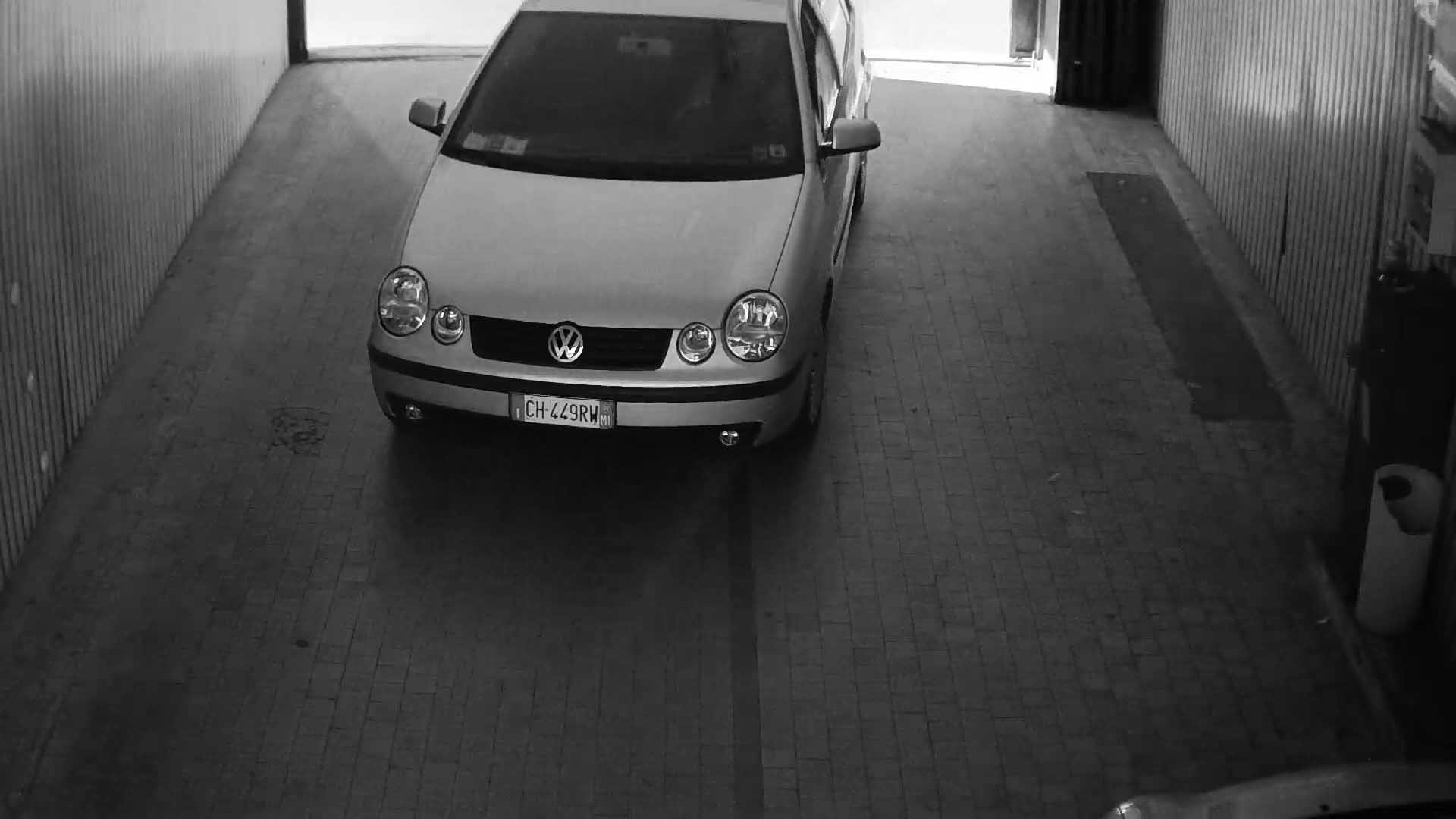

Plate recognition cameras use IR illumination to read car's plate.
All cameras come with Day/Night function and delivers color images while there is enough light to do so. When darkness falls the illuminator comes on automatically and the camera turns to B/W.

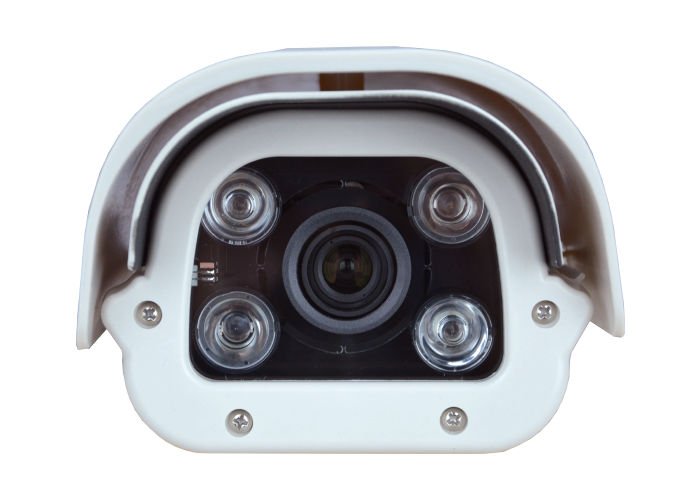

RY-BCC8 cameras comes with 4 Maxi IR LED array's with over 30 m. range.
All cameras in this range include the day & night feature with Infrared Cut-Filter Removable (ICR).

Positioning and viewing distance

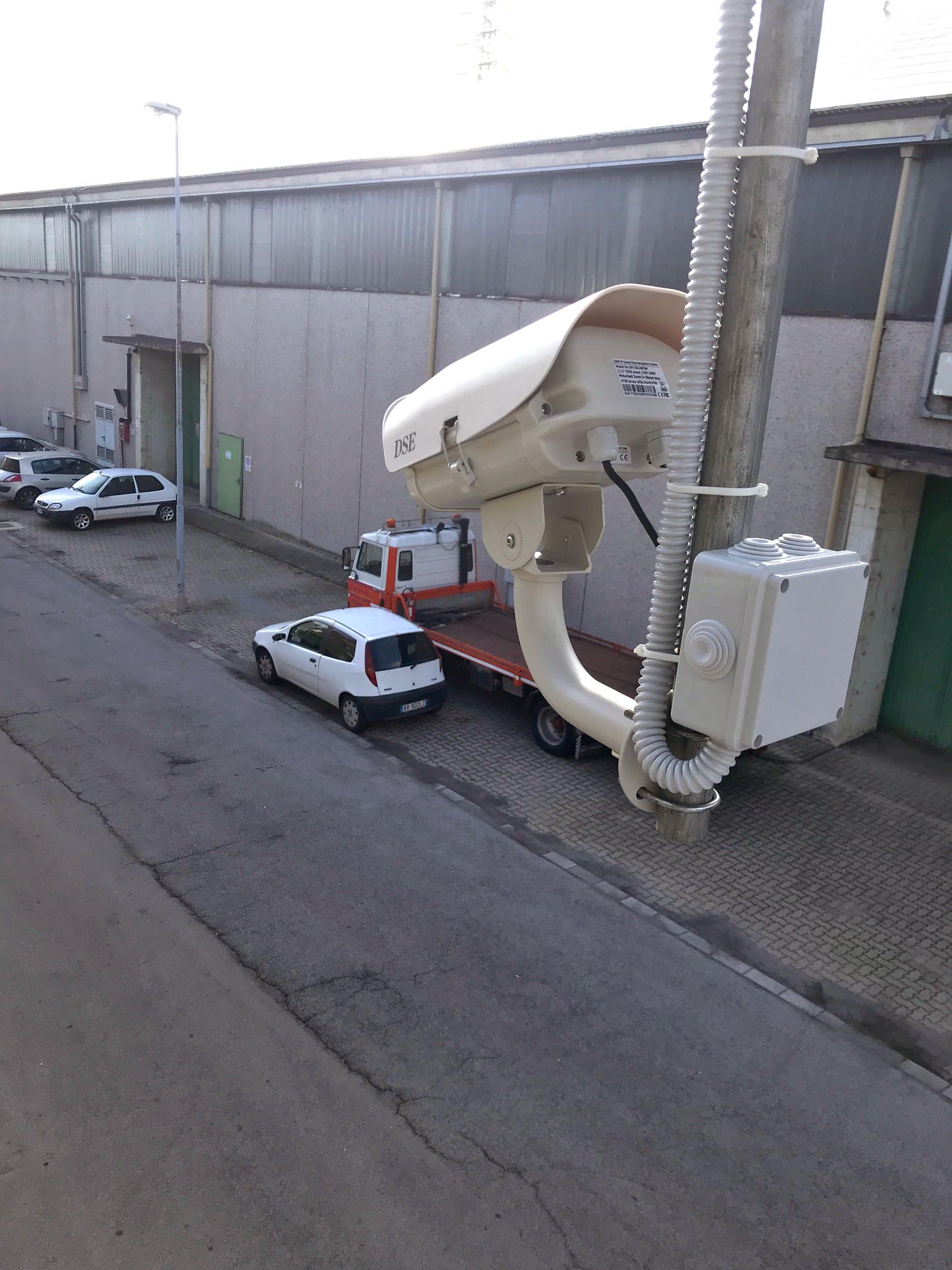

These ANPR cameras can read both front and back car plate. They can be installed right over the traffic lane or even on the side of the road,  keeping around 30° angle between the camera and the car direction.
These cameras are designed to provide optimal plate view at 5-30 m. from the camera according to the lens adjustment.

Zoom motor lens
RY-BCC8 come with motorized zoom lens that can be adjusted conveniently by computer. The
lens is a powerful zoom, adjustable  from 5 to 50 mm or 6 to 22 mm, according to model, in order to match the target distance. Once the camera is installed, the lens must be adjusted to focus the traffic lane.
The motor lens is very convenient and allows adjusting the field of view even once the camera is installed.

PoE - Power over Ethernet
All DSE IP cameras, except the speed dome models, support PoE standards (IEEE 802.3af Class 3).
If your LAN switch support PoE technology, the cameras can be powered through the LAN cable without the need of extra power adaptors. If the network has not POE switches, external PoE injectors can be used along the LAN cable to power up the camera.
Obviously all these cameras can be also powered by a 12VDC adaptor like RE-AL5 (not included).

Easy configuration

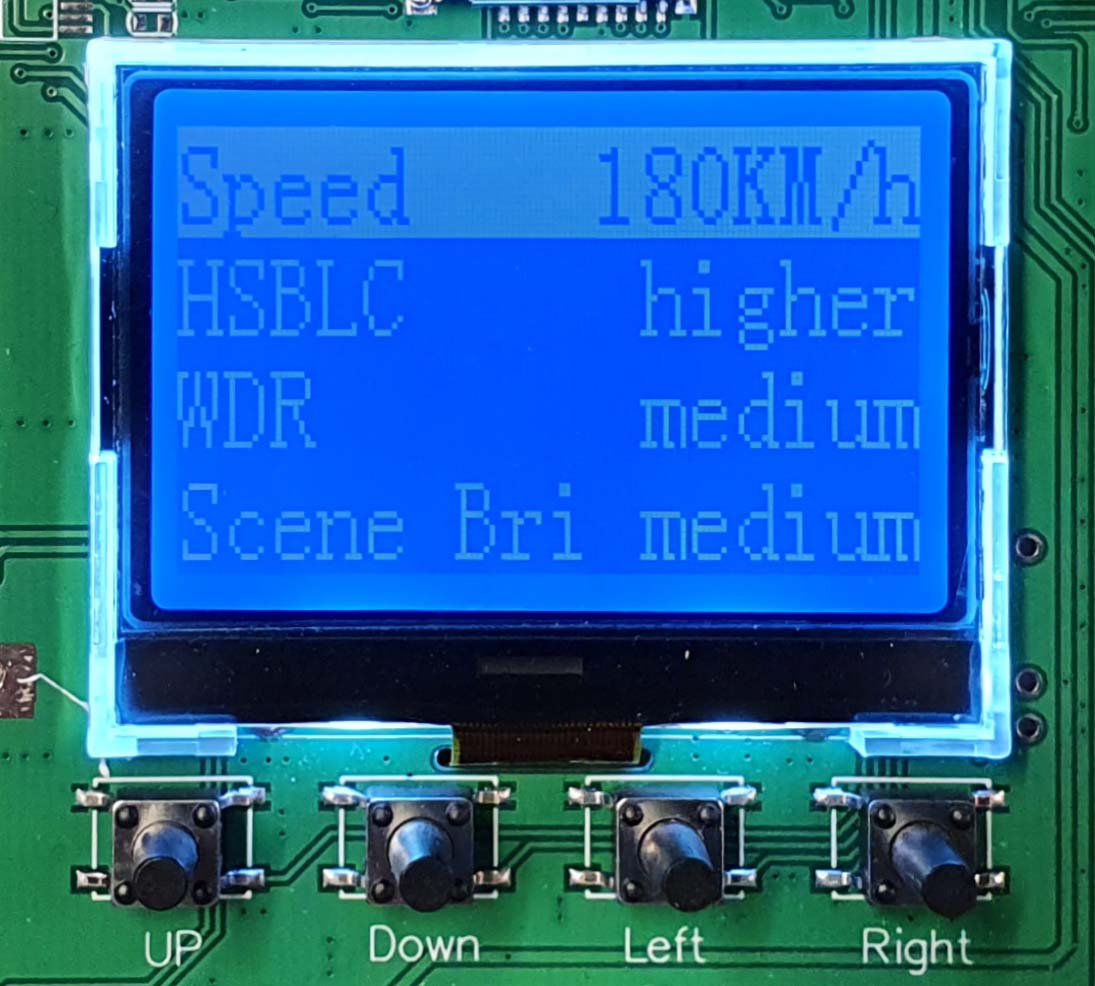

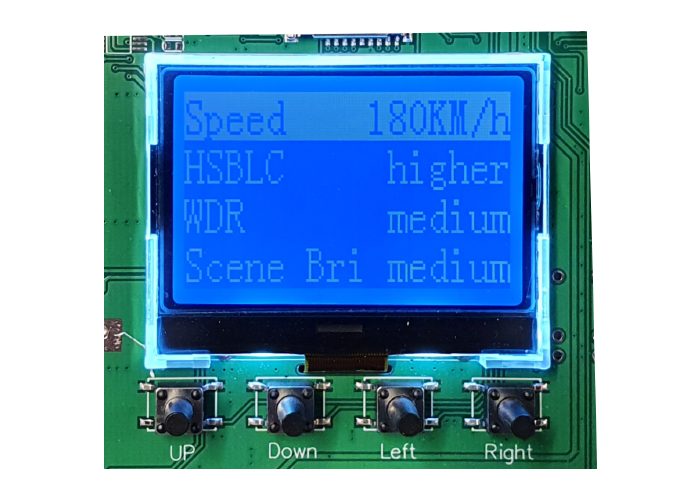

RY-BCC8 is pre-configured for ANPR monitoring, so not time is required to set the camera options. Nevertheless, a software tool is provided to select different detection modes according to the environmental conditions and the vehicle speed.

100% reliable products
The market of IP cameras is divided in quality segments, much more that the analogue or HD-SDI cameras one. RY-BCC8 has been designed for the high-end market segment and is able to compete with the most prestigious vendors in terms of dependability.
DSE guarantees that these cameras are not going to require any reset or restart in their whole life. Should similar failures happen just one single time, we are ready to refund your money.
Absolute firmware and hardware reliability is the key point that makes the difference between high-end and entry-level IP cameras, widely available on the web at much cheaper price.

Waterproof housing
These cameras come inside a robust, completely waterproof polycarbonate casing which guarantees a protection degree of IP67, meaning that the camera can be exposed to rain and outdoor conditions (see the IP table in the tutorial on housings).
The casing includes built-in fan which switch on and off automatically according to the outside temperature.

Free SDK, CGI  and API for developers
For all the engineers that want to use RY range cameras with their own software, DSE provides the SDK (software development kit) for Windows and Linux free of charge. Free CGI and API libraries are also available to develop customized WEB GUI.

Audio
Waterproof cameras do not include built-in microphone.

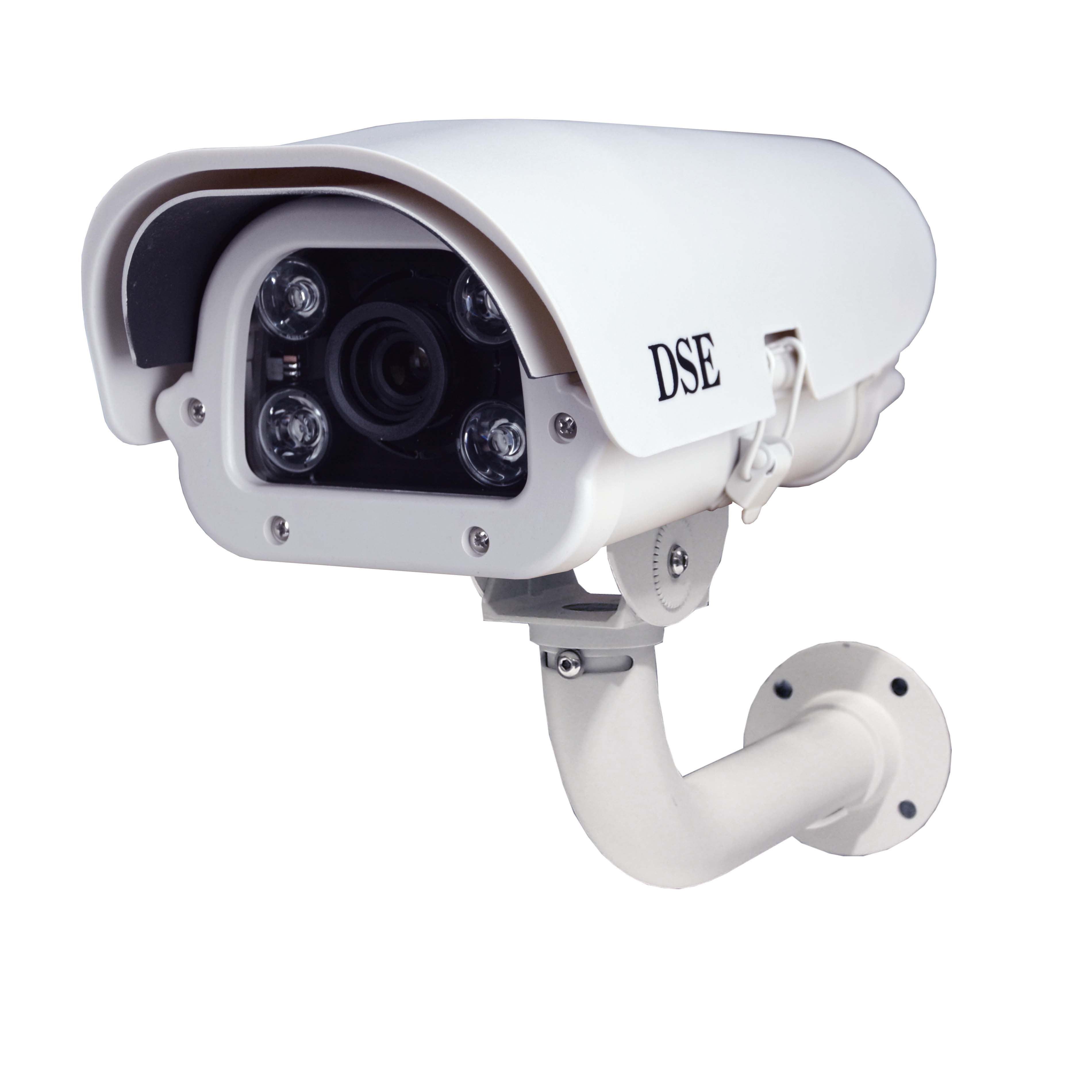

Bracket
All cameras includes swivel bracket for wall-mounting.

Wiring
DSE LPR cameras work with all DSE Network Video Recorders (NVR) and are also suitable to other vendors NVR or IP software platforms supporting the ONVIF protocol
On the back of the camera a 50 cm. m cable includes: power supply 12VDC plug and RJ45 network.
The camera can take power from the Ethernet cable supporting POE power supply. Alternatively, a regulated 220VAC / 12VDC power adaptor (min 3A) like model
RE-AL5 can also be used.
The RJ45 connector must be used to connect the camera to the network and includes 2 usual green/yellow LED's to display the LAN status.

The product includes:
  Waterproof camera with lens
  Swivel bracket for wall-mounting
  Connection cable
  IP setting and configuration software tools

  LICENSE PLATE RECOGNITION  - DEMO VIDEO

Watch this video demo which shows our ANPR systems in action
