HDMI splitters and transmitters


These HDMI splitters and transmitters are useful to transport the HDMI video output of DVR/NVR to the monitor.

HDMI SPLITTERS AND TRANSMITTERS


HDMI SPLITTER
2 PORTS

HDMI splitter
RE-HDMI-12 1080P

HDMI splitter with 1 input port and 2 output ports.

HDMI SPLITTER
4 PORTS

4K HDMI splitter
RE-HDMI4K-14 4K

HDMI splitter with 1 input port and 4 output ports. Supporting 4K resolution.

HDMI TRANSMITTER
OVER 2 UTP

HDMI transmitter
RE-HDMI-EX 1080P

HDMI transmitter over 2 UTP network cables (50 m.)

HDMI TRANSMITTER
OVER 1 UTP (+SPLITTER)

HDMI Extender/splitter 100M
RE-HDMI-EX12 1080P

HDMI transmitter over 1 UTP (100m.). With splitter.

HDMI TRANSMITTER
OVER LAN NETWORK

HDMI transmitter
RE-HDMI-NET 1080P

IP HDMI transmitter over UTP cable (120m.) or over TCP/IP LAN network.

HDMI TRANSMITTER
OVER COAXIAL CABLE

HDMI transmitter
RE-HDMI-RG 1080P

HDMI transmitter over coaxial cable (500 m.)

HDMI SPLITTERS

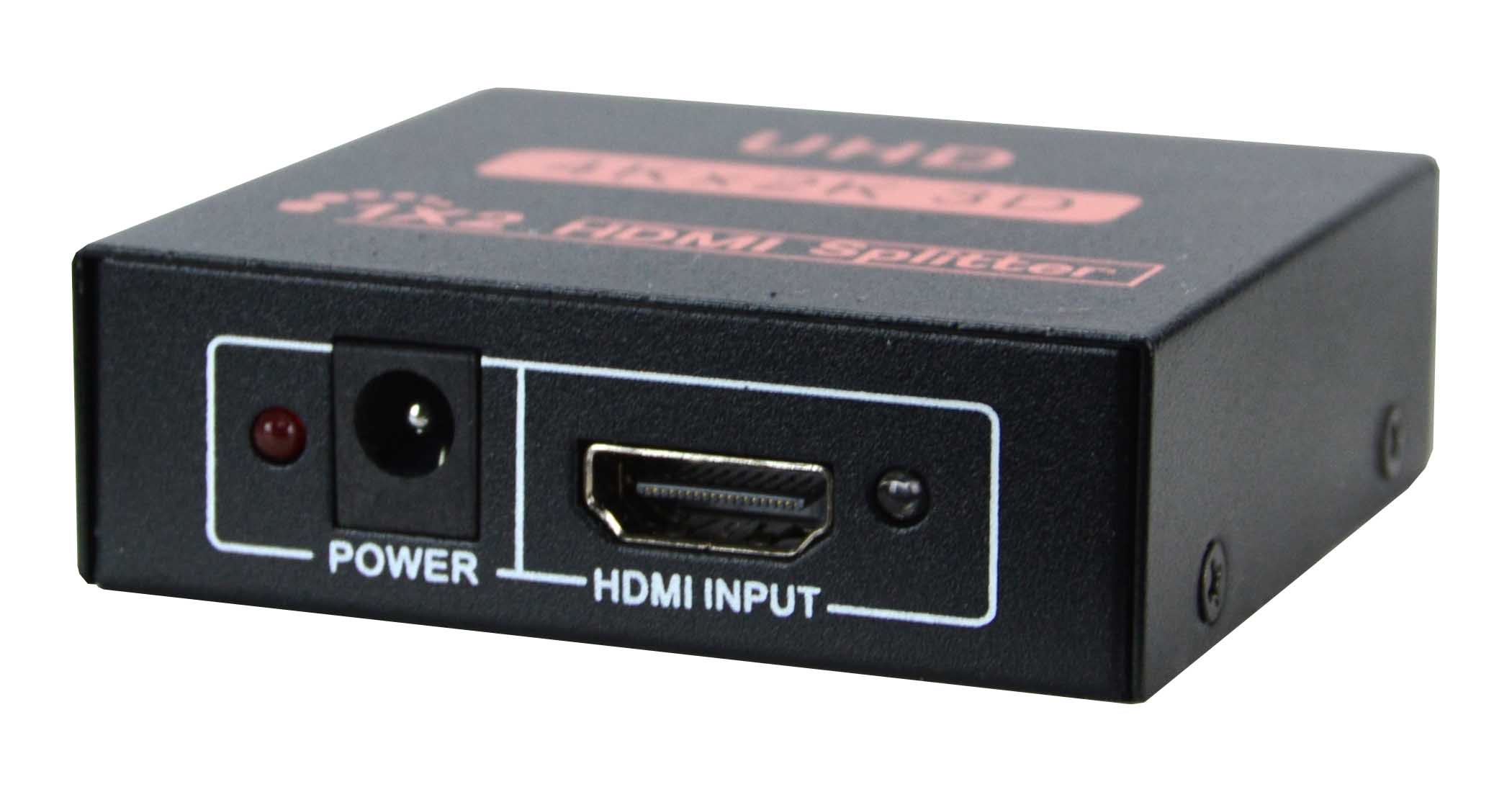

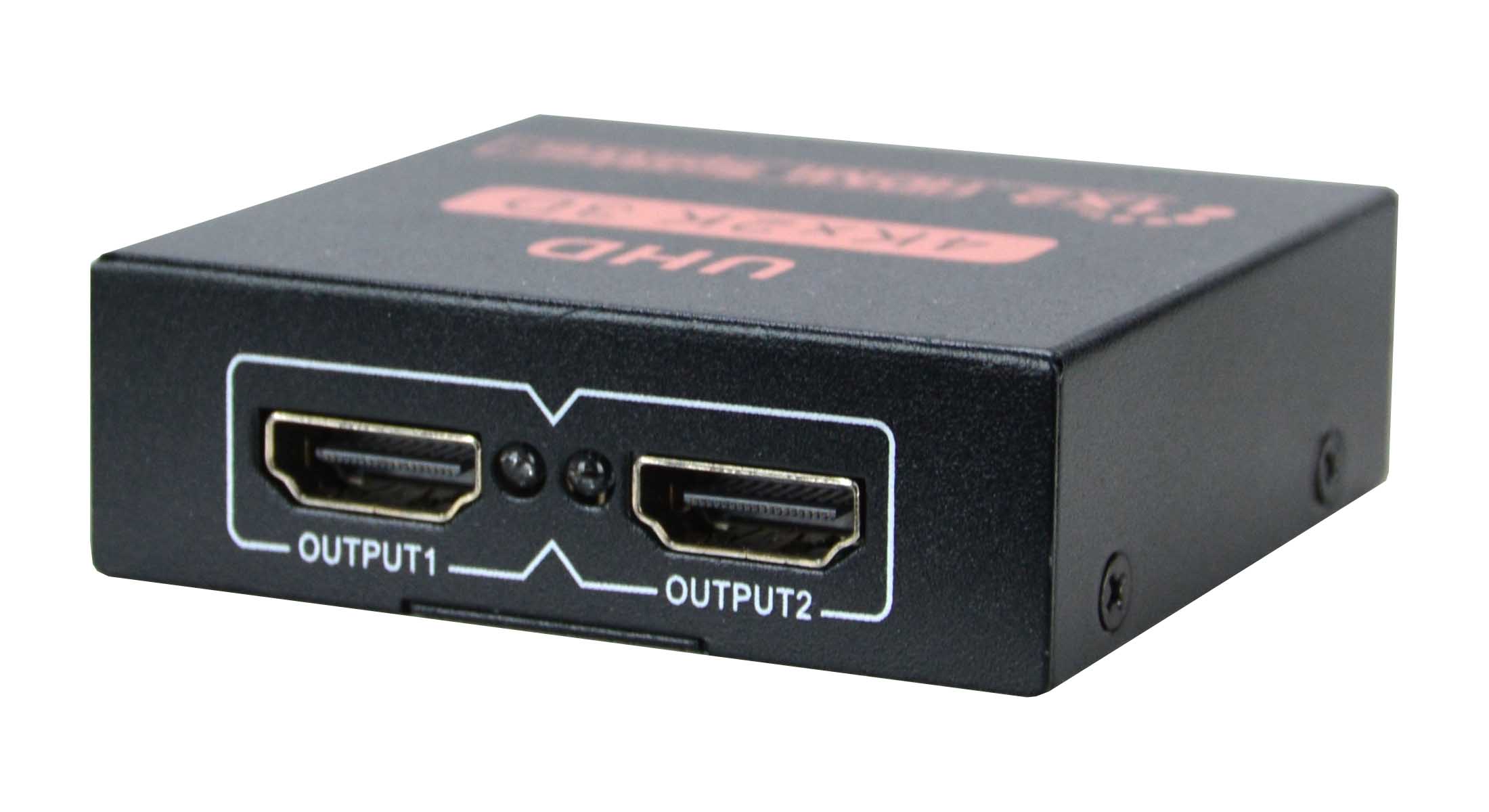

RE-HDMI-12

HDMI splitter with 1 input port and 2 output ports.

This accessory allows you to split an input HDMI signal into 2 identical output signals. It is useful, for example, for the connection of two TV monitors to a single DVR / NVR.
You can connect several splitters in sequence to further split the signal into a greater number of identical subsignals.
The splitter is supplied with a 5VDC power adapter
Resolution: Up to Full HD 1080P 1920x1080 or even 4K IN / 2K OUT

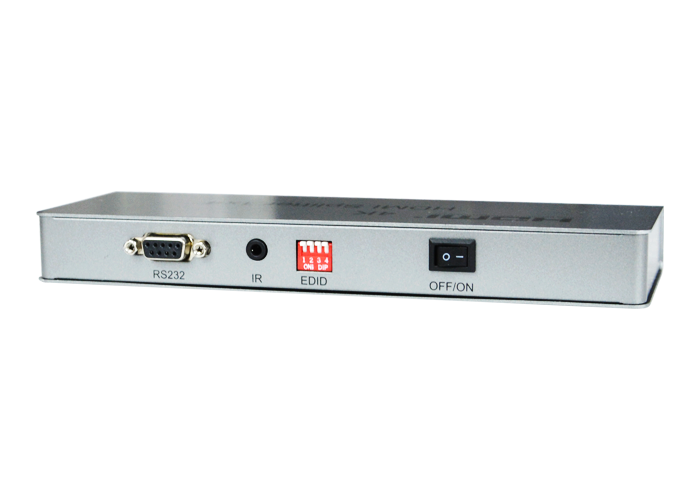

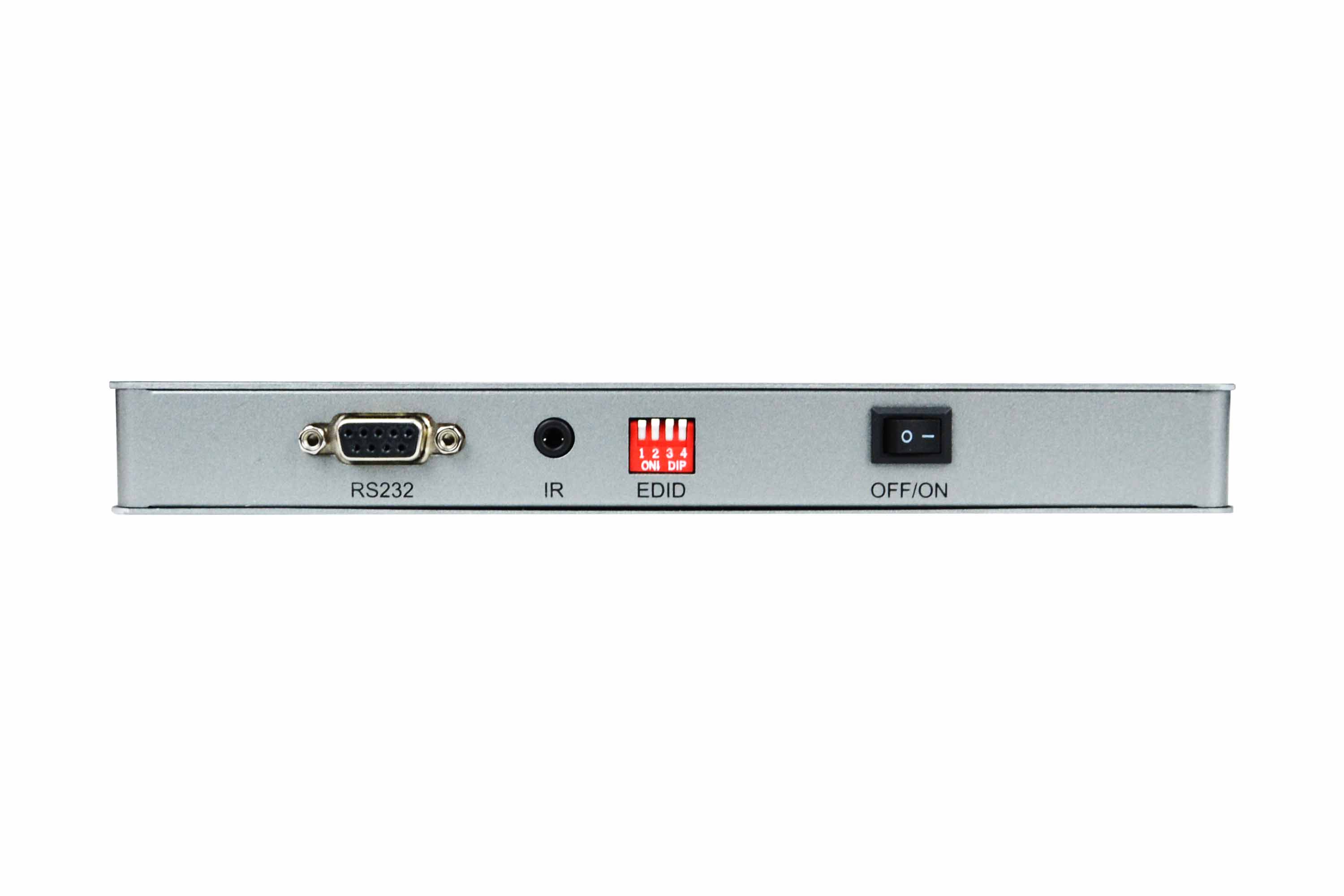

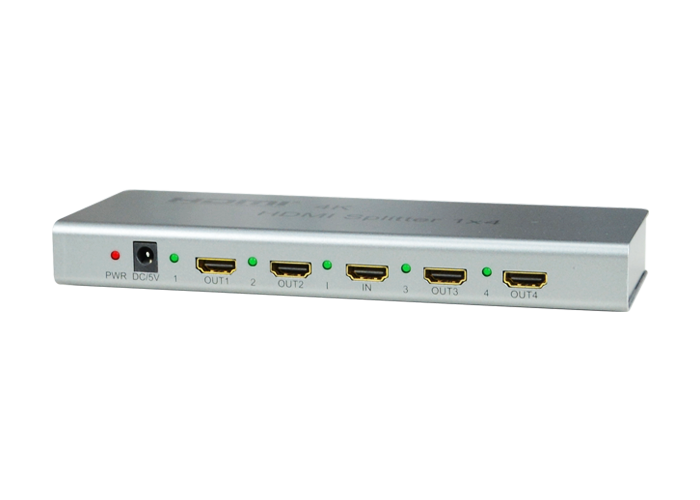

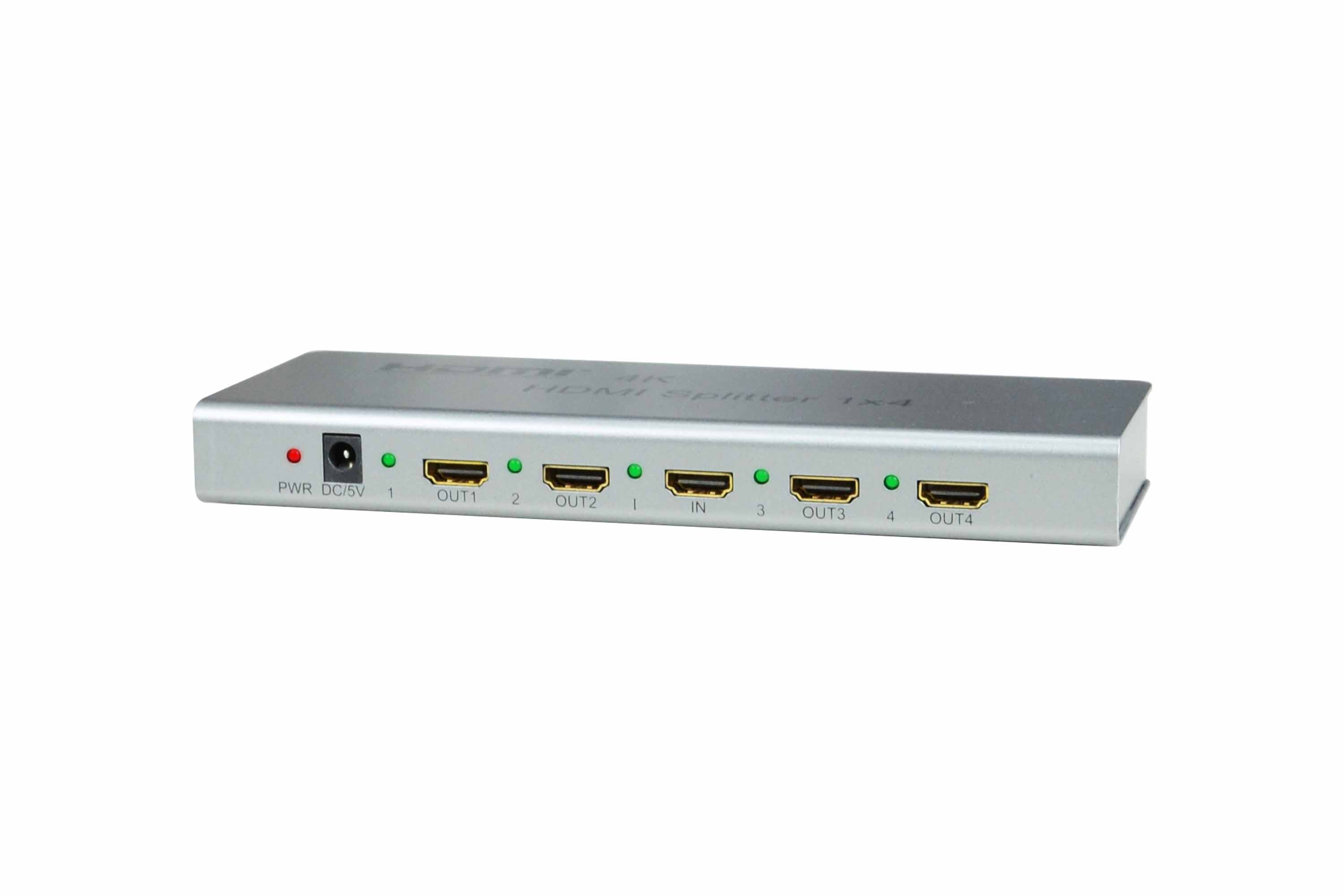

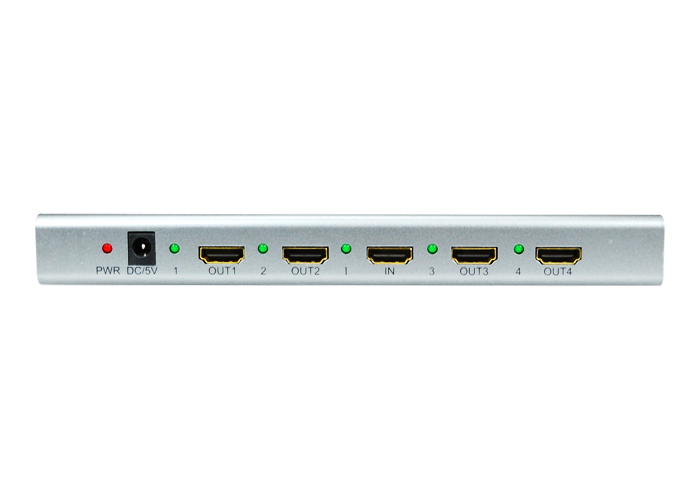

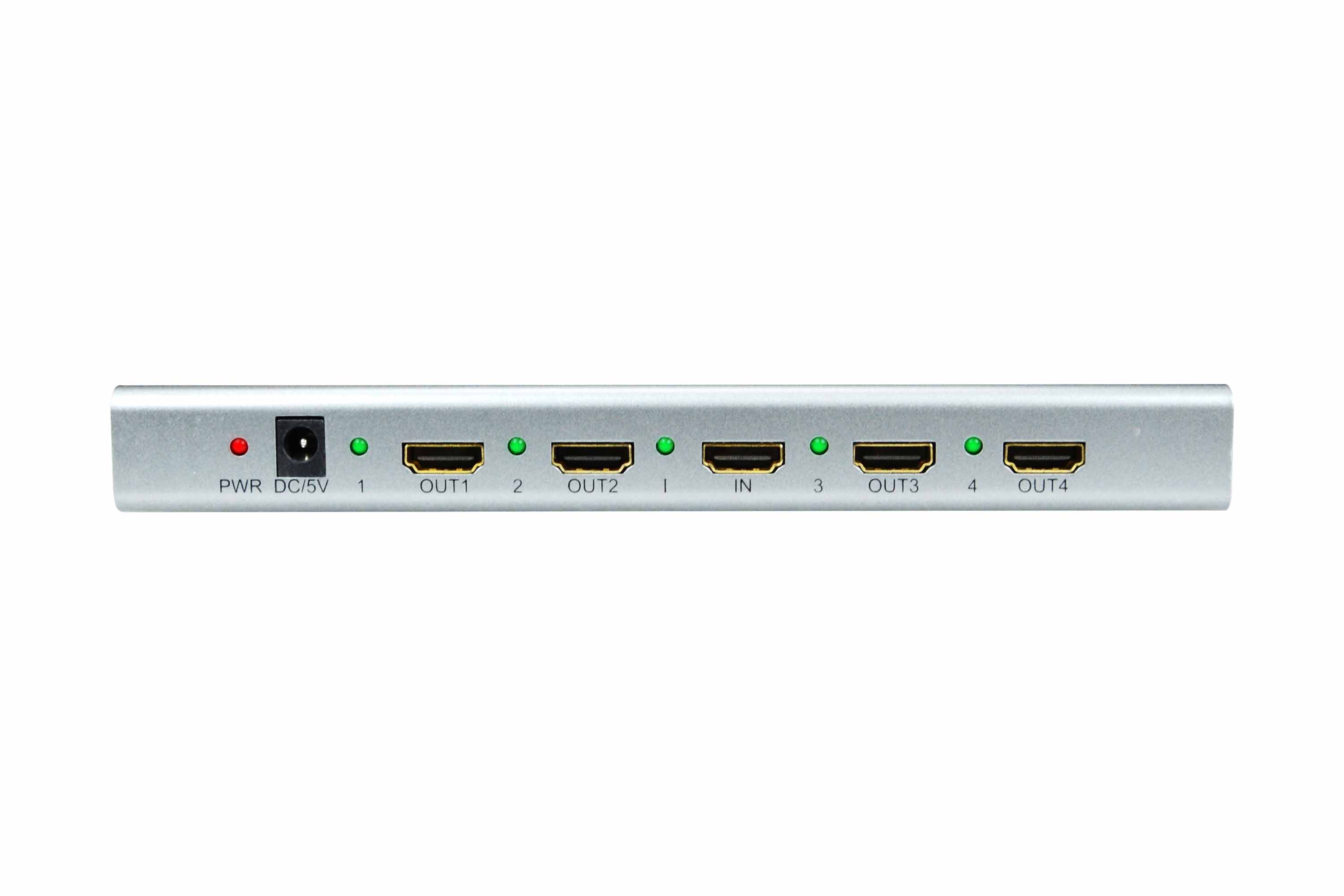

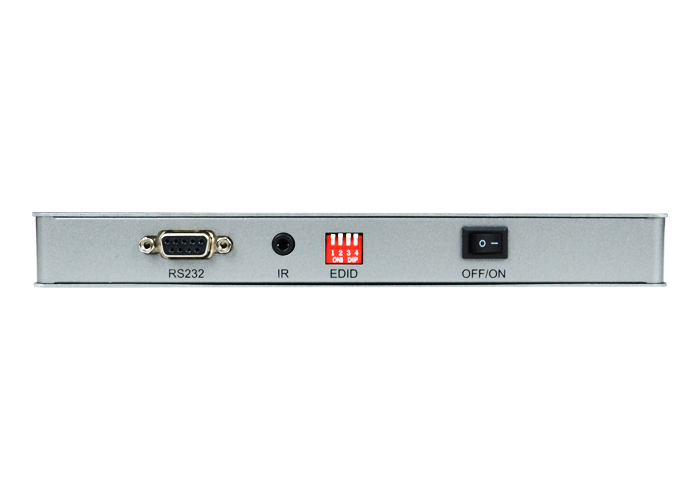

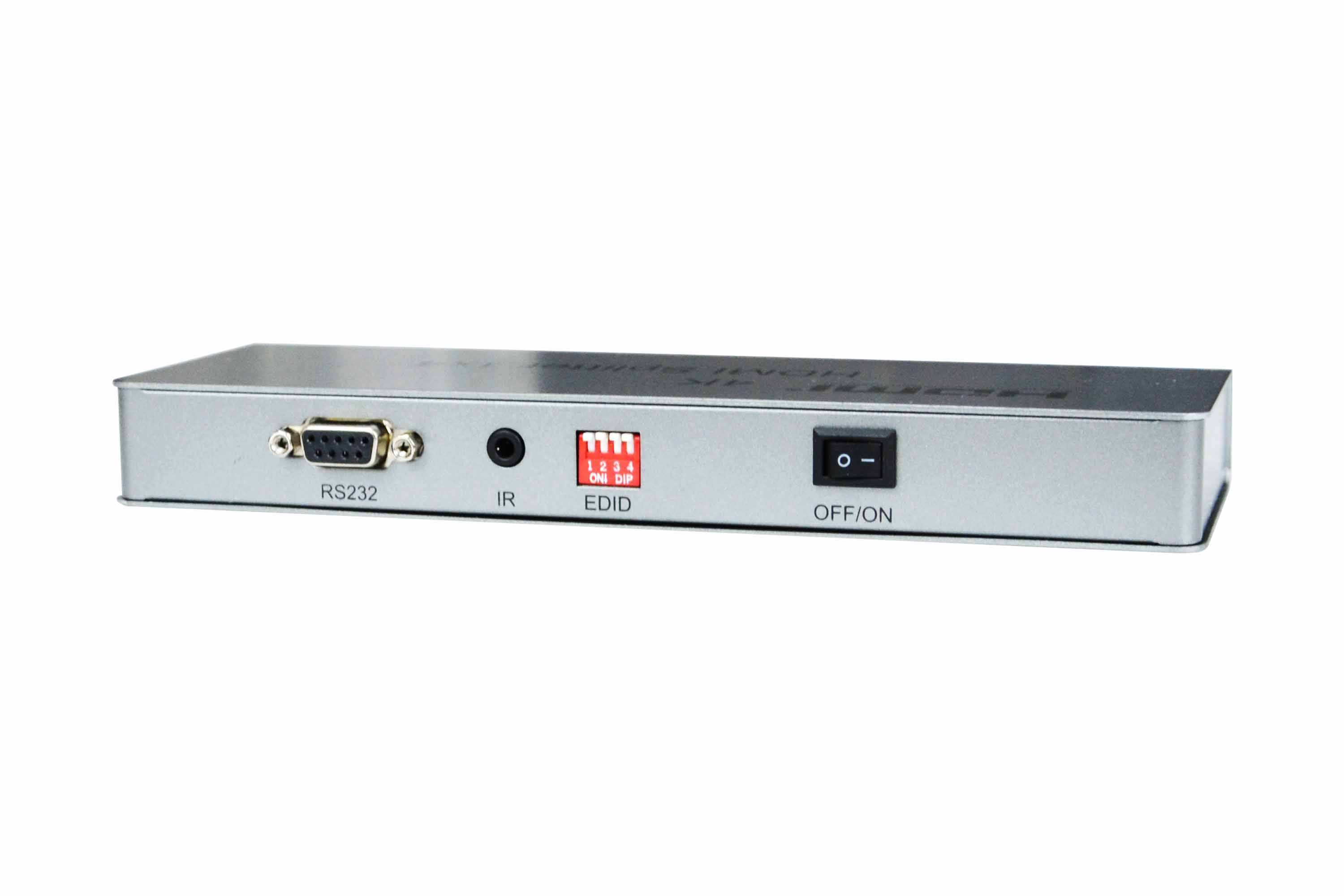

RE-HDMI4K-14

4K HDMI splitter with 1 input port and 4 output ports



This accessory allows you to split an input HDMI signal into 4 identical output signals. It is useful, for example, for the connection of several TV monitors to a single DVR / NVR.
You can install more than one splitter in sequence to further split the signal into a greater number of identical subsignals.
This splitter supports the 4K resolution and you can use it with our best 4K DVRs / NVRs to connect 4K monitors.
The splitter is supplied with a 5VDC power adapter
Resolution: Up to 4K 3840x2160 pixels


HDMI TRANSMITTERS

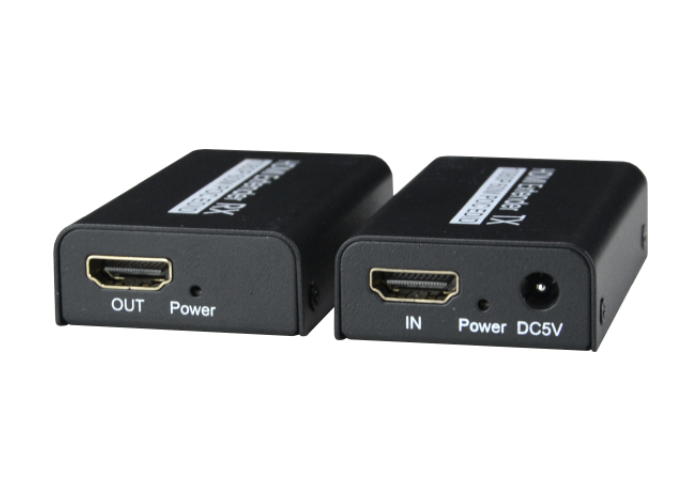

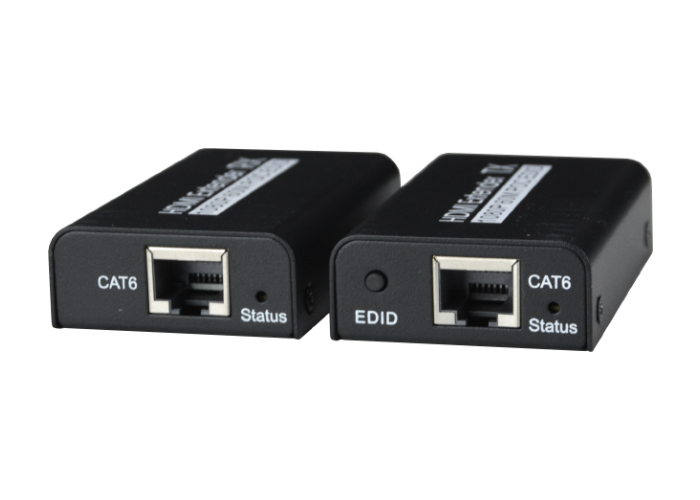

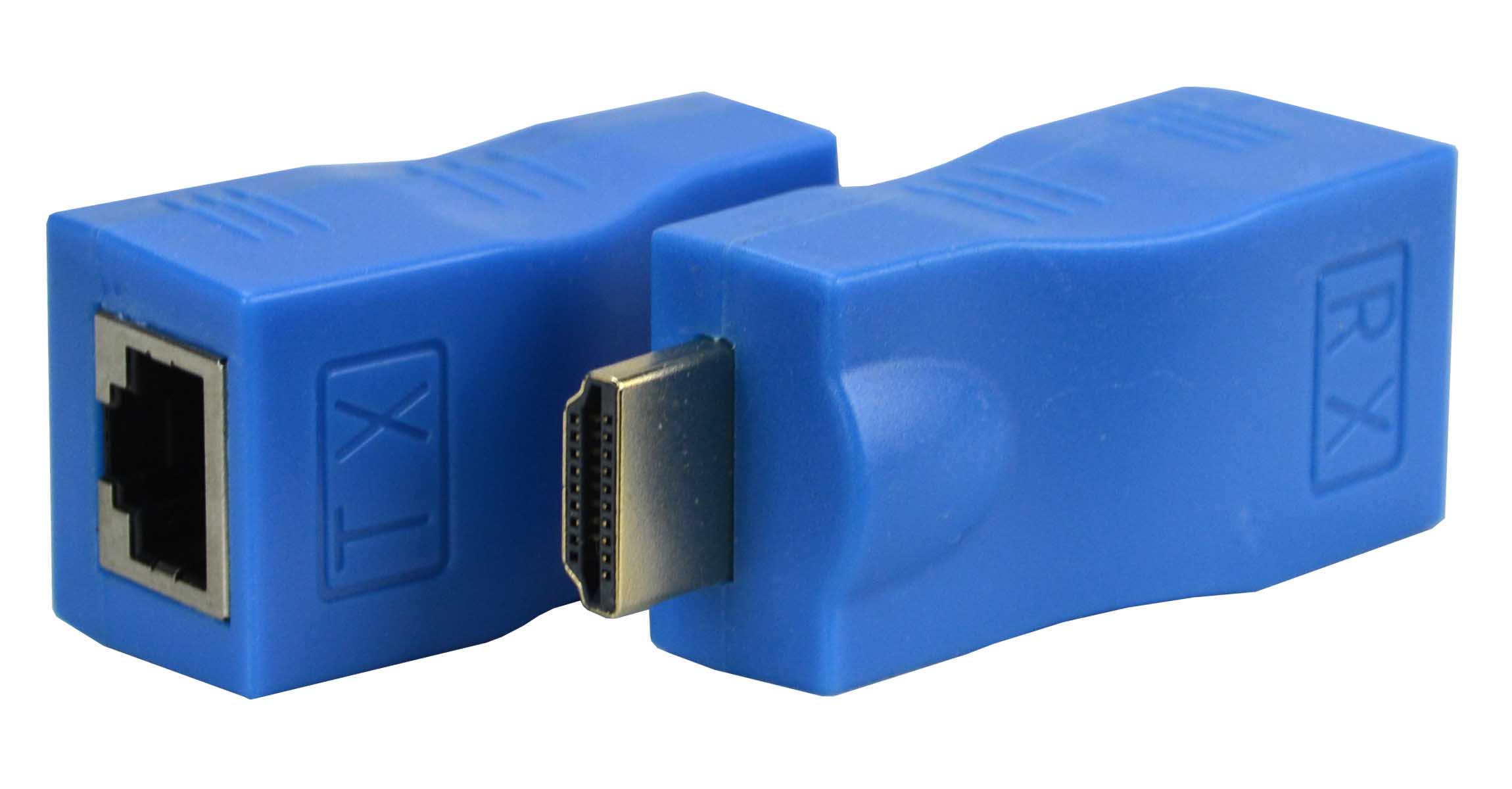

RE-HDMI-EX

HDMI transmitter on 2 UTP network cables (50 m)



The HDMI signal is very sensitive and it is possible to transport it thorugh a cable only for a few meters. If you use special cables, like our high-performance HDMI cables ), you can reach 20 m. but these cables are expensive and hard-to-handle.
These transmitters allow you to transport the HDMI signal up to a maximum distance of 50 m using two UTP CAT5 / 6 network cables. The product consists of a transmitter, that you can connect to the video source (DVR / NVR) and a receiver that you can connect the TV set. The system supports both video and audio. Only the transmitting unit needs power supply. The receiver is powered by the network cables.
The product is supplied with one 5VDC power adapter
Resolution: Up to Full HD 1080P 1920x1080

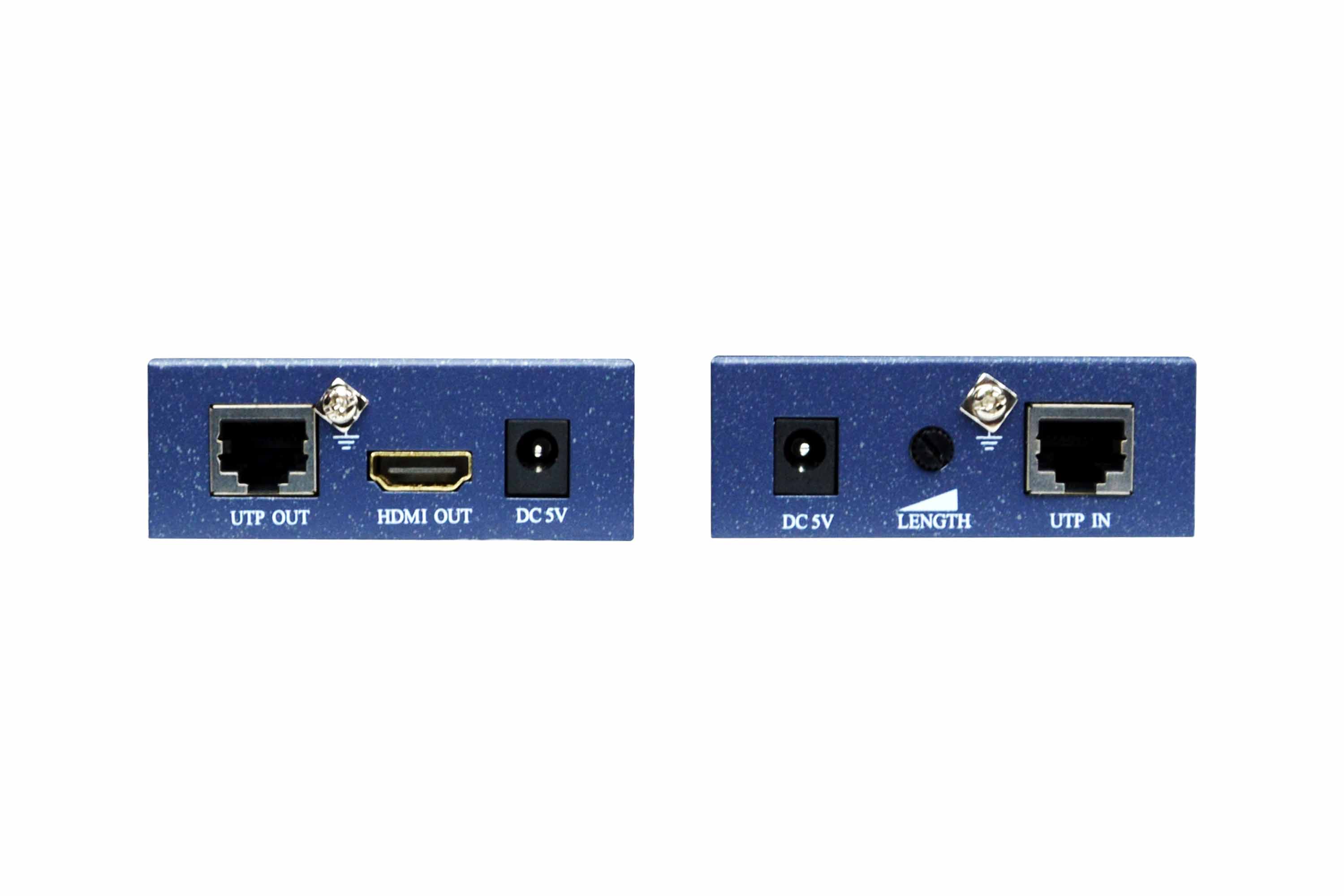

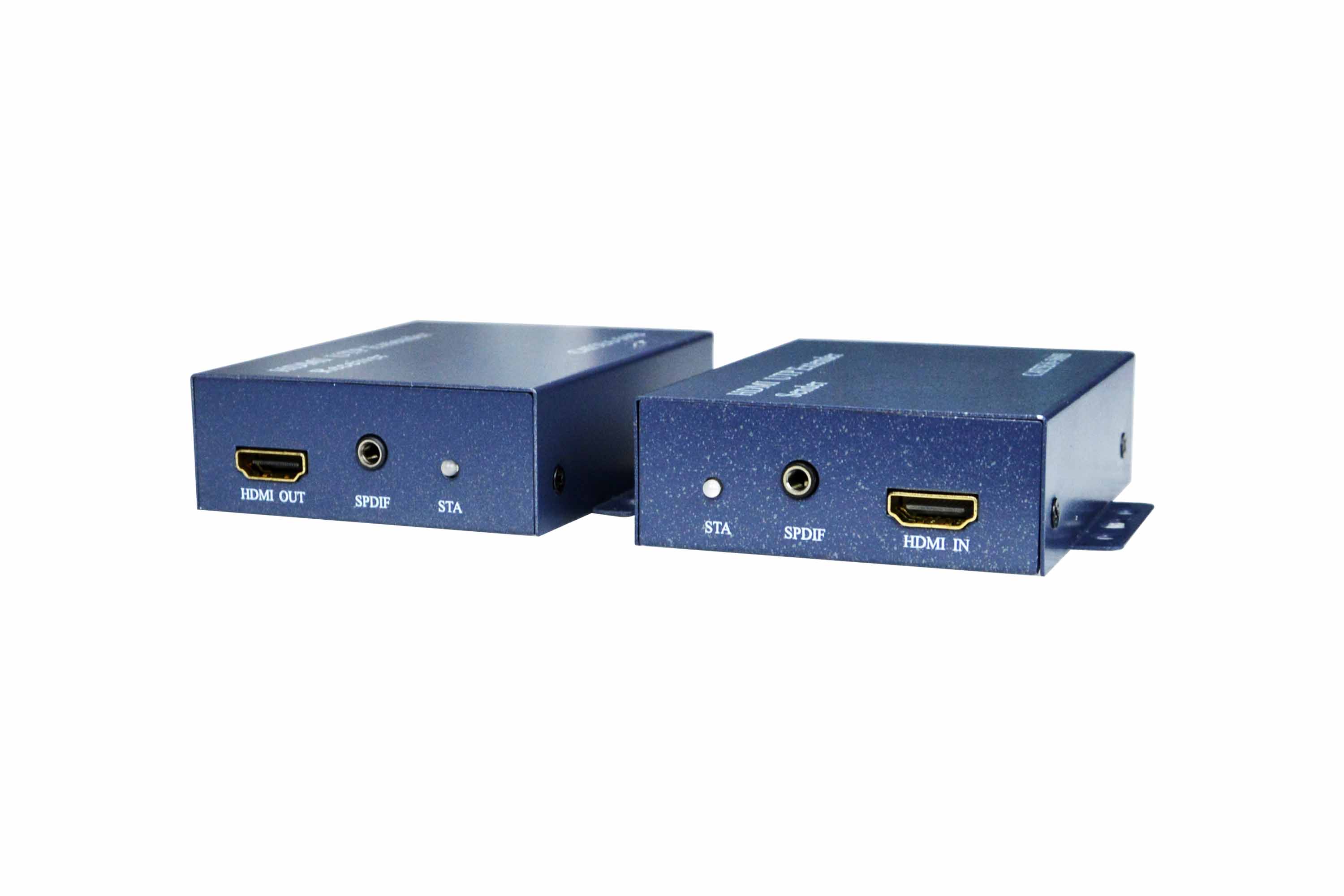

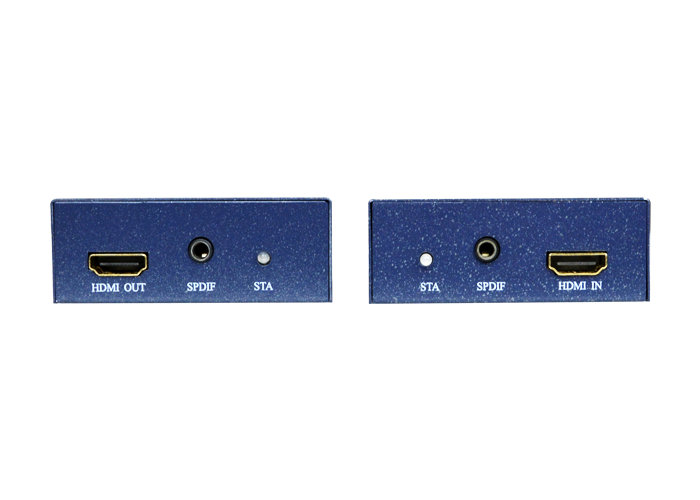

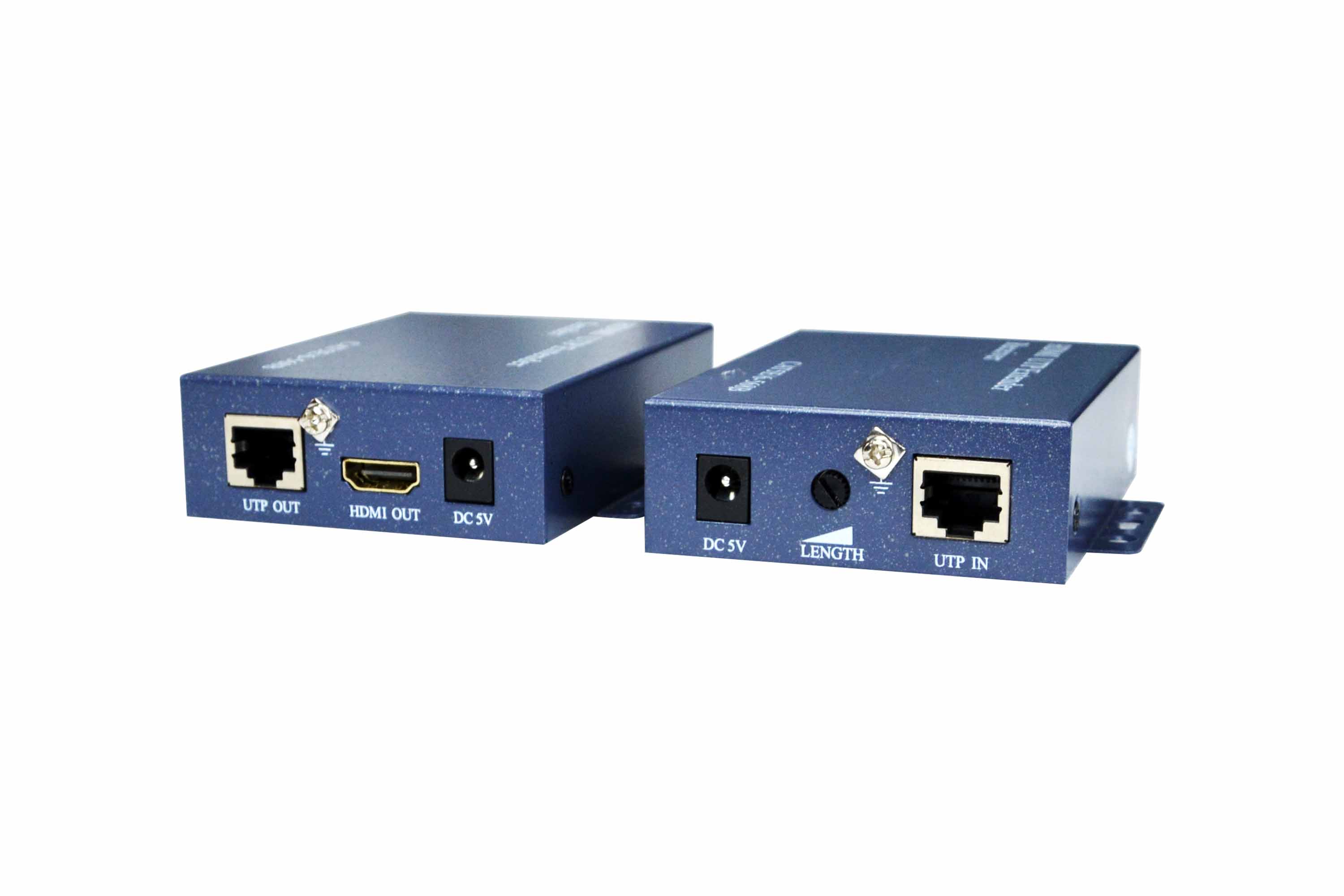

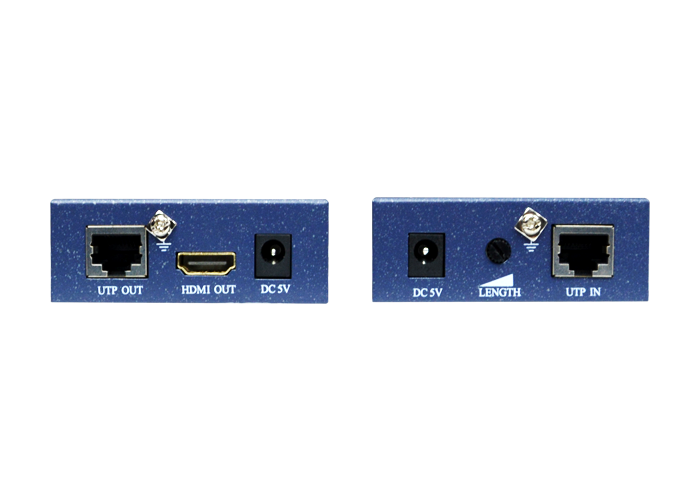

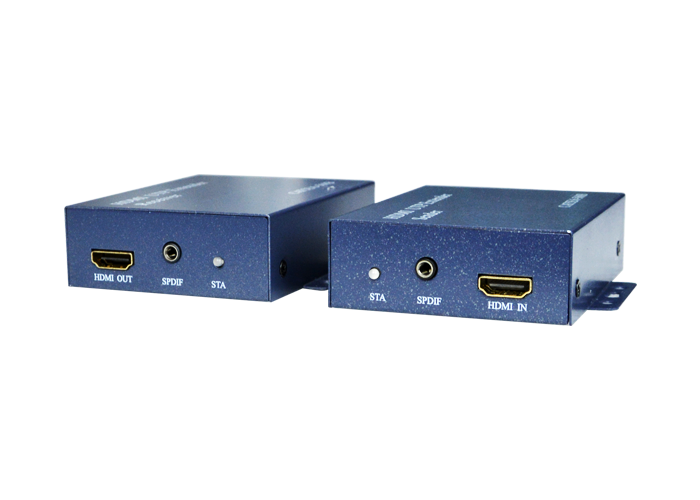

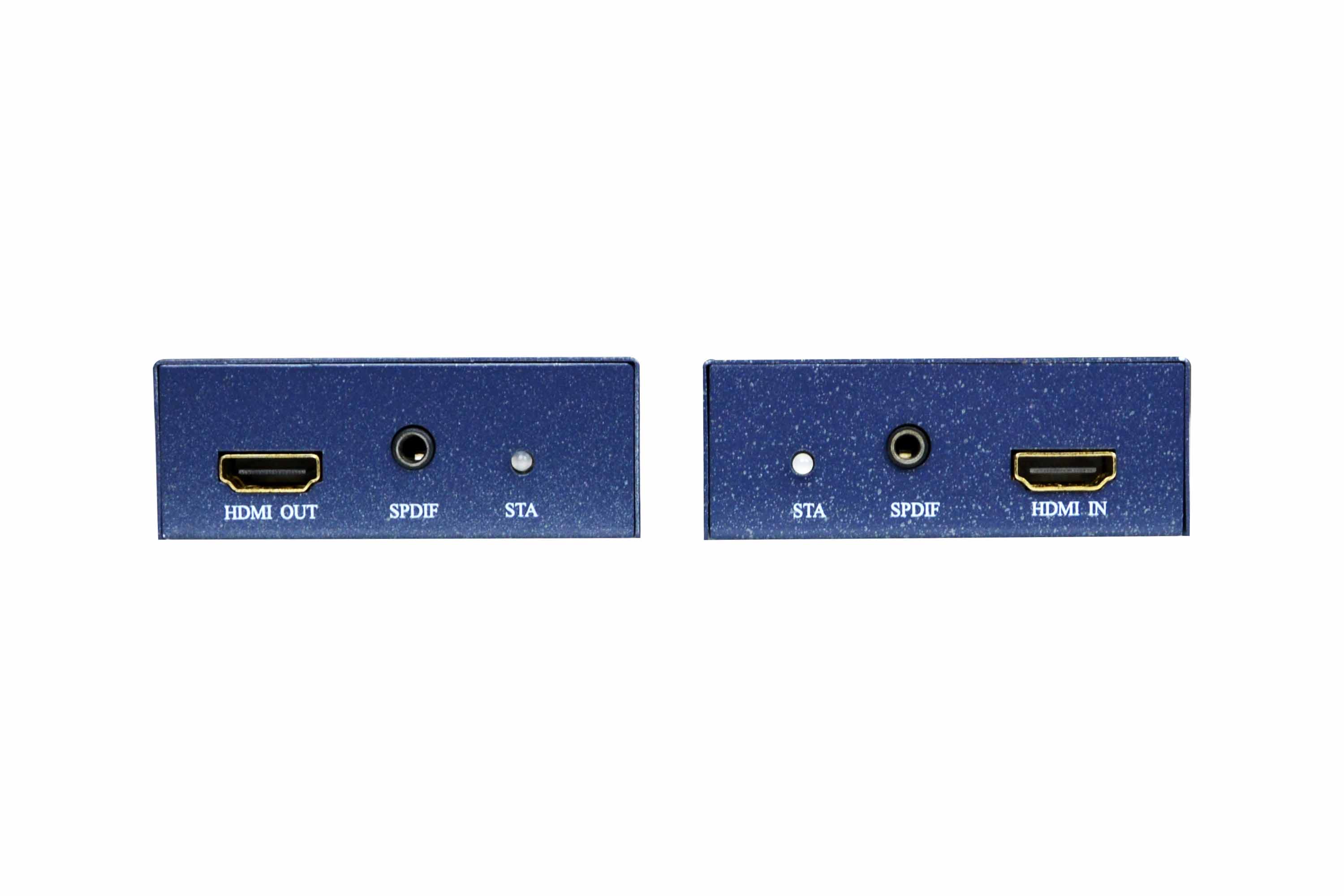

RE-HDMI-EX12

HDMI transmitter on 1 UTP network cable (100 m) with splitter

The HDMI signal is very sensitive and it is possible to transport it thorugh a cable only for a few meters. These transmitters allow you to carry an HDMI signal up to the maximum distance of 100 m using a single UTP CAT5 / 6 network cable. The product consists of a transmitter, that you can connect to the video source (DVR / NVR) and a receiver that you can connect a TV or monitor. The system supports both video and audio. Both modules must be powered with the two supplied 5VDC power adapters. The transmitter has an HDMI IN port to which you can connect the source to be transmitted (DVR / NVR) and also an HDMI OUT port. You can use this auxiliary HDMI port to connect a local monitor. Therefore, the device acts as a transmitter as well as a HDMI splitter. The receiver module has an HDMI output port that you can connect to a TV set. These two elements are connected with a single UTP CAT5 / 6 network cable whit a maximum length of 100 m. The product is supplied with 2 5VDC power adapters
Resolution: Up to Full HD 1080P 1920x1080


RE-HDMI-NET

HDMI transmitter on 1 UTP cable (120 m) or via TCP / IP network



This HDMI transmitter is different from other similar devices in this range. It can work in two ways: as a simple HDMI transmitter on a UTP cable or as an HDMI transmitter on a TCP / IP network. If you use it as the first option, you can carry the HDMI signal to a maximum distance of 120m. on a single UTP CAT5 / 6 network cable .
You can also use this transmitter to carry the HDMI signal over your Ethernet network. This is a very interesting feature that allows you to save a lot of cabling and place the monitor wherever you like within your network, just like a computer.

To use this HDMI transmitter on your network, you just need to connect the transmitter and the receiver to your LAN and they will connect to each other automatically. You will not have to set IP addresses or any other network parameters. Both the transmitter and the receiver have 4 addressing microswitches, very useful if you want to install many transmitters and receivers on the same network. You can connect up to 16 pairs of independent transmitters on the same network, or you can install a single transmitter connected to many receiver units that will replicate the same video signal on multiple monitors.
Both the transmitter and the receiver must be powered with the included 5VDC power adapters. The system transmits both video and audio signals and also an IR signal for IR remote control (IR receivers included).
Resolution: Up to Full HD 1080P 1920x1080

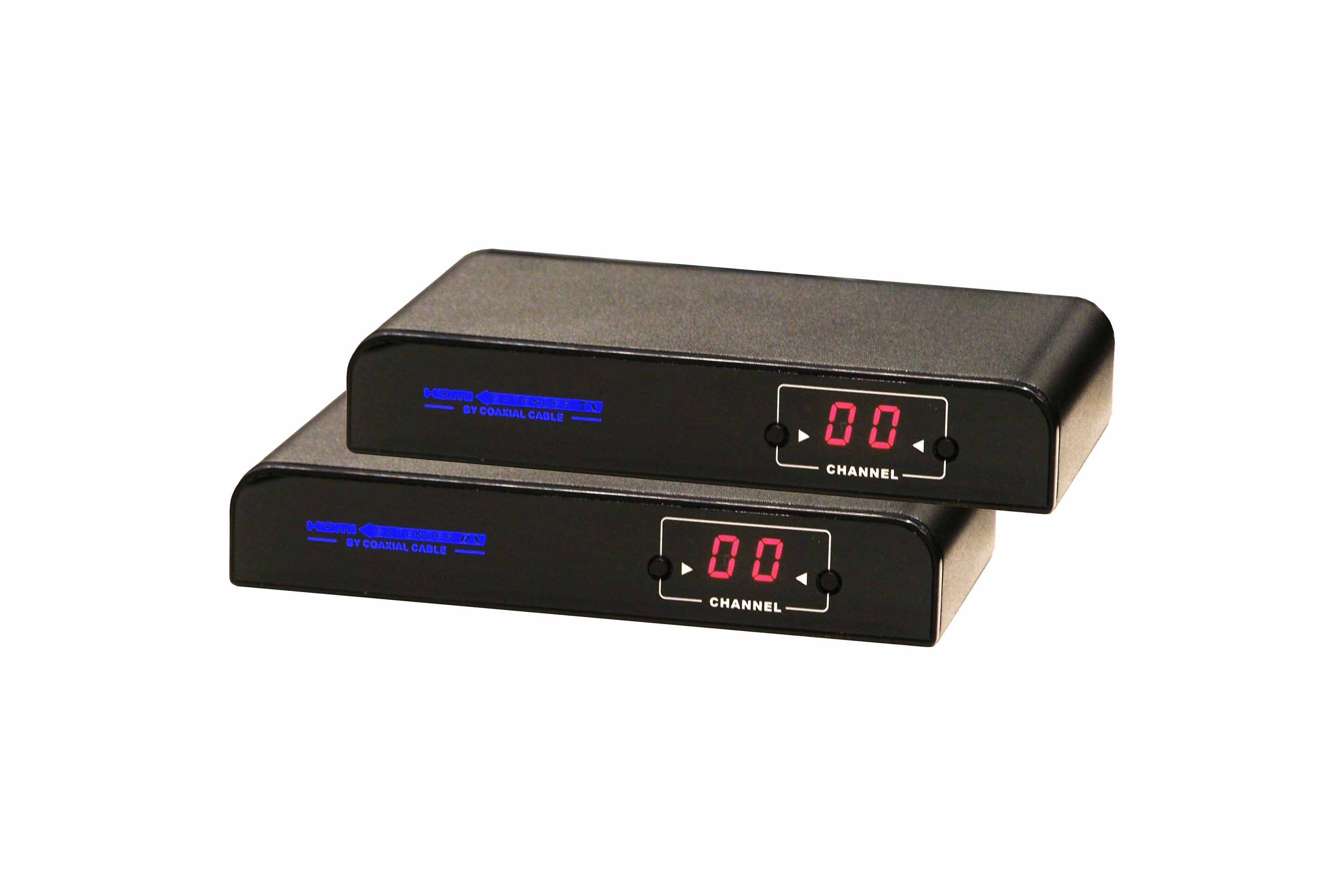

RE-HDMI-RG

HDMI transmitter on 1 coaxial cable (500 m.)



This unit, like other ones in this range, transports the HDMI signal from the DVR / NVR to the monitor.
Unlike other models, however, RE-HDMI-RG supports common coaxial cables, quite common in analogue CCTV.
This transmitter supports any type of 75 OHM coaxial cable : from the classic RG59, to the mini-coaxials like RG179, up to special cables like RG6 or RG11. It is ideal if you want to use the already-existing wiring of an old CCTV system, where the monitor signal was CVBS video carried on coaxial cables.

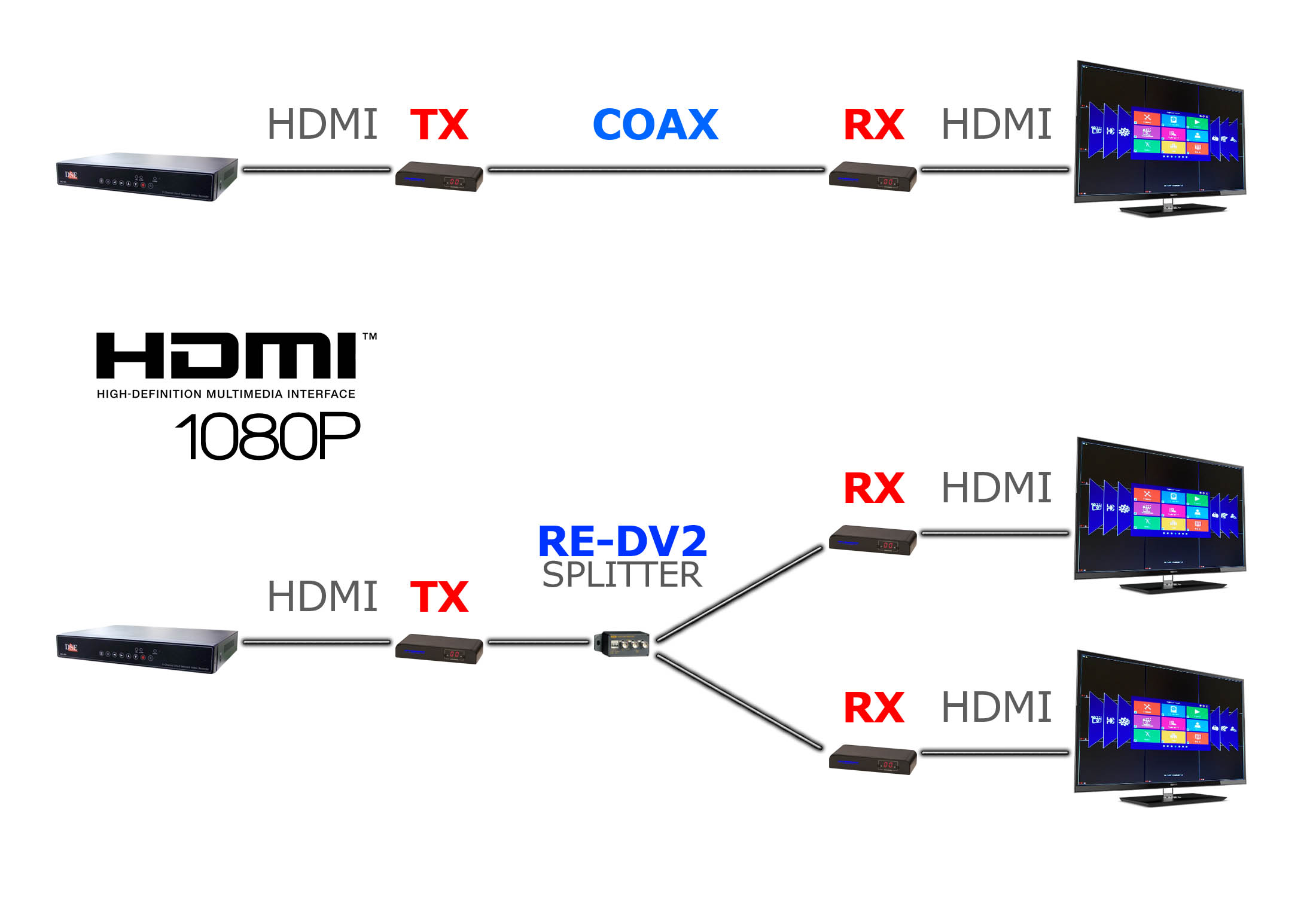

An interesting feature of this transmission system is the possibility to insert video distributors (Splitter) along the coaxial cable. Splitters are fully supported and allow you to carry the HDMI signal of one DVR to many monitors, using one transmitter and multiple receivers.

The product consists of a transmitter, that you can connect to the video source (DVR / NVR) and a receiver that you can connect the TV or monitor.
Both elements must be powered at 5VDC with the power supplies supplied.
The system transmits both video and audio.
The maximum length of the coaxial cable depends on the type of cable used, but it is normally well over 500 m. Transmitter and receiver are equipped with a transmission frequency selector to best adapt to the length of the cable. The receiver has a yellow LED that indicates when the connection with the transmitter is correctly established.
Resolution: Up to Full HD 1080P 1920x1080

TECHNICAL DATA



CODE RE-HDMI-12 RE-HDMI4K-14 RE-HDMI-EX RE-HDMI-EX12 RE-HDMI-NET RE-HDMI-RG
Description HDMI splitter 2 outputs HDMI splitter 4 outputs (4K) HDMI transmitter and receiver over 2 network cable HDMI transmitter and receiver over 1 network cable with splitter IP HDMI transmitter and receiver HDMI transmitter and receiver over coaxial cable
SUPPLIED
HDMI ports 1 in, 2 out 1 in, 4 out 1 in (TX), 1 out (RX) 1 in (TX), 2 out (TX e RX) 1 in (TX), 1 out (RX) 1 in (TX), 1 out (RX)
TX/RX ports - - 2xRJ45 (TX) + 2xRJ45 (RX) 1xRJ45 (TX) + 1xRJ45 (RX) 1xRJ45 (TX) + 1xRJ45 (RX) 1xF (TX) + 1xF (RX) for coax
Power suppli input Pin 5.5x2.1 mm. Pin 5.5x2.1 mm. Pin 5.5x2.1 mm. Pin 5.5x2.1 mm. Pin 5.5x2.1 mm. Pin 5.5x2.1 mm.
Supplied accessories Power adapter Power adapter Power adapter 2 power adapters 2 power adapters + IR receivers for infrared remote control 2 power adapters
SPECIFICATIONS
Maximum resolution 1080p (or 4K IN / 2K OUT) 4K 1080p 1080p 1080p 1080p
HDMI version HDMI 1.4b HDMI 2.0 HDMI 1.3 HDMI 1.3 HDMI 1.3 HDMI 1.3
HDCP version HDCP 1.2 HDCP 2.2 HDCP 1.2 HDCP 1.2 HDCP 1.2 HDCP 1.2
HDMI transmission - - 2xUTP CAT5/6 1xUTP CAT5/6 1xUTP CAT5/6 or Ethernet Coaxial 75 Ohm (RG59, RG179, RG6 etc.)
Max. transmission distance - - 50 m 100 m 120 m (if used for transmission over UTP cable) 500 m
GENERAL
Power supply 5VDC 5VDC 5VDC (only TX) 5VDC (TX and RX) 5VDC (TX and RX) 5VDC (TX and RX)
Casing Metal Metal Metal Metal Metal Metal
Degree of protection IP40 indoor IP40 indoor IP40 indoor IP40 indoor IP40 indoor IP40 indoor
Operating temperature -15°C-55°C RH95% MAX -15°C-55°C RH95% MAX 0°C-40°C RH95% MAX 0°C-40°C RH95% MAX 0°C-70°C RH80% MAX 0°C-40°C RH95% MAX
Power consumption 40mA 250mA 190mA 190mA x 2 170mA x 2 190mA x 2
Dimensions 101x41x15 mm 220x75x24 mm 83x45x24 mm 97x98x28 mm 92x79x28 mm 130x68x24 mm
Weight 92g 530g 100g x 2 184g x 2 240g x 2 240g x 2
