Environment microphones for CCTV cameras


Add audio to your IP cameras or DVR with our CCTV microphones for security systems

CCTV MICROPHONES


MICROPHONE WITH CONNECTORS
MINI

cctv microphone
RE-CM3

Small size microphone suitable for small boxes

MICROPHONE WITH CONNECTORS
ADJUSTABLE

cctv microphone
RE-CM3R

Adjustable gain microphone suitable for any room

MICROPHONE WITHOUT CONNECTORS
MINI

cctv microphone
RE-M1

Solder type mini microphone, ideal to install into devices

MICROPHONE WITHOUT CONNECTORS
ADJUSTABLE OUTDOOR

cctv microphone
RE-M2

Solder type microphone with adjustable gain and separate waterproof head

MICROPHONE WITHOUT CONNECTORS
ADJUSTABLE WALL MOUNT

cctv microphone
RE-M3

Solder type microphone with adjustable gain and wall/ceiling mounting plate

PRODUCT DATA


MICROPHONES WITH CONNECTOR

With these microphones you can add audio to your video surveillance system. In IP CCTV systems the microphone connects to the audio input of the cameras, while in analog AHD systems the audio inputs are often available in the DVR. Check if your devices have audio inputs before buying a microphone.
All these microphones come complete with a female DC plug to connect the 12VDC POWER SUPPLY and a female RCA connector to connect an IP camera or analog DVR.

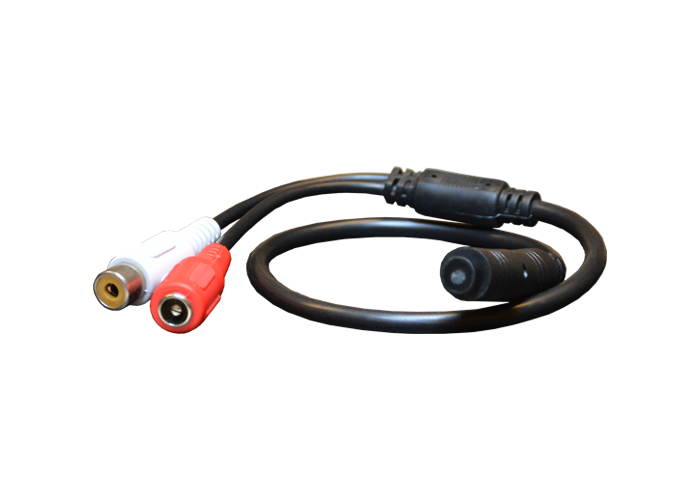

RE-CM3

Mini microphone with connectors

This ambient microphone is very small size and is therefore recommended when installing the microphone in small boxes. In CCTV systems, microphones are very often mounted in small spaces, such as in a switch box or in the junction box under the cameras. In all these situations this microphone is the best choice because its cigarette shape get close to the external surface taking up very little room in the box.
This microphone has excellent sensitivity that effectively covers a medium size room.

cctv microphone
RE-CM3
POWER SUPPLY 12VDC 10 mA
GAIN Fixed
SIZE (mm) 9x30
PROTECTION DEGREE IP54

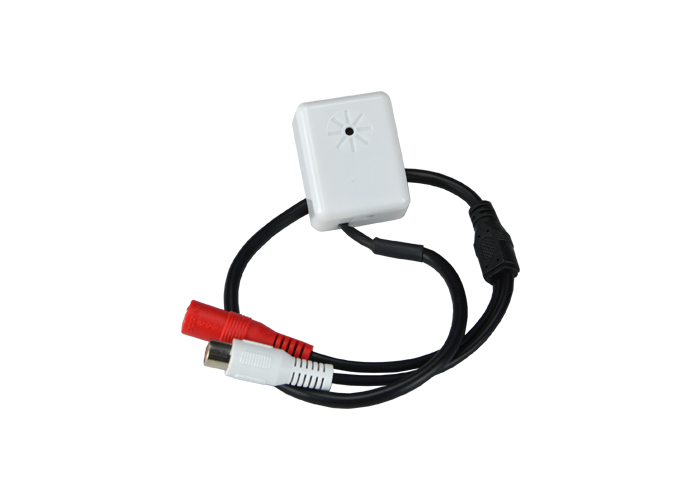

RE-CM3R

Microphone with connectors - Adjustable gain

This ambient microphone has adjustable sensitivity . By turning the trimmer, you can adjust the GAIN of the microphone according to the size of the room and to your needs. The microphone is equipped with a noise reduction circuit. These microphones comes in a plastic case that is easy to install in the right position with glue or tapes.

cctv microphone
RE-CM3R
POWER SUPPLY 12VDC 10 mA
GAIN Adjustable
SIZE (mm) 40x30x15
PROTECTION DEGREE IP40

MICROPHONES WITHOUT CONNECTOR

With these microphones you can add audio to your video surveillance system. In IP CCTV systems the microphone connects to the audio input of the cameras, while in analog AHD systems the audio inputs are often available in the DVR. Check if your devices have audio inputs before buying a microphone.
These microphone without connectors are ideal to be installed into other devices.
They come with 3 wires: WHITE=Audio, RED=+12VDC, BLACK=-12VDC e GND-AUDIO

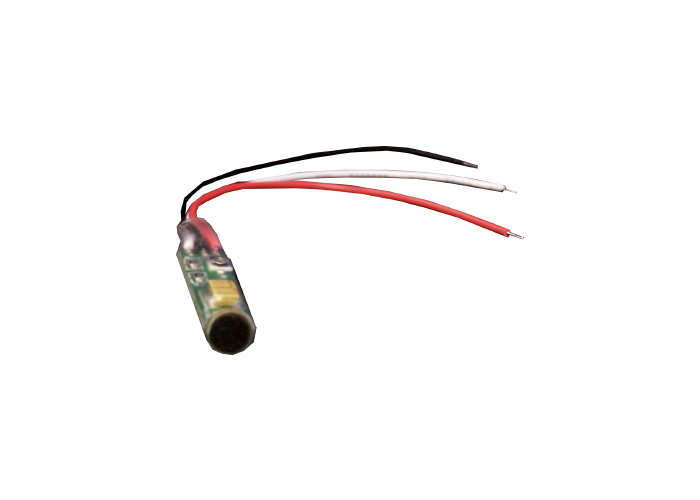

RE-M1

Mini microphone without connectors

This cctv microphone is the smallest of our range and is recommended when installing the microphone in a small space. This version without connectors is perfect for soldering the microphone inside other equipment, for example we use in our hidden detectors. The cigarette shape allows you to get close to the external surface taking up very little internal space.
This microphone has excellent sensitivity and effectively covers a medium sized room.

cctv microphone
RE-M1
POWER SUPPLY 12VDC 10 mA
GAIN Fixed
SIZE (mm) 7x40
PROTECTION DEGREE IP40

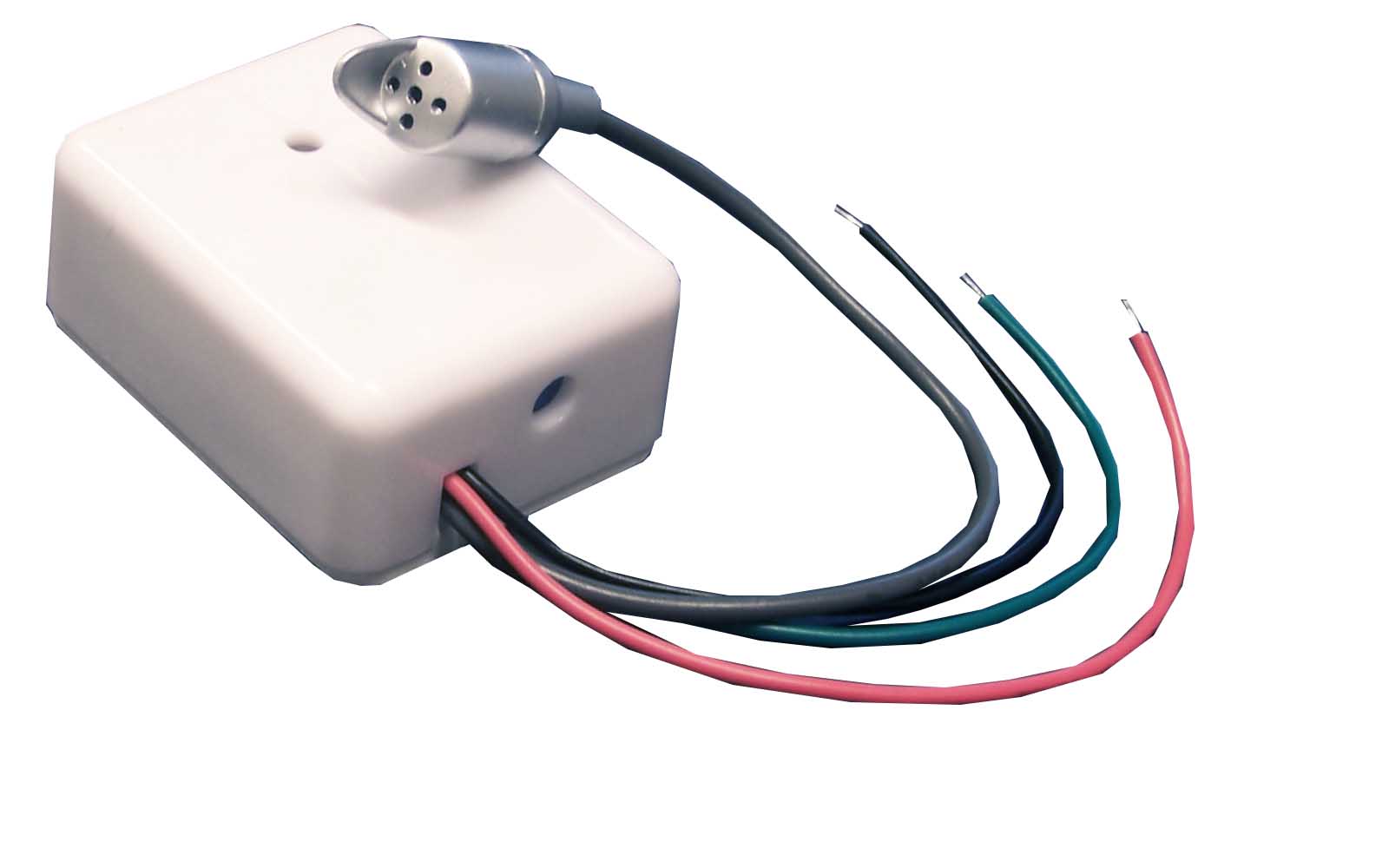

RE-M2

Microphone without connectors - Adjustable gain

This ambient microphone has adjustable sensitivity . By turning the trimmer you can adjust the gain of the microphone according to the size of the room and to your needs. This microphone is equipped with a noise reduction circuit and come in a plastic box. It has a separate microphone head in a waterproof case that is suitable to be placed outdoor.

cctv microphone
RE-M1
POWER SUPPLY 12VDC 10 mA
GAIN Adjustable
SIZE (mm) CASE 48x30x18 | MIC 8x30
PROTECTION DEGREE CASE IP40 | MIC IP54

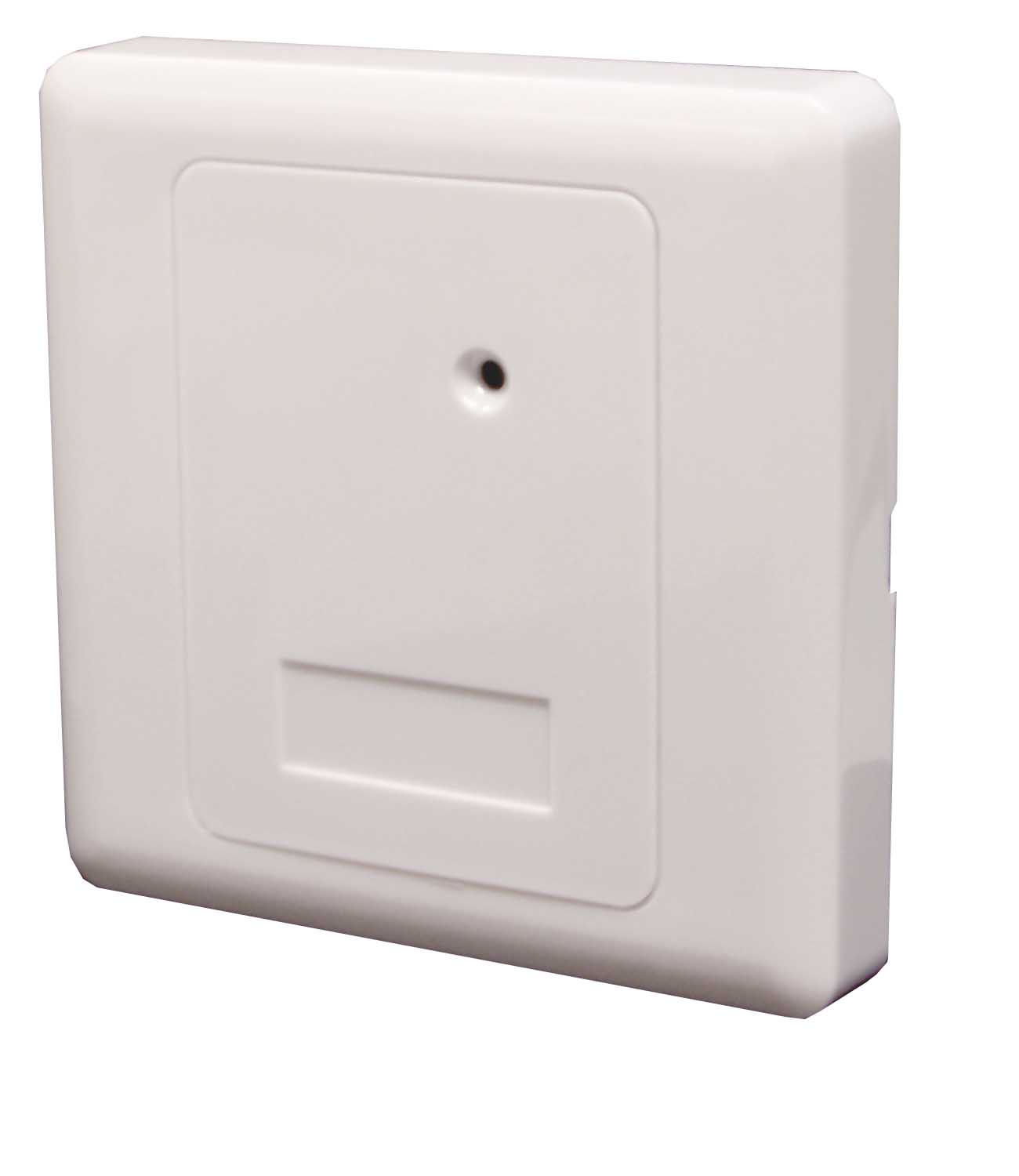

RE-M3

Microphone without connectors - Adjustable gain with mounting plate

This ambient microphone has adjustable sensitivity . By turning the trimmer you can adjust the gain of the microphone according to the size of the room and to your needs. The microphone is equipped with a noise reduction circuit and comes with a wall or ceiling mounting plate which is ideal for standalone, stylish audio points.

cctv microphone
RE-M3
POWER SUPPLY 12VDC 10 mA
GAIN Adjustable
SIZE (mm) 88x88x20
PROTECTION DEGREE IP40
