DESIGNED FOR CCTV. SUPPORTS UP TO 4 CAMERAS WITH INTERNAL CABLE ROUTING. CLEAN INSTALLATION WITH NO JUNCTION BOXES OR MOUNTING CLAMPS.
ANODIZED ALUMINUM, NOT PAINTED. CORROSION-PROOF AND BUILT TO LAST.

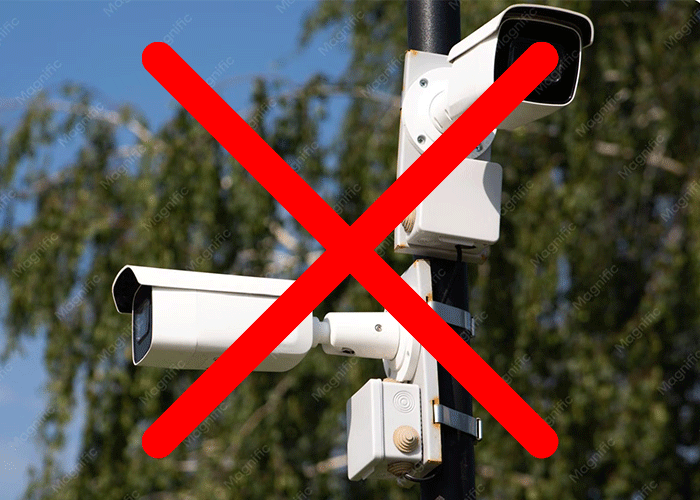

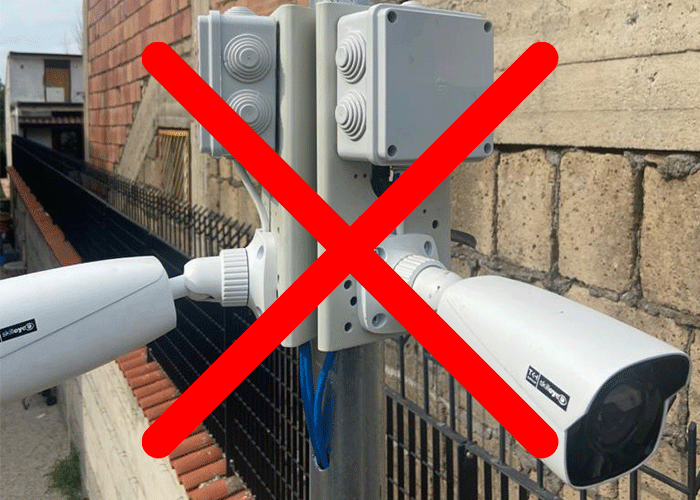

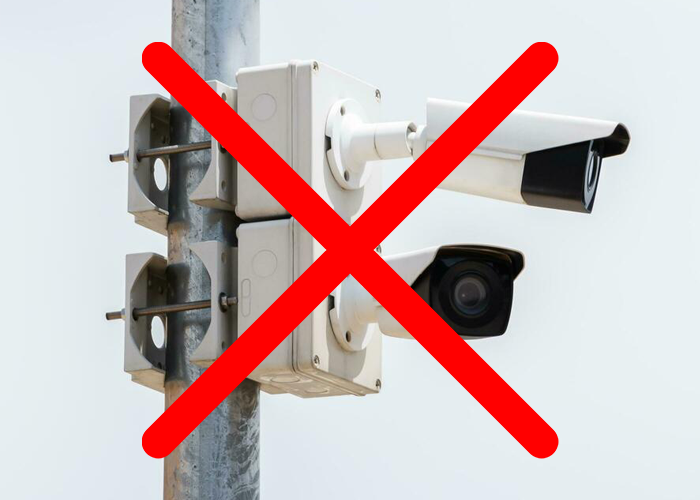

Our CCTV poles are not ordinary poles, but purpose-built supports specifically engineered for outdoor security cameras. When installing perimeter surveillance cameras, standard round poles are often used, but this approach typically delivers poor results both functionally and aesthetically. Unlike conventional construction poles, these CCTV-specific poles allow you to mount multiple cameras in a clean and professional way, without the need for mounting accessories such as junction boxes or clamps, and with no exposed cabling running outside the pole.

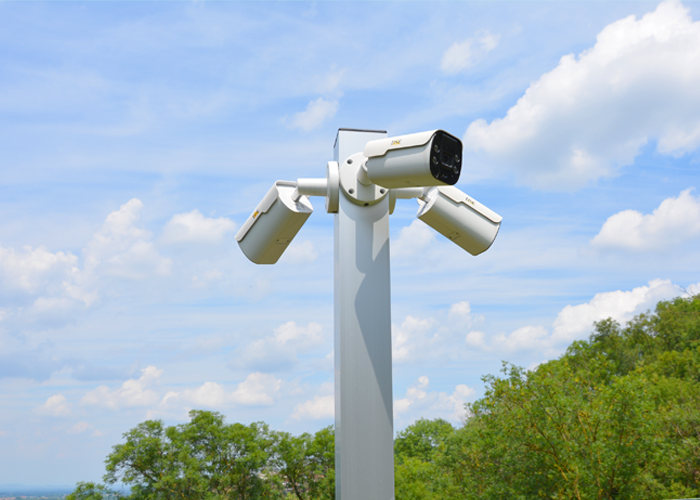

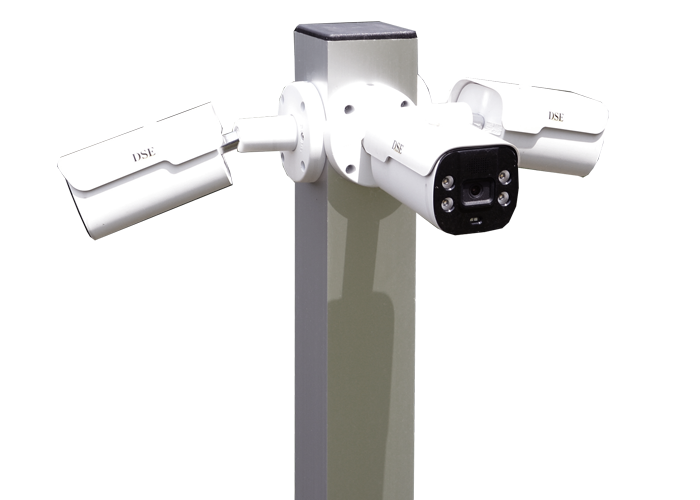

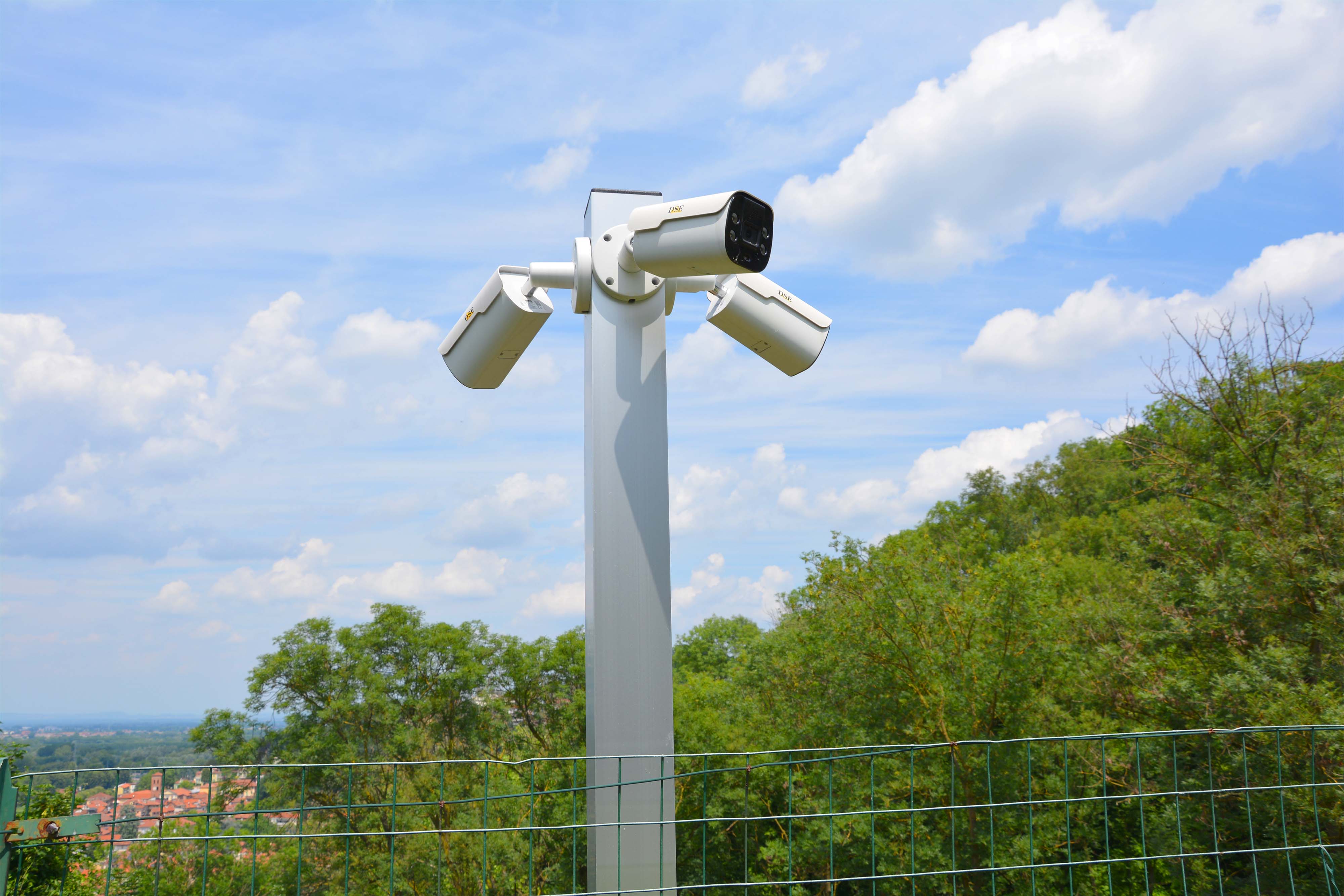

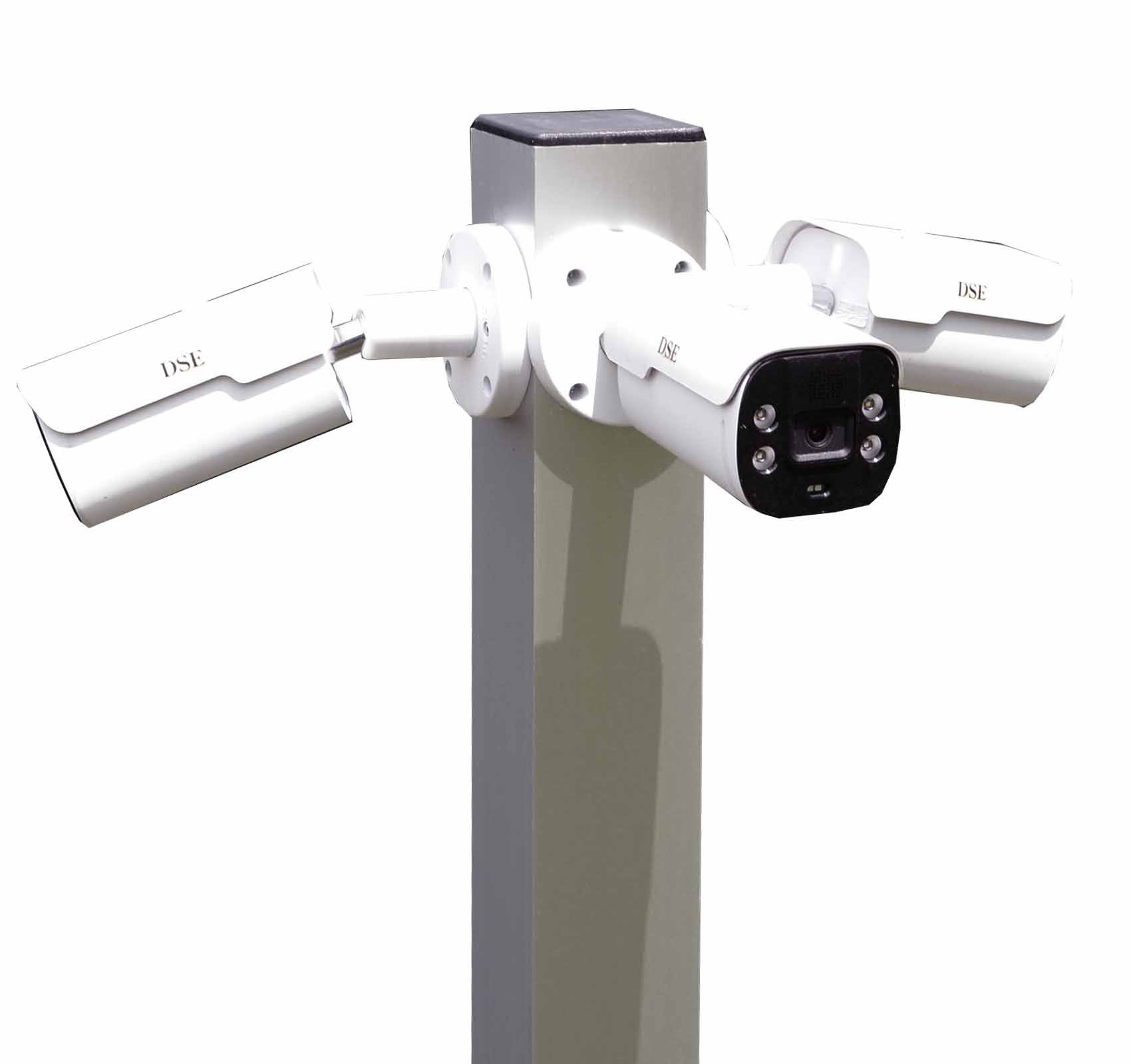

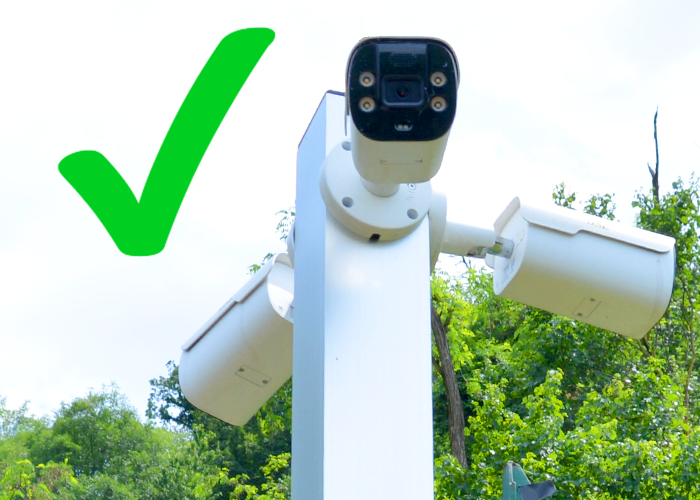

The main difference between a standard pole and a CCTV pole is the square profile. Our camera poles feature a 10x10 cm square section, allowing you to mount cameras directly on all four sides of the pole, side by side, without the need for overlapping clamps or brackets. In addition, all wiring and connections remain fully protected inside the pole, eliminating the need for unsightly junction boxes or exposed conduit.
Unlike conventional painted steel poles, these CCTV poles are manufactured from a single 3 mm thick anodized aluminum square profile. They provide outstanding mechanical strength and remain stable even under severe weather conditions. Completely corrosion-resistant, they are suitable for outdoor installation in coastal areas with salty air as well as in mountain environments. The anodized finish, with no paint coating, delivers a sleek high-tech satin appearance that remains attractive and maintenance-free for years.

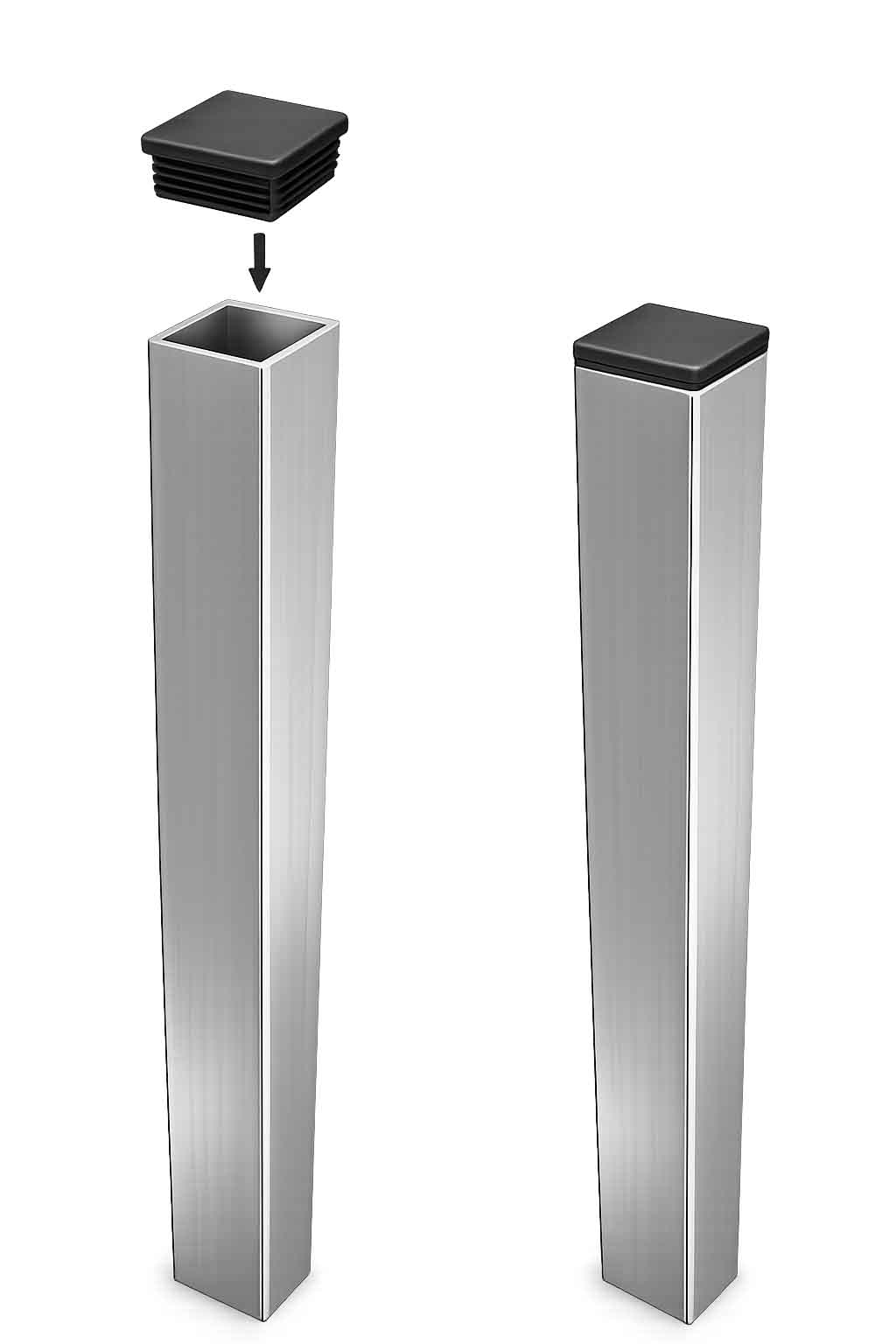

These poles are made entirely of aluminum, a material that combines exceptional strength with low weight and easy machining. Cable entry and exit holes can be created exactly where needed using a standard power drill fitted with a hole saw. In a typical installation, the conduit carrying the cables enters through the base of the pole, while all wiring and connections are routed inside the profile, where they remain fully protected from weather and environmental exposure. Each pole is supplied with a waterproof sealing top cap that simply presses into place to ensure complete weather protection.

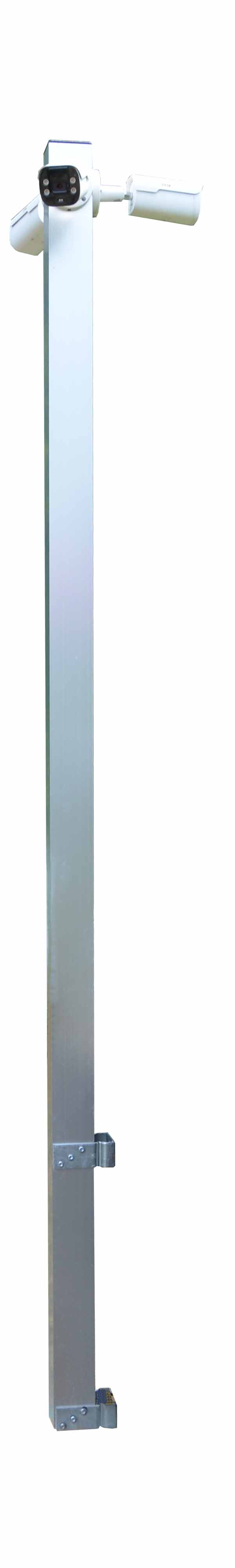

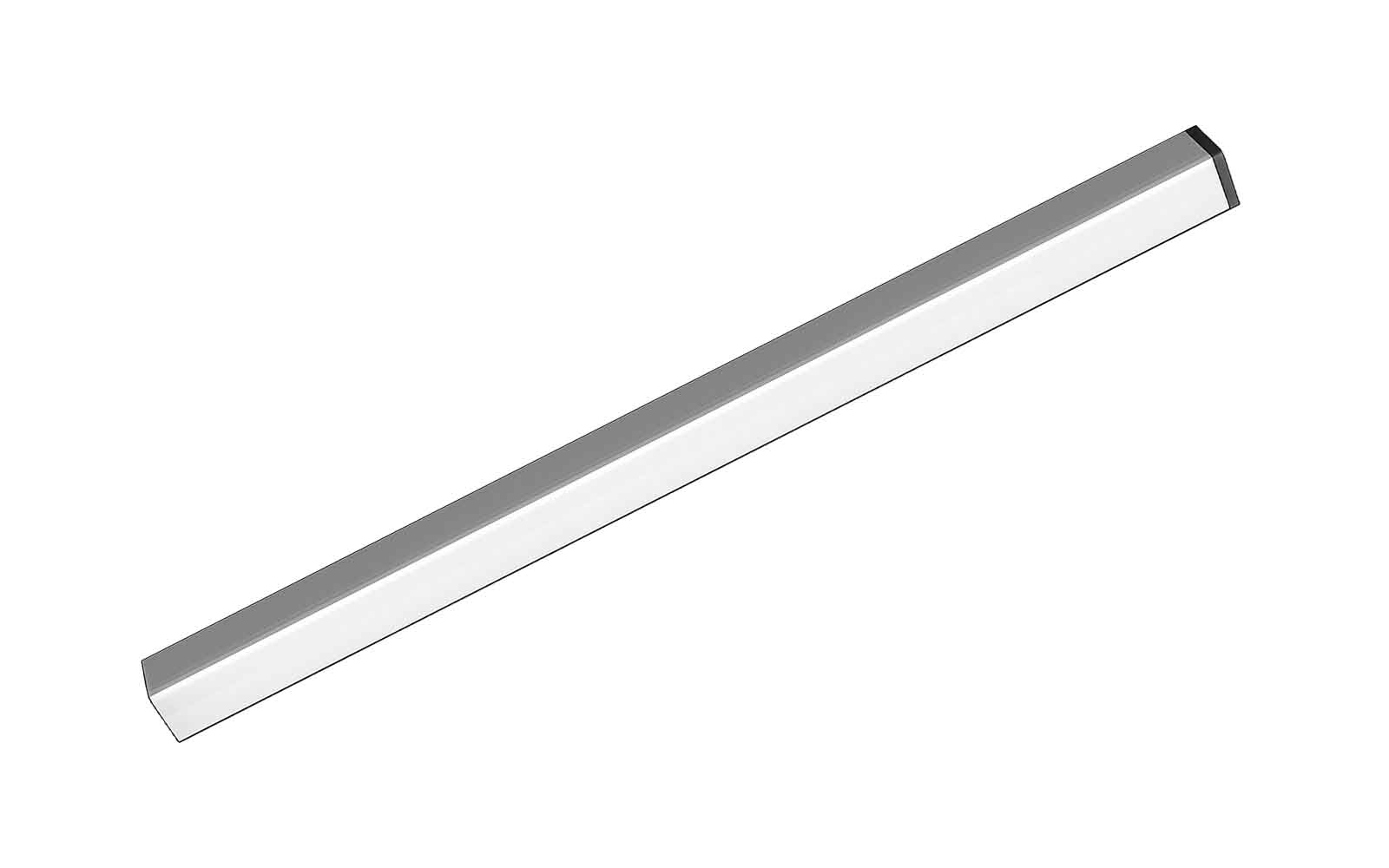

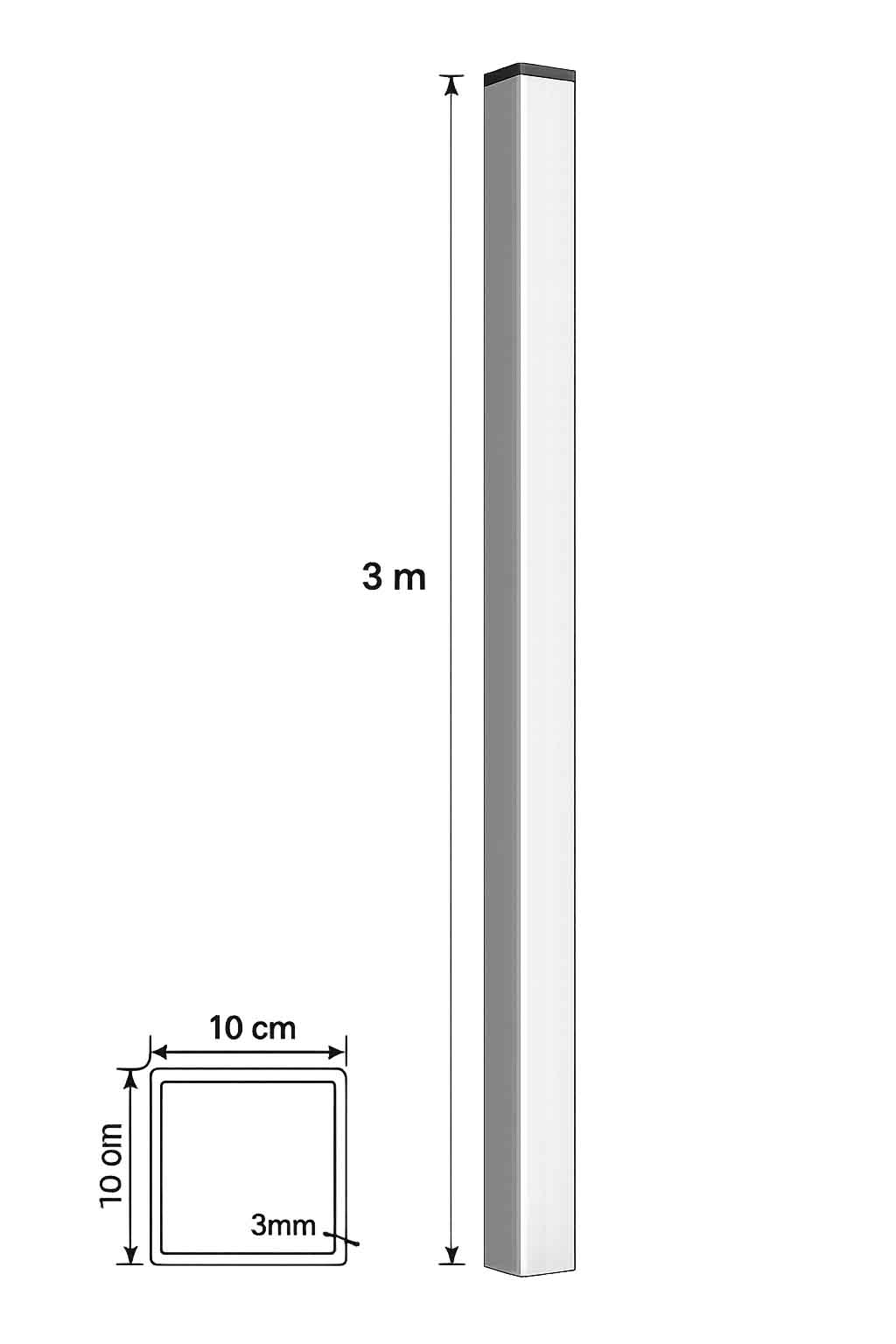

A high-quality camera pole is designed with purpose, not by chance. The 10x10 cm square profile provides four wide mounting surfaces, allowing virtually any camera to be secured directly to the pole. The 3-meter height is ideal for surveillance applications, keeping cameras safely out of reach while still capturing clear and meaningful images of people, a key factor for the effective performance of intelligent video analytics. Despite its robust construction, the 10x10x300 cm aluminum pole weighs only 6.5 kg, making it easy to transport, handle, and install.

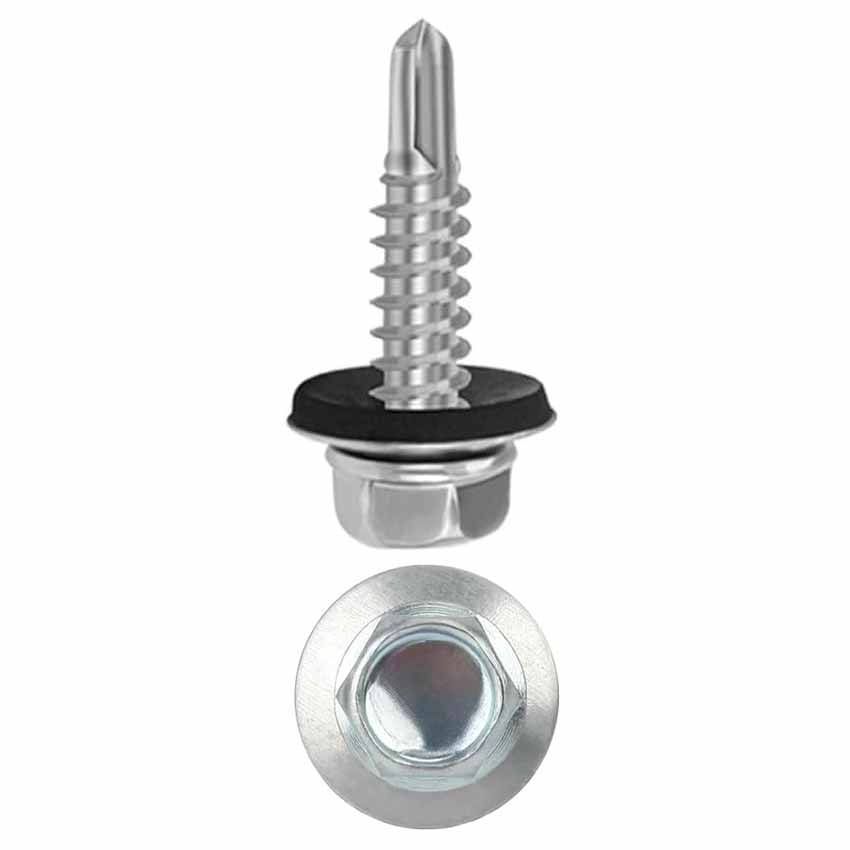

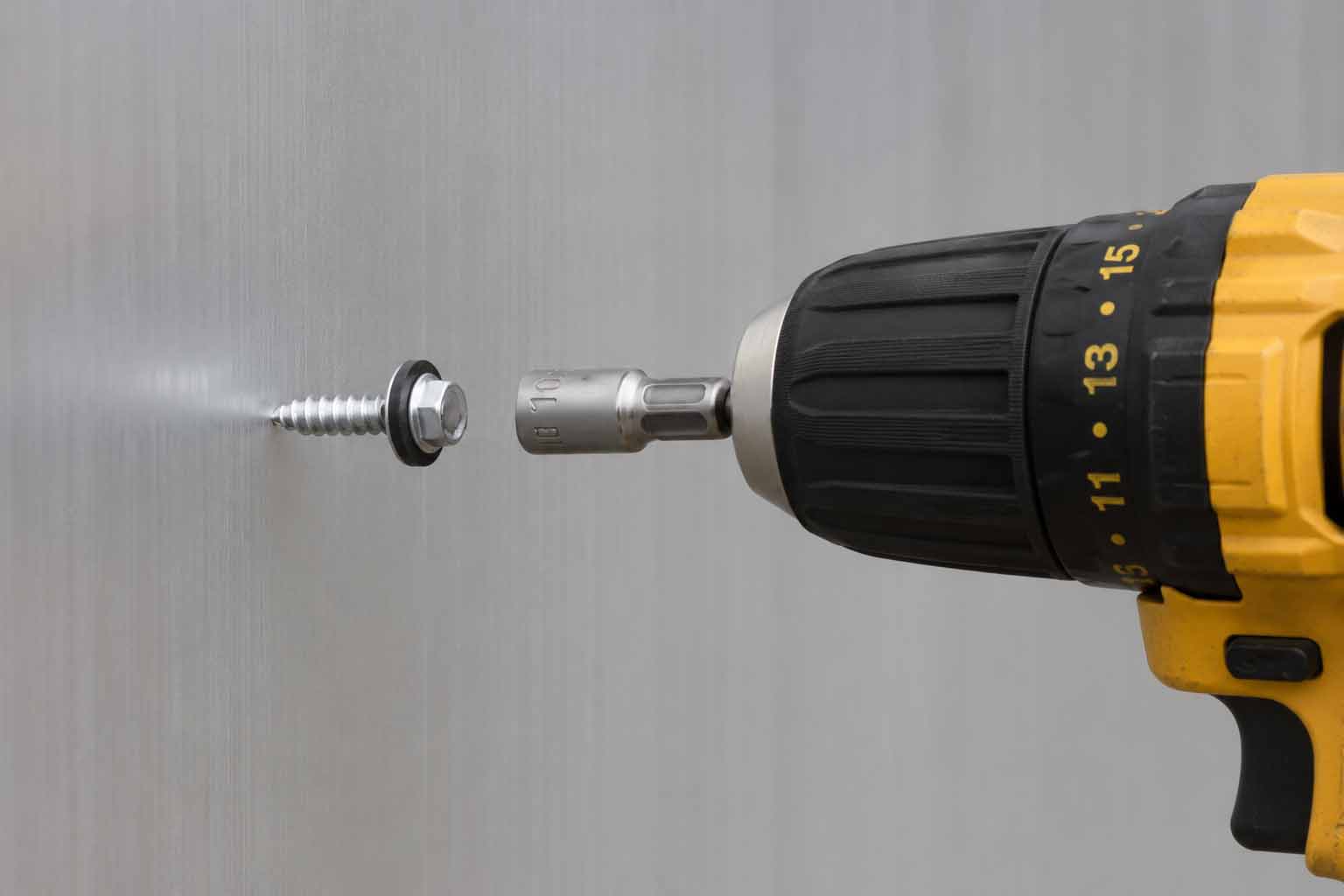

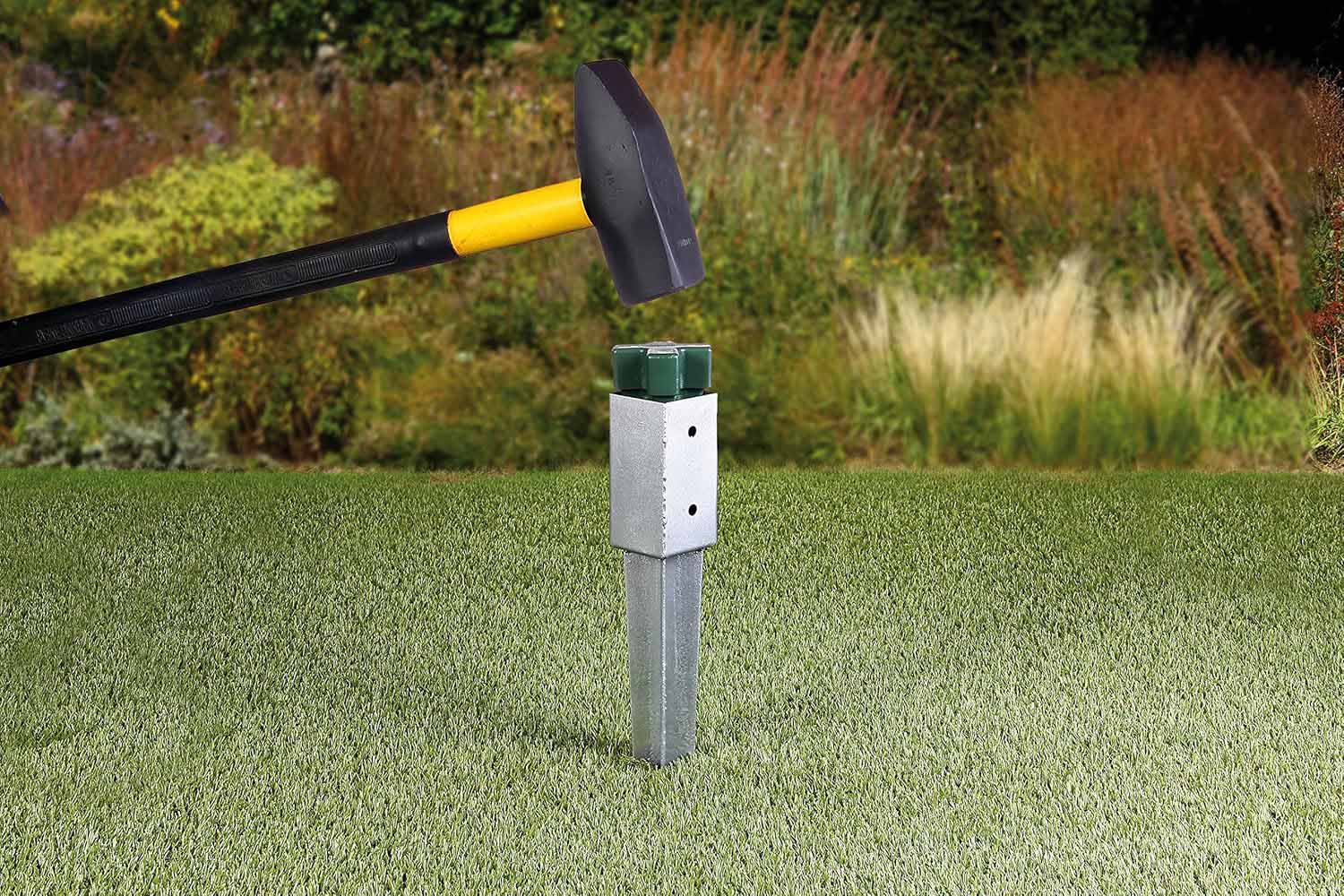

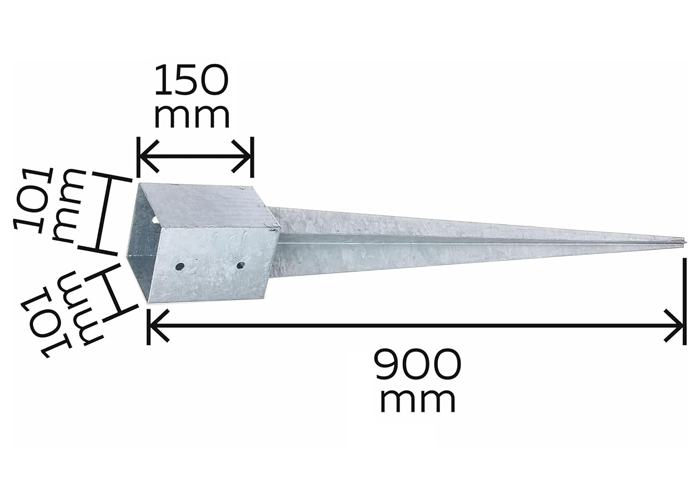

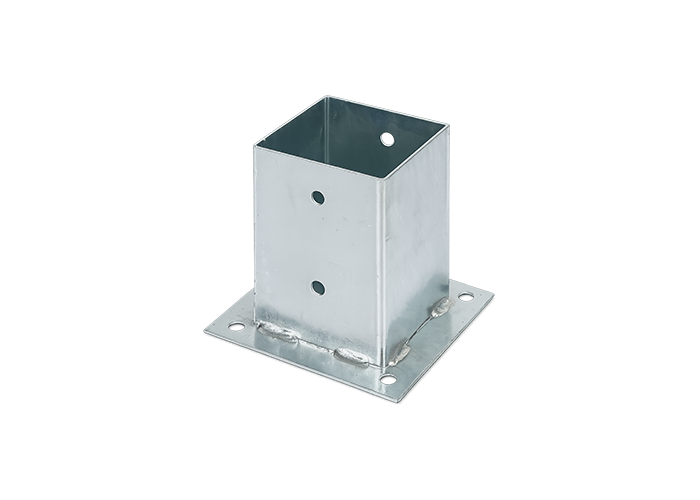

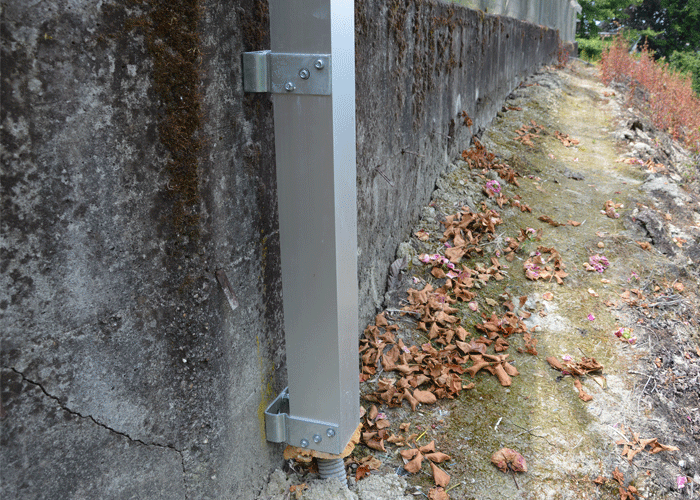

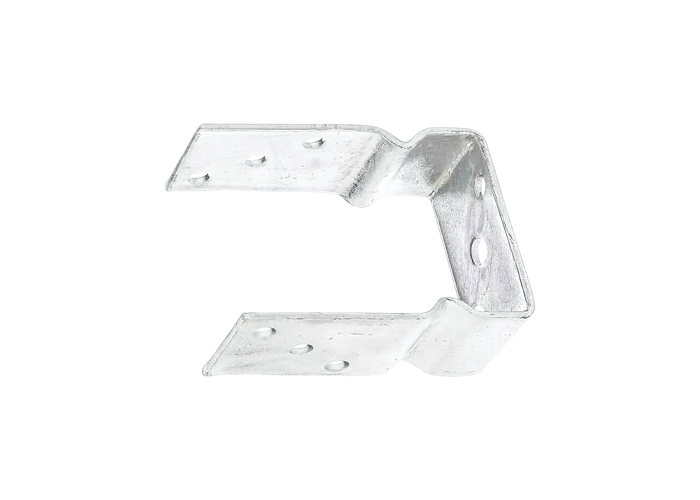

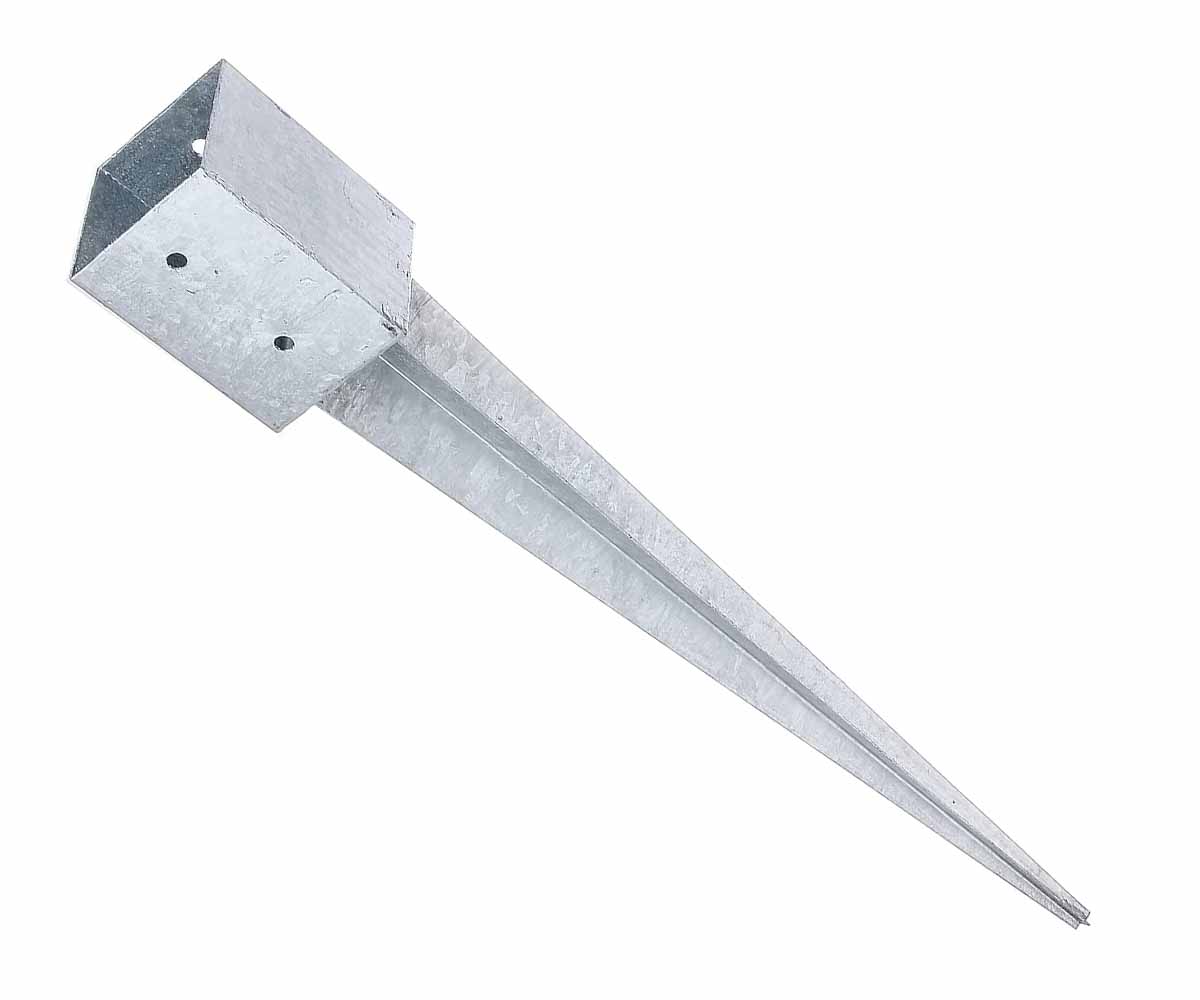

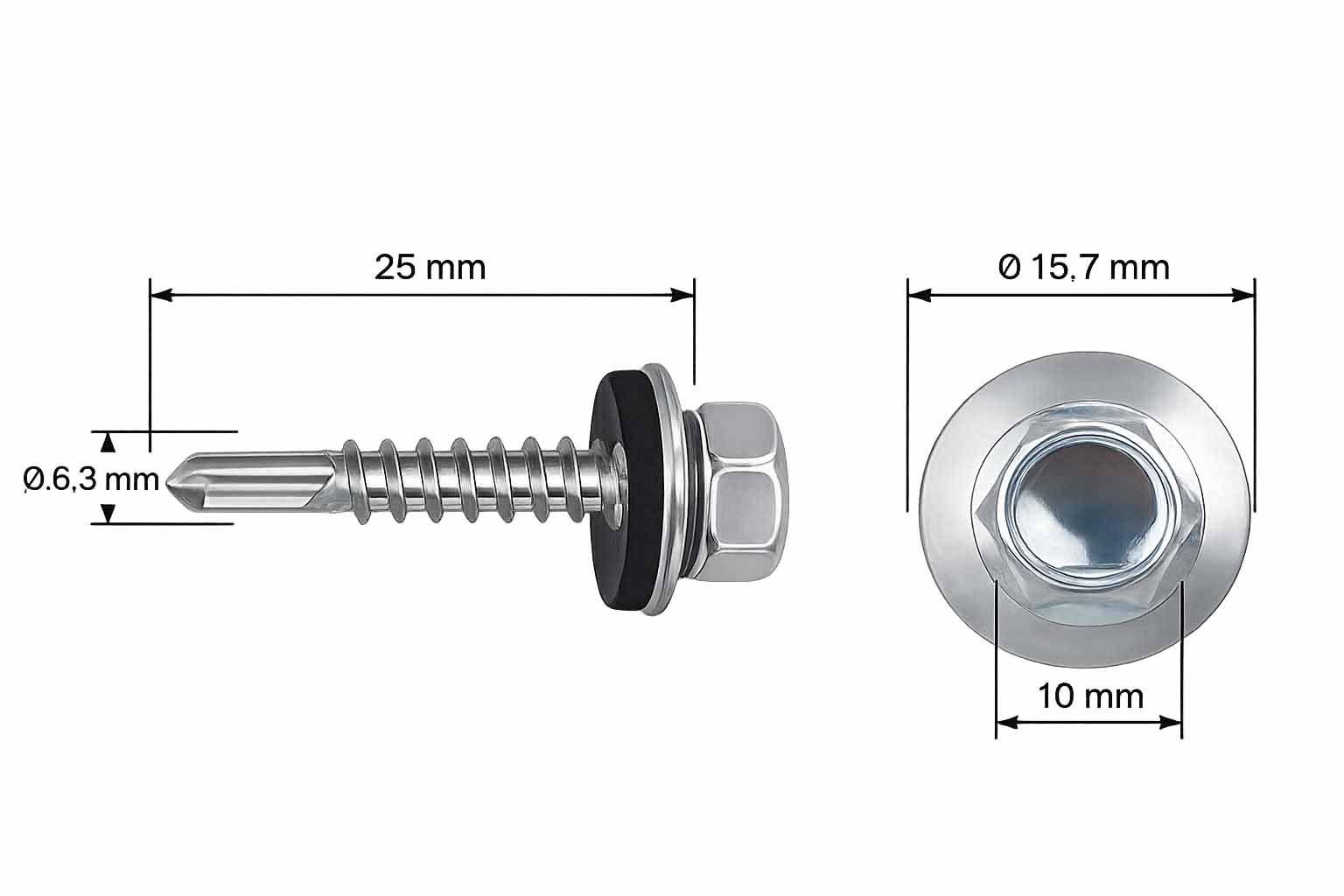

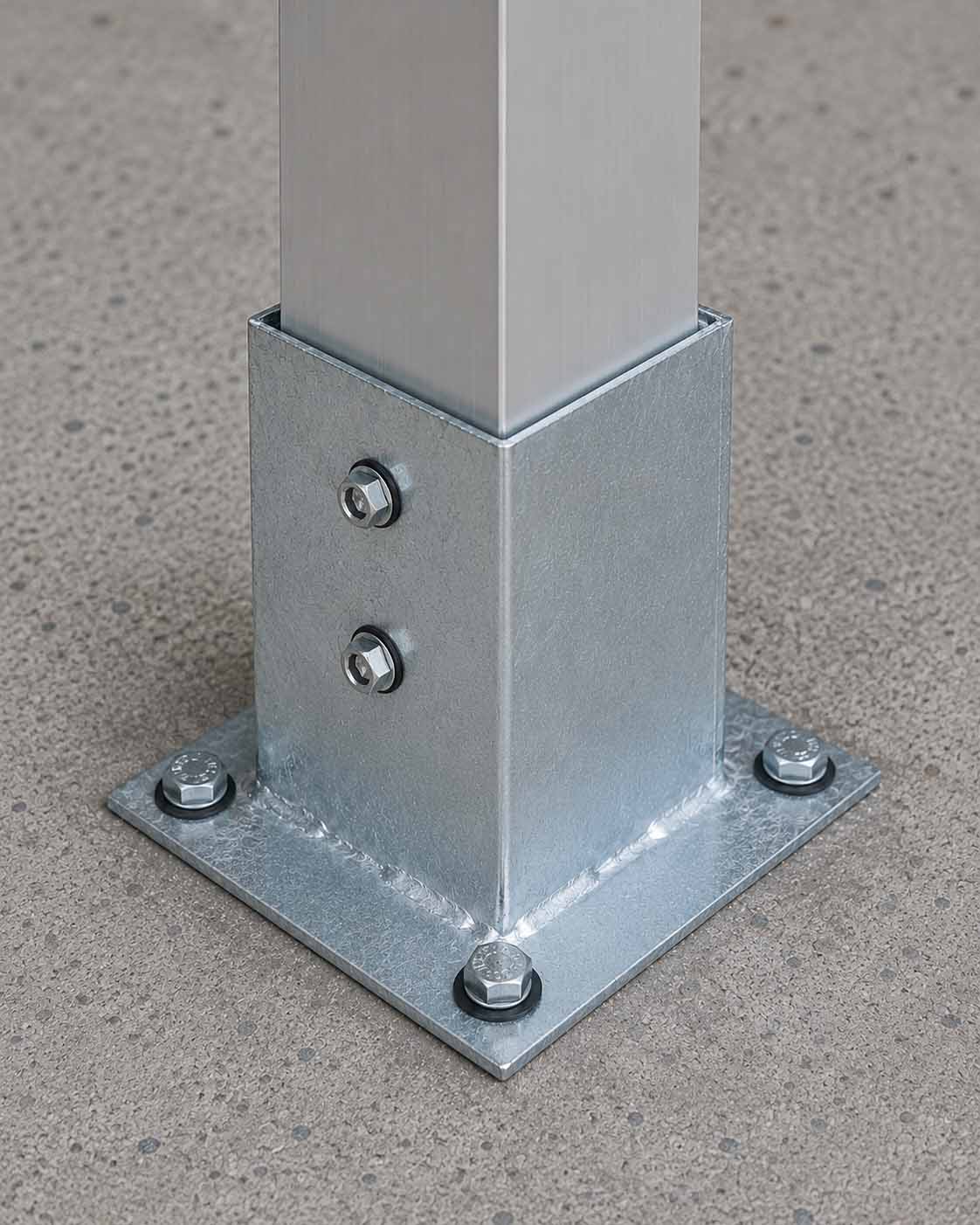

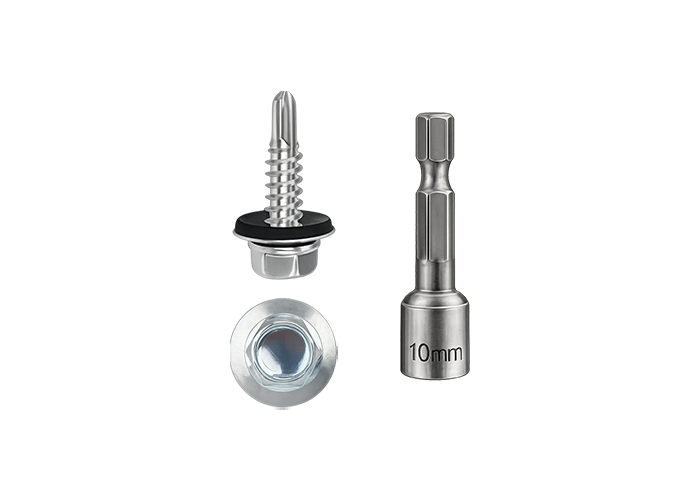

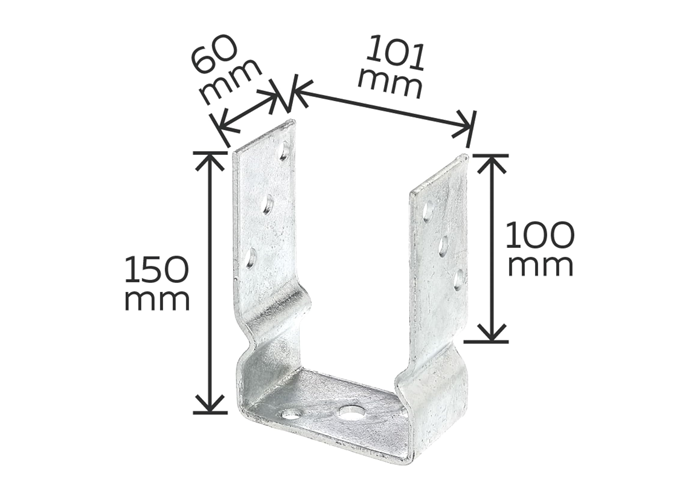

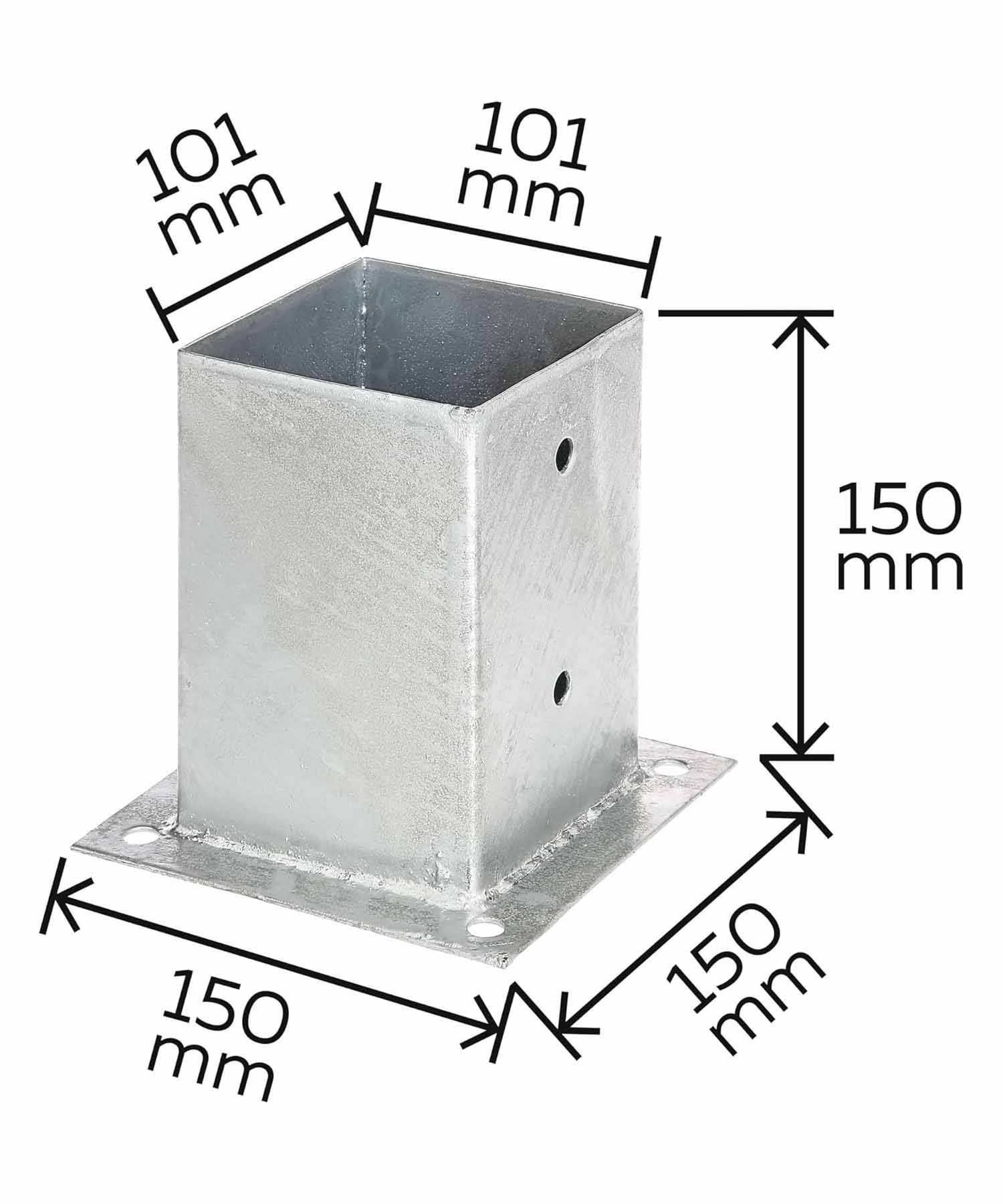

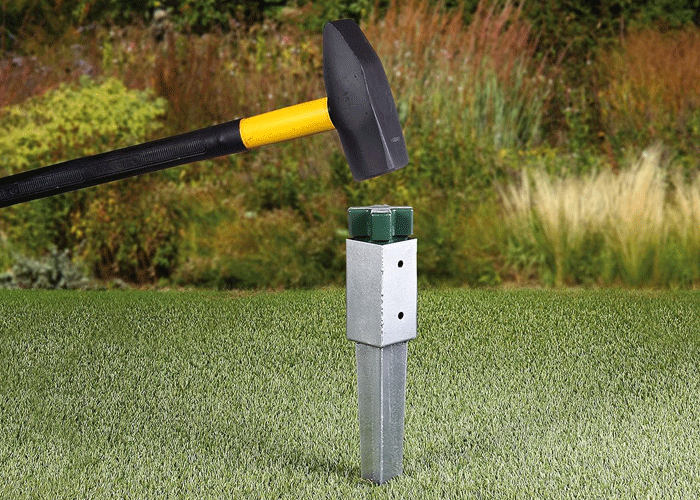

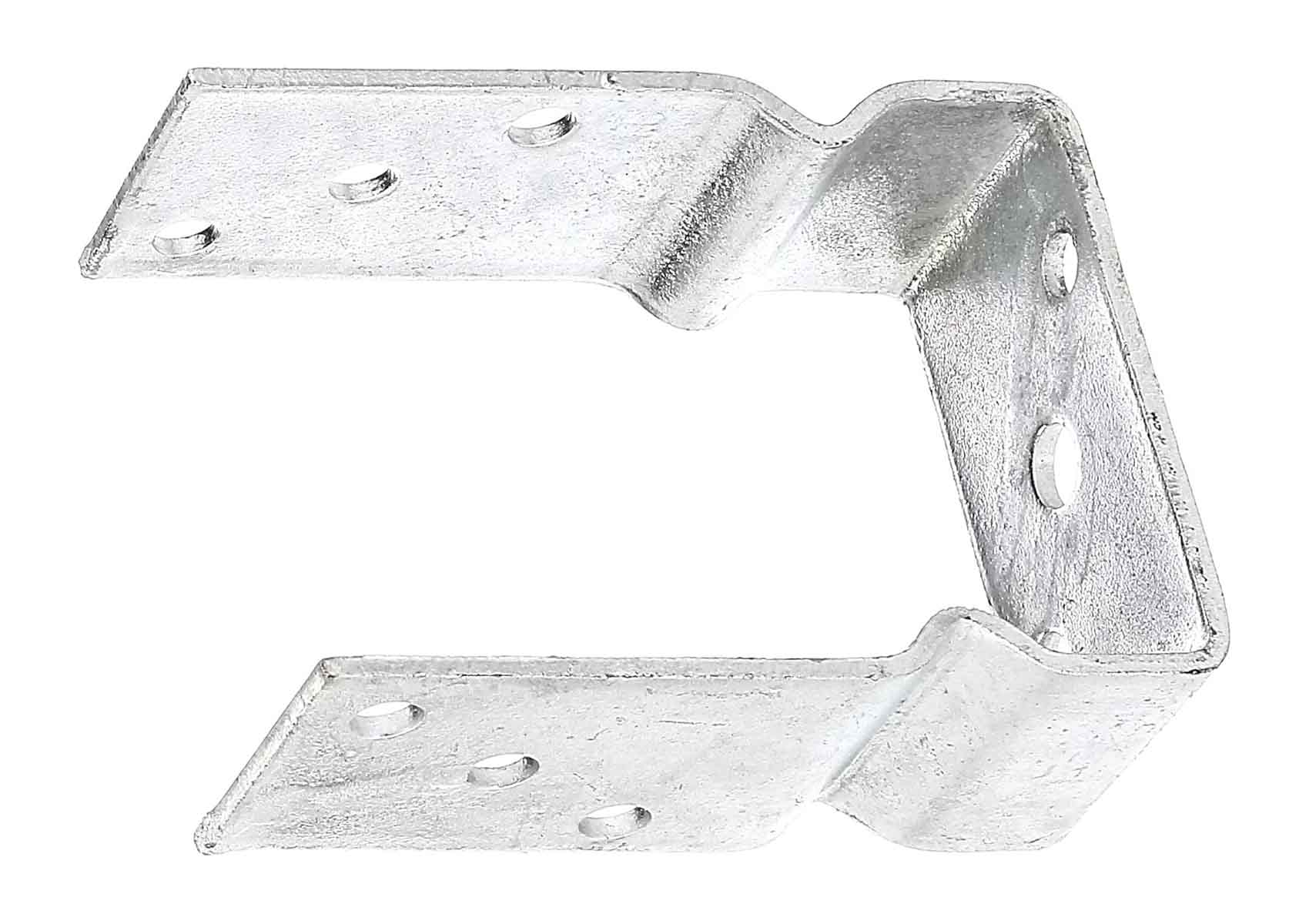

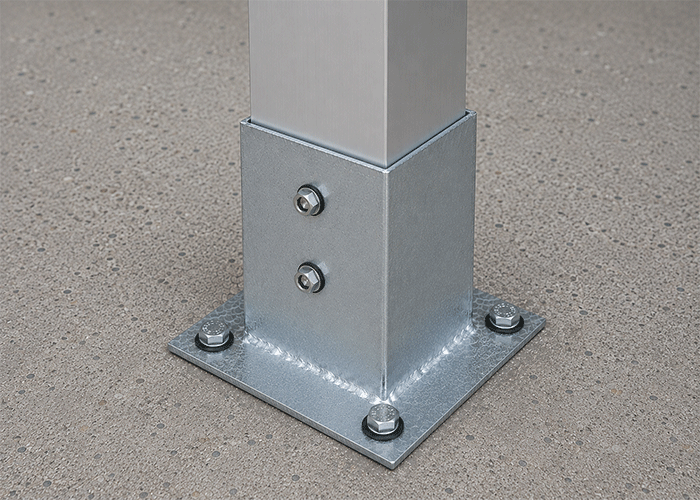

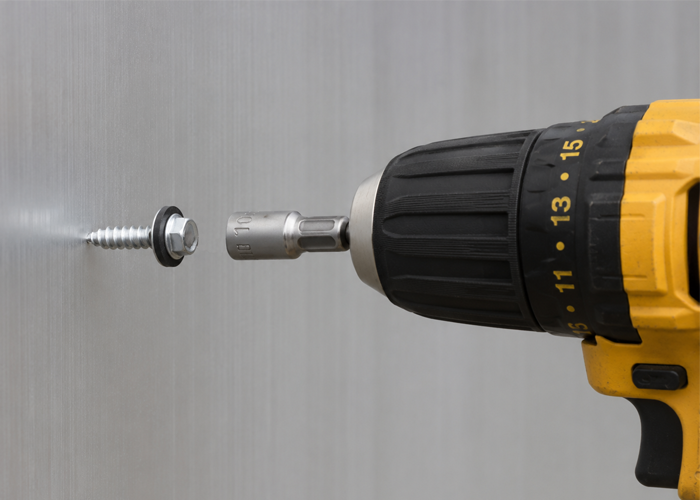

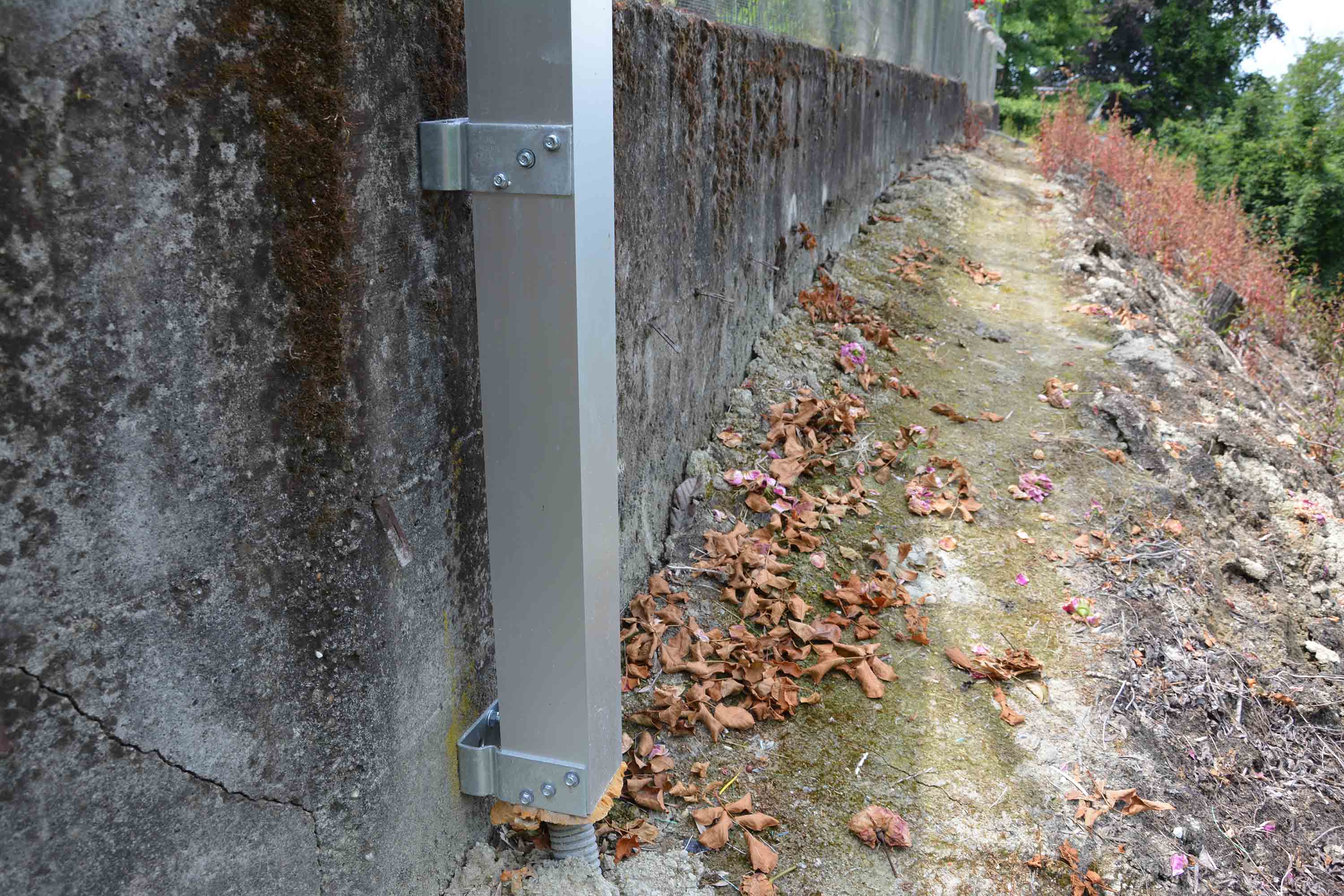

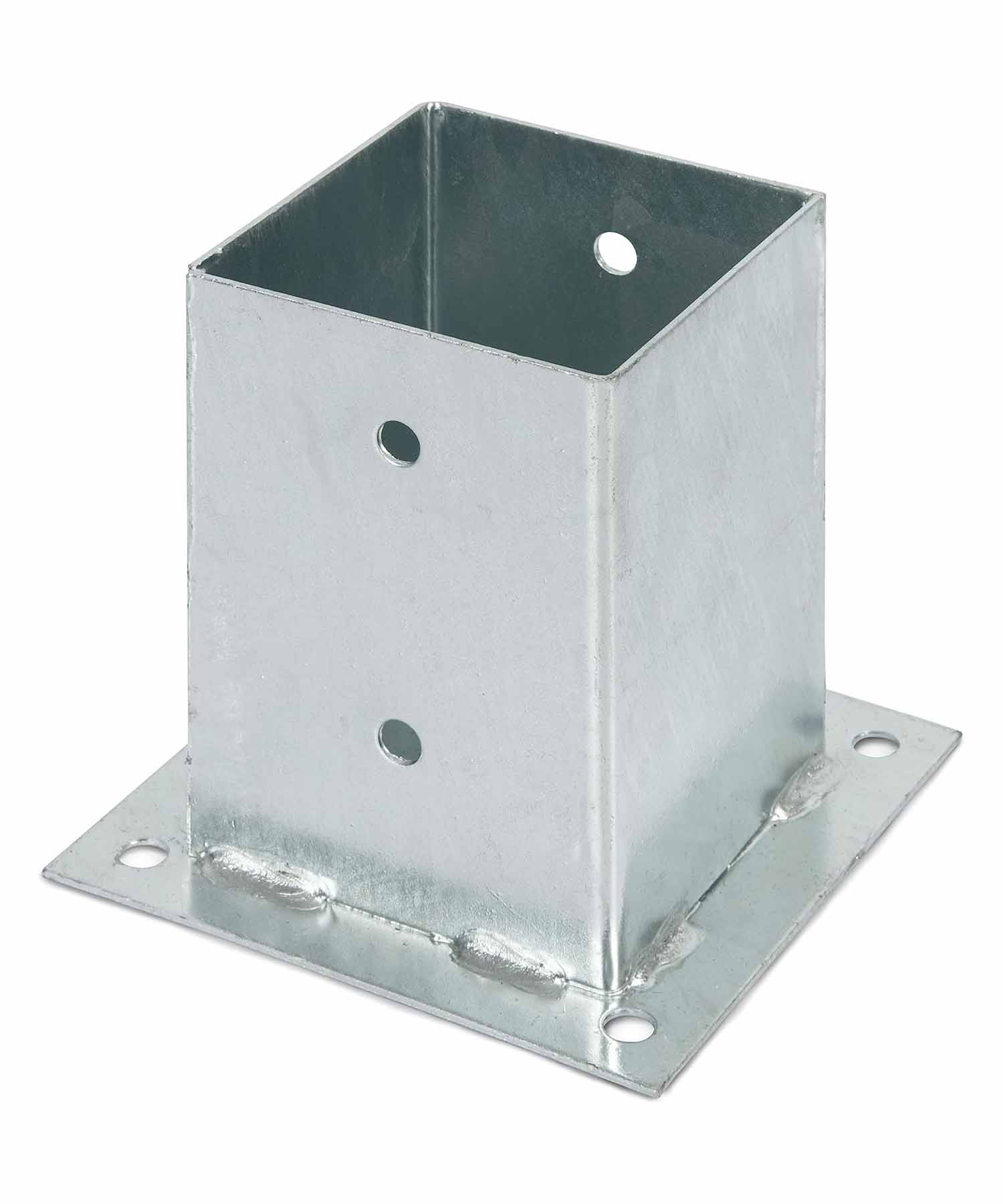

This range of camera poles includes several mounting bracket options designed to securely anchor the pole to a wall or floor using anchor bolts (not included). A ground spike bracket is also available for direct installation into the soil, eliminating the need for any concrete base or foundation. All brackets are made of steel to ensure excellent strength, stability, and long-term durability. You can also purchase our hex-head self-tapping screws, which can be driven directly into the pole with a power driver, with no pre-drilling required.

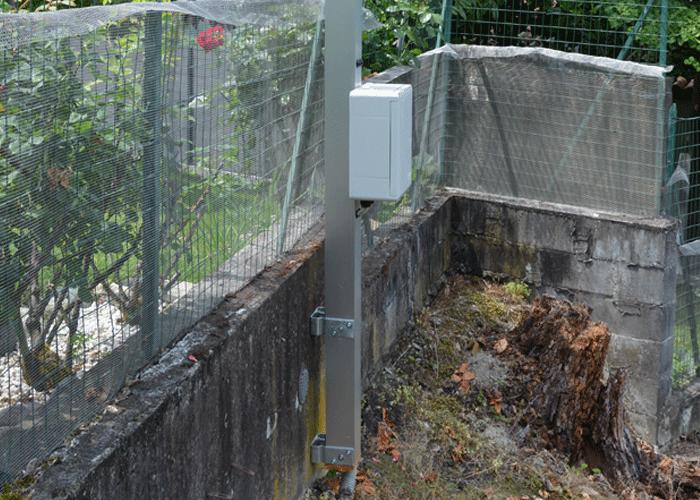

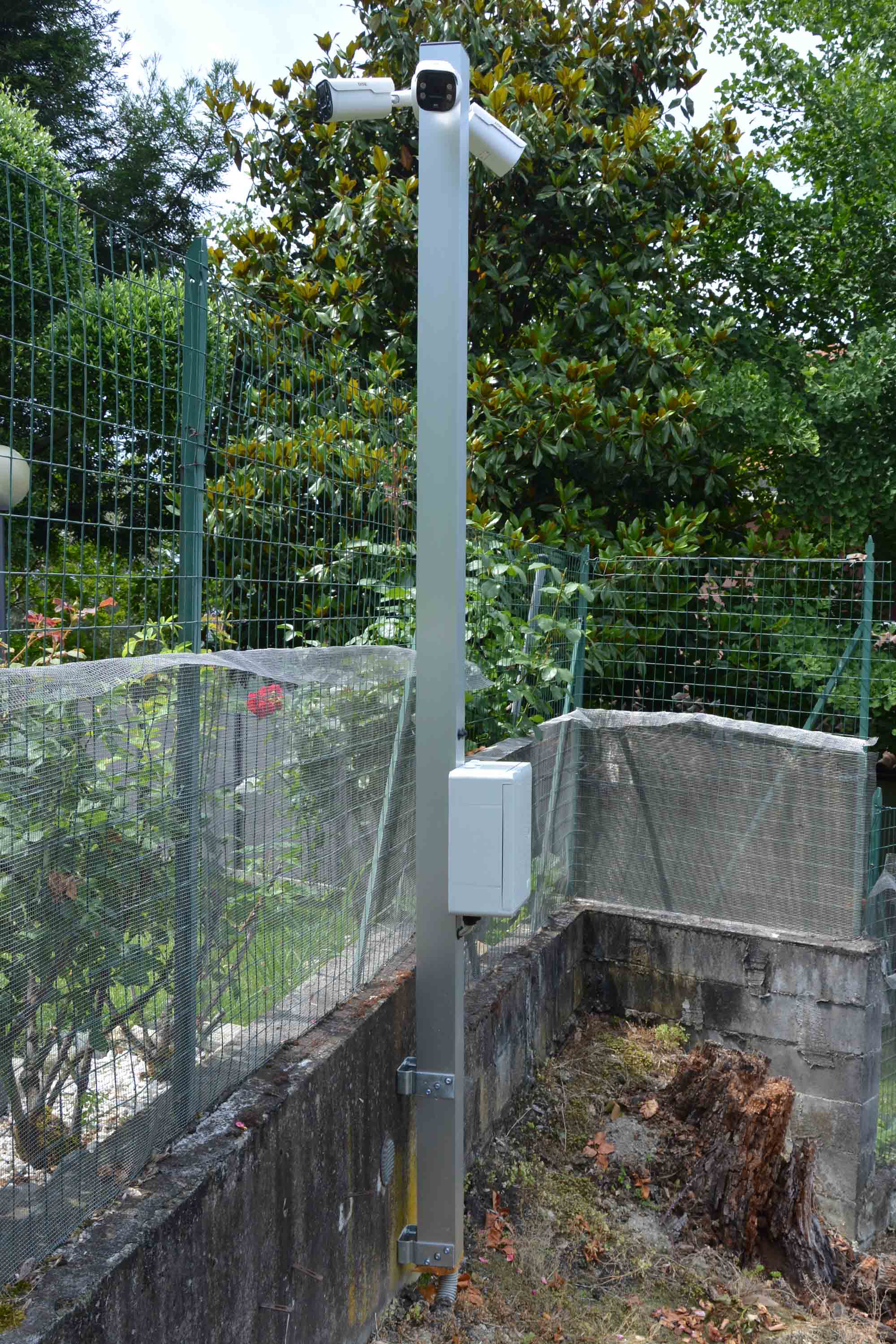

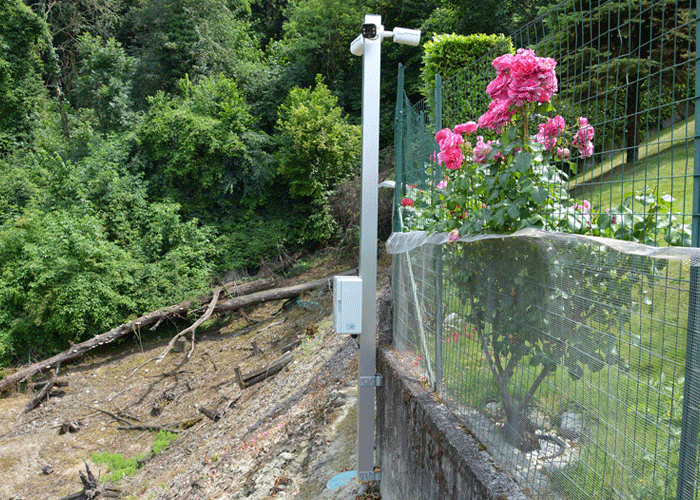

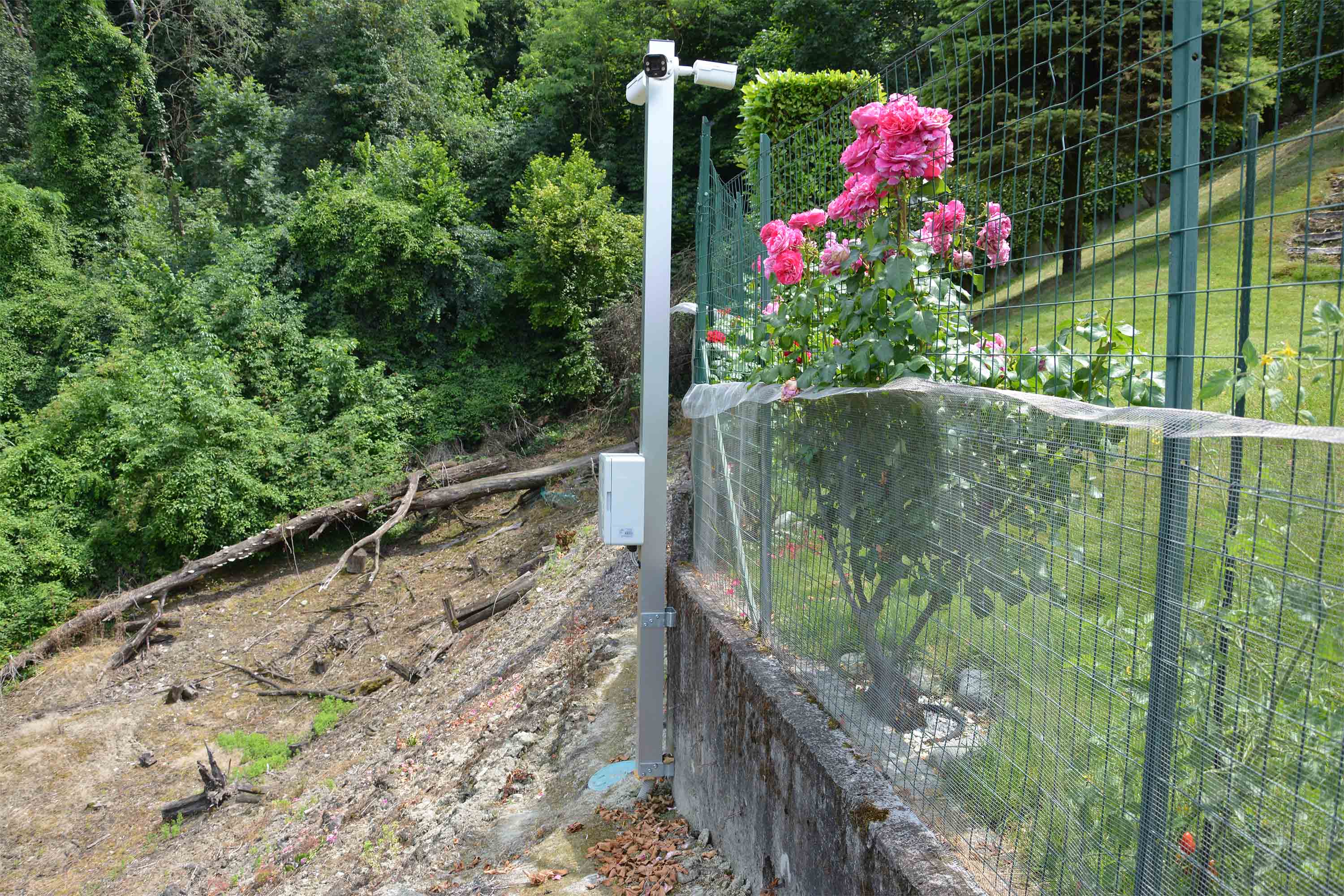

Our CCTV poles can support much more than just cameras. For example, you can install an electrical enclosure to house a PoE switch and manage camera connections directly on the pole. In this example, several poles are used, each equipped with its own enclosure containing the switch that powers and manages the cameras mounted on that pole. You can also mount lighting devices or audible warning systems on the pole, which can be activated through the alarm outputs available on the cameras.
|
|
 |
|
|
|
|---|---|---|---|---|---|
| CODICE | PL-300 | PL-ST1 | PL-ST2 | PL-ST3 | PL-V6325 |
| Description | Pole for security cameras | Wall mounting bracket for poles | Floor mounting bracket for poles | Garden mounting bracket for poles | Screws exagonal head 10 mm. |
| Material | 3 mm Aluminum + Plastic top cap | 4 mm Galvanized steel | 3 mm Galvanized steel | 3 mm Galvanized steel | Steel + drill/driver accessory |

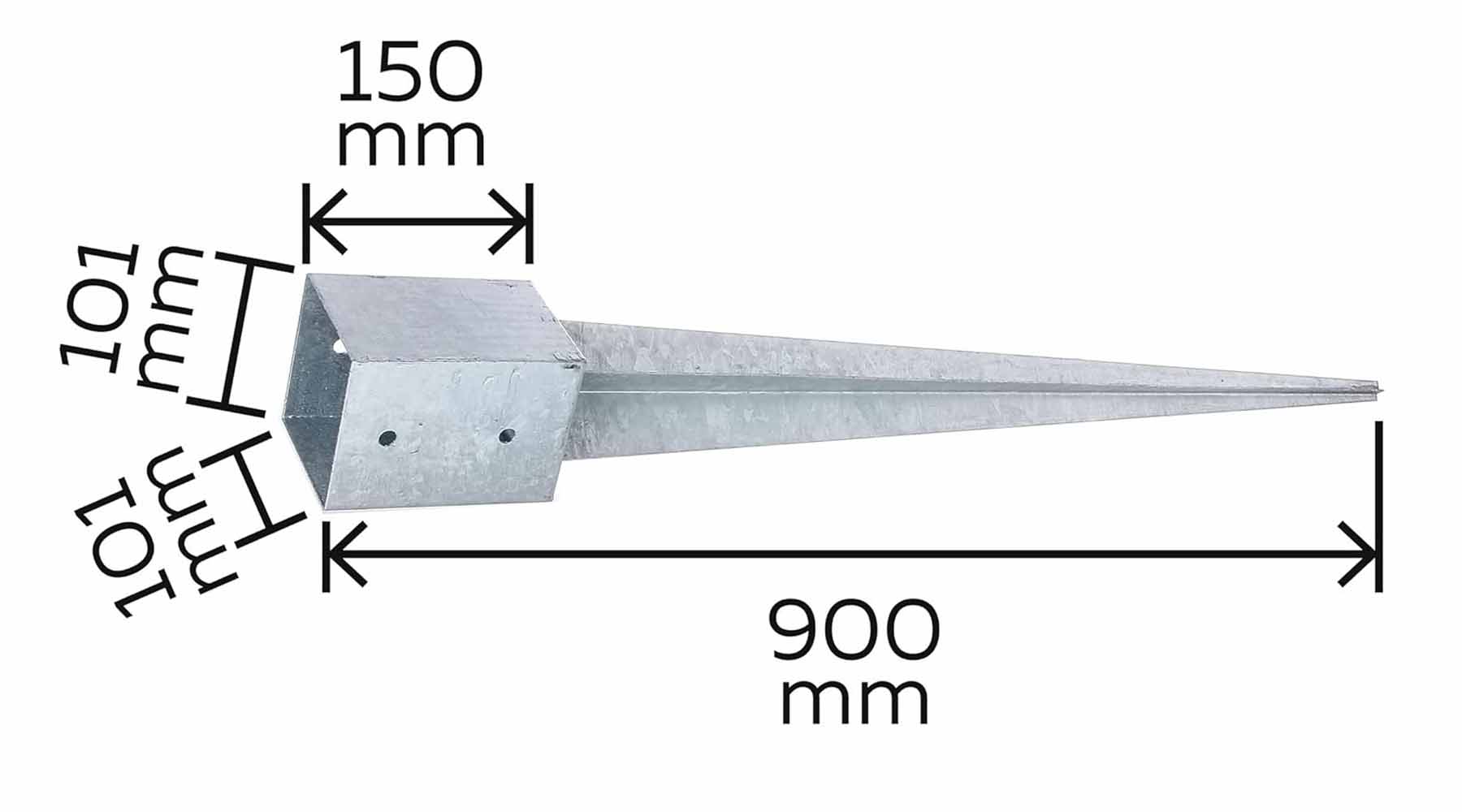

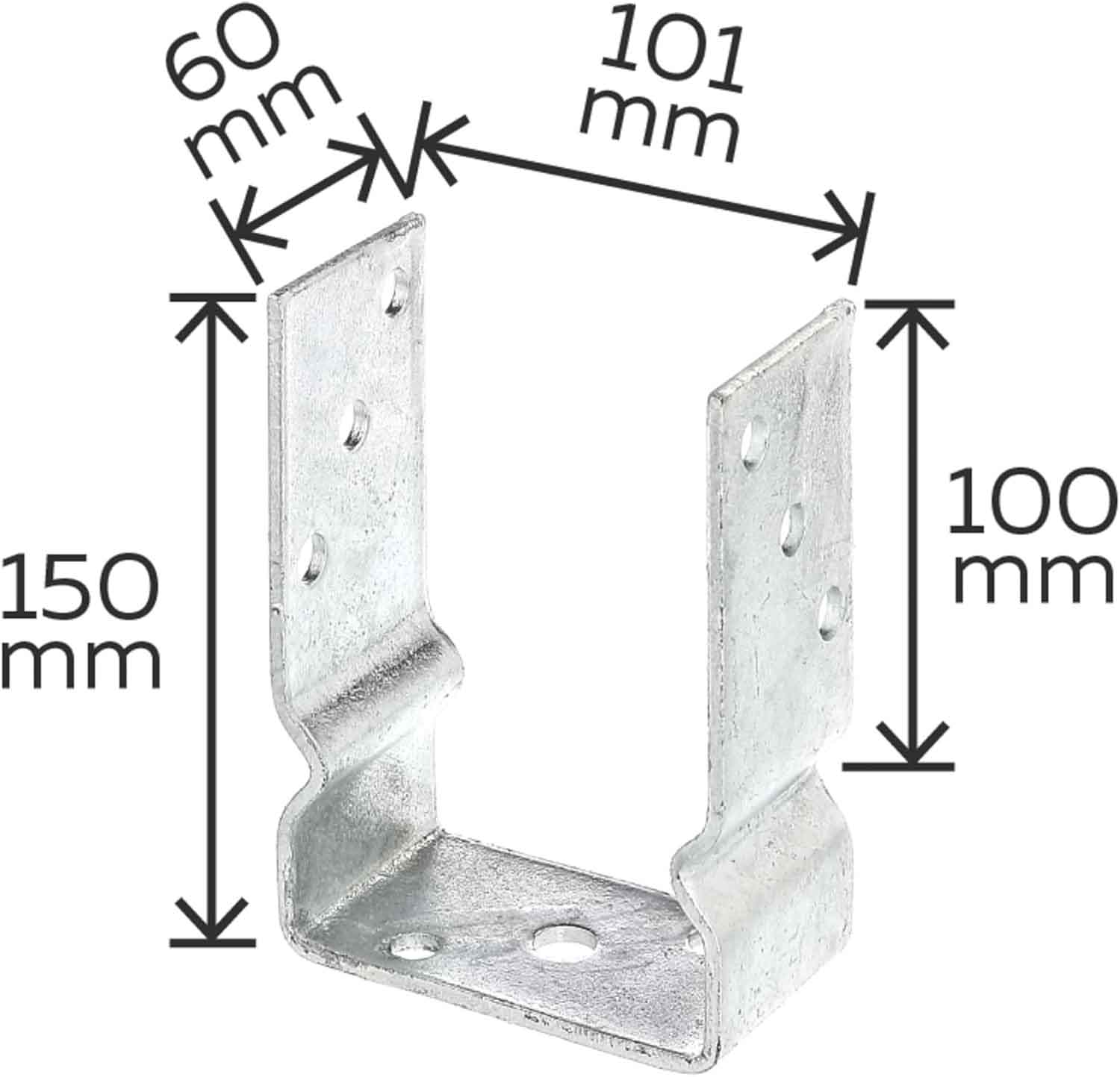

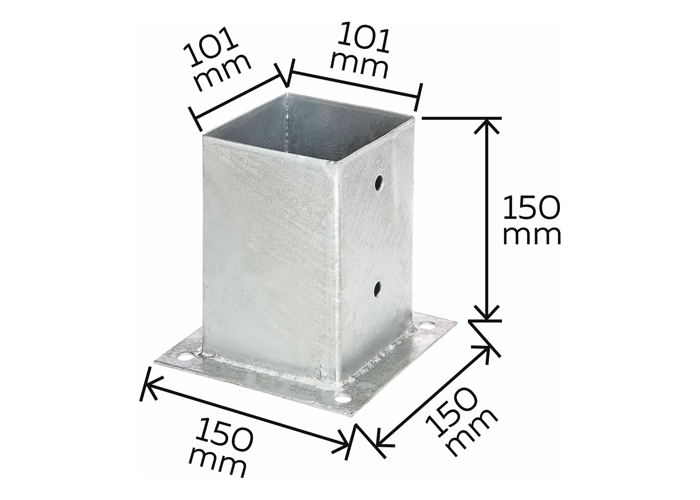

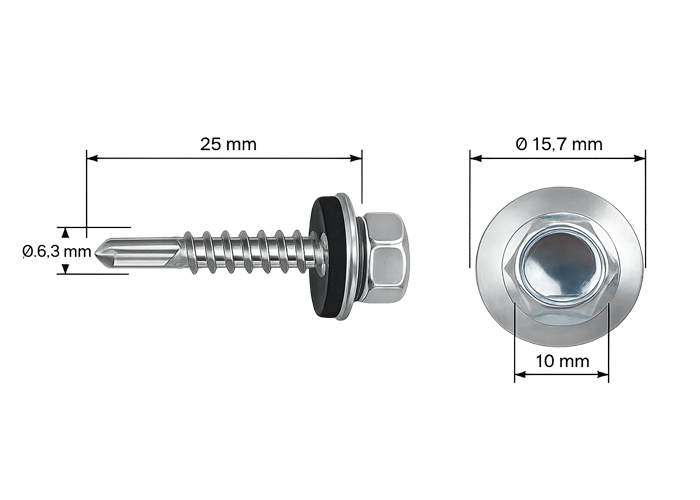

| Dimensions | 100x100x3000 mm | 101x150x60 mm | 101x101x150 mm | Hole diameter 11 mm. | 101x101x900 mm | Hole diameter 11 mm. | 6.3x25 mm pack of 65 pcs. |
| Weight | 6.5 Kg. | 1 Kg. | 1.25 Kg. | 1.94 Kg. | 260 g per pack |
