Motorized hidden cameras
WITH 180° ROTATING LENS WITH SMARTPHONE CONTROL
DK SERIES
With WiFi for remote control via WEB
EASY TO HIDE - LENS CONTROL BY SMARTPHONE
WITH 180° ROTATING LENS WITH SMARTPHONE CONTROL
DK SERIES
EASY TO HIDE - LENS CONTROL BY SMARTPHONE
Ready-to-hide camera with SD card and 180° rotating lens. WiFi control via Internet.
220V to USB adapter, to connect cameras to mains power
220V to USB adapter, to connect cameras to mains power
Car lighter USB adapter, to power up the cameras on vehicles
Kit to connect the camera to a vehicle fuse box. Including voltage drop unit to protect the vehicle battery.
Memory cards suitable for DK---- cameras. Several capacity options.

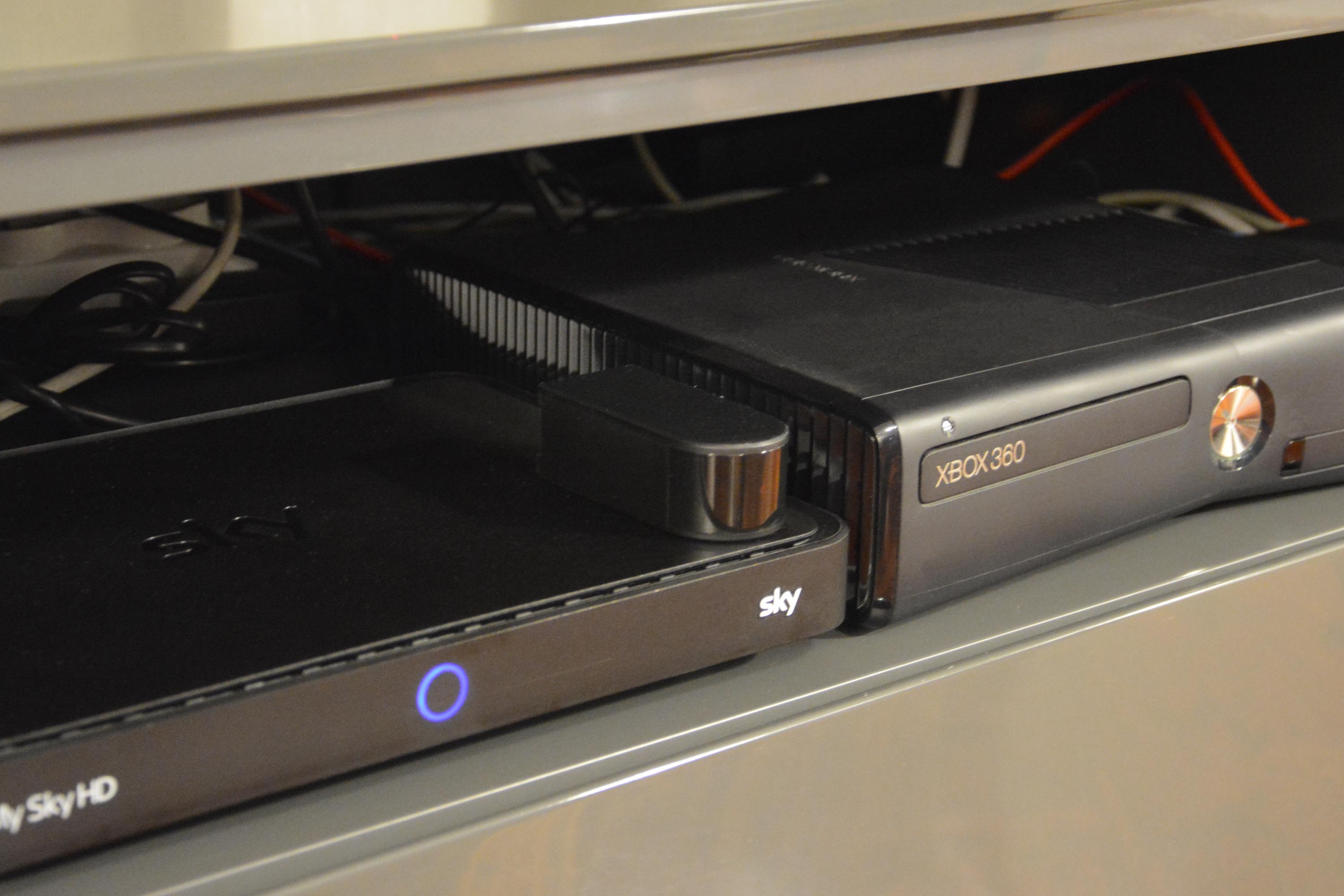

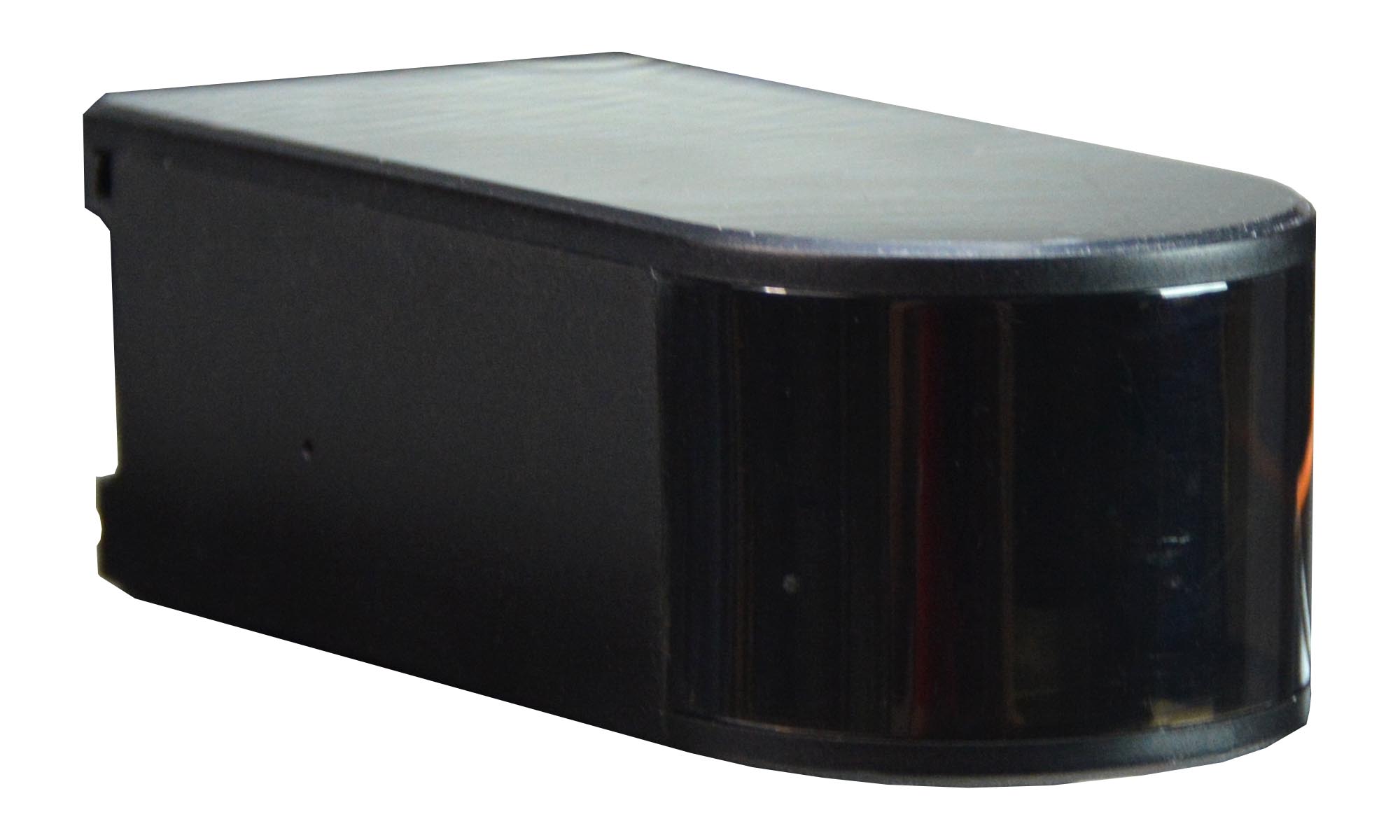

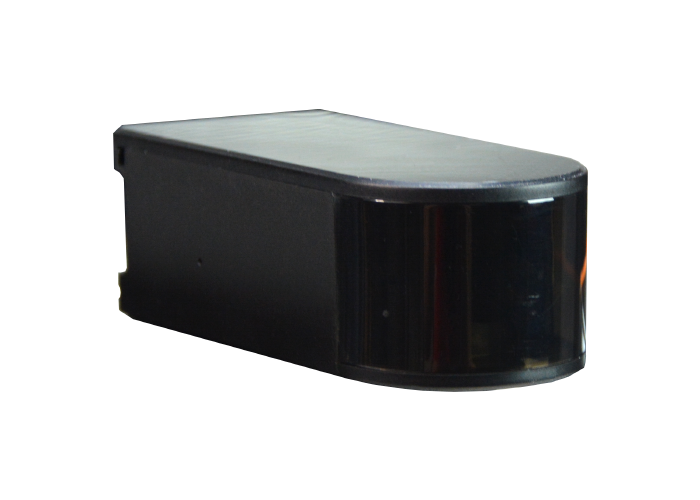

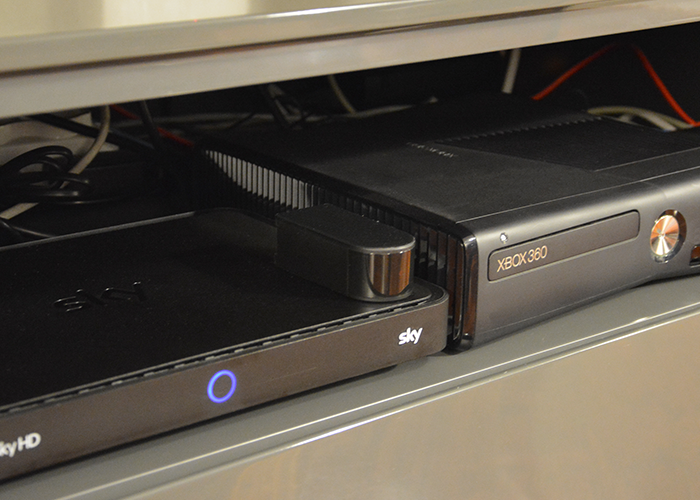

These cameras are the only motorized microcameras with which you can make a hidden camera with rotating lens virtually anywhere. They are enclosed in a small neutral casing of only 8 cm. that you can easily fit into any environment without being noticed. The casing is equipped with an internal magnet in order to allow you to hang the camera to a metal support. You can place this camera behind a hole of only 3 centimeters or even blend it with other objects like in this example here.
These hidden cameras for investigation provide a video resolution of 2 MP at 25 f/s. The 2MP resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of high resolution digital TV and provide high quality video and rich detail. In order to guarantee maximum performance, we use the same high-level CMOS and HiSilicon processors of our IP cameras for traditional CCTV surveillance in these hidden cameras. Download here two 2MP demo movies in nomrla day/color mode.
WATCH DEMO VIDEOS

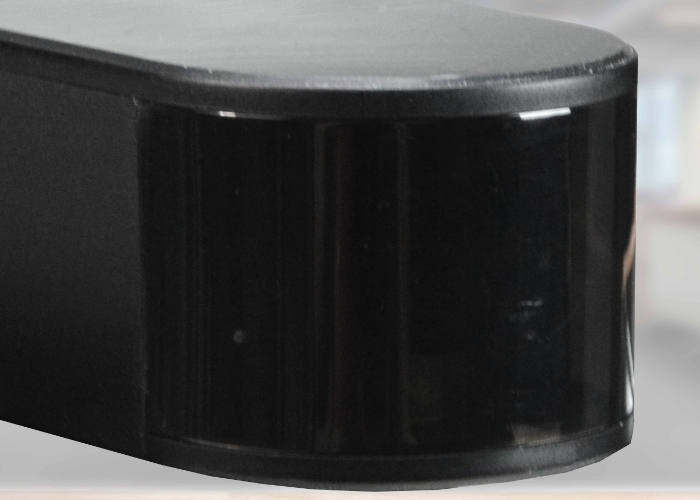

These mini cameras are equipped with a motorized wide-angle lens that can rotate 180° in the horizontal plane. Thanks to the front black glass the lens is invisible from the outside.
You can control the rotation of the lens from a mobile phone both locally and via the Internet. The camera is also equipped with a microphone for recording ambient audio . The connections and the SD card slot are on the back.
The spy cameras in this range record movies on a removable Micro SD memory card. The micro SD card is not included . To use these cameras you need to buy a micro SD card of the maximum capacity supported by the camera. These cameras support Class 10 SD cards or higher. Do not buy slower SD cards, in class 4 or 6, because they will not work properly.
| DK-BL1-HDS | |
|---|---|
| SD max. | 128GB |
| Max. video storage | 300 ore |
To play the movies recorded on the SD card of the camera you must extract the SD card from the device and insert it into a Personal Computer. If your PC does not have an SD card reader, you can use the USB reader which is included in the package. You can play the MP4 movies with common free players, like VLC or Windows Media Player and download the ones you want to save on your PC. With the mobile app you can also play and download videos by mobile phone, without having to remove the card from the camera.
These cameras support 3 recording modes: continuous, timee and motion detection. In CONTINUOUS mode, several video files are saved in the memory, one after the other. Once the memory space is exhausted, the camera continues to record, automatically overwriting the oldest files. In TIMER mode the device start recording automatically at a certain time fo the day. These cameras also support the MOTION DETECTION function which allows you to record only if there is movement in front of the lens. It is a very convenient function to avoid wasting precious memory space by recording irrelevant scenes.
These speaker cameras are equipped with an internal rechargeable lithium battery that allows recording without mains power. The battery is recharged by connecting the included USB charger.
| DK-BL1-HDS | |
|---|---|
| Battery included | 950mAh |
| Battery life | 3 ore |
These cameras can run on the internal battery, but can also be mains powered, with the included USB power adapter. In this way the camera can remain in operation 24 hours a day , like a real CCTV video surveillance system. These cameras are an excellent solution to provide your venue with a 24/7 hidden surveillance, quick and easy to set up.
These cameras are often used on cars, hidden in objects on board. You can use the camera with its own battery or connecting the camera to the vehicle battery, with the USB lighter adapter. If you want to record for a long time during parking, you can also connect the camera to the car's fuse box with our vehicle installation kit. The kit consists of a connection cable to be run under the vehicle seals, which includes the transformer and the voltage drop unit. The voltage drop box is a safety device that automatically disconnects the camera before the vehicle's battery runs out. The installation kit includes the splitters to connect to the fuse holders.
These hidden cameras are equipped with a Wi-Fi transmitter for Smartphone control. If you have not a WiFi network, you can connect your smartphone directly to the Wi-Fi Hot-Spot generated by the camera. Alternatively, you can connect the camera to your home Wi-Fi network and control your spy camera over the Internet with our free P2P cloud server . With our free APP for Android and iOS, you have full control of the cameras with mobile phones or tablets. You can WATCH AND HEAR in real time and ROTATE the lens. You can RECORD and take pictures. You can even PLAY AND DOWNLOAD the video footage in the camera's memory. If you enable Motion Detection you can RECEIVE real time push notification on your mobile phone all the time that an intrusion occurs.
Unlike all the spycams you find on the internet, our investigation cameras are real onvif IP cameras. You can add these cameras to our NVR, along with our standard IP cameras . It is a very important feature in professional use because it allows you to connect these cameras to any onvif video recorder. On the contrary, other cheap spy cameras that you can buy online only work with their specific app and are not suitable for professional use. DSE is one of the very few companies in Italy to be a member of the international ONVIF association that brings together the main manufacturers in the sector and establishes the communication standard between IP security equipment.
If you want to control your hidden cameras via computer, you can download HDSmart software from our website. Just enter your camera ID and login password to connect via the Internet. You can easily control your home from the office , thanks to the P2P cloud server. HDSmart is compatible with all our DK --- HDS series investigative cameras and displays up to 16 cameras simultaneously. It also allows you to record videos and snapshots of what you are watching live.
DOWNLOAD HDSmart
To make an effective covert shot, you need to choose a good position for your camera. You can hide this spycam behind an opening of only 3 cm. or leave it on a shelf, together with other objects. The internal magnet also allows you to attach the camera to metal supports.
If you buy one of these cameras with WiFi, you will have great advantages in connecting it to your home WiFi network. It's an operation that runs easily with our app and lets you control your camera through the Internet, wherever you are. Thanks to our free P2P cloud server , you do not need to configure anything in your router, you just need to know the ID of your device that you will find in the package. On first use, you can set a secret access password to protect your privacy.
|
|
|---|---|
| CODE | DK-BL1-HDS |
| Description | Ready-to-hide camera |
| Type | With motor lens |
| CAMERA | |
| Maximum resolution | 2MP FullHD 1080P |
| Optical sensor | 1/2.7" CMOS OV2710 |
| Chipset | Hi3518E |
| Video resolution | 1920x1080 @ 25 f/s |
| Video compression | H264 Dual |
| Infrared illuminator | |
| ICR | |
| Lens | Minilens 2.8 mm (90°) |
| Focus | Fixed |
| Rotating motor lens | 180° |
| Shutter | 1/25...1/12000 |
| S/N Ratio | Over 50dB |
| Video files format | MP4 duration 1..60 minutes |
| Video storage | About 300 hours on 128GB @ 1080P |
| SUPPLIED | |
| Network port | |
| Wi-Fi | 802.11 b/g/n 2.4GHz (AP or Client mode) |
| USB port | MicroUSB charger |
| Audio microphone | |
| Audio speaker | |
| SD card slot | Max. 128GB Class 10 or superior |
| TV CVBS output | |
| POWER SUPPLY | |
| Standard battery | Rechargeable 950 mAh 3 hours recording |
| Mains power supply | |
| FUNCTIONS | |
| Recording mode | Continuous, Motion, Scheduler |
| Automatic overwrite | Yes (excludable) |
| Camera control | Smartphone/Tablet via WiFi |
| Protocols | TCP/IP HTTP DHCP DNS RTSP NTP |
| Onvif | Supported |
| P2P | |
| Browser | |
| PC | Free Windows software |
| Smartphone | Free APP for iOS Android |
| Multi streaming | |
| Saving on the web cloud | |
| Mirror | Horizontal and vertical |
| Corridor | |
| Overlays | Date and Time (not excludable) |
| BLC | |
| AWB | |
| DNR | |
| WDR | |
| Anti fog | |
| HSBLC | |
| Starlight | |
| Motion detection | |
| Privacy mask | |
| Anti tampering | |
| Alarm actions | Start recording, Push notifications on mobile |
| Sending Time-Lapse photos | |
| GENERALITIES | |
| Casing | To be hidden |
| Degree of protection | IP40 |
| Operating temperature | -5°C +40°C RH95% Max |
| Supply | 5VDC (220V AC adaptor included) |
| Power consumption | Max. 3W |
| Overall dimension | 30x40x85 mm |
| Weight | 92 gr. |
Cameras record on MicroSD card. The micro SD card is not included. You can buy in our price list a perfectly compatible micro SD card of the capacity you prefer. Check the maximum memory size supported by the camera in the technical data table above.
