ANPR-LPR IP CAMERAS WITH OCR


MOTOR ZOOM 7-22 mm.

Telecamera IP ANPR onvif
RH-BCC1-LPR 2MP

Outdoor waterproof casing 60 m. IR illuminator 80 Km/h max. speed Motor zoom lens 7-22 mm Motor zoom lens Autofocus lens POE or 12VDC power H264 H265 video compression OCR for car plate recognition Blacklist whitelist management

OCR ON CAMERA

These license plate cameras are called ANPR (Automatic Number Plate Recognition) because they are designed to record legible license plates of vehicles in any condition. These models with OCR (Optical Character Recognition) are capable to detect the license plate characters and menage a license plate database with Blacklists and Whitelists. You can use these cameras with the ANPR software included or with any other OCR license plate management software compatible with the onvif protocol.

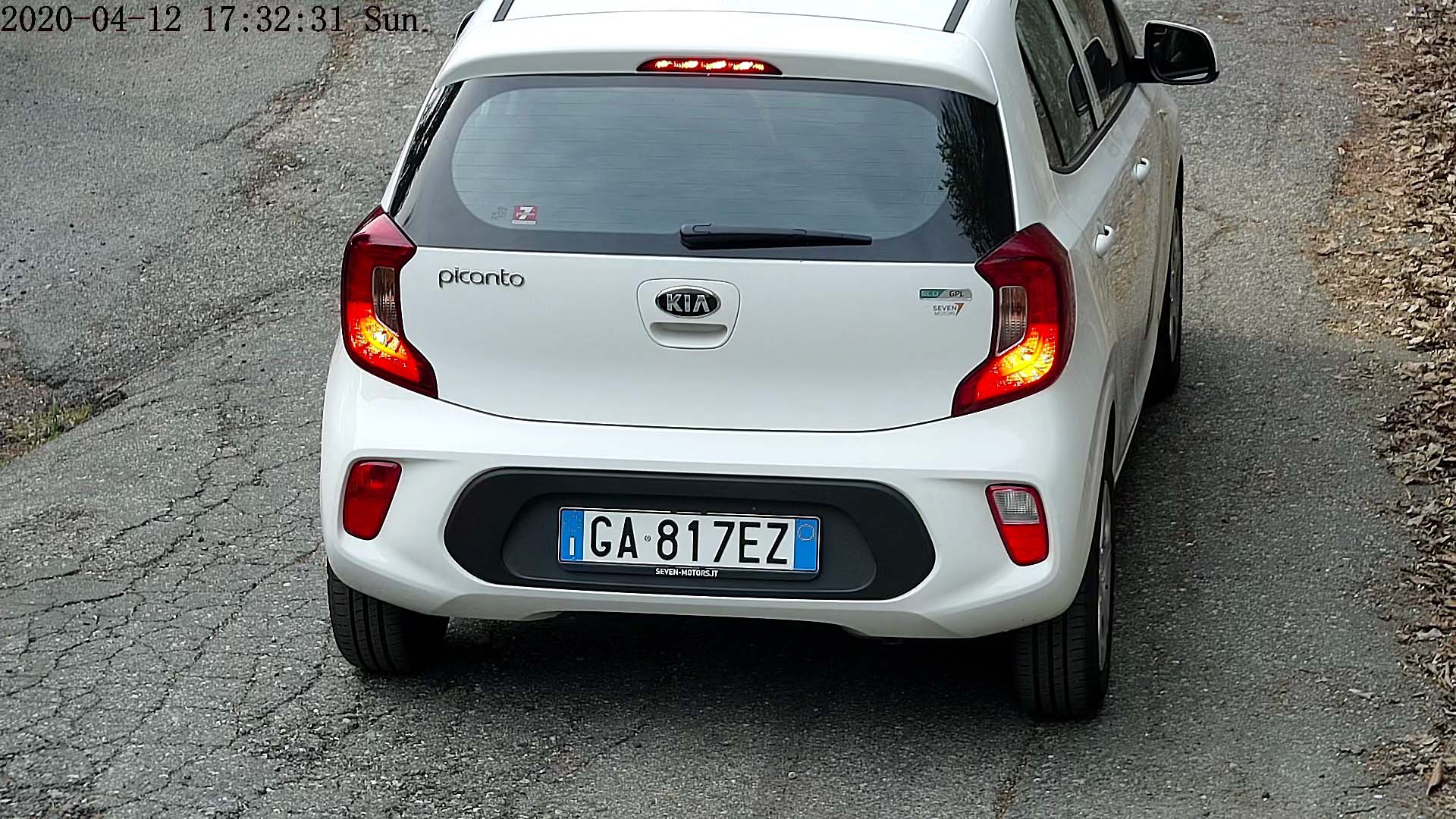

See below these cameras in action in a real installation.


OCR, what is this?

There is a big difference between our ordinary ANPR IP cameras and these models with OCR. Our standard ANPR cameras only capture the license plate legibly and do not perform any video analysis. Instead these models with OCR, in addition to resuming the plate, are able to read the numbers. They come with an OCR algorithm that transforms the image of the number plate into an alphanumeric data. You will be amazed at the quality of the OCR function of these cameras which identify any license plate, even foreign one, with 97% reading accuracy in optimal conditions.

The features of OCR ANPR cameras

There are many functions that these ANPR cameras with OCR can perform.
First of all they record a LOG of the license plates that you can browse with the included software. This allows you to keep a record of vehicles, with time and photos, which can be easily checked at any time.

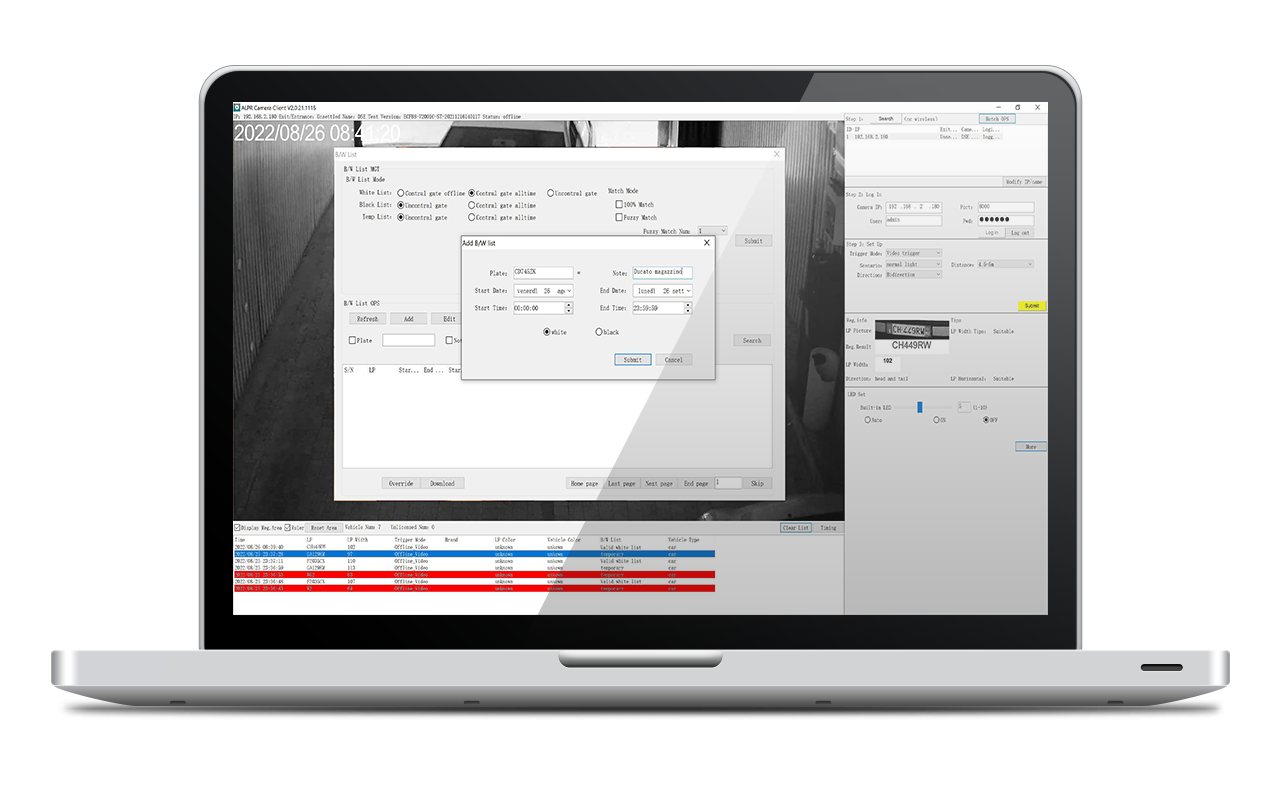

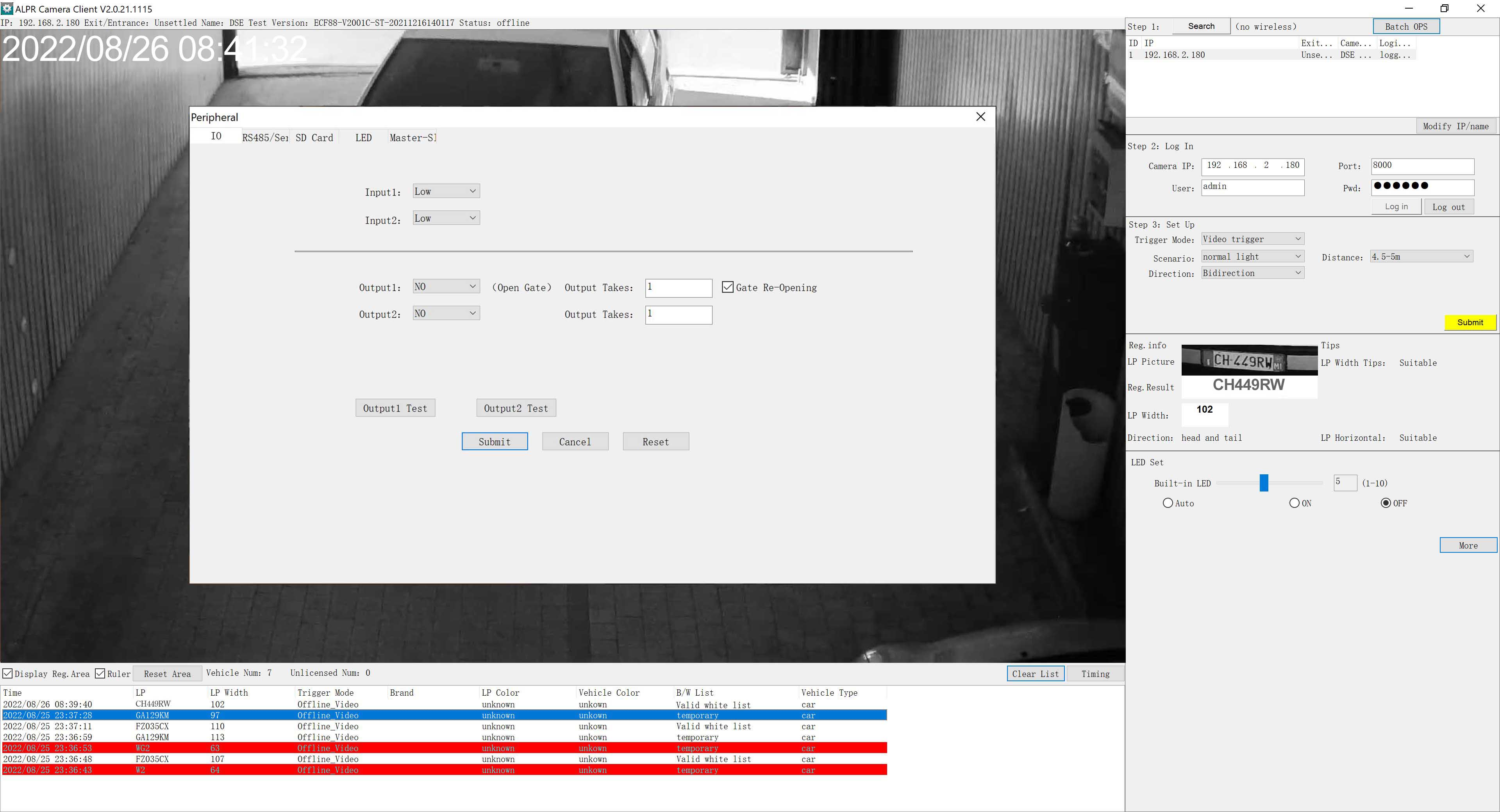

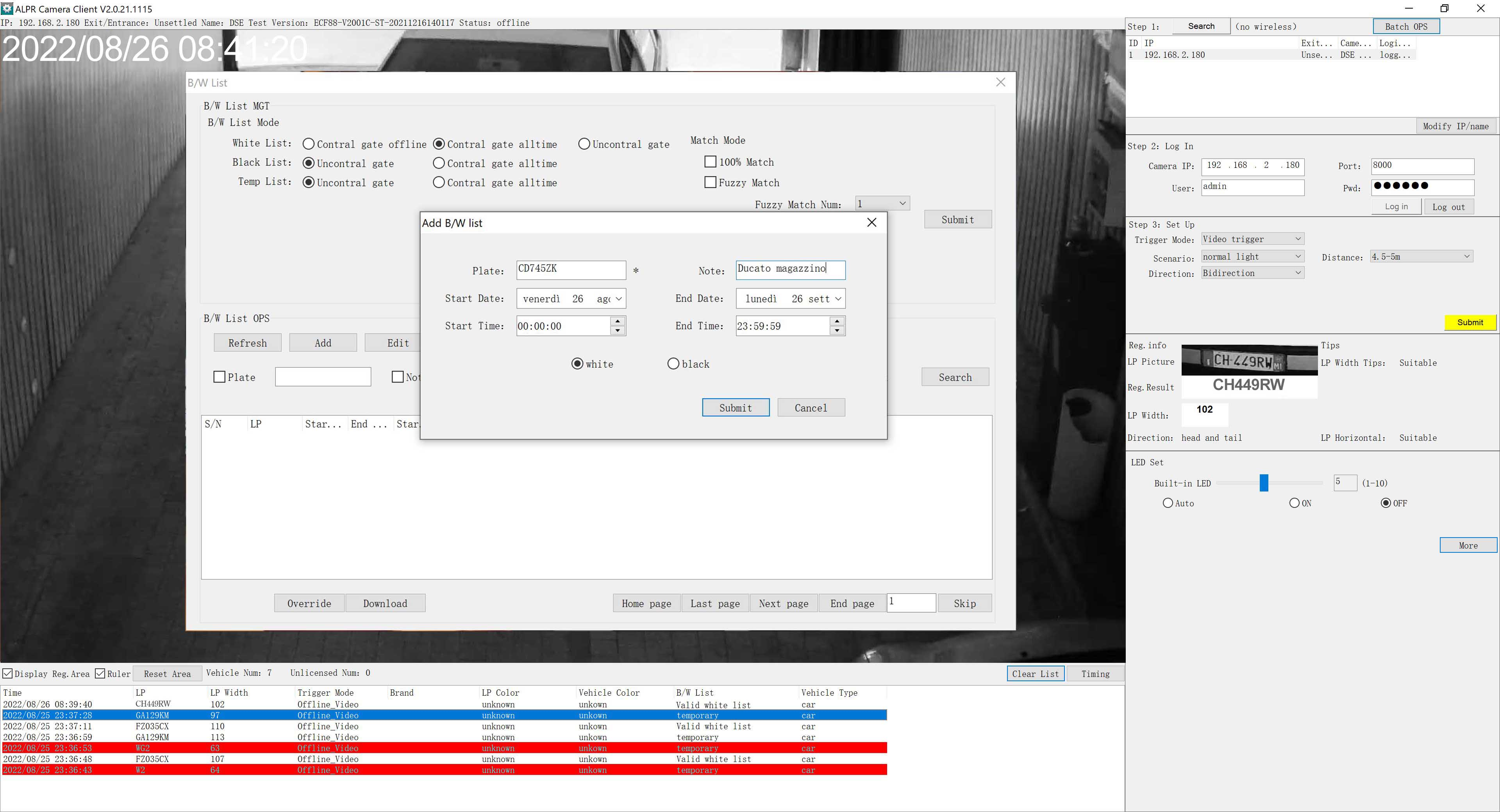

You can also upload a LIST OF CAR PLATES or even an entire PLATE DATABASE , through a CSV file. The camera can activate the built-in relay output based on the number plate, managing BLACKLIST and WHITELIST. You can use this function to open a barrier or an automatic gate on the basis of the vehicle's license plate. It is a convenient access control solution for companies, residential areas etc., that does not require traditional cards or keys.

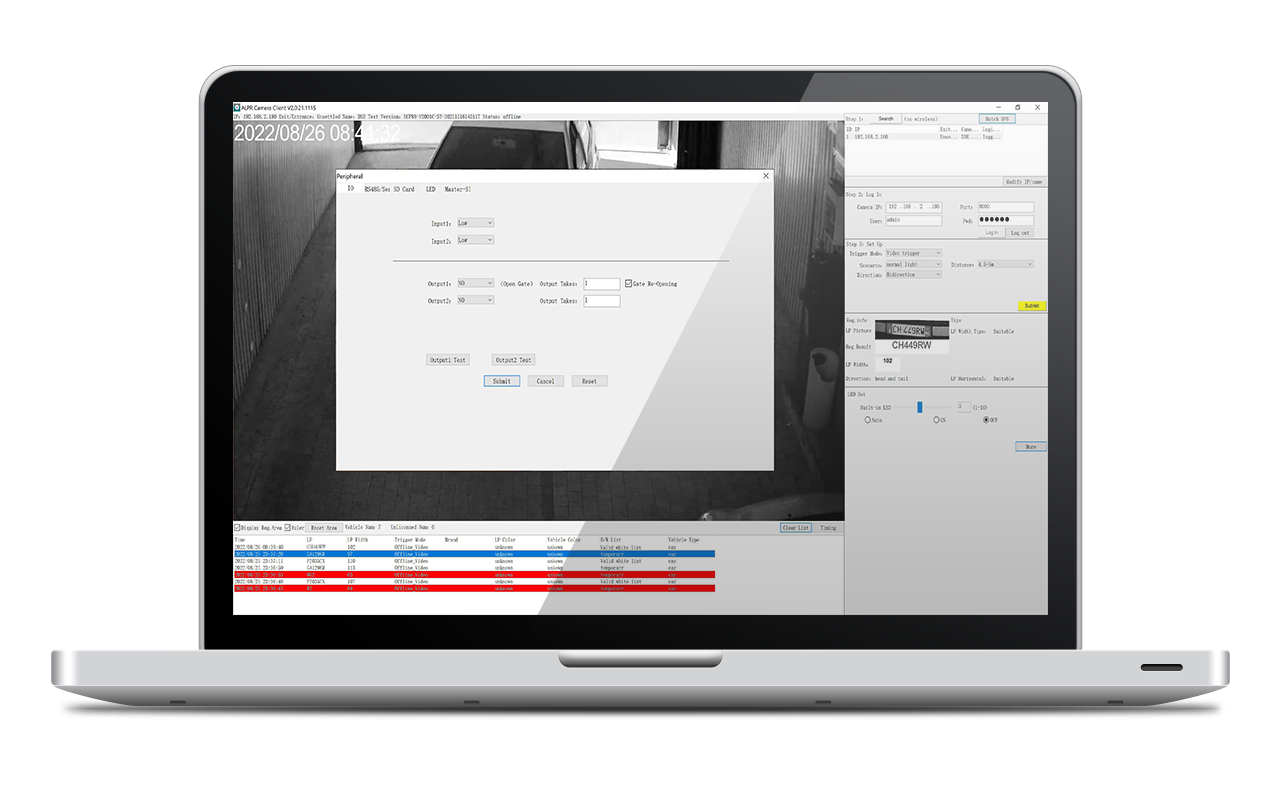

Free ANPR software for car plates monitoring

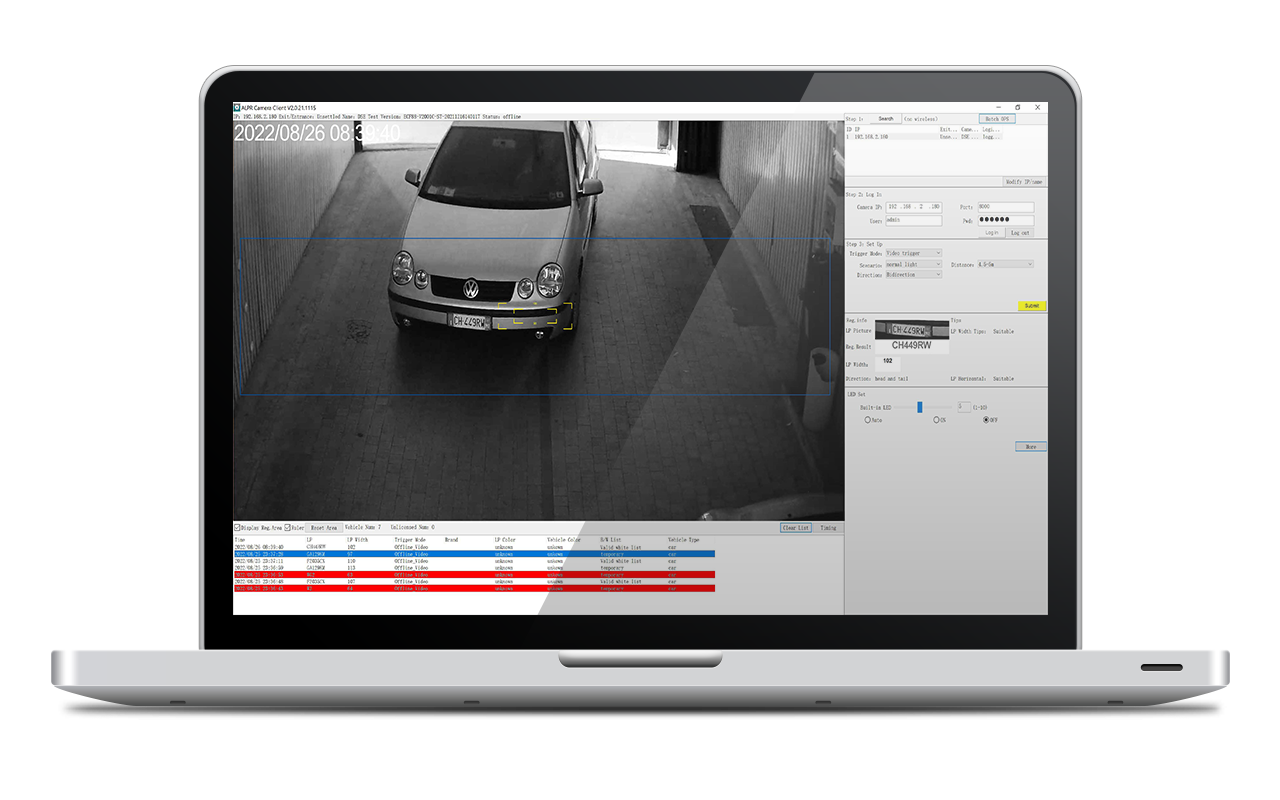

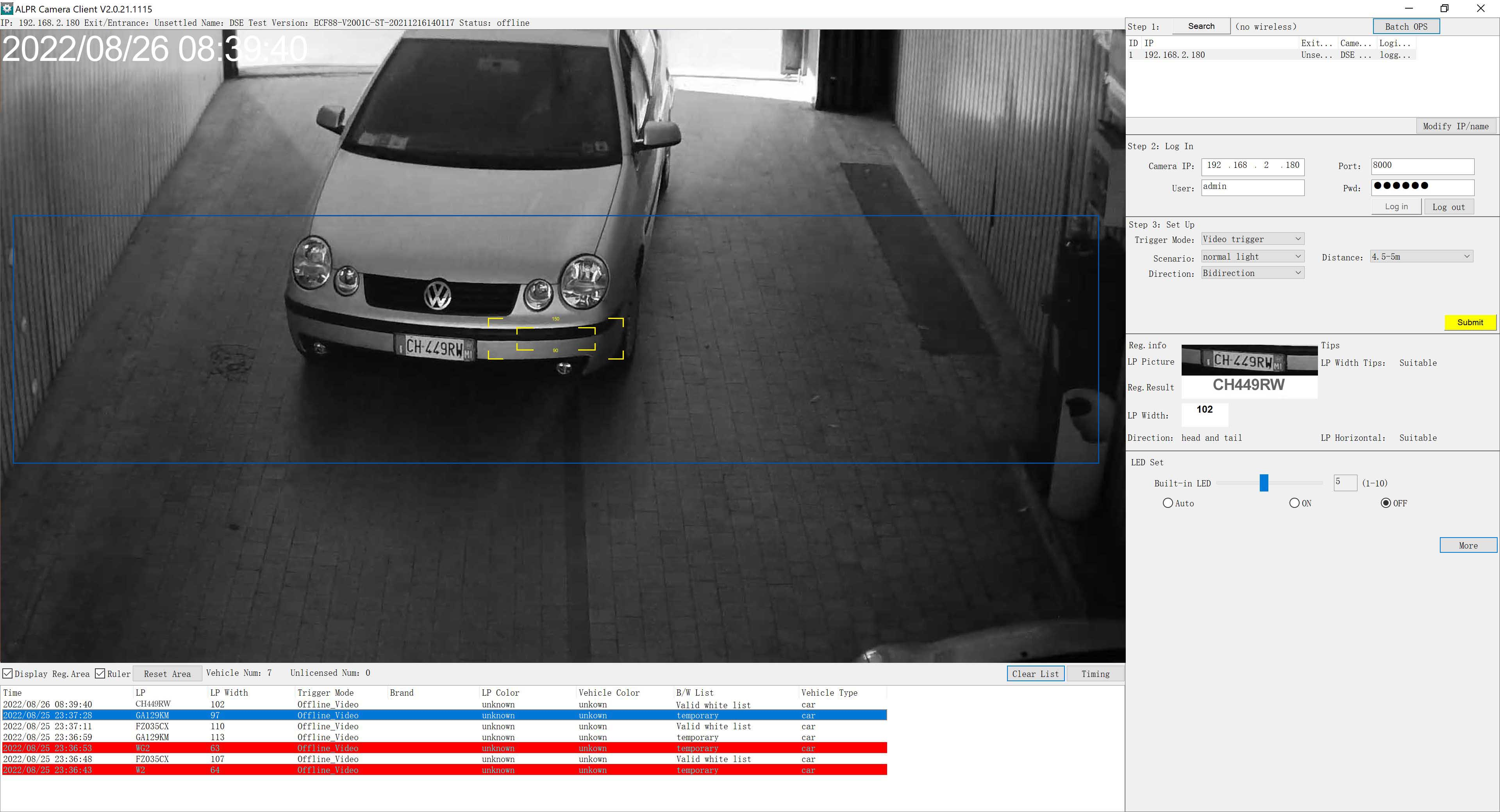

These ANPR cameras are designed to be managed with our CentroRH software which is also compatible with all our RH-PRO Series cameras. This software contains a specific section for the management of license plate cameras. With CentroRH software you can: MONITOR CAR PLATES in real time with a convenient monitoring window, SEARCH FOR CAR PLATES in the log with photos and videos, ENTER NEW CAR PLATES in the camera database and SEND ALARM NOTIFICATIONS by email.
CentroRH software is free and includes a CLIENT-SERVER structure to menage several monitoring stations.

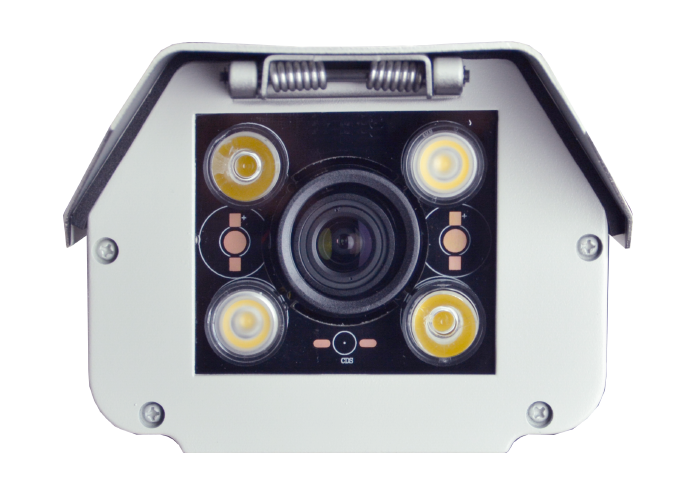

THE ANPR CAMERA

With Anti-Dazzle algorithm

The first thing that make these camera different than ordinary cameras is the ability to make the plate legible in any condition. These cameras come with an anti-glare system that allows you to monitor license plates even at night , when normal cameras are blinded by vehicle headlights. In night mode, these cameras provide a very dark image that makes the license plate stand out, illuminated in the dark by the LEDs of the camera, as you see in this picture.


Vehicle speed up to 80 Km/h

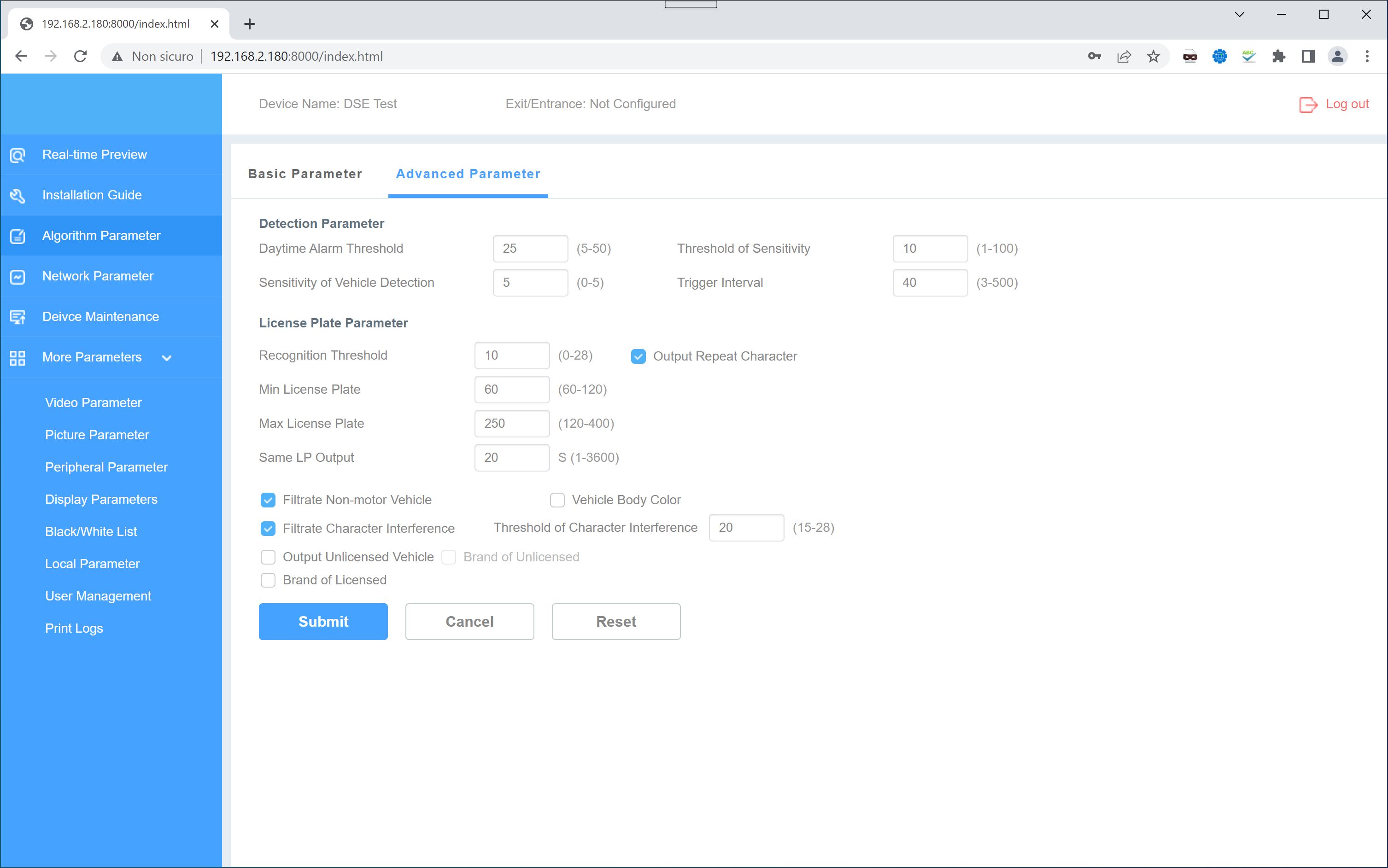

These cameras do not use automatic shutter, like normal cameras, but fixed shutter, to avoid blurring. You can set the shutter speed and other video settings with an Internet browser. The OCR algorithm provoide optimal plate recognition up to 80 Km/h. .

ANPR up to 80 Km/h

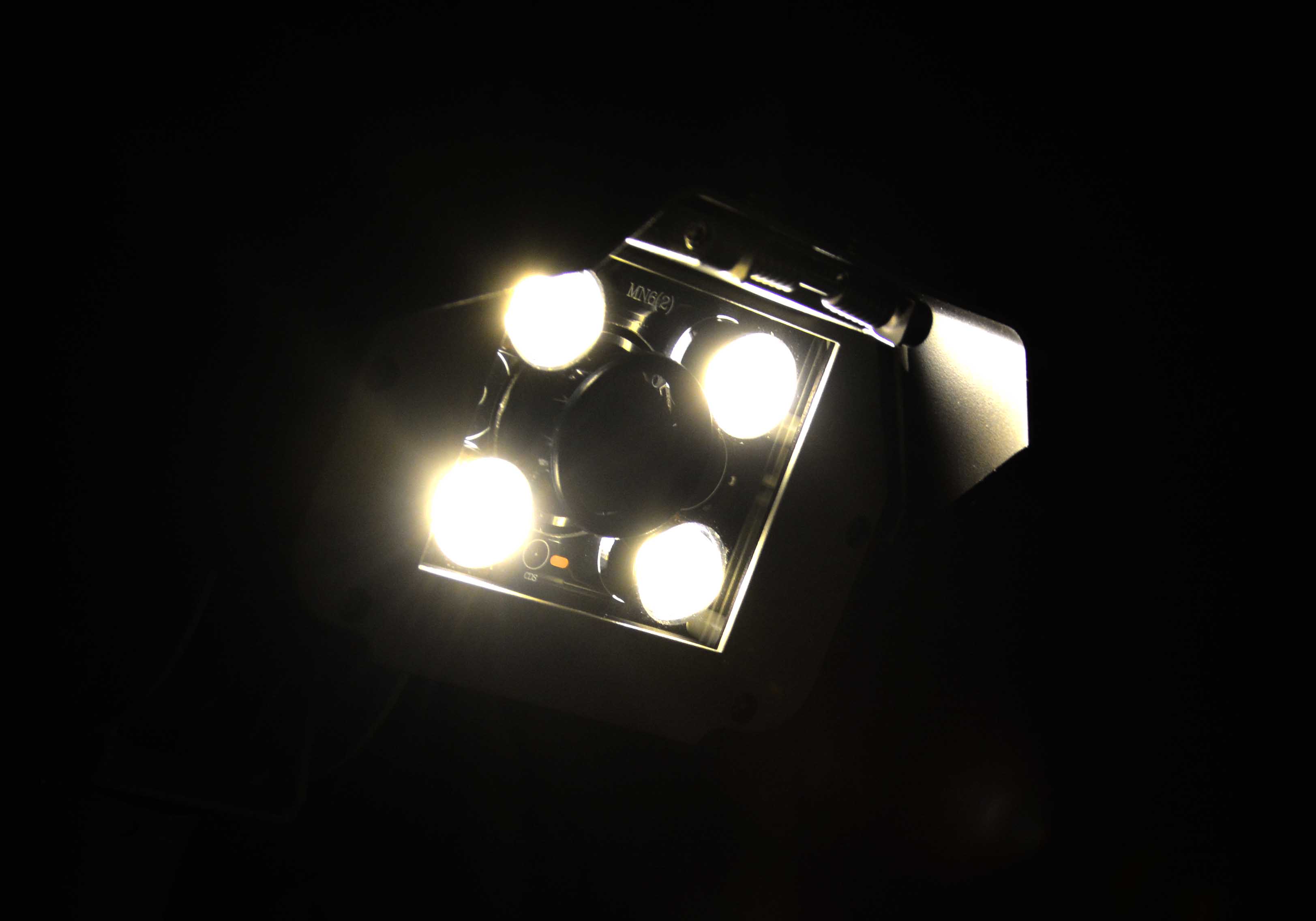

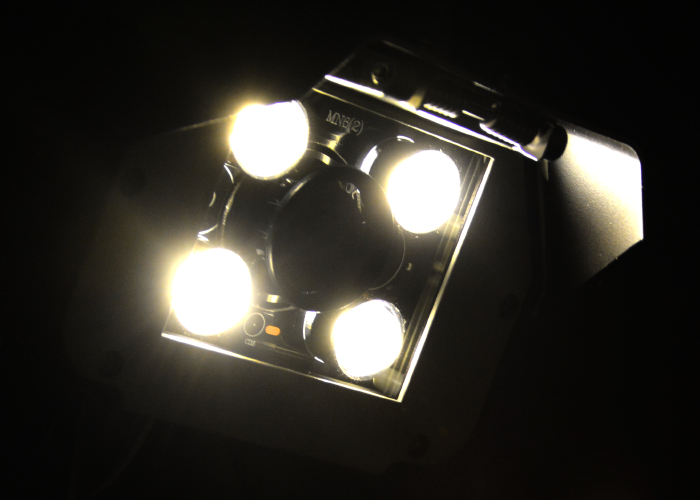

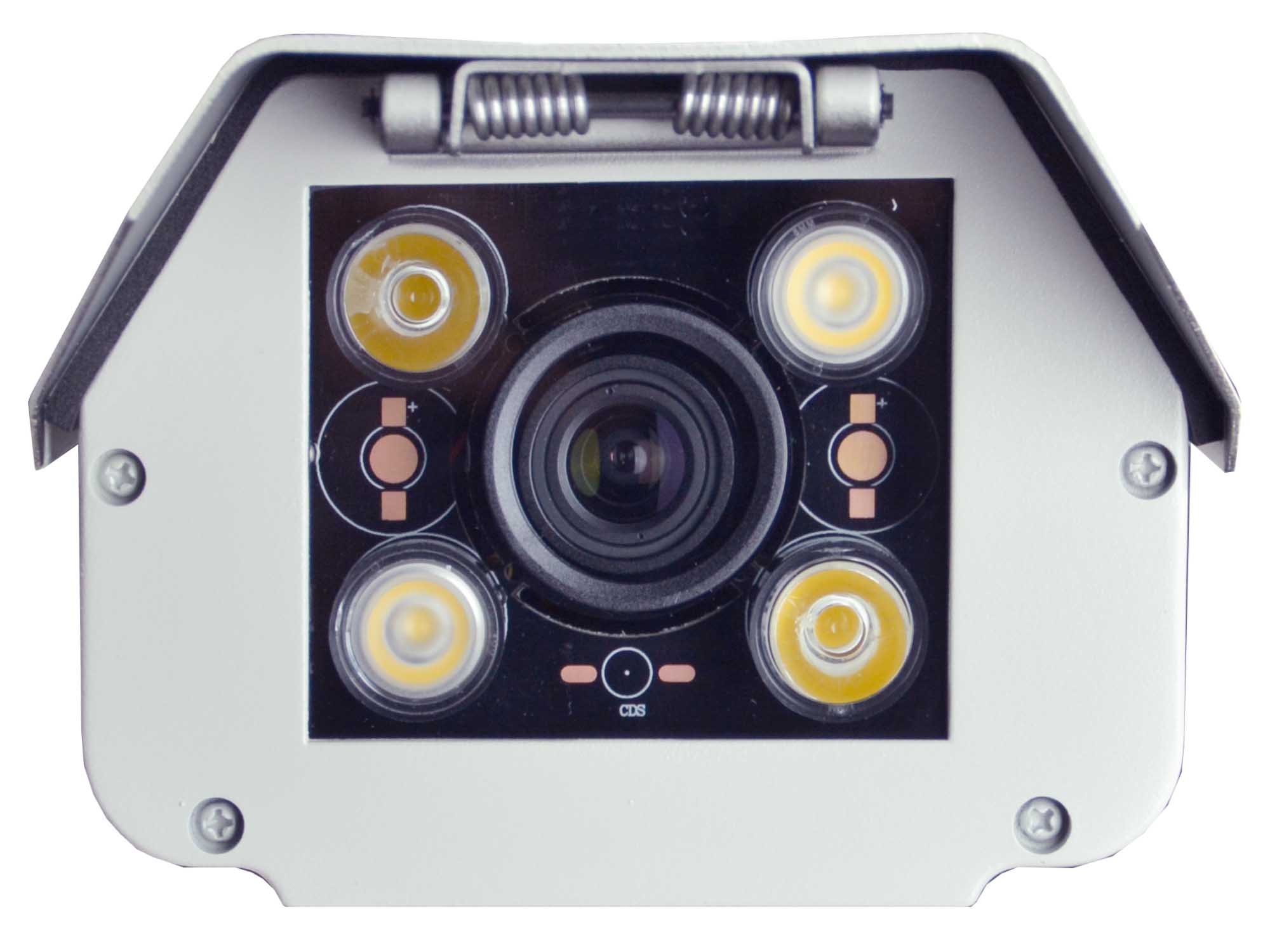

60 meters adjustable IR with ICR

With low light, or at night, these cameras shoot the license plates thanks to their infrared illuminator which emits an invisible light that does not bother the drivers. The maximum capturing distance is 60 meters. The power of the LEDs can be adjusted from the computer to adapt it to the real target distance. The cameras in this range are equipped with high-performance LEDs that provide brigth illumination while maintaining relatively low power consumption. The LEDs turn on automatically below 10 lux. In night mode the camera shoots in Black/White thanks to a mechanical removal of the IR filter (ICR).


7-22 mm. motor zoom

When reading license plates, perfect lens adjustment is essential. For this reason, these ANPR cameras are equipped with a motorized zoom lens that you can remotely control with a PC or NVR. These cameras come with 7-22 mm. motor zoom with autofocus to automatically focus the license plate. If necessary, you can manually tune the focus to match the target distance. Rememeber that a license plate camera must be focused to the road, so it is not meant for ordinary, wide-angle surveillance. You can adjust the zoom lens to monitor up to 3 lanes.

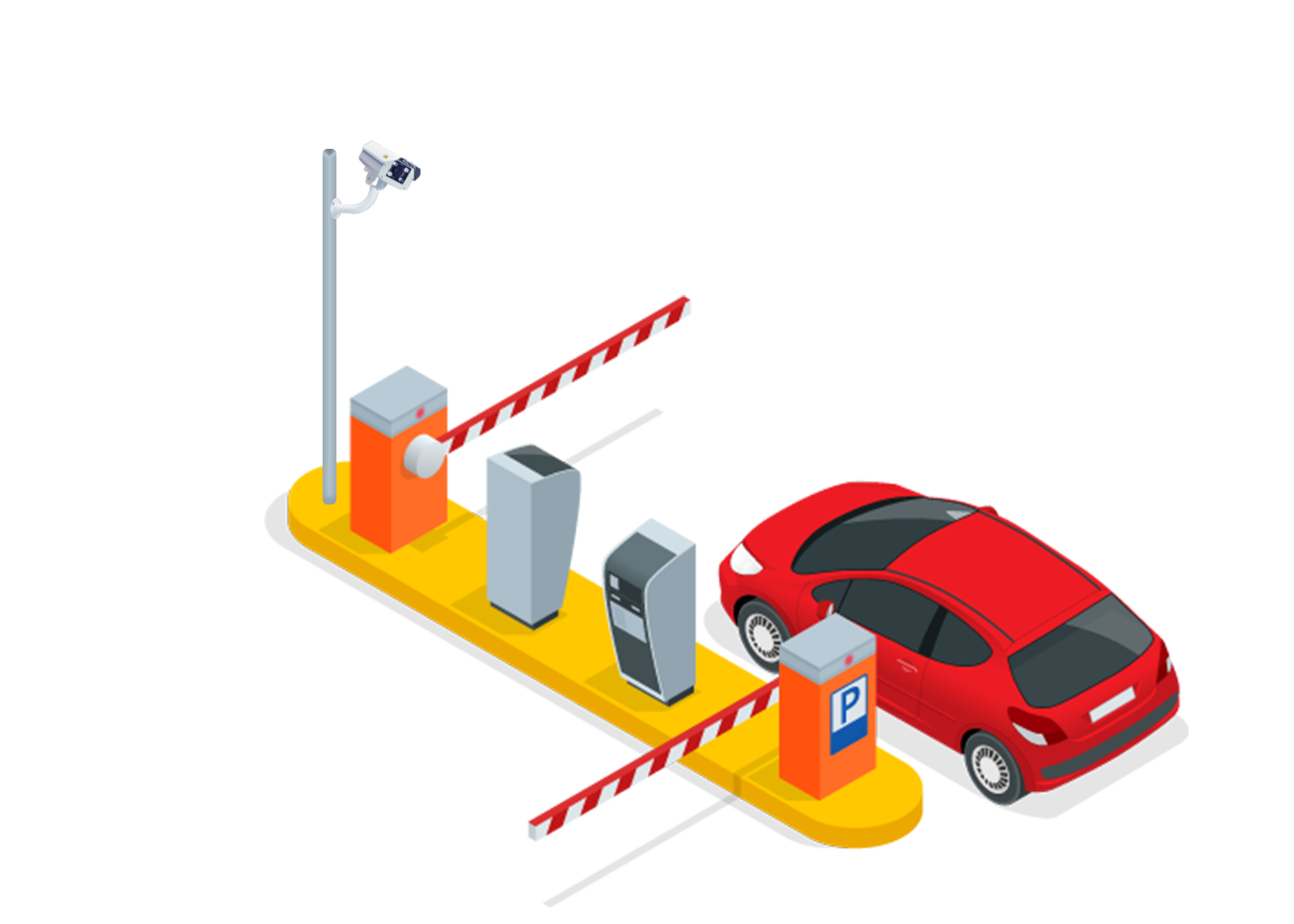

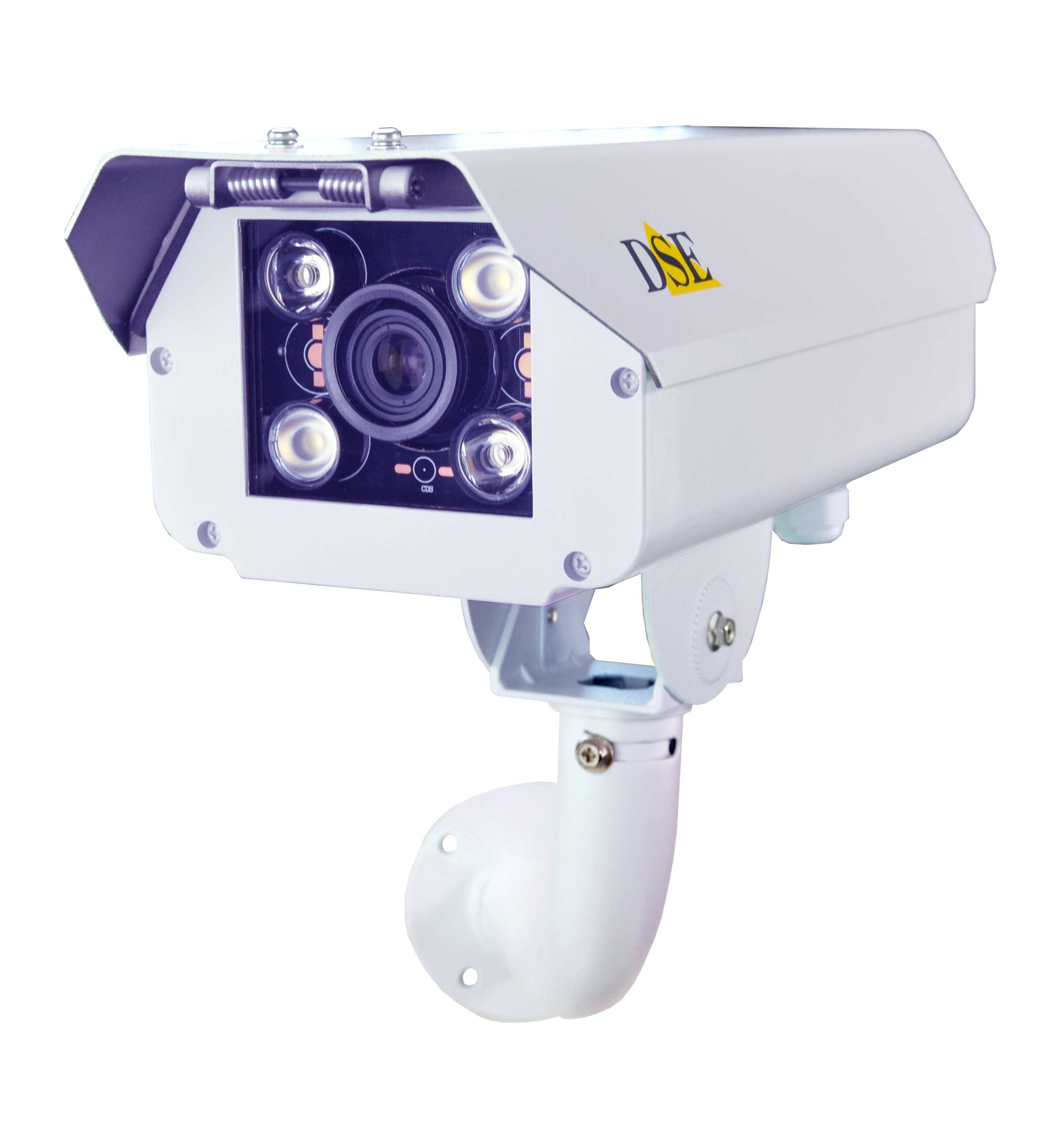

Easy to install on the road side

These cameras are mounted on the roadside using the wall bracket included. You can use them to monitor both the front or rear license plates with an optimal reading distance between 5 and 60 meters . When choosing the best position for your camera, consider that the optimal angle with respect to the vehicles direction is around 30°. Such an angle is recommended to reduce the night glare of the headlights. Remember to adjust the tilt of the camera so that vehicles stay in the frame for as long as possible and prevent the sun from facing the camera, at sunrise or sunset. For good nighttime operation, you must avoid the presence of light sources near the camera, because they could prevent the LEDs from turning on. Once the camera is mounted you can perform all the adjustments remotely with your computer or an NVR.


POE power for one cable wiring

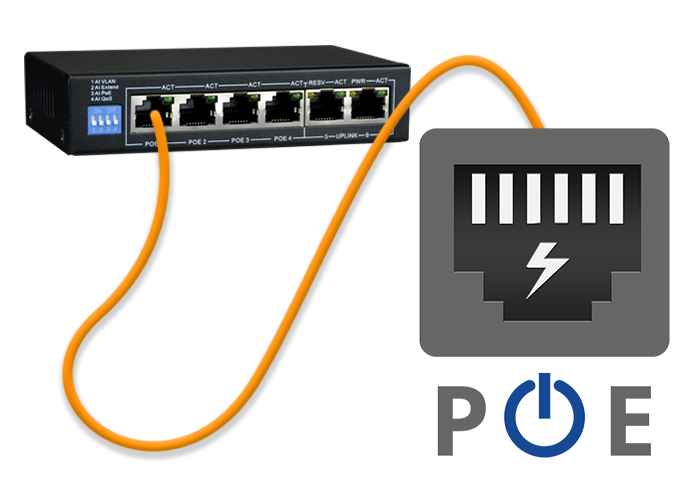

All cameras in this range support POE power via the network cable (IEEE 802.3af Class 3). To make them work, all you have to do is connect them via network cable to a POE switch or a POE NVR. If for some reason you cannot take advantage of POE power, for example if you use the camera with a wifi bridge, you can power the camera with a 12VDC power adapter. Only one network cable is needed to install our ANPR IP cameras.


Alarm I/O, audio

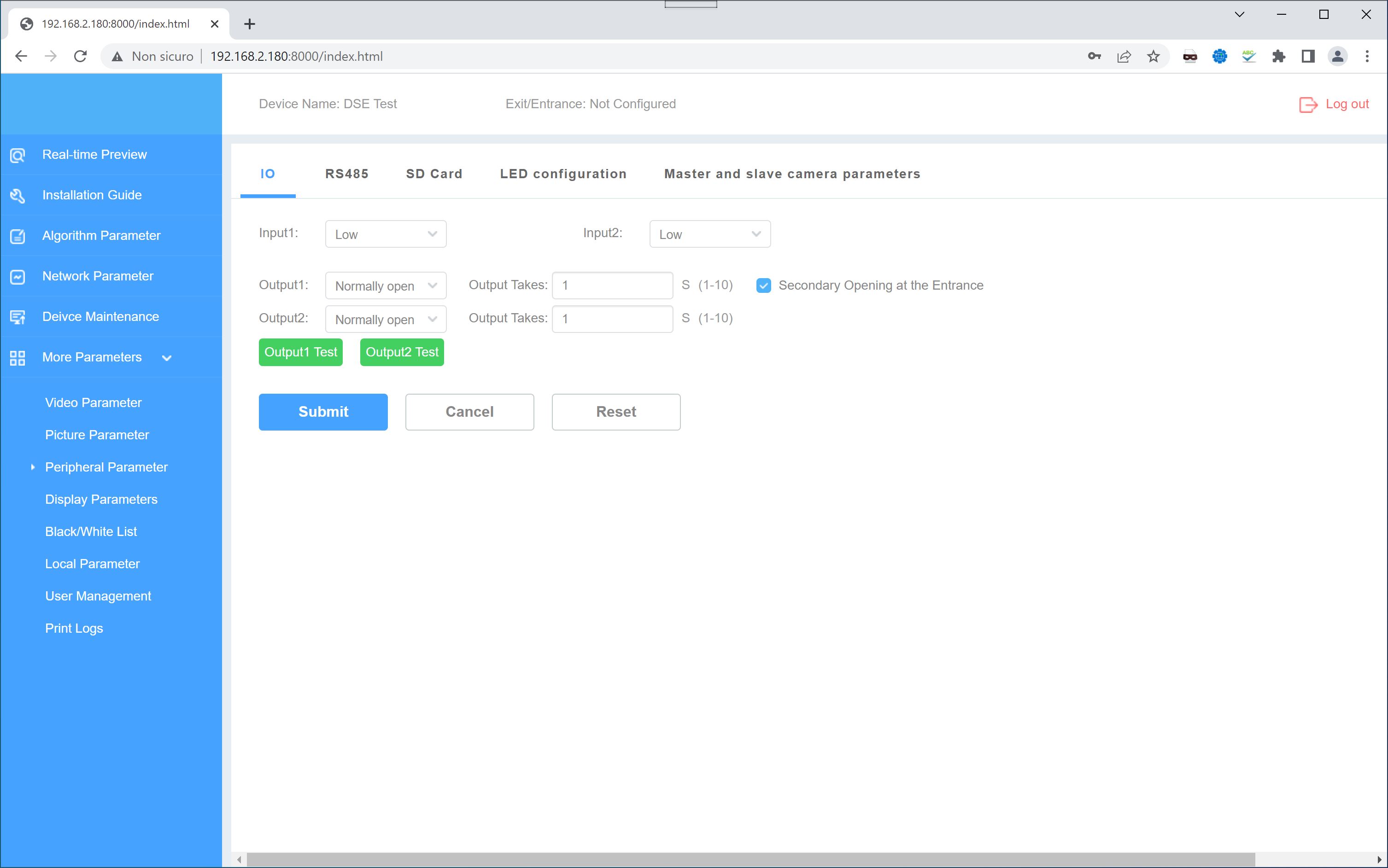

These ANPR cameras come with 1 alarm input for the connection of sensors, switches, IR barriers and other contacts that can generate automatic alarm actions. These cameras also have an alarm output for the connection of external devices, such as sirens or automatic gates. These alarm outputs are particularly useful in these ANPR cameras with OCR to activate a device according to the car plate detected. For example you can open a gate to allow the access of vehicles.

A ALARM INPUT - OUTPUT
B RJ45 NETWORK PORT
C RCA AUDIO INPUT FOR MICROPHONE
D 12VDC POWER SUPPLY IF NO POE AVAILABLE
E RCA AUDIO OUTPUT FOR SPEAKER

Mounting accessories

These ANPR cameras are supplied in an IP66 waterproof casing which include wall/ceiling mounting bracket . To make the installation of these cameras easier, we have designed a waterproof junction box that you can purchase as an optional accessory. This WATERPROOF BOX is ideal to contain the terminals, protecting them from water and wearing. The front cover includes holes for the camera bracket. If you need to install the camera on a pole or a corner, you can purchase the mounting accessories for our speed dome cameras that you can easily adapt by drilling the plate.


RH SERIES PRO IP cameras

This cameras are part of our RH-PRO Series. The RH Series IP cameras are our professional IP range for the high-end market. Compared to our IP cameras for residential and commercial markets, these RH Series come with comprehensive hardware setup and advanced video analysis functions. They are ideal in industrial systems and in complex projects where interaction with external systems and dedicated softwares might be needed. You can also consider our RH Series cameras for your own private CCTV system if you want top notch performance and reliability. If you are looking for high quality IP cameras for residential market, take a look at our RK Series.

Telecamere IP RH High end

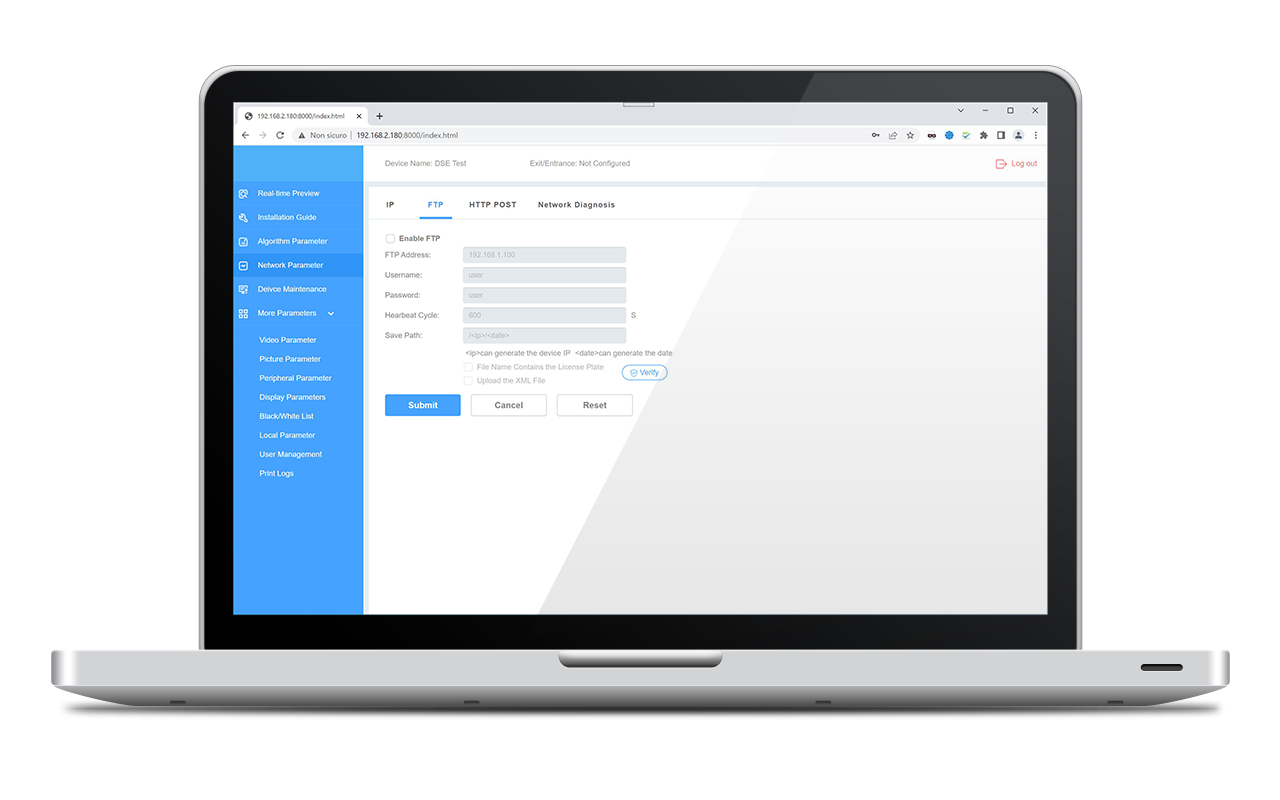

BROWSER CONTROL


Full camera control via browser

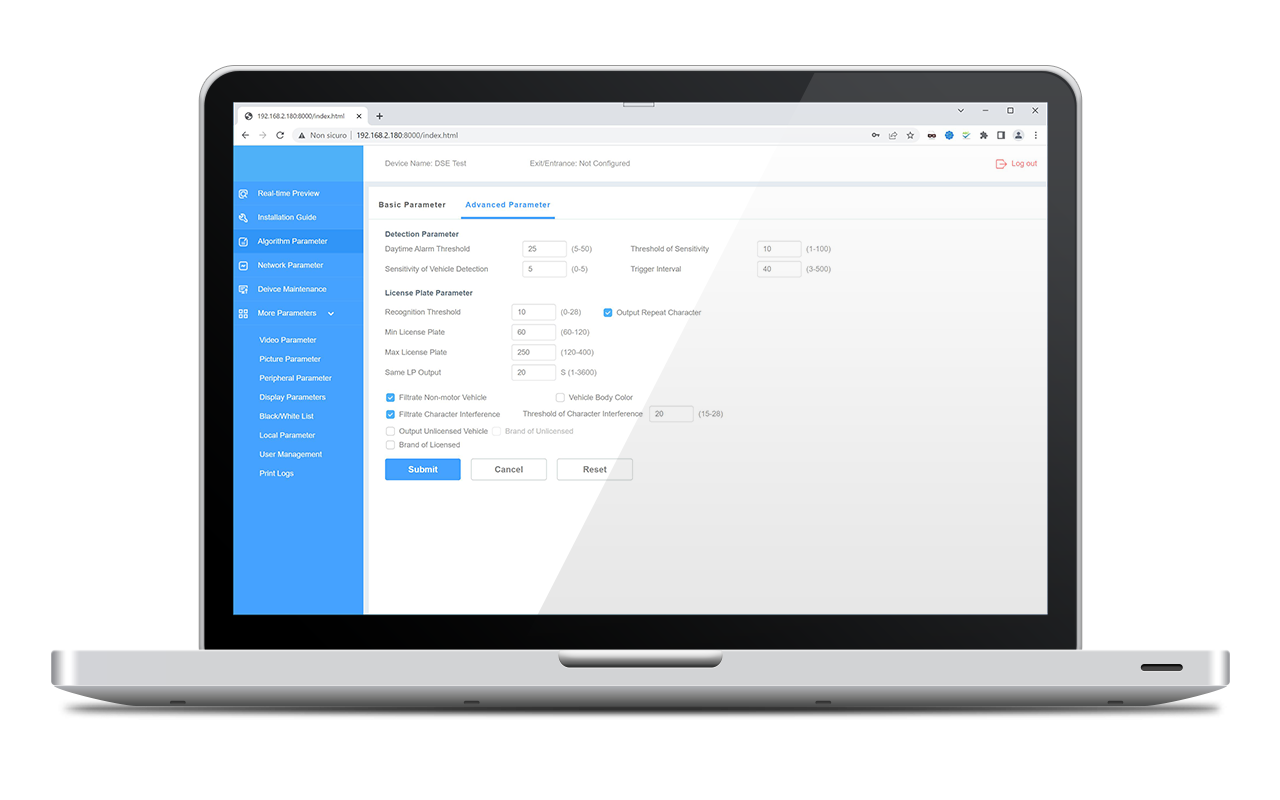

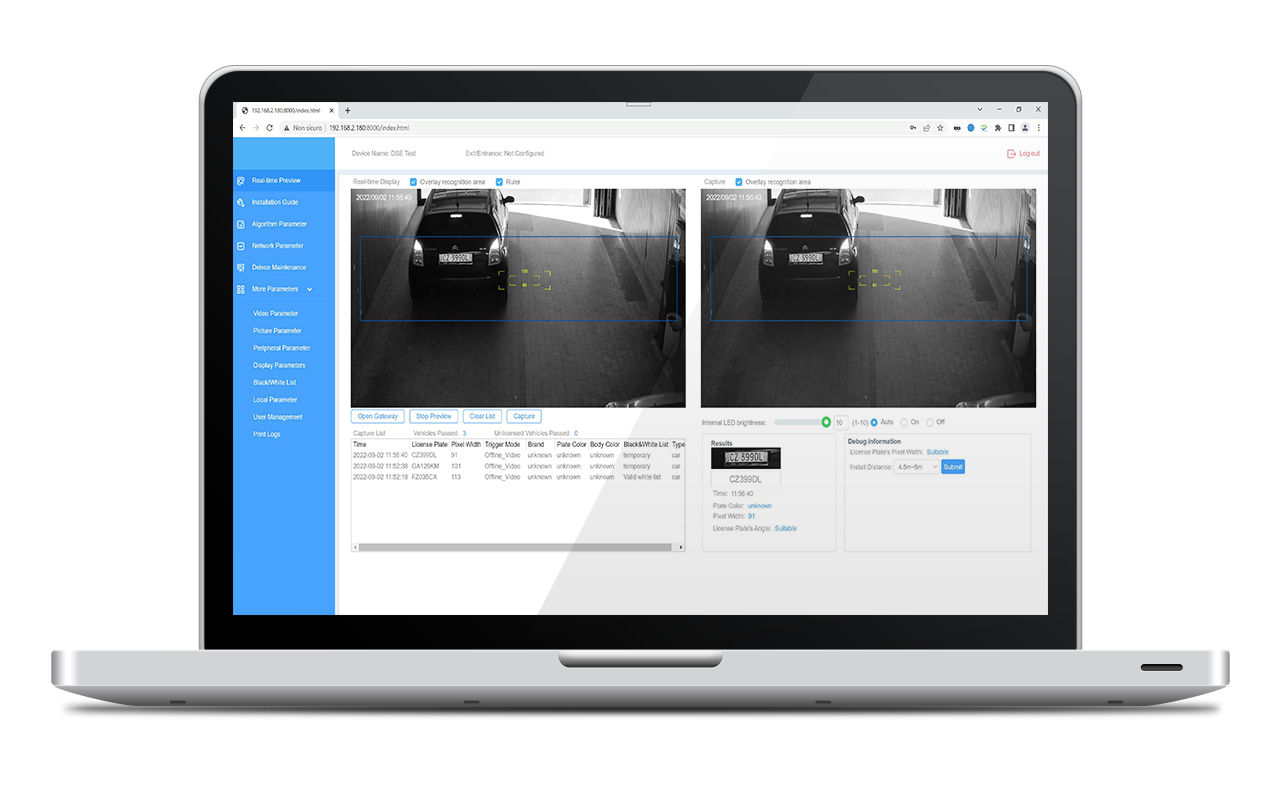

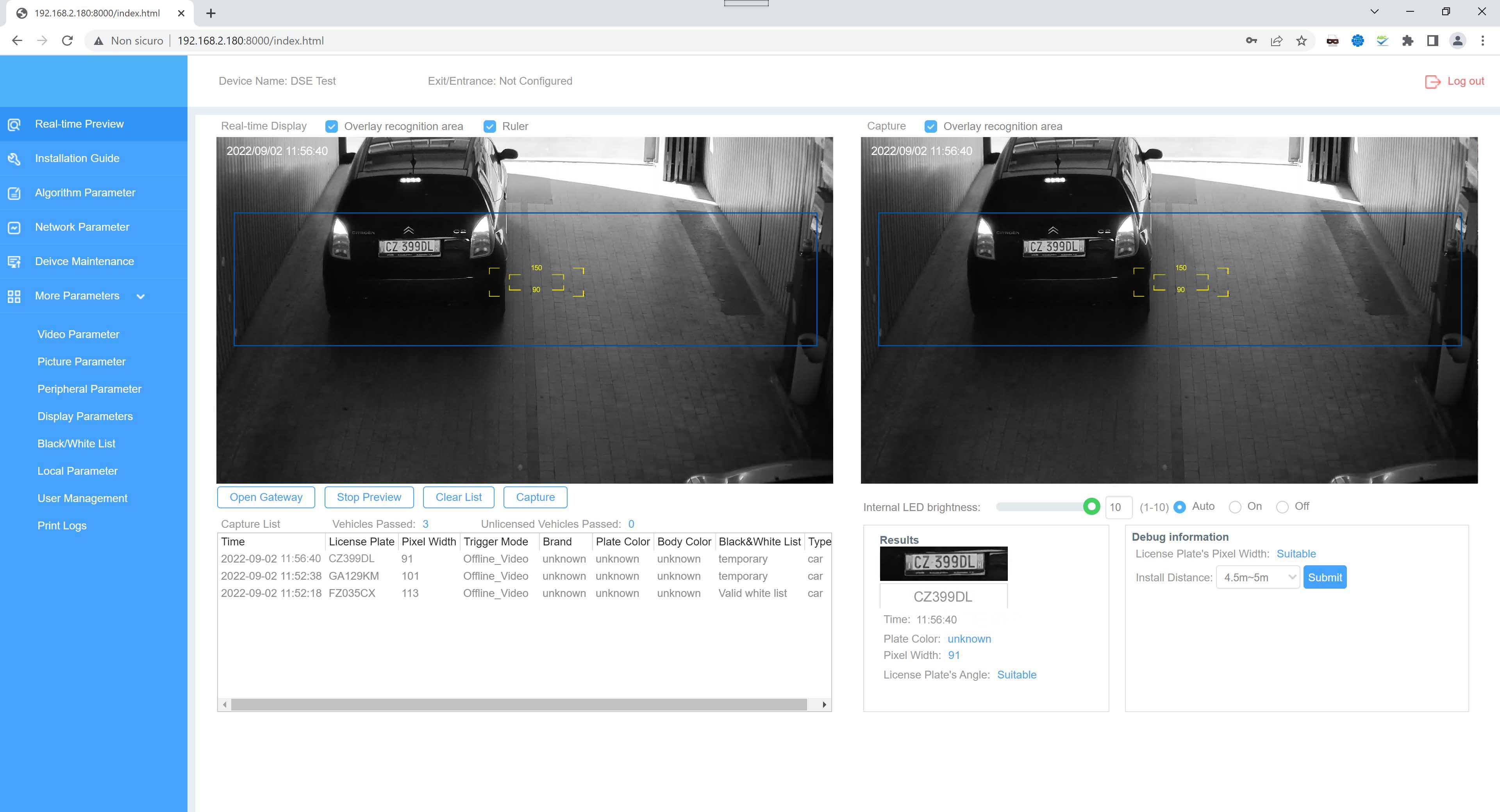

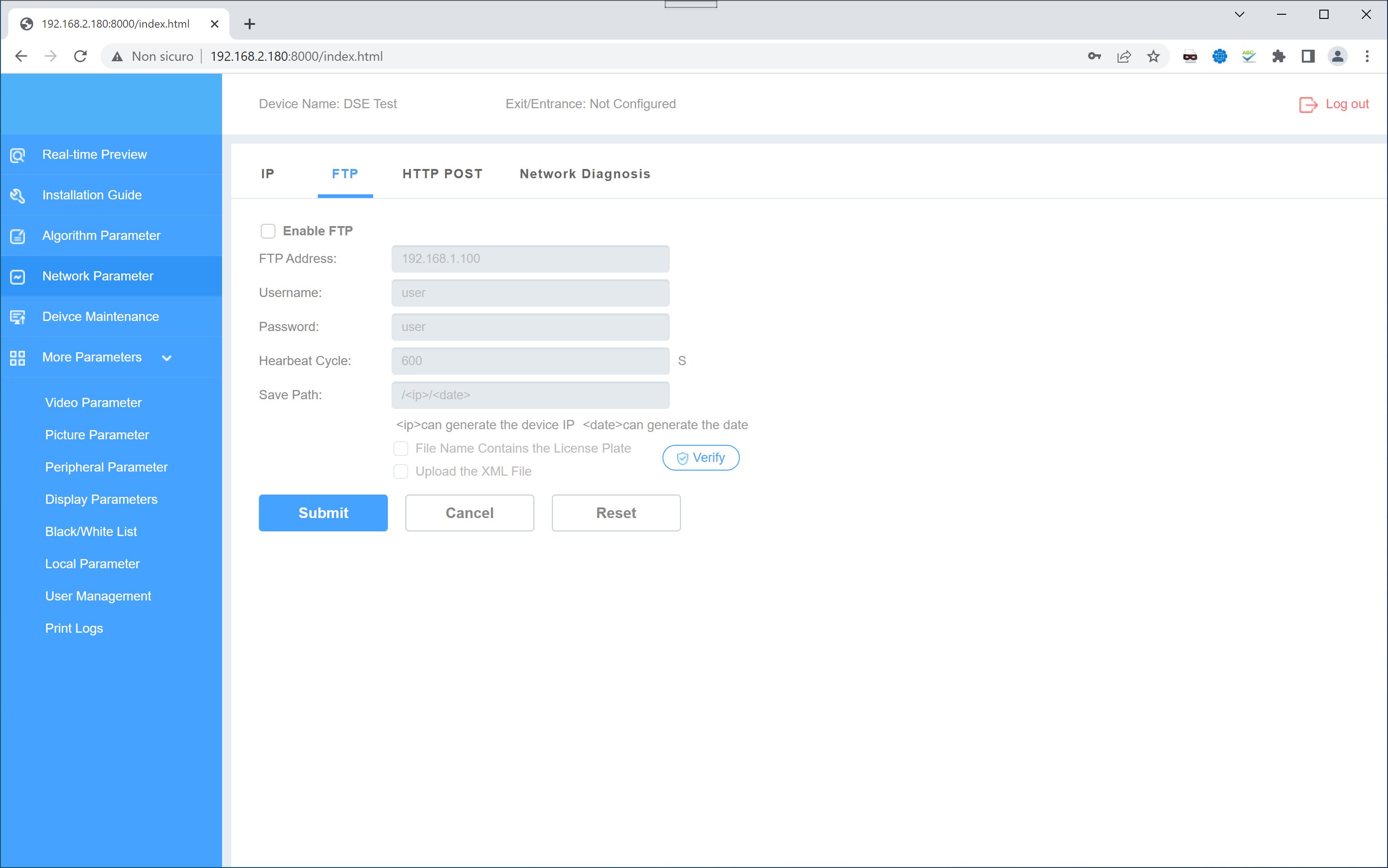

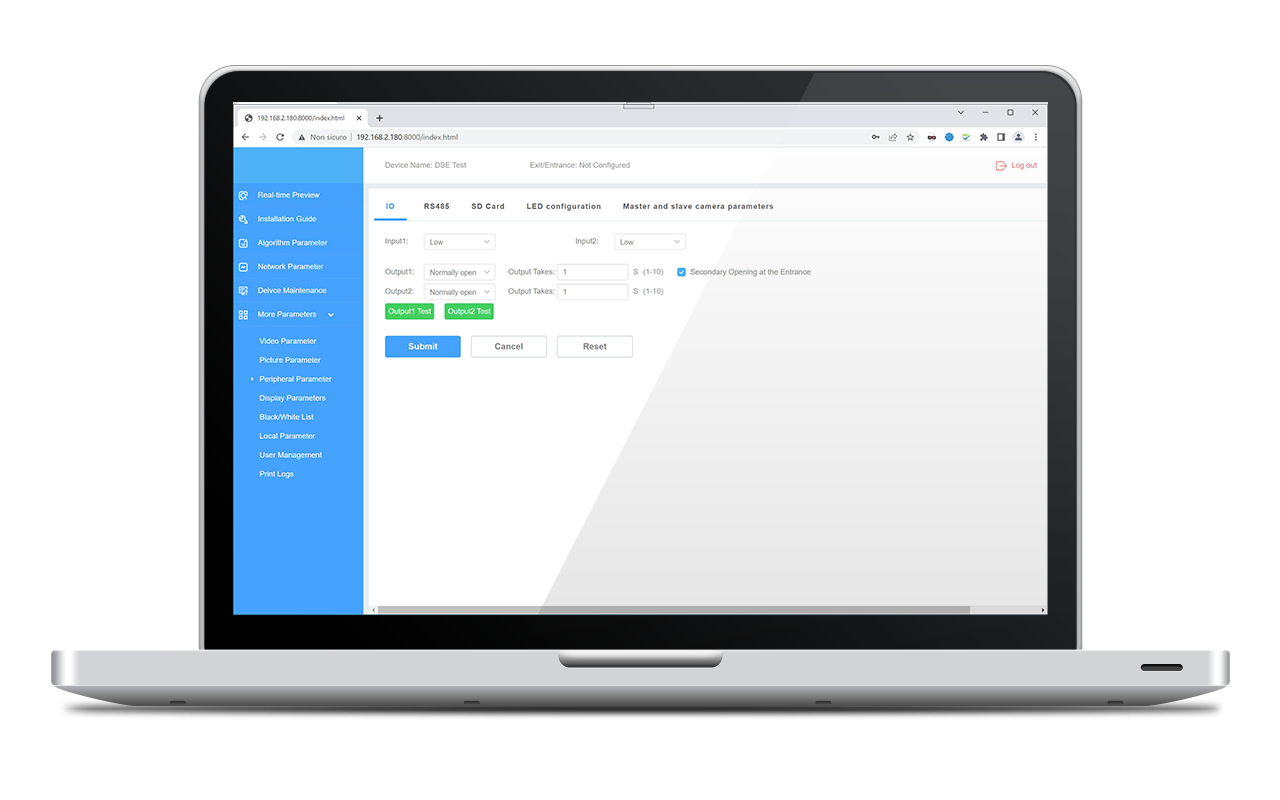

Every computer on the network is a perfect monitor for your IP cameras. You do not even need to install our ANPR software. Just use your Internet browser and enter the login password for WATCHING live video and adjusting the zoom. You can RECORD, take snapshots and ZOOM-IN by dragging the mouse. A user friendly menu, available in many languages, allows you to SET all system options. You can also PLAYBACK the videos which have been recorded in the camera memory, searching date and time over the timeline. The cameras in this range also support the RTSP protocol, which allows you to watch live video with ordinary players such as VLC.

SMARTPHONE APP


Connect with your smartphone

With our free APP for Android and iOS, you can control your IP cameras with a mobile phone or tablet. You can WATCH up to 16 cameras on the screen. You can RECORD , take snapshots and ZOOM IN with the classic two-finger gesture. You can also PLAYBACK the videos which have been recorded in the camera memory, searching date and time over the timeline.

Free app for iOS and Android Live viewing from the app Audio in Audio out Motorized cameras control Playback APP APP

INTELLIGENT VIDEO ANALYSIS


Advanced video detections

These RH series cameras include advanced digital video analysis features that allows you to detect unusual situations that occur within the camera's field of view. This Intelligent Video Analysis function, is a high-tech feature that you can use in addition to ANPR to detect suspicious actions. Several kinds of detection are available to suit all security needs. Each of these video analysis functions can be individually configured and enabled-disabled according to the time and date. When a suspicious event is detected, the cameras start recording, activate alarm output for local warning, and send out email or FTP upload. It is also possible to send out alarm signals to the CentroRH or RHC monitoring software included or to any alarm management platforms supporting the ONVIF Videoanalytics Service Spec.V220 standard.

INTELLIGENT DETECTIONS
Intrision in a perimeter PERIMETER
Camera dazzle ANTI MASKING
Fence VIRTUAL FENCE
Double virtual wall (Double Fence) DOUBLE FENCE
Excessive permanence (Loiter) LOITER
Excessive permanence of multiple subjects (Multi Loiter) MULTI-LOITER
Abandoned object ABANDONED OBJECT
Removed object from selected area REMOVED OBJECT
Subject moving quickly UNUSUAL SPEED
Vehicle proceeds in the opposite direction U TURN
Parking in no parking area NO PARKING
Camera moved from original position TAMPERING

IP VIDEO RECORDING


Compatible with all NVR

The cameras of this RH series, like all our IP cameras, can be used with network video recorders, also called NVR. These cameras are compatible with all NVR on the market that support the Onvif protocol. If you are building a brand new system we recommend our RK Series NVRs, for perfect compatibility.
If you are using our RH series cameras for a residential system, buying an NVR is recommended, because it makes Internet connection easier with its P2P cloud server. Being designed for high security installations these RH cameras do not support P2P cloud server.


Member of ONVIF

You can buy your IP products from us with confidence. DSE is one of the few companies in Italy to be a member of the ONVIF international association, which includes all the main IP security manufacturers and promote standardized interfaces for effective interoperability of IP-based security products. All products in this range are supporting Onvif and RTSP protocols. You can match our products with any other device sharing these standards.


128GB SD Card slot

These ANPR cameras come a built-in microSD card slot. You can insert a micro SD memory up to 128GB and record videos directly on the camera. You can record in case of alarm or even continuously on the base of a time scheduler. When the camera runs out of memory space, it will automatically start overwriting the oldest files. We recommend you still use the SD card in these cameras, even if you have an NVR, because it is useful to record the video clips of the vehicles.


NVR software for Windows

You can use a computer to monitor and record our IP cameras. You do not have to buy anything, just download our free VMS software suitable for all our IP cameras. You can install it on as many computers as you want and use it freely, either as a main video recorder, or as an additional control unit. There is also a more specific software, only for these RH Series cameras, which allows more control on all features: it is our free RHC software . In addition to monitoring, this software allows you to change the camera options and assign IP addresses during installation.

DOWNLOAD VMS DOWNLOAD RHC

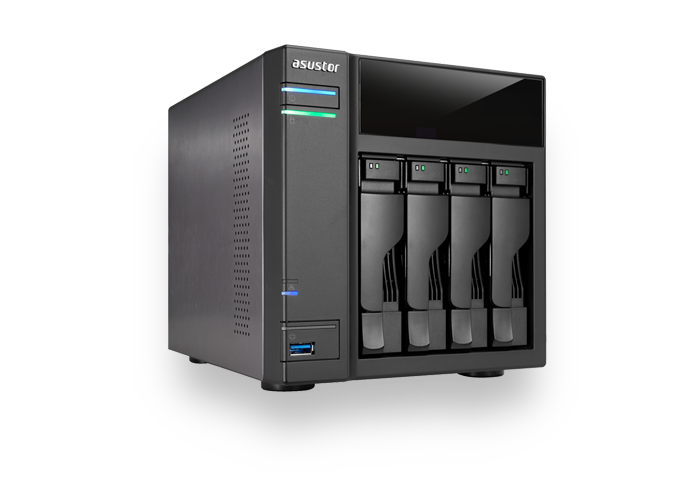

Recording on NAS

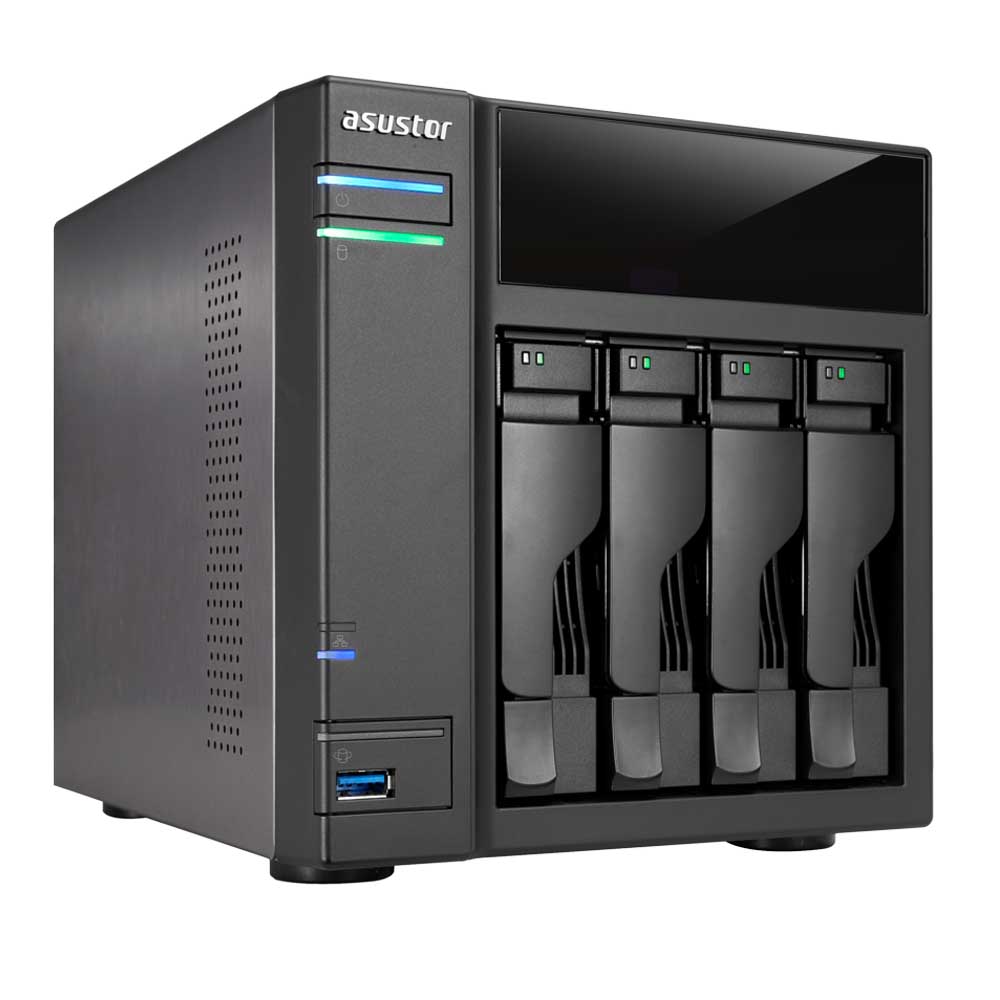

All cameras in this range allow you to record on an external NAS. A Network Attached Storage (NAS) is a network device that holds one or more hard drives. You can record your videos on a remote NAS just in case of alarm or continuously, on the base of a time scheduler. When the memory is full, the automatic overwriting of the oldest files is normally set. Recording on external HDD allows you to achieve high video storage capacity and store your video files on a common network resource, ready to be shared with other applications.


SDK, API e CGI for developers

The RH Series cameras are designed for high-tech applications where software interaction with other equipment is often required. We provide developers with free SDK libraries and APIs to control all functionalities of the cameras with their own software. Moreover, these cameras can be fully controlled via CGI commands (Common Gateway Interface) over HTTP protocol. The list of CGI commands is available in the MANUALS section.

DOWNLOAD SDK

TECHNICAL DATA



CODE RH-BCC1-LPR
Description ANPR LPR IP camera for car plate recognition
Type ANPR camera with OCR
CAMERA
Maximum resolution 2MP
Image sensor 1/2.8" Sony CMOS
Chipset Ambarella A5S ARM11
Video resolution 1920×1080@ 25 fps ... 1280×720 @ 25 fps
Video compression H265 H264 MJPEG
POE
Local power supply 12VDC
Infrared illuminator 60 m. IR (850nm) with remote power adjustment
ICR
Lens Motor zoom 7..22 mm.
Focus Autofocus - Manual
Shutter 1/5...1/20000
S/N ratio Above 52dB
HARDWARE
LAN port RJ45 10/100 Base-T
Audio input
Audio output
Alarm I/O 1 input + 1 output
SD card Max. 128GB
CVBS output RCA
Remote controls Zoom, Focus, IR power
FUNCTIONS
Protocols TCP/IP IPV4/IPV6 HTTP HTTPS UDP FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP PPPoE UPnP APR SNMP
Onvif Supported
CGI
SDK
P2P
Browser Internet Explorer - Limited access with other browser supported
Smartphone Free app DSE smartlive 3 for Android/iOS
Monitoring software CentroRH for Windows with ANPR functions
NVR software for PC RHC for Windows
Multi streaming 3 stream
NAS recording
Saving to web cloud
Mirror Verticale e/o Orizzontale
Corridor
Overlay Date Time
BLC
AWB
DNR
WDR 120dB
Anti Fog
HSBLC ANPR anti dazzle algorithm
Motion detection Adjustable with week scheduler
Privacy mask
ROI
Alarm actions Email, FTP, Sending alarm to CentroRH - RHC software, alerm output
OCR
OCR accuracy 97% in optimal conditions
Optimal ANPR distance 5...30 m. 30° angle
ANPR max. vehicle speed 80 Km/h
Car plates database Up to 1000 car plates
OCR detections Whitelist, Blacklist, Unknown
GENERAL
Casing Aluminum
Protection rating IP66 Water-proof
Bracket Wall/Ceiling bracket included
Operating temperature -20°C +70°C RH80% Max
Power supply POE or 12VDC
Power consumption Max. 4 W (8 W IR ON)
Dimensions 110 (Diam.) x 375 (D) mm.
Weight 1,68 Kg.

QUESTIONS & ANSWERS


What is included?

CAMERA
WATERPROOF RJ45
L KEY
WALL PLUGS
HOLE TEMPLATE
MANUALS
IP CHANGE SW
ANPR SW
APP

What is not included?

All cameras can be powered with a 12VDC power supply. However, the power adapter is not included since POE power is also possible. If you need a power adapter, see ours POWER ADAPTERS FOR CCTV
