BLUETOOTH SPEAKER CAMERAS

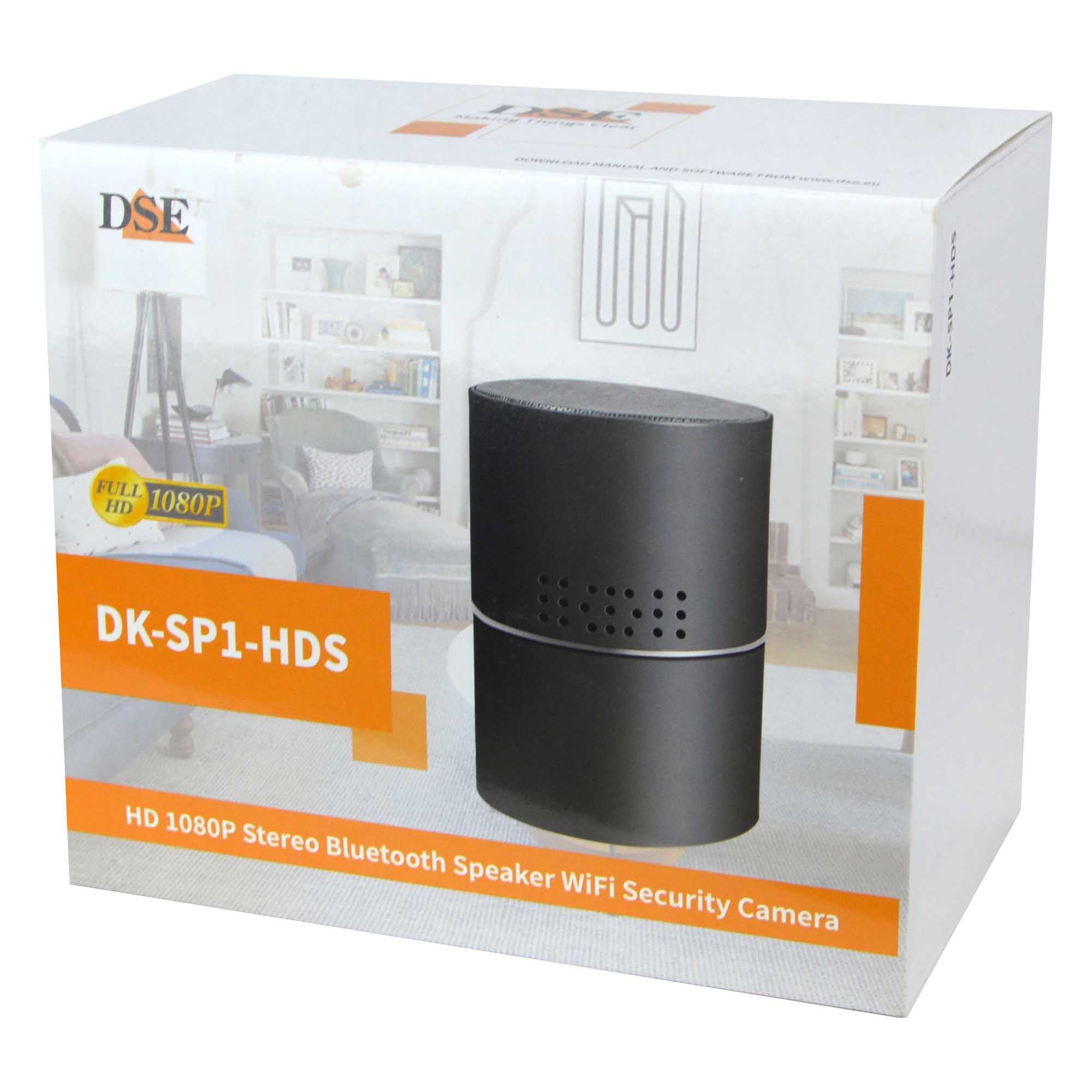

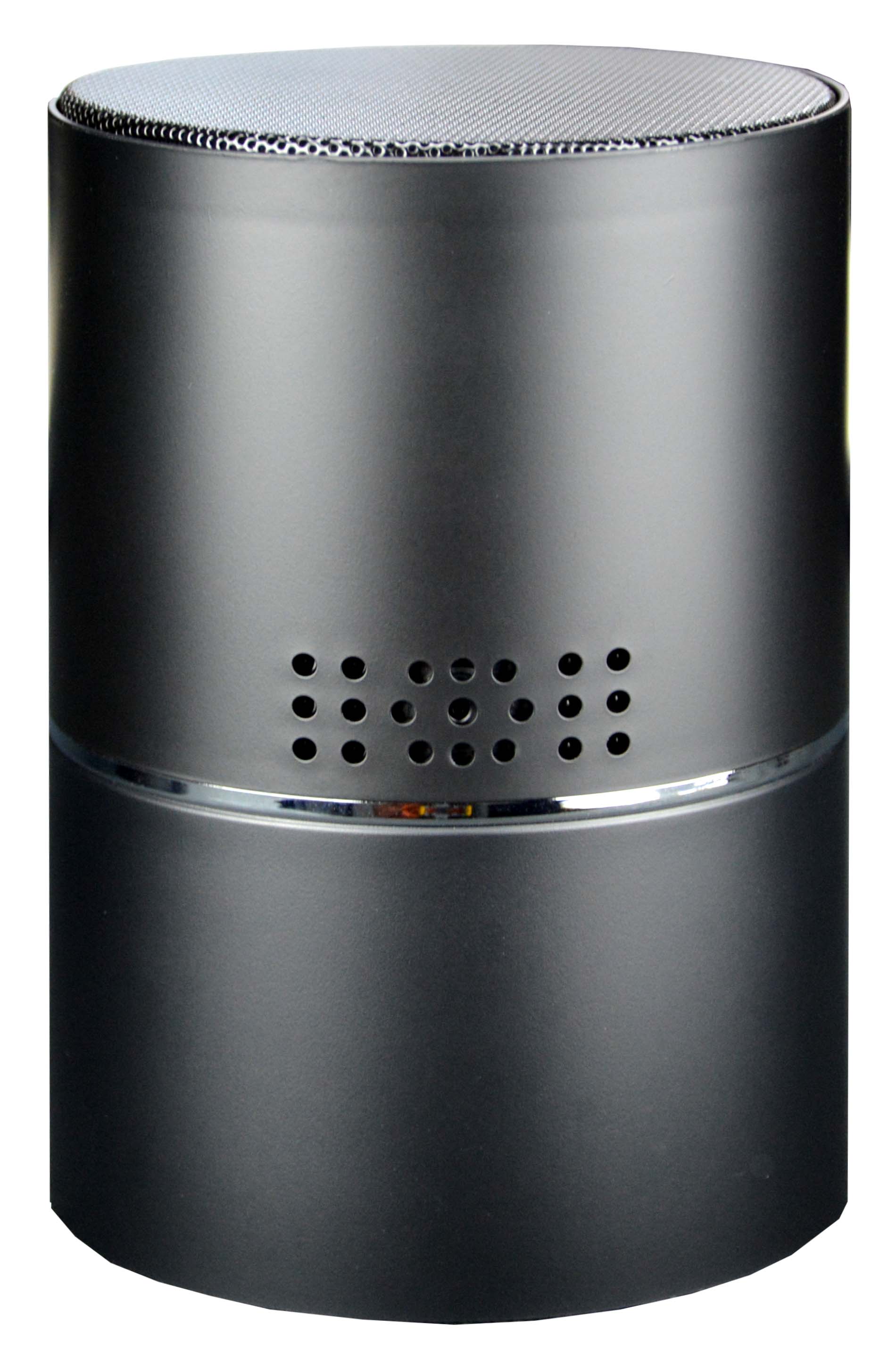

DK-SP1-HDS

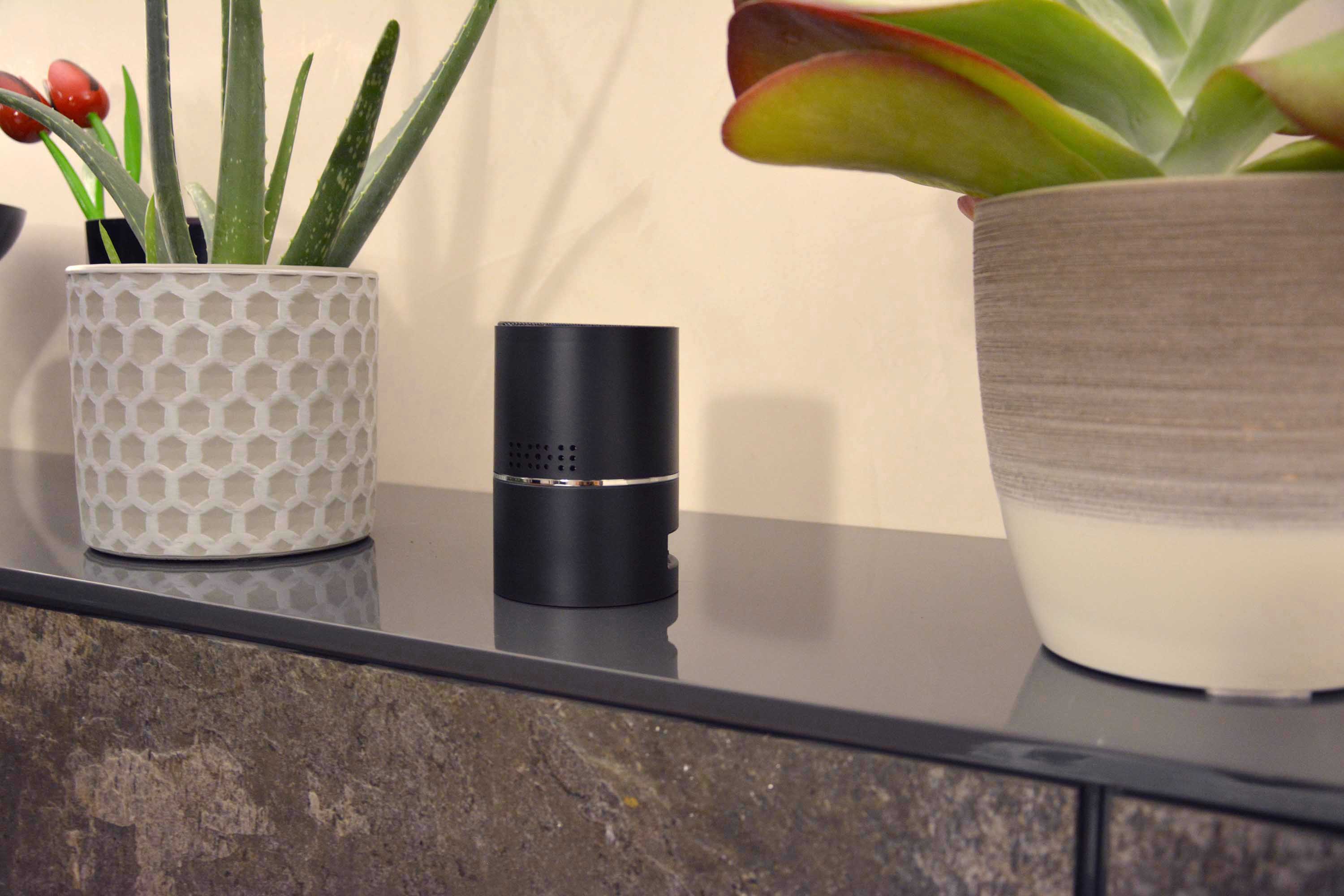

SPEAKER CAMERA
MOTORIZED

Hidden camera in power adapter

2MP 1080P ONVIF

Motorized camera in bluetooth speaker with SD card. WiFi control via Internet.

Pin-hole lens 2.8 mm 90° Micro SD card slot up to 128GB 300-hour video file storage on SD card of maximum capacity PAN angle 330° Built-in microphone for audio Built-in speaker for audio 10 m. IR illuminator 10 hours recording with built-in battery Motion detection 220V power adapter Wi-Fi for mobile control with app Free P2P Cloud Server for Internet Control Free App

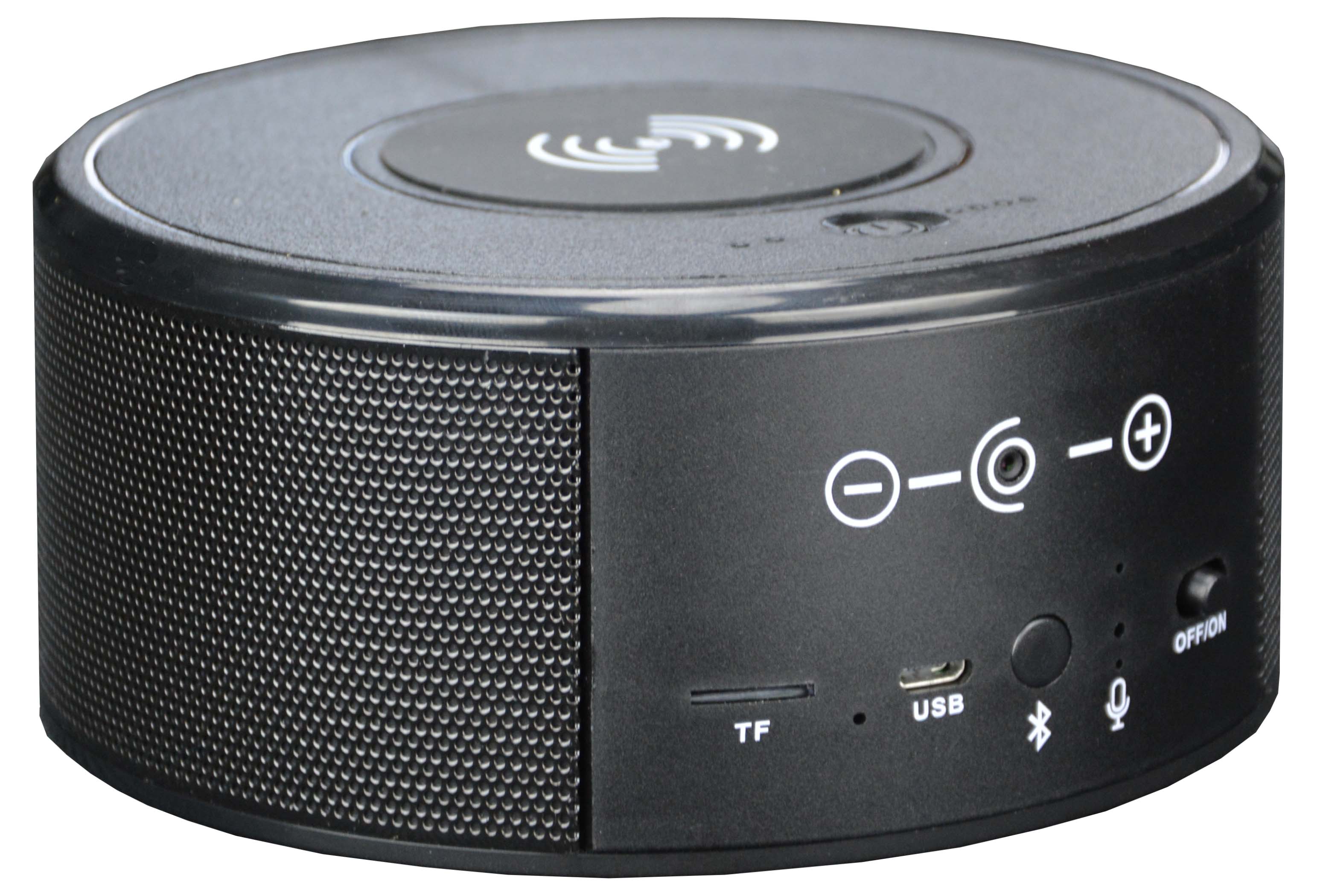

DK-AL4-HDS

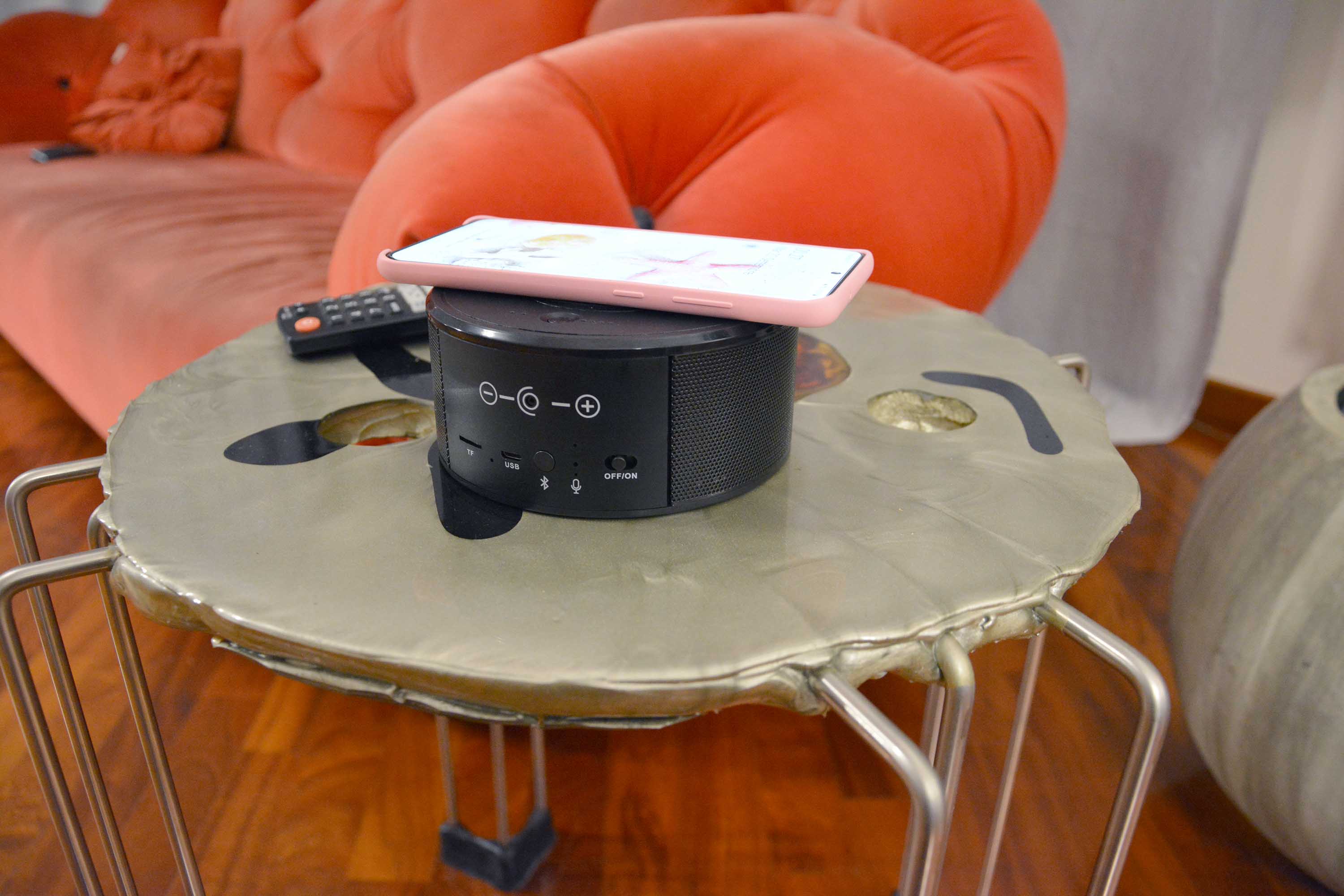

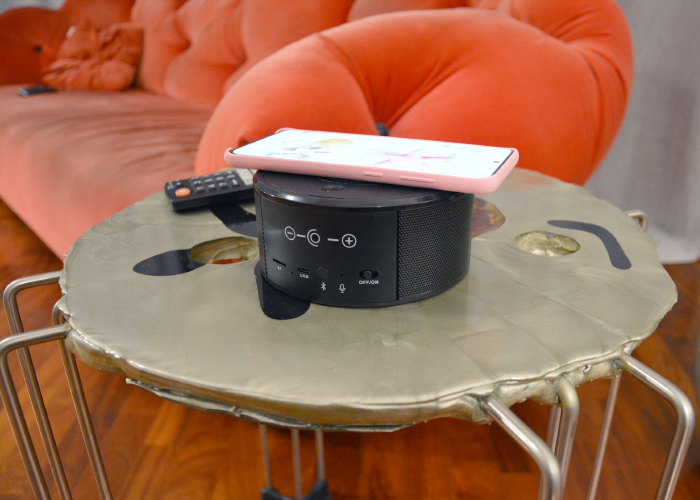

SPEAKER + CHARGER
CAMERA

Hidden camera in power adapter

2MP 1080P ONVIF

Motorized camera in bluetooth speaker with SD card. WiFi control via Internet.

Pin-hole lens 2.8 mm 90° Micro SD card slot up to 128GB 300-hour video file storage on SD card of maximum capacity Built-in microphone for audio Built-in speaker for audio 10 m. IR illuminator Motion detection 220V power adapter 13 hours recording with built-in battery Wi-Fi for mobile control with app Free P2P Cloud Server for Internet Control Free App

THE INVISIBLE CAMERAS


The hidden cameras for every environment



These cameras are hidden in a modern bluetooth speaker for mobile phones. They are ideal for surveying an entire room in an unsuspected way. The insignificant appearance of a common mobile phone accessory allows you to insert these cameras into any type of interior, whether in the home or office. The pin-hole lens, totally invisible from the outside, shoots from the front and in the motorized models can also be rotated via app. You can place these speakers on a bedside table or shelf, without arousing suspicion. They are fully working with your smartphone so you can use them to listen to music or recharge your phone.


Running in a few minutes



These hidden cameras in speaker and charger for smartphone are ready to go in minutes. You just have to insert the sd card into the slot and your hidden video surveillance system is ready to be placed wherever you like. 2 versions are available.

DK-SP1-HDS DK-AL4-HDS
Speaker bluetooth
Wireless charger
Motor lens

VIDEO AND AUDIO


2 megapixels high resolution video



These hidden cameras for investigation provide a video resolution of 2 MP at 25 f/s. The 2MP resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of high resolution digital TV and provide high quality video and rich detail. In order to guarantee maximum performance, we use the same high-level CMOS and HiSilicon processors of our IP cameras for traditional CCTV surveillance in these hidden cameras. Download two 2MP demo movies below

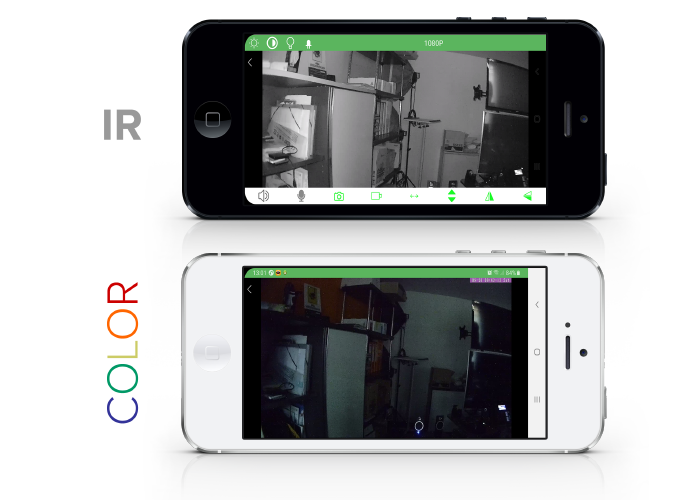

2MP normal lighting 2MP low lighting

Pinhole lens and motor head



All our mini cameras with SD card come with a 90° pinhole lens. The lens shoots perfectly through a small hole of only 1mm . The camera shoots effectively even in dim light and even in total darkness, thanks to the IR illuminator. In motorized lens models you can rotate the lens remotely through the app to monitor a large environment

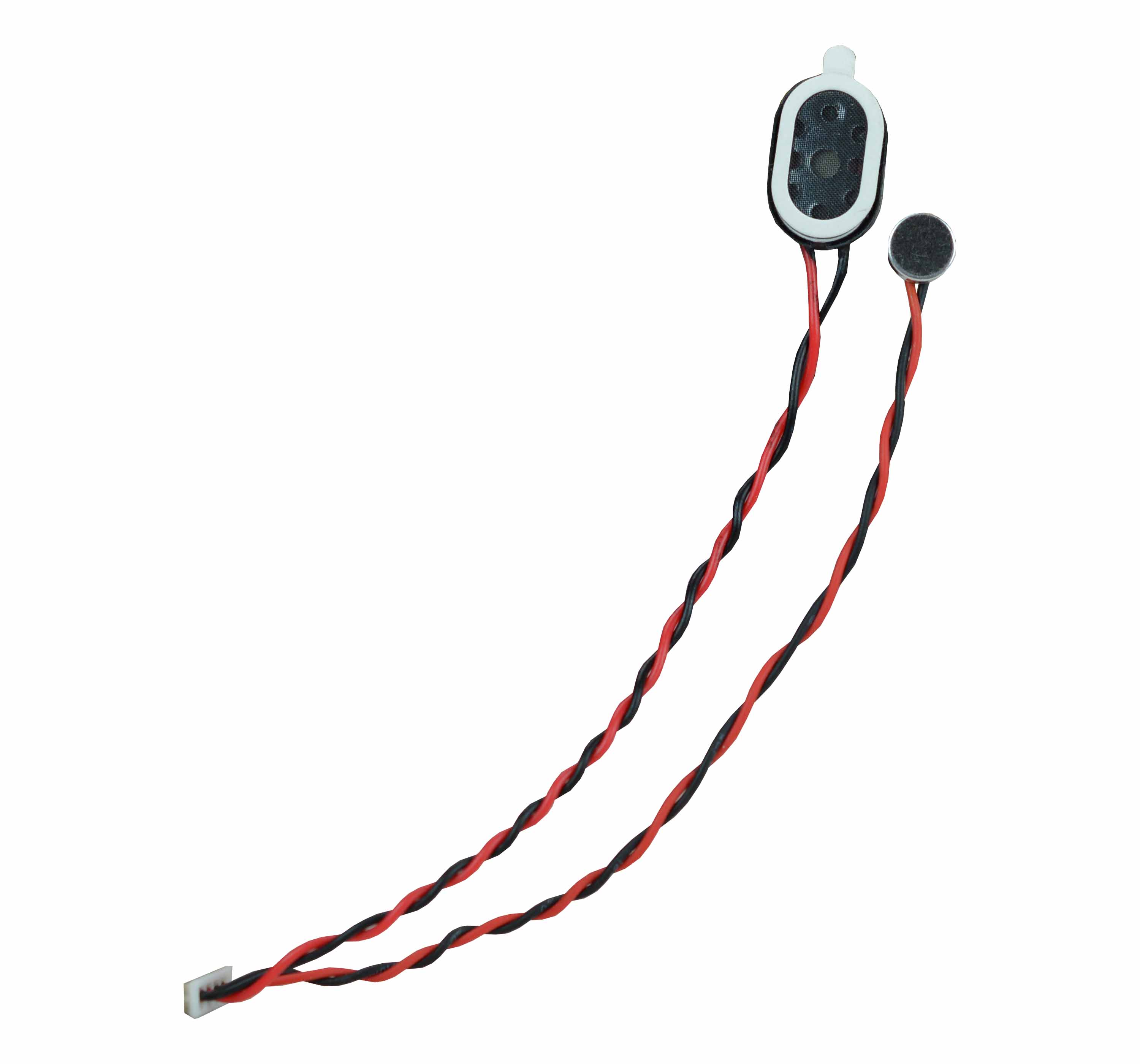

Microphone and speaker for audio

These power adapter mini-cameras also include audio. All cameras come with a built-in microphone able to cover a medium-sized room. The audio is recorded together with the video and is also available during live view, when you control the camera with your smartphone. Besides these cameras include a loudspeaker that you can use to talkto people in the room via app.

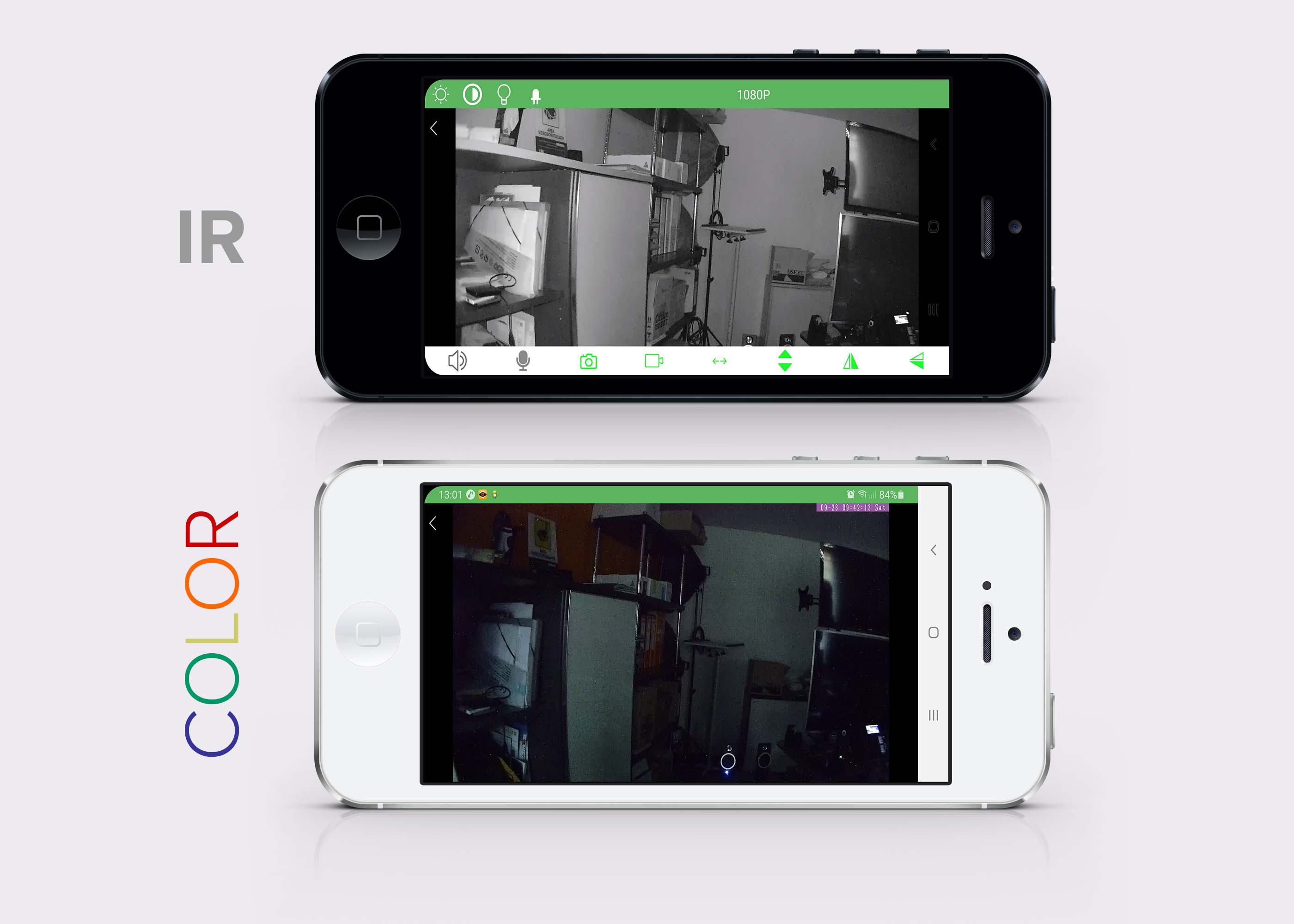

Invisible IR illuminator up to 10 m.

These table spy cameras are equipped with invisible infrared LEDs for night vision in the dark. Thanks to the IR LEDs the camera is able to shoot in the dark in a medium-sized room , up to a distance of 10 meters. It's a feature you rarely find on investigative cameras of this kind. You can activate the black and white IR vision at will pressing a button in the app.

VIDEO RECORDING


Storage on SD card memory



All spy cameras in this range record movies on a removable Micro SD memory. Micro SD card is not included . To use these cameras you need to a micro SD card of the maximum capacity supported by the camera. These cameras support Class 10 SD cards or higher. Do not buy slower SD cards, in class 4 or 6, because they will not work properly.

DK-SP1-HDS DK-AL4-HDS
SD max. 128GB 128GB
Max. video storage 300 ore 300 ore

Video playback and download

To play the movies recorded on the SD card of the camera you must extract the SD card from the device and insert it into a Personal Computer. If your PC does not have an SD card reader, you can use the USB reader which is included in the package. You can play the MP4 movies with common free players, like VLC or Windows Media Player and download the ones you want to save on your PC. With the mobile app you can also play and download videos by mobile phone, without having to remove the card from the camera.


Motion detection

These cameras support 3 recording modes: continuous, timee and motion detection. In CONTINUOUS mode, several video files are saved in the memory, one after the other. Once the memory space is exhausted, the camera continues to record, automatically overwriting the oldest files. In TIMER mode the device start recording automatically at a certain time fo the day. These cameras also support the MOTION DETECTION function which allows you to record only if there is movement in front of the lens. It is a very convenient function to avoid wasting precious memory space by recording irrelevant scenes.


POWER SUPPLY

Built-in battery

These speaker cameras are equipped with an internal rechargeable lithium battery that allows recording without mains power. The battery is recharged by connecting the included USB charger.

DK-SP1-HDS DK-AL4-HDS
Battery included 5000mAh 4500mAh
Battery life 10 ore 13 ore

220V power supply



These cameras can run on the internal battery, but can also be mains powered, with the included USB power adapter. In this way the camera can remain in operation 24 hours a day , like a real CCTV video surveillance system. These bluetooth speaker cameras are an excellent solution to provide your venue with a 24/7 hidden surveillance, safe and easy to set up. Both the bluetooth spaker and the wireless cell phone charger really work with any smartphone.

REMOTE CONTROL


WiFi with APP for smartphones

These hidden cameras are equipped with a Wi-Fi transmitter for Smartphone control. If you have not a WiFi network, you can connect your smartphone directly to the Wi-Fi Hot-Spot generated by the camera. Alternatively, you can connect the camera to your home Wi-Fi network and control your spy camera over the Internet with our free P2P cloud server . With our free APP for Android and iOS, you have full control of the cameras with mobile phones or tablets. You can WATCH AND HEAR in real time. You can RECORD and take pictures. You can even PLAY AND DOWNLOAD the video footage in the camera's memory. If you enable Motion Detection you can RECEIVE real time push notification on your mobile phone all the time that an intrusion occurs.

Free iOS and Android app for spycam Spycam live view Listen-in camera feature Loudspeaker SD card recording Video download P2P cloud  server for easy web control Alarm push notification IoVedo.EZ IoVedo.EZ

True ONVIF cameras

Unlike all the spycams you find on the internet, our investigation cameras are real onvif IP cameras. You can add these cameras to our NVR, along with our standard IP cameras . It is a very important feature in professional use because it allows you to connect these cameras to any onvif video recorder. On the contrary, other cheap spy cameras that you can buy online only work with their specific app and are not suitable for professional use. DSE is one of the very few companies in Italy to be a member of the international ONVIF association that brings together the main manufacturers in the sector and establishes the communication standard between IP security equipment.


P2P Software

If you want to control your hidden cameras via computer, you can download HDSmart software from our website. Just enter your camera ID and login password to connect via the Internet. You can easily control your home from the office , thanks to the P2P cloud server. HDSmart is compatible with all our DK --- HDS series investigative cameras and displays up to 16 cameras simultaneously. It also allows you to record videos and snapshots of what you are watching live.

DOWNLOAD HDSmart

TIPS

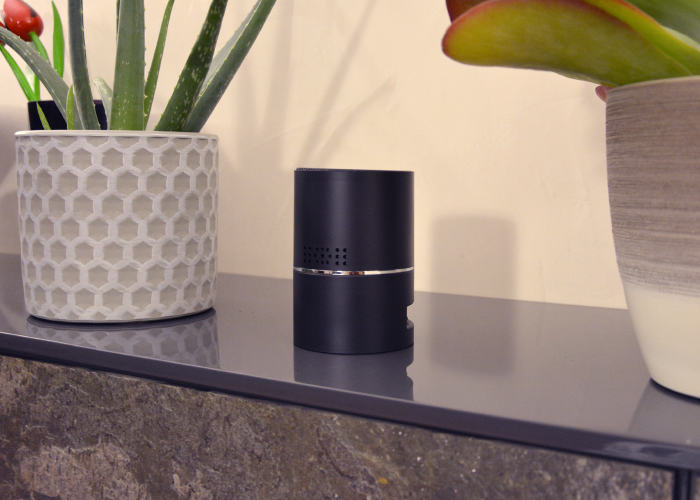

Make a perfect hidden camera



To make an effective covert shot, you need to choose a favorable position for your camera. By their nature, these speakers should be placed on a table, shelf or bedside table and pointed to cover the room. They are absolutely unsuspected objects even if observed closely.


Connect the camera to your WiFi network



If you buy one of these cameras with WiFi, you will have great advantages in connecting it to your home WiFi network. It's an operation that runs easily with our app and lets you control your camera through the Internet, wherever you are. Thanks to our free P2P cloud server , you do not need to configure anything in your router, you just need to know the ID of your power adapter that you will find in the package. On first use, you can set a secret access password to protect your privacy.


TECHNICAL DATA


CODE DK-SP1-HDS DK-AL4-HDS
Description Bluetooth speaker camera with SD and WiFi Bluetooth speaker + Wireless charger camera with SD and WiFi
Type Working speaker Working speaker+charger
CAMERA
Maximum resolution 2MP FullHD 1080P 2MP FullHD 1080P
Optical sensor 1/2.7" CMOS OV2710 1/2.7" CMOS OV2710
Chipset Hi3518E Hi3518E
Video resolution 1920x1080 @ 25 f/s 1920x1080 @ 25 f/s
Video compression H264 Dual H264 Dual
Infrared illuminator 1 940nm invisible IR LED 10 m. range 1 940nm invisible IR LED 10 m. range
ICR
Lens Flat pinhole 2.8 mm (90°) Flat pinhole 2.8 mm (90°)
Focus Fixed Fixed
Rotating motor lens 330°
Shutter 1/25...1/12000 1/25...1/12000
S/N Ratio Over 50dB Over 50dB
Video files format MP4 duration 1..60 minutes MP4 duration 1..60 minutes
Video storage About 300 hours on 128GB @ 1080P About 300 hours on 128GB @ 1080P
SUPPLIED
Network port
Wi-Fi 802.11 b/g/n 2.4GHz (AP or Client mode) 802.11 b/g/n 2.4GHz (AP or Client mode)
USB port MicroUSB charger MicroUSB charger
Audio microphone
Audio speaker
SD card slot Max. 128GB Class 10 or superior Max. 128GB Class 10 or superior
TV CVBS output
POWER SUPPLY
Standard battery 5000 mAh 10 hours recording 4500 mAh 13 hours recording
Mains power supply
FUNCTIONS
Recording mode Continuous, Motion, Scheduler Continuous, Motion, Scheduler
Automatic overwrite Yes (excludable) Yes (excludable)
Camera control Smartphone/Tablet via WiFi Smartphone/Tablet via WiFi
Protocols TCP/IP HTTP DHCP DNS RTSP NTP TCP/IP HTTP DHCP DNS RTSP NTP
Onvif Supported Supported
P2P
Browser
Smartphone Free APP for iOS Android Free APP for iOS Android
Multi streaming
Saving on the web cloud
Mirror Horizontal and vertical Horizontal and vertical
Corridor
Overlays Date and Time (not excludable) Date and Time (not excludable)
BLC
AWB
DNR
WDR
Anti fog
HSBLC
Starlight
Motion detection
Privacy mask
Anti tampering
Alarm actions Start recording, Push notifications on mobile Start recording, Push notifications on mobile
Sending Time-Lapse photos
GENERALITIES
Casing Working wall socket power adapter Working wall socket power adapter
Degree of protection IP40 IP40
Operating temperature -5°C +40°C RH95% Max -5°C +40°C RH95% Max
Supply 5VDC (220V AC adaptor included) 5VDC (220V AC adaptor included)
Power consumption Max. 3W Max. 3W
Overall dimension Diam.88x125 mm Diam.130x60 mm
Weight 370 gr. 340 gr.

QUESTIONS & ANSWERS


What is included?

USB ADAPTER
USB CABLE
SD READER
APP
PC SOFTWARE
USER MANUAL

What is not included?

Cameras record on MicroSD card. The micro SD card is not included. You can buy in our price list a perfectly compatible micro SD card of the capacity you prefer. Check the maximum memory size supported by the camera in the technical data table above.
