FOR MONITORING OF SLEEP APNEA AND THE VIDEO SURVEILLANCE OF CHILDREN, PATIENTS AND THE ELDERLY
WITH AN INFRARED ILLUMINATOR TO RECORD NIGHT-TIME BEHAVIOR AND UNDERSTAND THE CAUSES OF SLEEP DISORDERS
CHECK VIDEO RECORDINGS, DETECT MOTIONS AND SOUNDS, RECEIVE NOTIFICATIONS. SUPPORTING ALEXA AND GOOGLE HOME
These cameras are used to monitor a bed and provide video footage of people’s behavior during sleep. They are specially designed cameras to ensure the optimal overhead recording of a single or double bed, so that the person is perfectly captured in all lighting conditions, both day and night. Easy to connect to your home Wi-Fi, these sleep monitoring cameras connect within seconds and are immediately ready to use. They are easily controlled with the free app, which allows you to review recordings and notifies you of movements and sounds. Designed for your home Wi-Fi, these sleep cameras use the Tuya Smartlife home automation app, the most widely used in the world, and integrate with Amazon Alexa and Google Home.

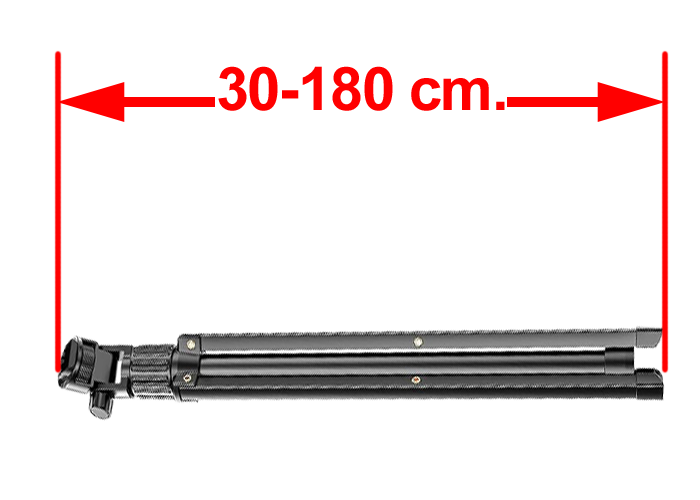

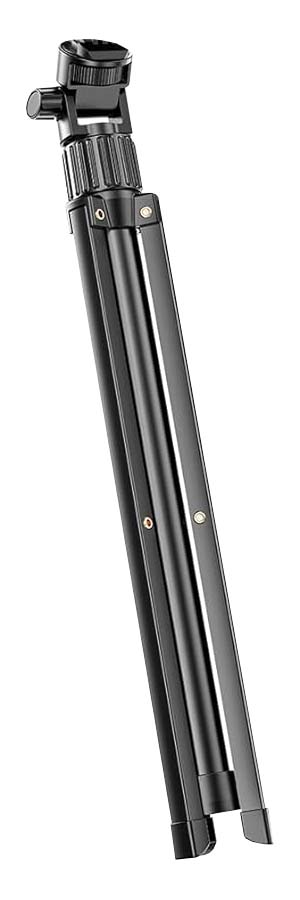

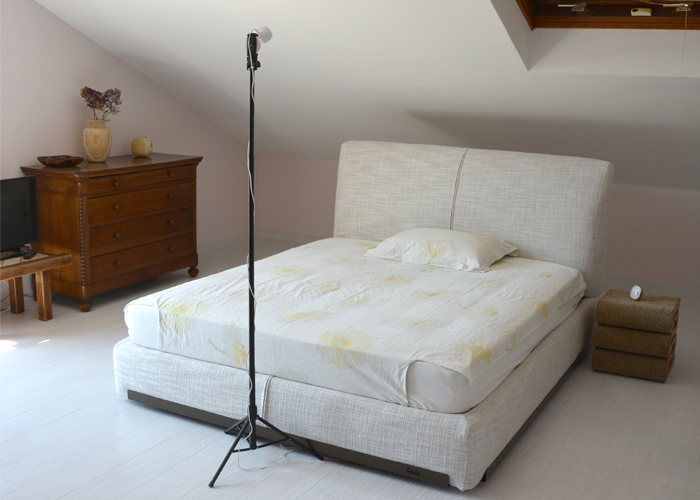

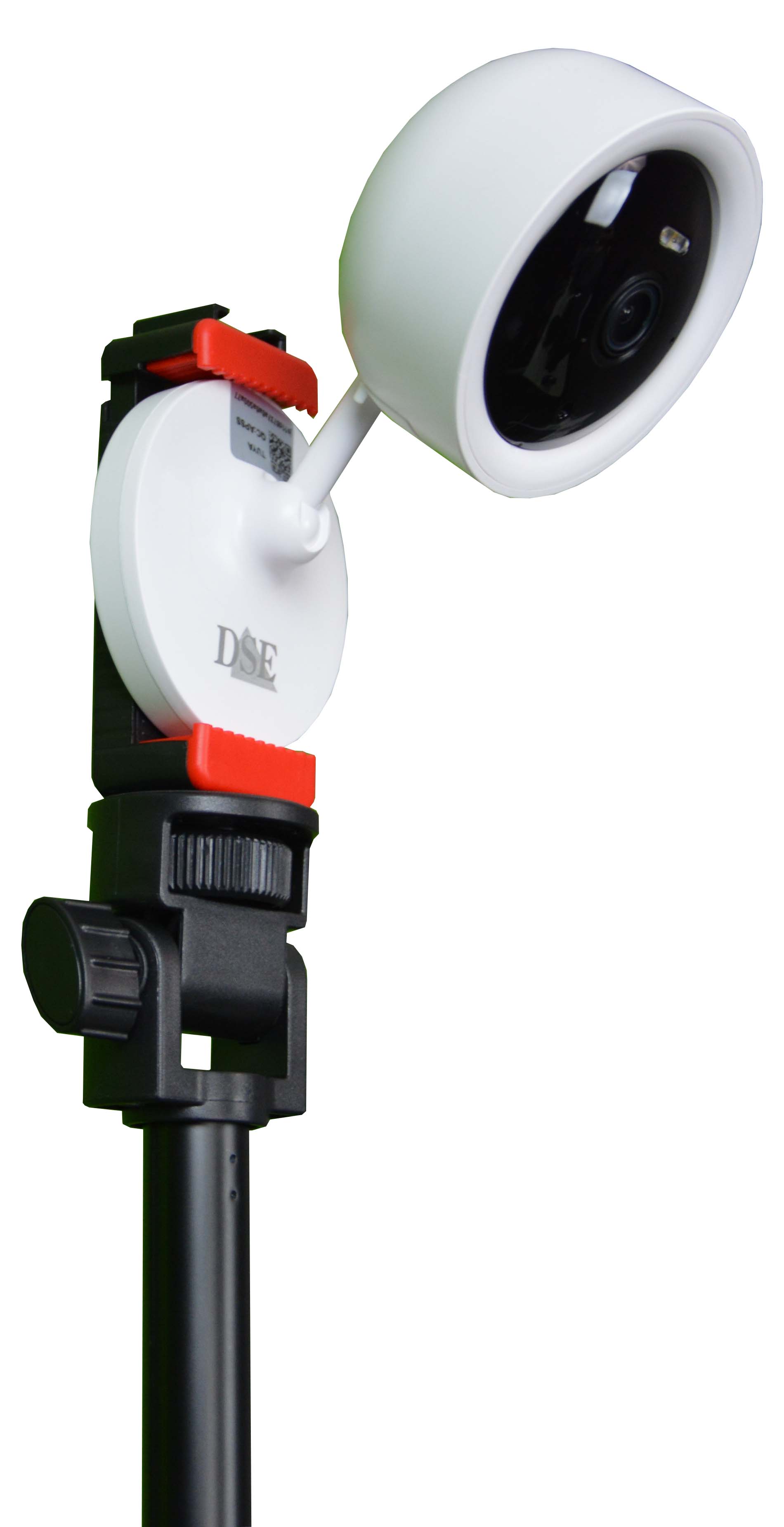

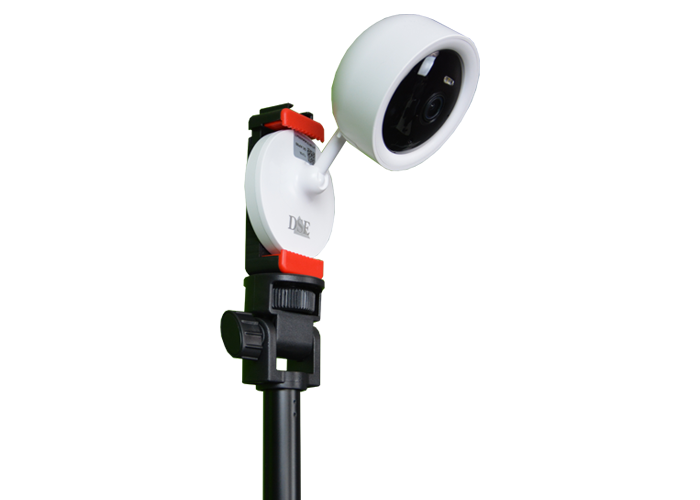

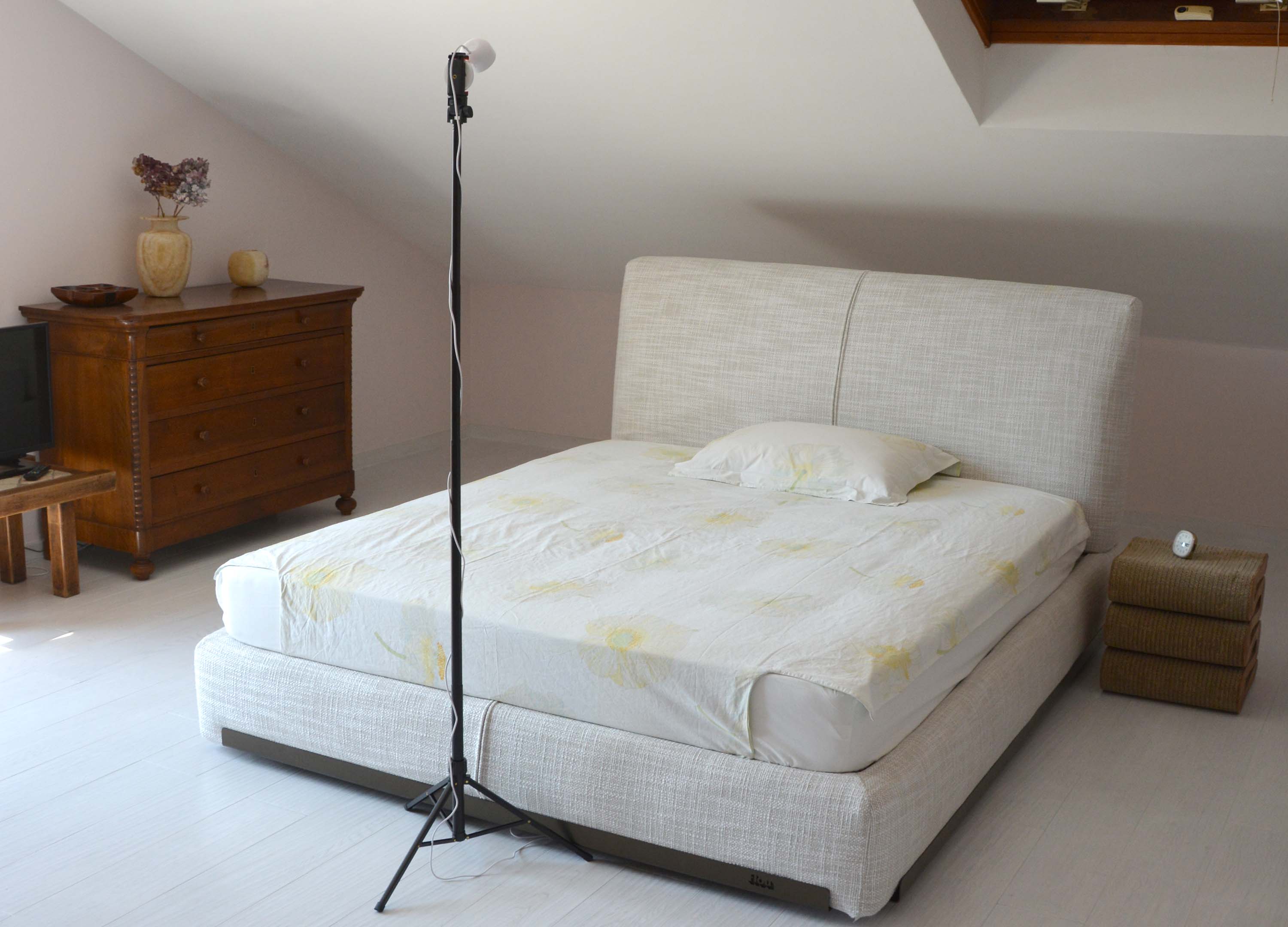

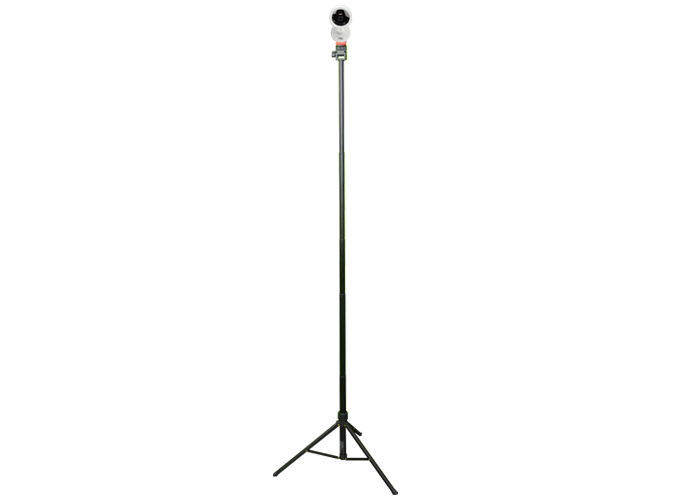

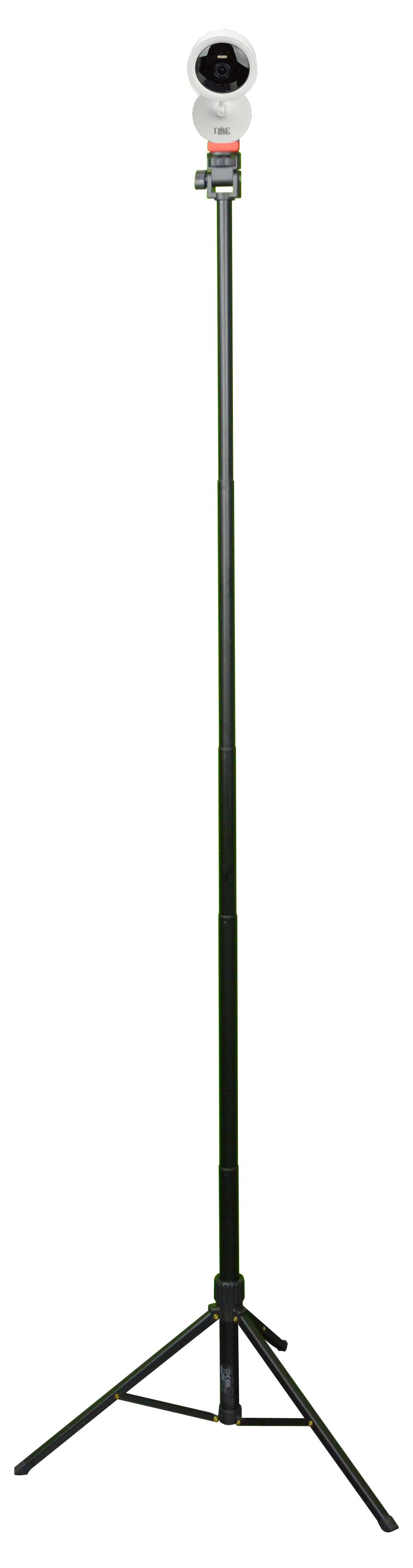

These cameras for sleep apnea monitoring and sleep tracking are equipped with an adjustable telescopic tripod ranging from 30 to 180 cm. They connect to a power outlet with the supplied cable and are placed at the foot of the bed to properly capture the patient from above. The camera is mounted on a swivel support that allows it to be tilted in all directions as needed. Despite the height, the camera with its aluminum tripod is extremely lightweight, easy to move to a corner of the room or fold away into a drawer when not in use.
Sleep apnea is a very common condition that can cause serious health issues — and many people don’t even know they have it. While a pulmonologist can diagnose sleep apnea with devices that track your sleep (polysomnography), these innovative sleep apnea cameras let you go one step further: you can actually see what happens while you sleep. These cameras add valuable video insights to traditional diagnostic tools. You can check for breathing or snoring irregularities as well as discover the sleeping positions you take and which ones cause you the most trouble with your breathing. Our sleep monitoring cameras also feature motion and sound detection, so you can quickly find the crucial events of your night.
There are several treatments available for sleep apnea. Doctors usually recommend starting with less invasive options, such as posture adjustments, mandibular bite devices, nasal sprays, or anatomical pillows. At this stage, a sleep apnea camera is extremely useful because it allows you to review your sleep and check how effective the therapy is on your nighttime behavior. Monitoring your sleep with apnea cameras can help you find a solution to the problem without having to use ventilation masks (CPAP), which are often uncomfortable and poorly tolerated.

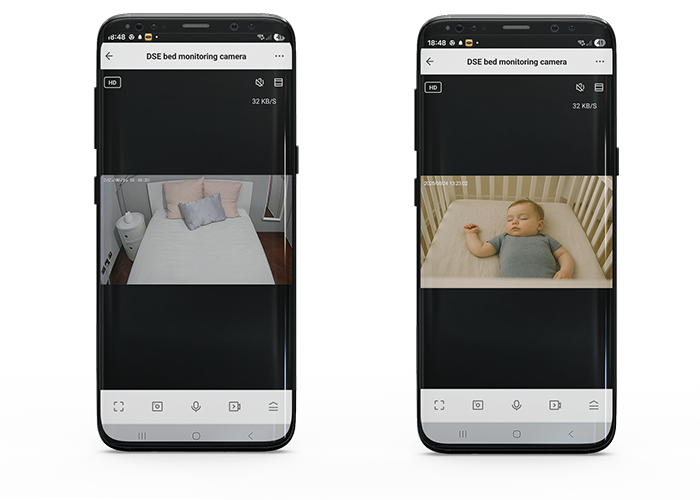

These tripod cameras are also perfect for monitoring vulnerable people such as patients, seniors, and children. They let you check the situation at any time, even over the Internet when you’re away from home. Equipped with two-way audio, you can listen and talk in real time through the app. You can also receive instant notifications on your smartphone using the motion and sound detection features.

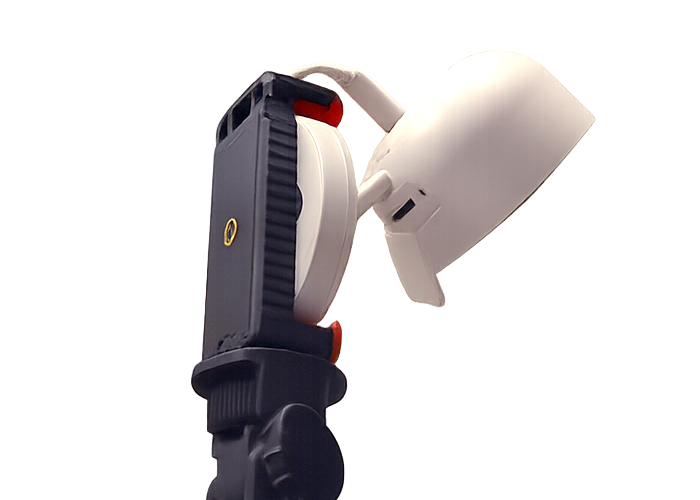

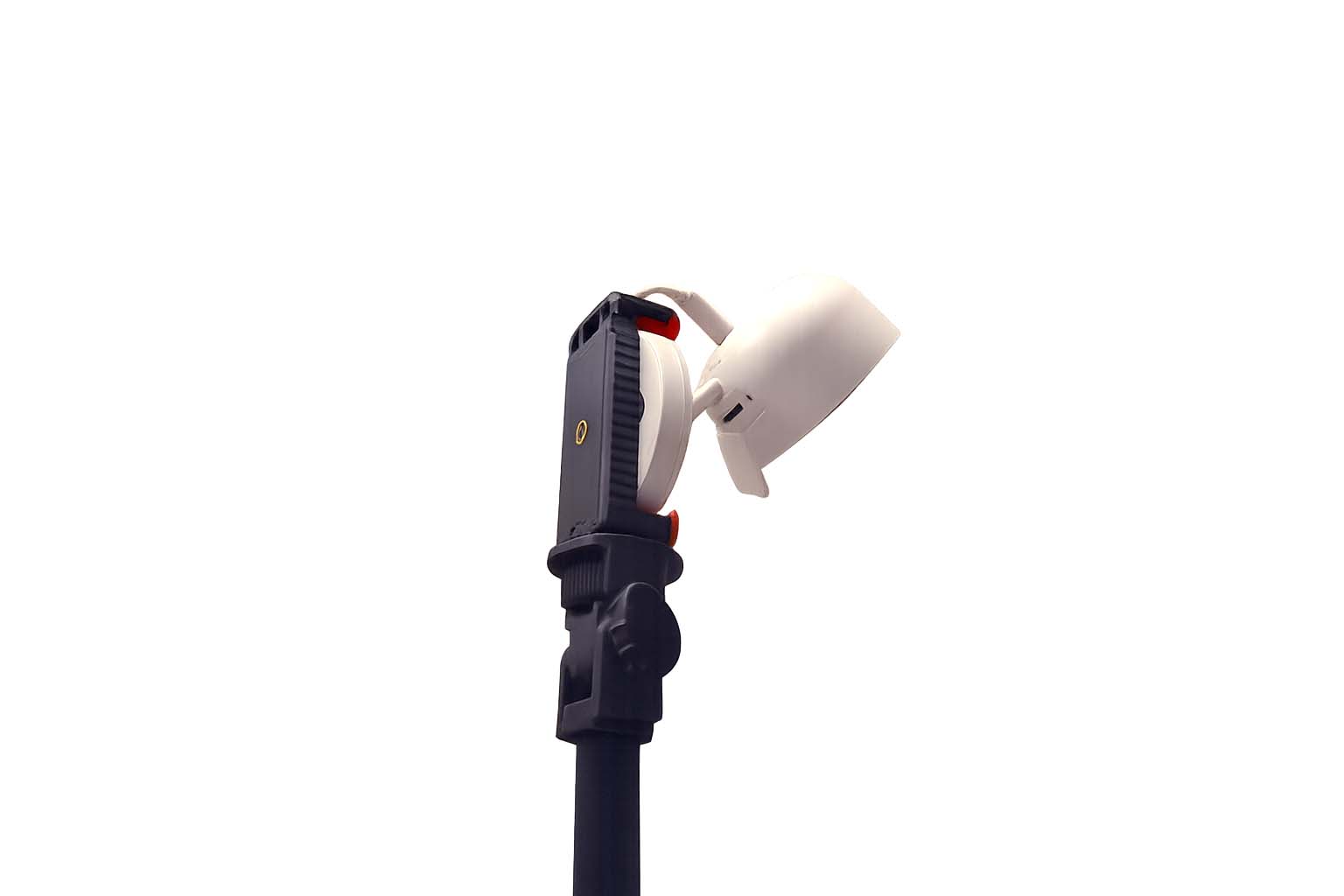

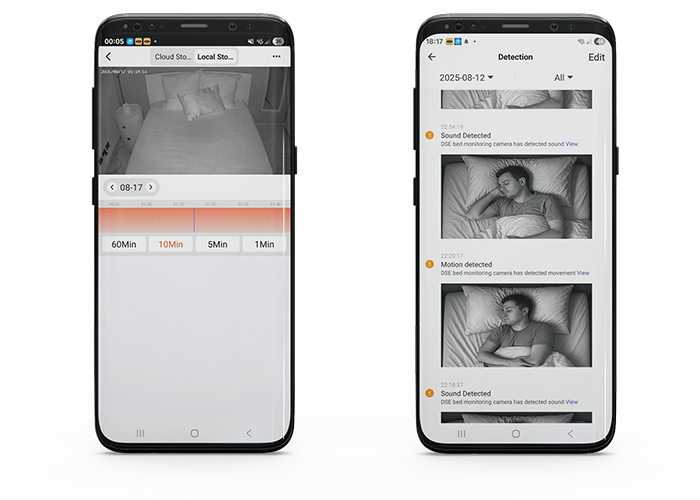

These sleep monitoring cameras are designed to work on their own, without any external system or video recorder. You can record videos simply by inserting a micro SD card into the internal slot, safely placed behind a protective cover. The cameras support micro SD cards up to 128GB, giving you storage for several nights of recording. With the app, you can easily review the recorded videos and quickly scroll through the 24-hour timeline.

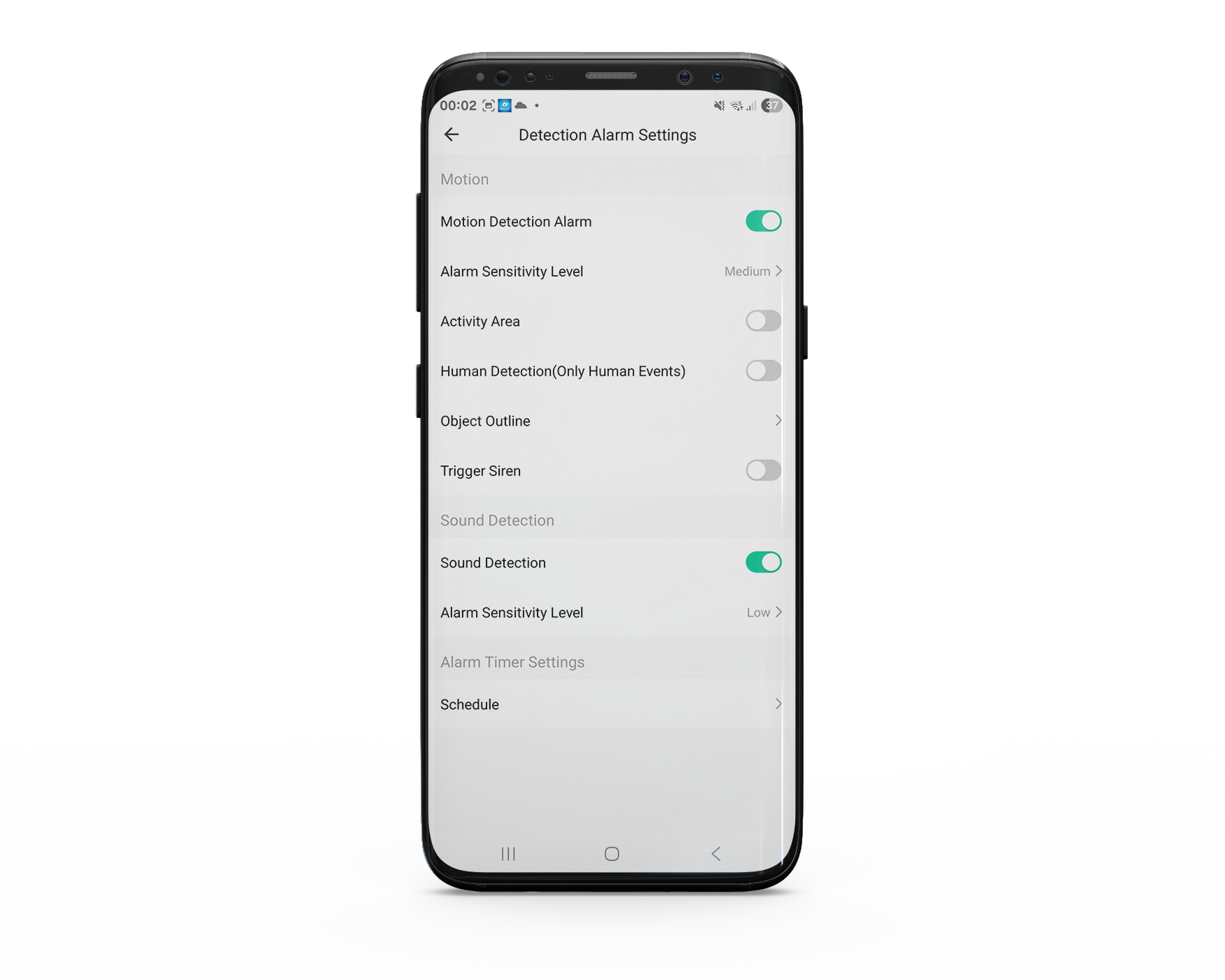

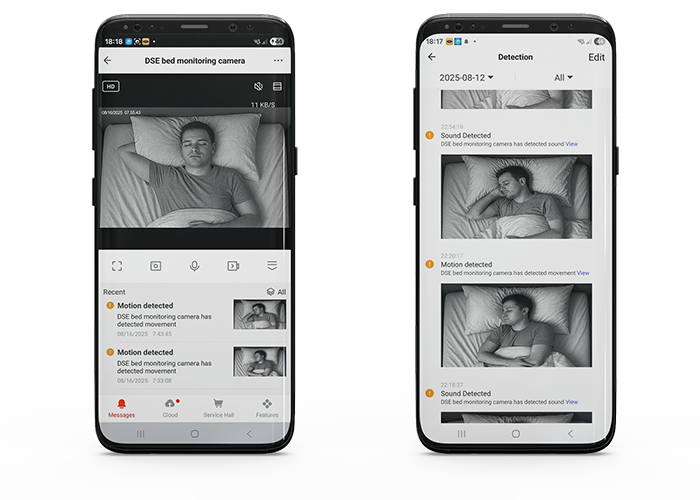

These bedside cameras are equipped with detection algorithms that alert you to movements and sounds. When monitoring sleep apnea, these detections are useful to easily identify the most significant sleep episodes. When monitoring seniors or children, the detections are important because you can receive instant notifications on your phone whenever unusual situations occur.

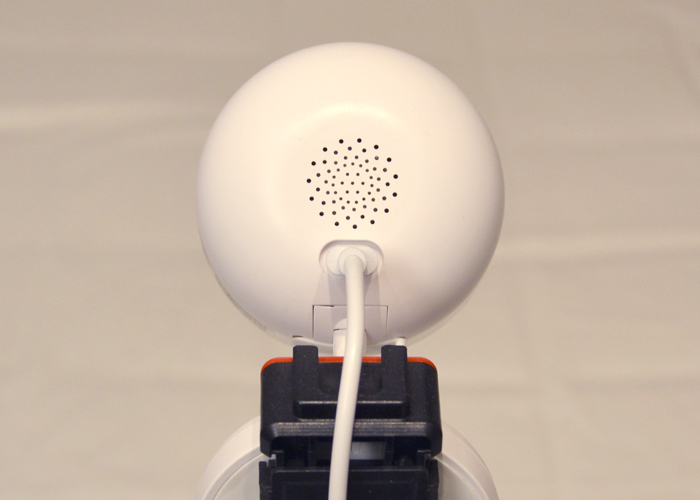

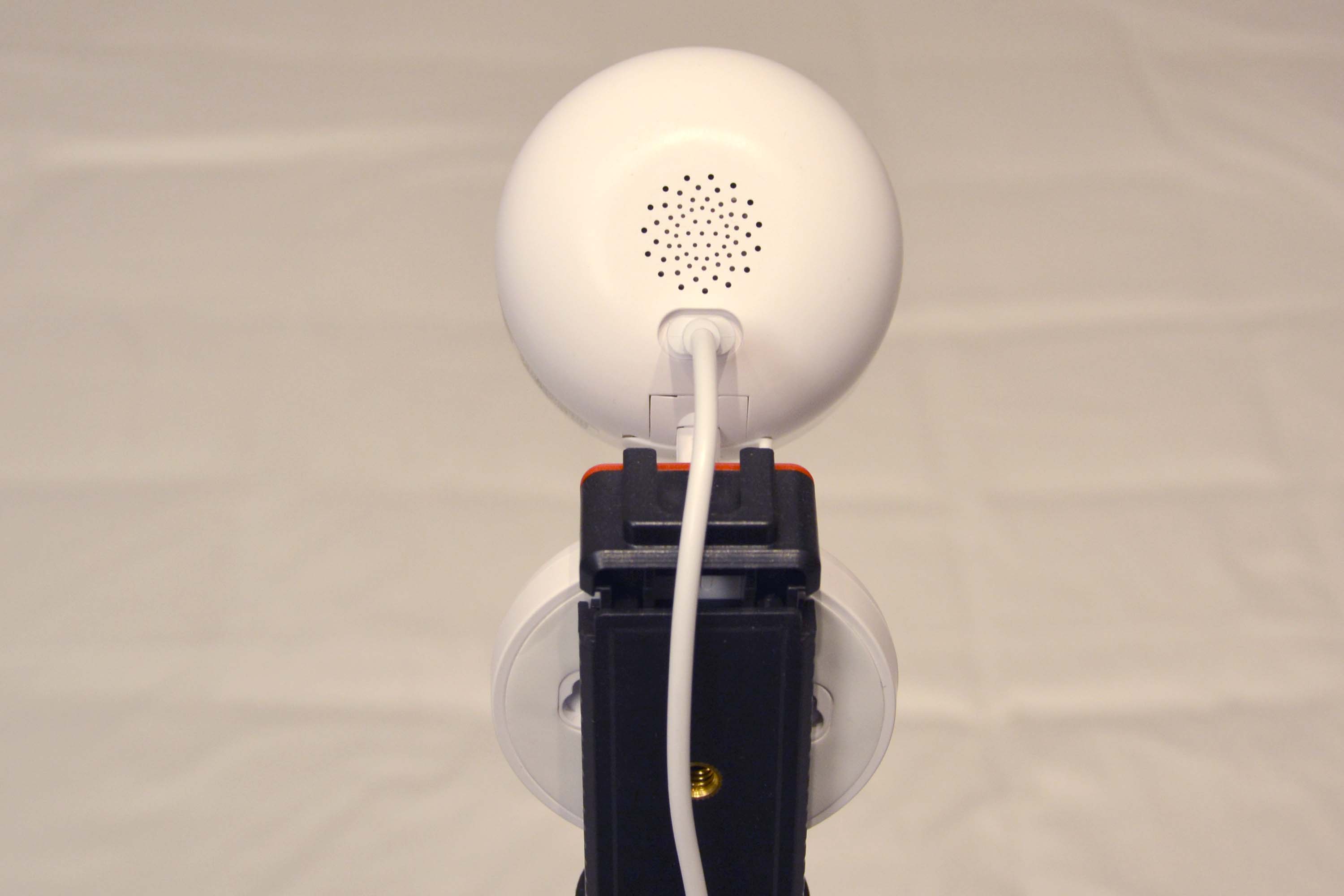

Our bedside cameras come with a built-in microphone and speaker for two-way communication. In the SmartLife app, you’ll find buttons to listen and to talk live with anyone in front of the camera. Two-way audio is especially useful for home monitoring of seniors, patients, and children, as it allows you to listen and talk at any time — even over the Internet when you’re away.

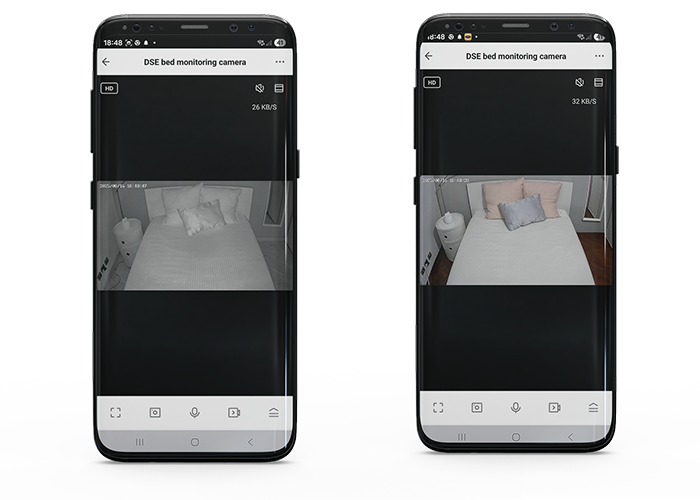

These cameras can record even in complete darkness, ensuring clear footage of what happens during the night. They are equipped with LED illuminators that switch on automatically and allow night vision up to 15 METERS. These cameras feature IR LEDs, which generate invisible light, as well as white LEDs with visible light for full-color night recording. You can choose whether to use white light or IR light, depending on your application.
These bedside montitoring cameras are part of our Domoticam Series for home automation, which includes cameras, remote controls, and video intercoms — all WiFi enabled. The products in this range are based on the TUYA smart platform, the most widely used in the world, and its Smart-Life IoT app. With our product range, you can fully automate your home simply by purchasing the devices and connecting them to your WiFi in just seconds. Monitor your home with security cameras, 220V or battery powered; control lights, heating, sprinklers with our wifi switches and monitor your doors with our 2 wires intercoms or doorbells. Our Smart Home devices are wireless, easy to install, and surprisingly affordable.
All our DM Series Smart Home devices like cameras, remote controls and intercoms, can be controlled with the excellent IOT Smart Life home automation app, compatible with all devices in the world based on the Tuya platform. With the Smart Life app you monitor your entire home via the Internet. You can receive cameras live view, playback and notifications. You can turn on lighting, aircon or irrigation. You can even answer the intercom, like taking a phone call.
IOT means Internet Of Things. Today it is no longer just a beautiful name, but an amazing reality that we all can afford. With SmartLife, the most popular IOT app in the world, you can control all our DM Series home automation devices and automate your whole house. SmartLife allows you to connect the cameras to your wifi network in a few taps and connect via the Internet with no difficult configuration. With your mobile phone, you can WATCH the cameras live, CONTROL Pan Titl Zoom, HEAR, TALK and PLAYBACK. You can also RECEIVE alert notifications if an intrusion occurs.
Our Smart Home cameras are compatible with Amazon Alexa and Google Home / Google Assistant voice control platforms. Both platforms offer you different devices with monitors such as Amazon Echo Show or Google Nest Hub where you can watch your cameras with a simple voice command. Just download the SmartLife skill and in a few minutes you will be ready to call the name of your camera and watch it in the display. With our Smart Home cameras and Amazon Alexa or Google Assistant, you can install a WiFi monitor in every room of your home with just a few taps on your smartphone.
To install a Smart Home camera, you only need two things: WiFi coverage and a power supply. The cameras come complete with a plug-in power adapter, which you simply connect to the Type-C socket on the camera.
These Smart Home cameras are designed to be installed without the need for a computer and without any knowledge of networks or IP addresses. All you need is your smartphone to connect the cameras to your WiFi in just a few minutes. Simply download the free Smart Life app on your phone, and in a few easy steps your camera will be ready to work over the Internet — because thanks to the P2P cloud server, you don’t need to configure anything on your router. Plus, it works with any connection, even 4G or satellite.
Today there are smartwatches, such as the Samsung Galaxy Watch or Apple Watch, that allow you to monitor sleep very effectively. They can track the different sleep stages and measure many other useful parameters, such as blood oxygen levels during sleep. With a smartwatch and our sleep apnea cameras, you can check your behaviors, snoring, and breathing during the various sleep phases and gather valuable information to discuss with your doctor.
 |
|
|---|---|
| CODE | DM-TC1WT-5 |
| Description | WiFi camera for bed monitoring |
| Type | Camera with tripod |
| CAMERA | |
| Maximum resolution | 5MP |
| Optical sensor | 1/3" CMOS 4653 |
| Chipset | FH8852V310 |
| Video resolution | 2616x1958 @ 25 f/s |
| Video compression | H265 |
| POE power supply | |
| Local power supply | 5VDC Type-C USB (adapter included) |
| Infrared illuminator | 15 m. (2 Dual LED IR/White + 6 IR LED) |
| ICR | |
| Full color night view when triggered | |
| Lens | 3.6 mm |
| Focus | Fixed |
| HARDWARE | |
| Network Port | |
| WiFi | IEEE802.11b/g/n 2.4GHz |
| Audio Input | Built-in microphone |
| Audio Output | Built-in speaker |
| I/O Alarm | |
| SD card | Max. 128GB |
| CVBS Output | |
| MOVEMENT | |
| Rotation speed | - |
| Rotation range | - |
| Automatic functions | - |
| Home function | |
| Timer PTZ | |
| FUNCTIONS | |
| Protocols | Tuya |
| Onvif | Supported |
| Voice control | Amazon Alexa, Google Home Google Assistant |
| P2P | |
| Browser | Via web cloud - All browser supported |
| Smartphone | Smart Life or Tuya Free APP for iOS and Android |
| Multi streaming | 2 streams |
| Saving on the web cloud | Supported on Tuya cloud (buy via app) |
| Mirror | Vertical (flip) |
| Corridor | |
| Overlays | Date Time |
| Motion detection | |
| Human detection | |
| Sound detection | |
| Auto Tracking | |
| Privacy mask | |
| Alarm actions | Push notifications to app, turn on white LEDs |
| Invio foto Time-Lapse | |
| GENERAL | |
| Casing | Polycarbonate |
| Mounting | Adjustable tripod up tp 180 cm. |
| Degree of protection | IP40 for indoor use |
| Bracket included | for tripod |
| Operating temperature | -20°C +60°C RH95% Max |
| Power supply | 5VDC +/-10% |
| Power consumption | Max. 6W |
| Overall dimensions | 70 x 70 x 41 mm. (without tripod) |
| Weight | 94 gr. (without tripod) |
Micro SD card for recording is not included
