POE PTZ IP CAMERAS


MICRO SPEED DOME
4X ZOOM

ONVIF outdoor IP camera
RL-SD4 2MP STARLIGHT
RL-SD4-5 5MP

Waterproof outdoor casing PTZ motorized camera POE+ power supply Rotation speed 30°/sec SmartIR infrared illuminator 30 m. Zoom lens 4x Motorized zoom lens Autofocus lens Infrared Cut-Filter removable H264 and H265 video compression

MINI SPEED DOME
20X ZOOM

ONVIF outdoor IP camera
RL-SDM20 2MP STARLIGHT
RL-SDM20-5 5MP AUDIO + SD CARD

Waterproof outdoor casing PTZ motorized camera POE+ power supply Rotation speed 60°/sec SmartIR infrared illuminator 60 m. Zoom lens 20x Motorized zoom lens Autofocus lens Infrared Cut-Filter removable H264 and H265 video compression

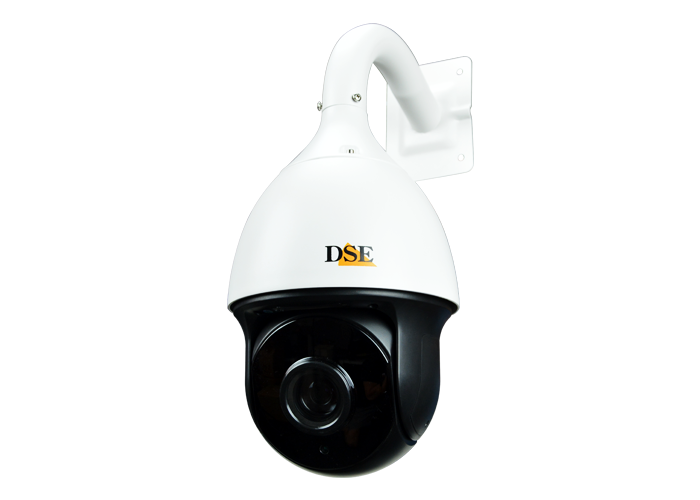

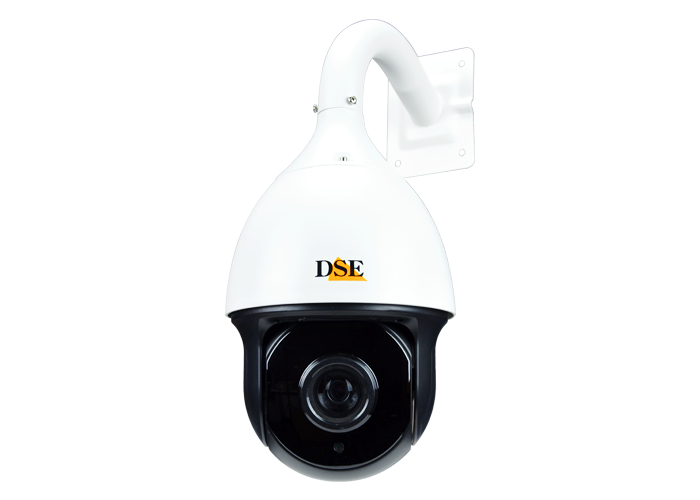

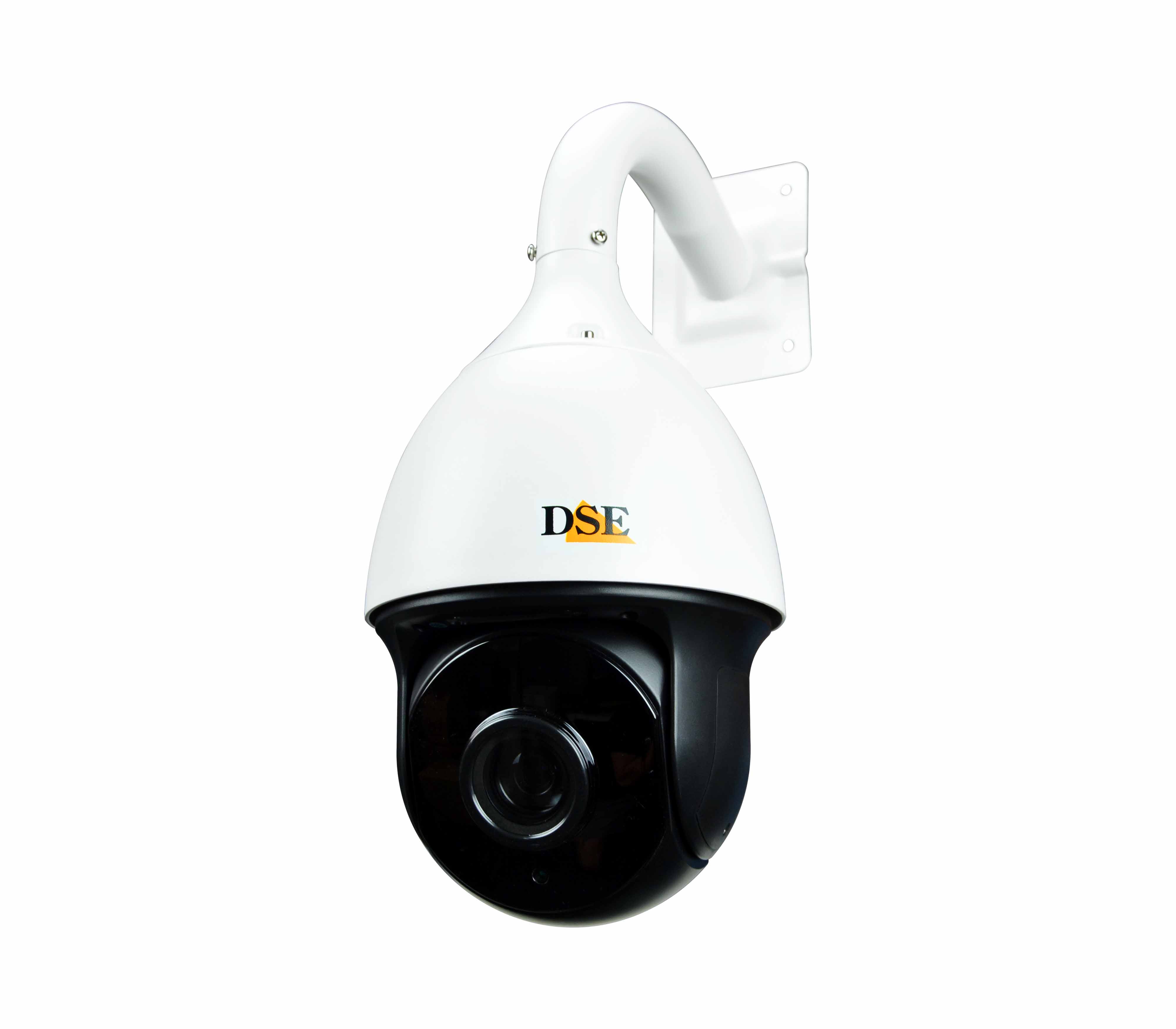

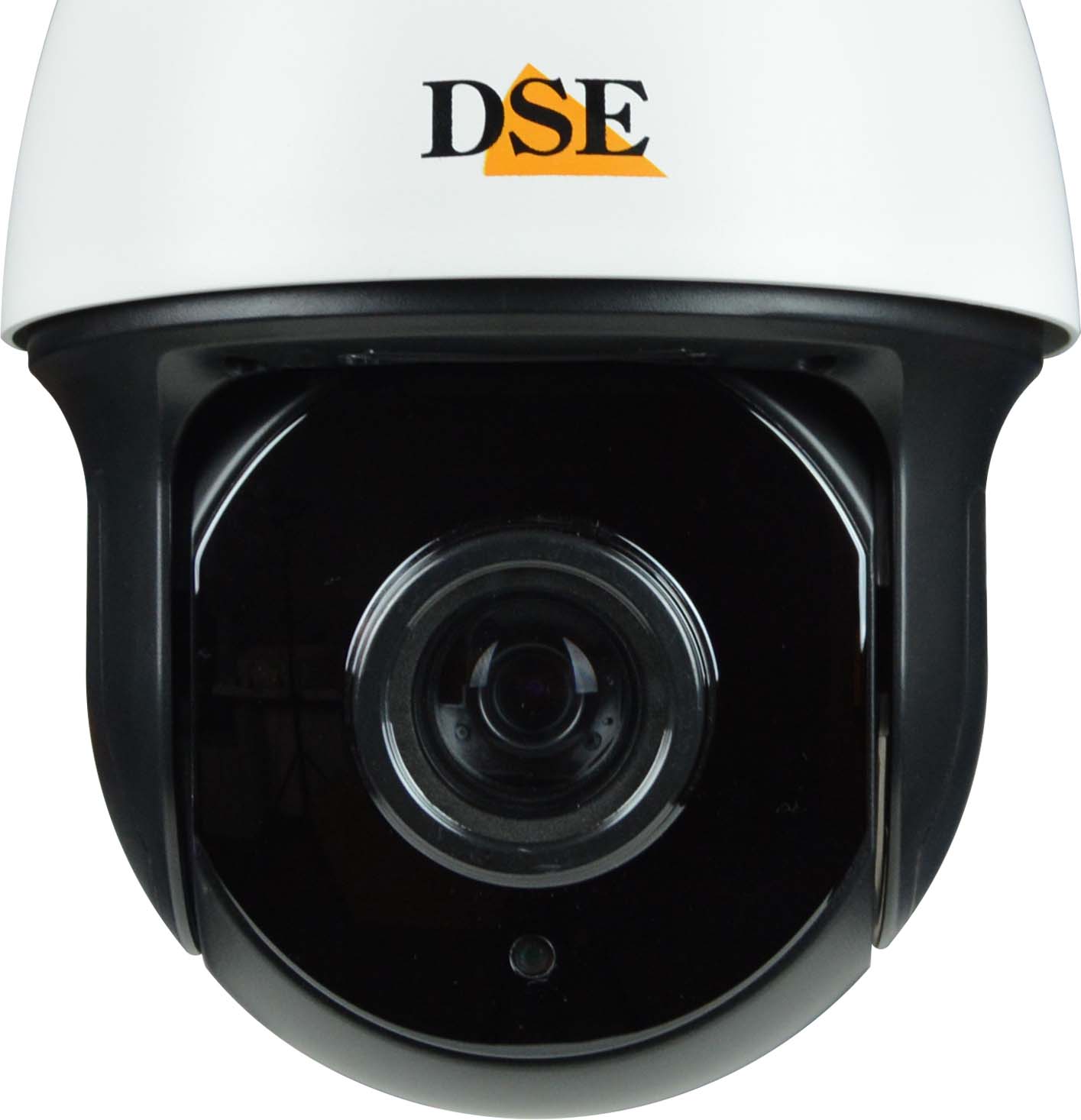

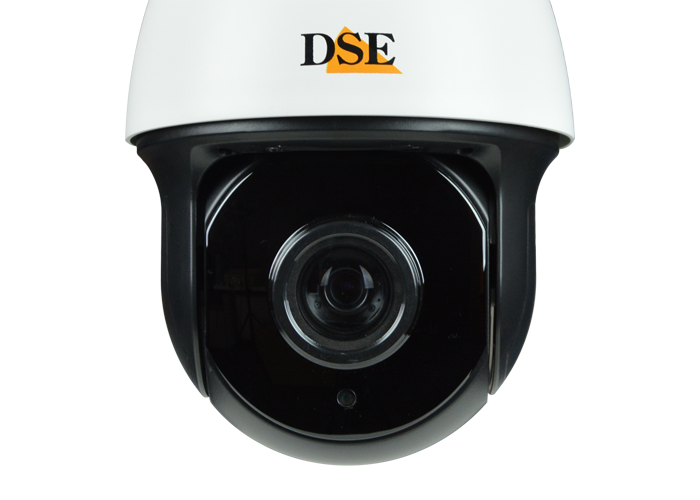

HIGH SPEED DOME
20X ZOOM

ONVIF outdoor IP camera
RL-SD20 2MP STARLIGHT
RL-SD20-5 5MP SD CARD

Waterproof outdoor casing PTZ motorized camera POE+ power supply Rotation speed 200°/sec SmartIR infrared illuminator 120 m. Zoom lens 20x Motorized zoom lens Autofocus lens Infrared Cut-Filter removable H264 and H265 video compression

HIGH SPEED DOME
36X ZOOM

ONVIF outdoor IP camera
RL-SD36-5 5MP STARLIGHT + SD CARD

Waterproof outdoor casing PTZ motorized camera POE+ power supply Rotation speed 200°/sec SmartIR infrared illuminator 120 m. Zoom lens 36x Motorized zoom lens Autofocus lens Infrared Cut-Filter removable H264 and H265 video compression

DIGITAL PTZ CCTV


Motorized IP cameras over POE LAN NETWORK

The cameras in this range are network digital cameras, also called IP cameras. With these cameras you can create a fully digital video surveillance system over a LAN. Each camera has a network port and is identified by an IP address, just like computers or other network devices. You can monitor your cameras with your PC or you can purchase a network video recorder (NVR) to efficiently manage many cameras. These cameras are motorized and you can control rotation and zoom via PC, NVR or APP. The big difference between this range and other PTZ cameras on the market is that these cameras support POE power supply.


Switch to digital CCTV, discover the benefits of IP CCTV for PTZ cameras

Compared to the traditional analog technology (nowadays AHD), IP technology offers many advantages and is therefore increasingly used in CCTV systems of any size. The main advantage of IP cameras lies in the network cabling, that can be branched off with switches, and allows you to connect many cameras with just one cable . In addition, PTZ IP cameras do not require additional control and power supply cables because, both data and POE power supply flows through the LAN cables. Unlike analog cameras, IP cameras produce a digital video stream that is ready to be stored. For this reason NVR video recorders are efficient and inexpensive even when they have to manage high resolution cameras over 2MP. See below an example of a small IP CCTV system.


POE+ PTZ cameras

These RL Series motorized IP cameras stand out in our range and on the market for a very important feature: Power Over Ethernet. All these cameras support POE + (IEEE802.3at) power supply and can therefore be installed with just one network cable. There is no need for a separate power supply. This is a feature you will find hardly in other motorized cameras, that require a separate power supply adapter. To power these cameras with the network cable you need a switch, or an injector, that supports the POE + (IEEE802.3at) standard, like all our POE switches. Our switches can provide up to 30W per port, while switches that only support ordinary POE (IEEE802.3af) are limited to 15W per port. The POE power supply is a great convenience because it allows you to connect the camera with a single network cable that conducts video, audio, power and controls. When buying the POE switch please be carefull that the maximum POE power of the switch exceed the power consumption required by the cameras.


THE VIDEO


2 and 5 Megapixel high video resolution

The motorized IP cameras of this RL series guarantee you the best video in relation to your budget. You can choose between 2MP and 5MP resolution. The 2MP resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of a high resolution digital TV and meets the needs of most security systems. If you can afford a slightly higher budget, have a look at our 5MP cameras which provide more details while zooming-in. When designing your system you can mix cameras with different resolutions based on the importance of the monitored area. Here, on the side, you can download short demo clips in the most common resolutions.


DSE is an ONVIF member

You can buy your IP products from us with confidence. DSE is one of the few companies in Italy that is a member of the ONVIF international association, which includes all the main IP security manufacturers and set the standard of communication protocols in this field. Our IP products, perfectly suits the latest ONVIF standard, so you can use our cameras with all NVRs, of any brand. The ONVIF protocol also includes all PTZ commands, so you can control our PTZ IP cameras with any Onvif-compliant control device.


H265 and H264 video compression

The cameras in this range support H264 and H265 video compression, including the latest upgrades, in order to combine high quality video stream and low bandwidth consumption. These cameras can manage 3 VIDEO STREAMING with different compression and resolution, that you can choose from the client device. The frame rate is also adjustable up to 25 frames / second (real-time). Choose the well-established H264 format for maximum compatibility with old NVRs, or use the latest H265 to increase the video storage capacity. Here on the side you can download two similar clips in H264 and H265 format: please note the different file size.


POE+ or 12VDC power supply

All cameras in this motorized range can be powered by a POE+ switch over the network cable. If you do not want to use POE power supply, these cameras also support 12VDC power supply. A power adapter is included in the package. Here on the side you see the camera connection cable. If you use POE power supply, the DC power connector is not used. The local 12VDC power supply is useful when you cannot use the POE power, for example when the camera is connected to a wifi bridge.


SMART IR infrared illuminator with ICR

To be able to record even in total absence of light these PTZ cameras are equipped with infrared LEDs that provide invisible long range night illumination up to 30, 60 or 120 meters . Thanks to the Smart IR technology, the LED power adapts to the distance of the subject avoiding overexposure in close-ups. Depending on the models, the cameras in this range are fitted with 3, 8 or 10 42μ High Performance Superflux LEDs that provide a high illuminating power while maintaining a relatively low power consumption. The LEDs turn on automatically below 10 lux. In night mode the camera records in Black White thanks to a mechanical removal mechanism of the IR filter (ICR). If you want, you can set the camera to work only in color mode, excluding the infrared night function.


STARLIGHT Full color in the dark

This range of cameras includes many STARLIGHT models, based on the SONY STARVIS™ back-illuminated CMOS sensor. Starlight cameras are designed to produce clear full color view at night taking advantage of every minimal source of natural light. Starlight cameras are highly recommended when monitoring large outdoor areas at night.


Mirror, WDR, BLC, DNR, AGC, Antifog

These IP speed dome and mini/micro speed dome cameras come with a full pack of advanced features. A user friendly On Screen Display, allows you to set the options so as to adapt the camera to your needs. You can adjust the image and rotate it, with the MIRROR functions, in order to suit the area to be monitored. The WIDE DYNAMIC RANGE (WDR) function is useful if you shoot bright areas together with darker areas. With the BLC you can enhance dark subject on a bright background. The ANTIFOG, AGC and DIGITAL NOISE REDUCTION functions allow you to improve shooting in difficult conditions with poor visibility.


Motion detection and privacy masks

All cameras in this range can generate alarms and perform actions such as sending emails or uploading files via FTP. With the MOTION DETECTION you can detect intrusions in the camera's field of view and send out notifications. You can enable or disable these features based on a week scheduler. The PRIVACY masks are used to obscure parts of the video in order to respect other people privacy. Please note that in order to use these functions, the PTZ cameras must be kept still most of the time.


4x to 36x motorized zoom

These IP speed dome cameras come with a motorized zoom lens that you can control remotely. You can find in this range 3 types of zoom with 4x, 20x and 36x optical magnification. The zoom lens is equipped with autofocus to automatically focus on subjects at any distance. Be very careful if you find on the web low cost speed dome cameras with powerful zoom lens. Low-profile dealers have the bad habits to shows false zoom values in the OSD, adding digital magnification to the real optical values.


Audio input and output

Some models in this range of PTZ IP cameras have an RCA audio input and output for two-way dialogue. You can connect a microphone and a speaker to these ports. When you connect to the camera remotely, with your computer or mobile phone, you can talk to the people in the area to provide instructions or warnings. It is a useful function in many applications where the real-time interaction with an operator is required.


PAN TILT ZOOM


IP67 protection and Black Glass

All RL cameras are waterproof, with IP67 rating. You can install these camera indoor or outdoor, under the rain. We do not use cheap plastic enclosures for our RL cameras, but only robust die-cast, fire painted, aluminum casing. That's why you can use these cameras anywhere, without worrying about extreme temperature or corrosion. All the cameras in this range come with Black Glass front covers which increase the efficiency of LEDs (about 8% more than normal glass) and reduce the attraction of insects at night.


Pan Tilt rotation up to 200 °/sec

The cameras in this range are all motorized and remote controllable. They can rotate horizontally at 360° (PAN) and vertically at 180° (TILT). During tilt moving, they are equipped with AUTOFLIP to provide straight video even over 90° of rotation, beyond the vertical axis. The all-metal rotor mechanism ensures high precision in positioning. The high speed dome models can rotate very fast from one point to another at 200°/sec. The mini and micro speed dome models rotate at a slower speed: 60 and 30° /sec.


256 preset, 3 cruise, scan, home function

All speed dome cameras in this range can perform automatic operation. You can set 256 PRESET to quickly call specific positions and 3 CRUISE to monitor a sequence of several presets. With the SCAN function you can monitor large areas by keeping the camera in constant rotation. You can also set a home automatic action, also called IDLE, that the camera performs automatically in the absence of operator commands.


Mounting accessories

Speed dome and mini speed dome cameras are supplied with a wall mount bracket. There are also several mounting accessories that you can buy separately. The ceiling mount bracket must be purchased if you wish to hang the camera. The pole collar, with steel clamps and the corner mounting base are also available.

MOUNTING ACCESSORIES

PC CONTROL

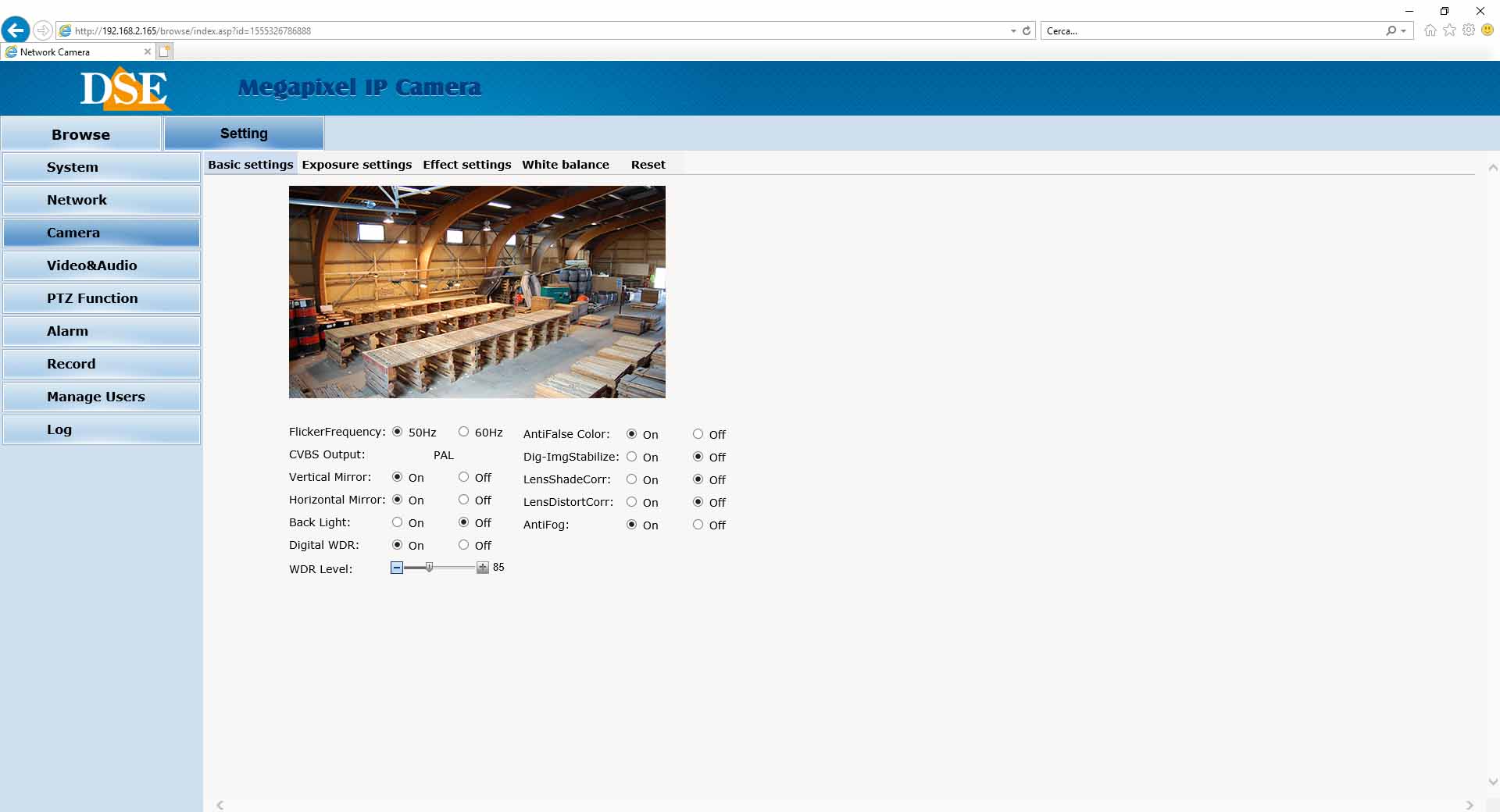

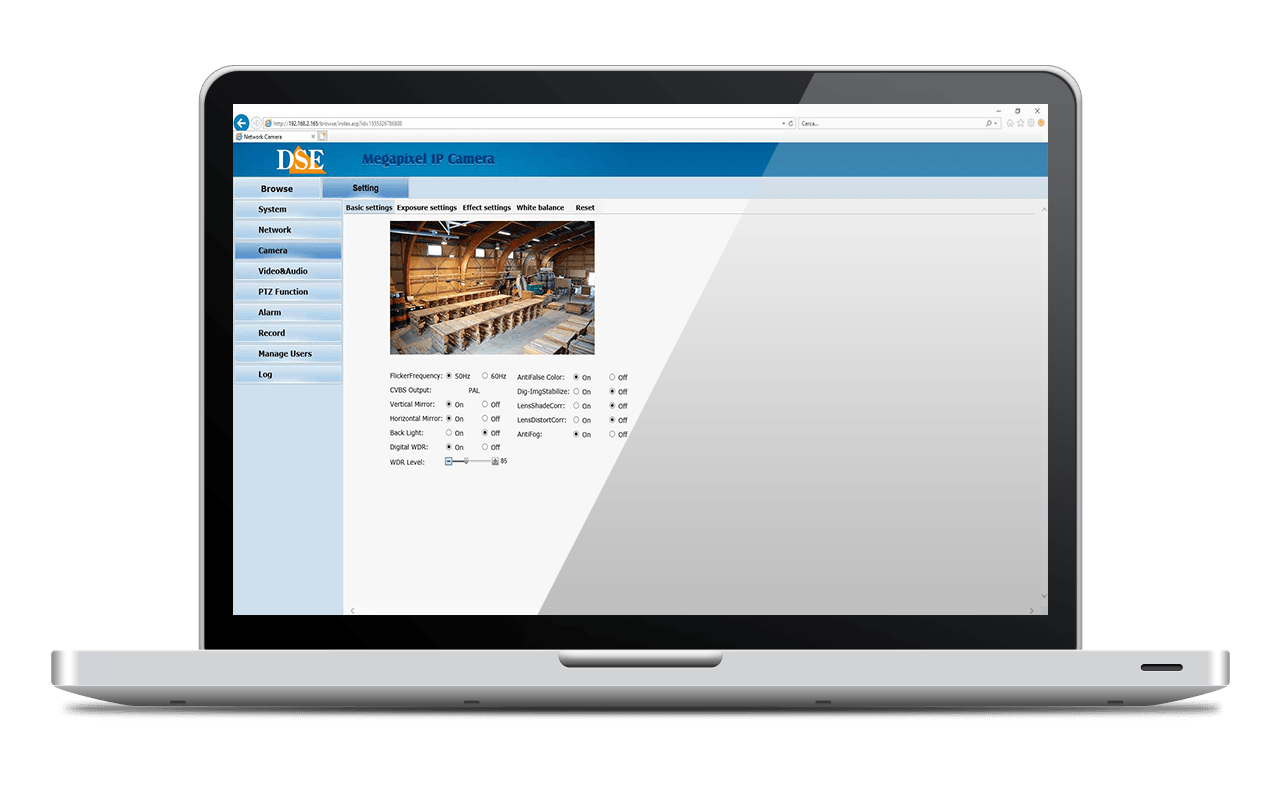

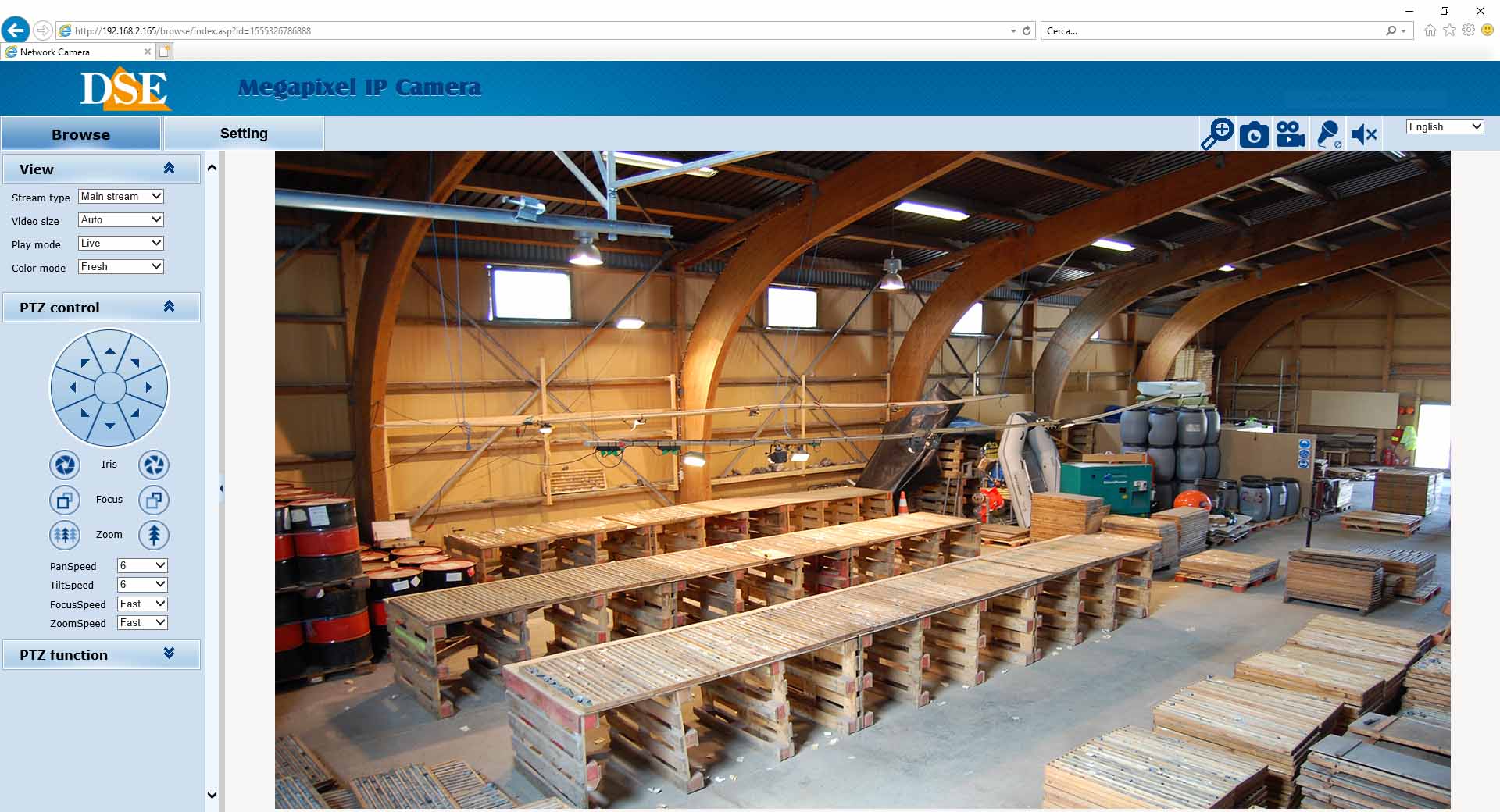

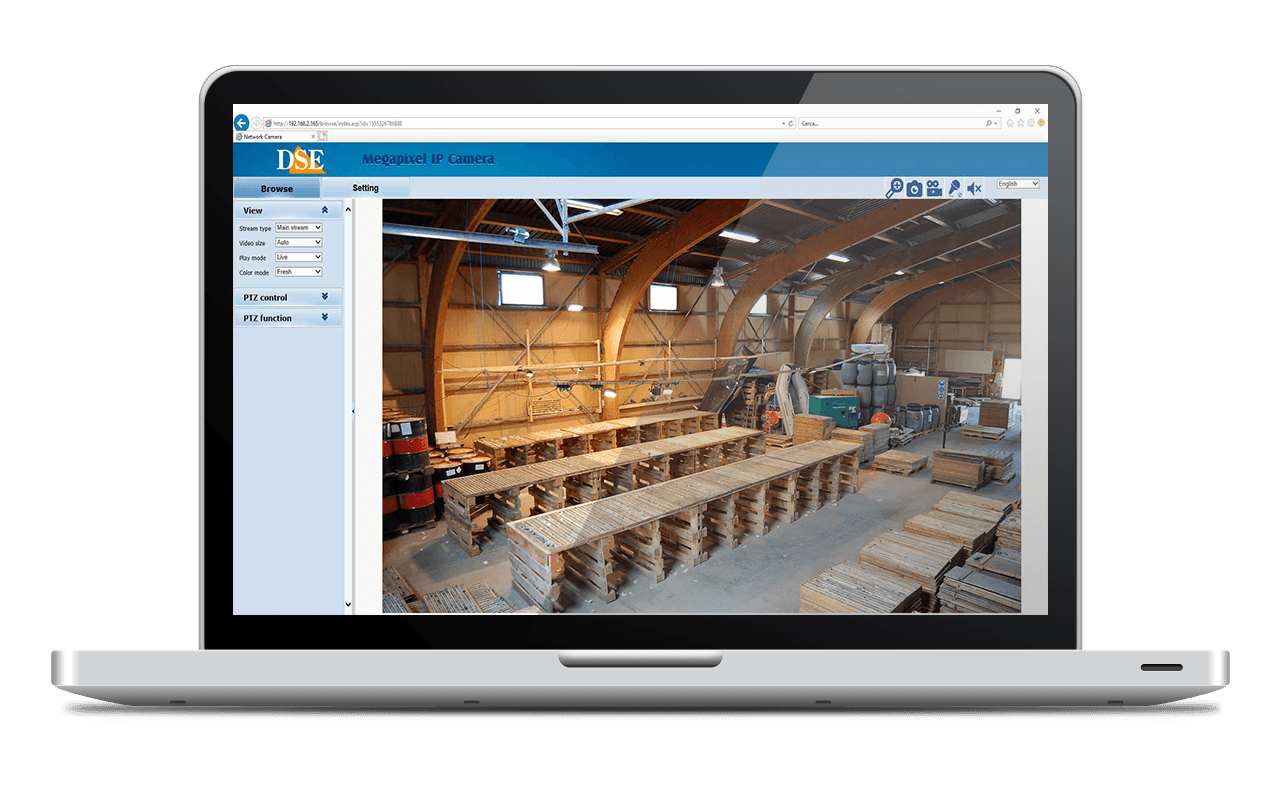

Connect via browser

Every computer on the network is a perfect monitor and control station for your PTZ cameras. No software needs to be installed. Just open the Internet Explorer browser and enter the login password to WATCH the live video on the monitor. You can easily CONTROL the camera movement and zoom with the mouse. A programming menu allows you to CONFIGURE all the camera options and automatic features. The cameras in this range also support the RTSP protocol which allows you to watch live video even with common players such as VLC.


SMARTPHONE APP

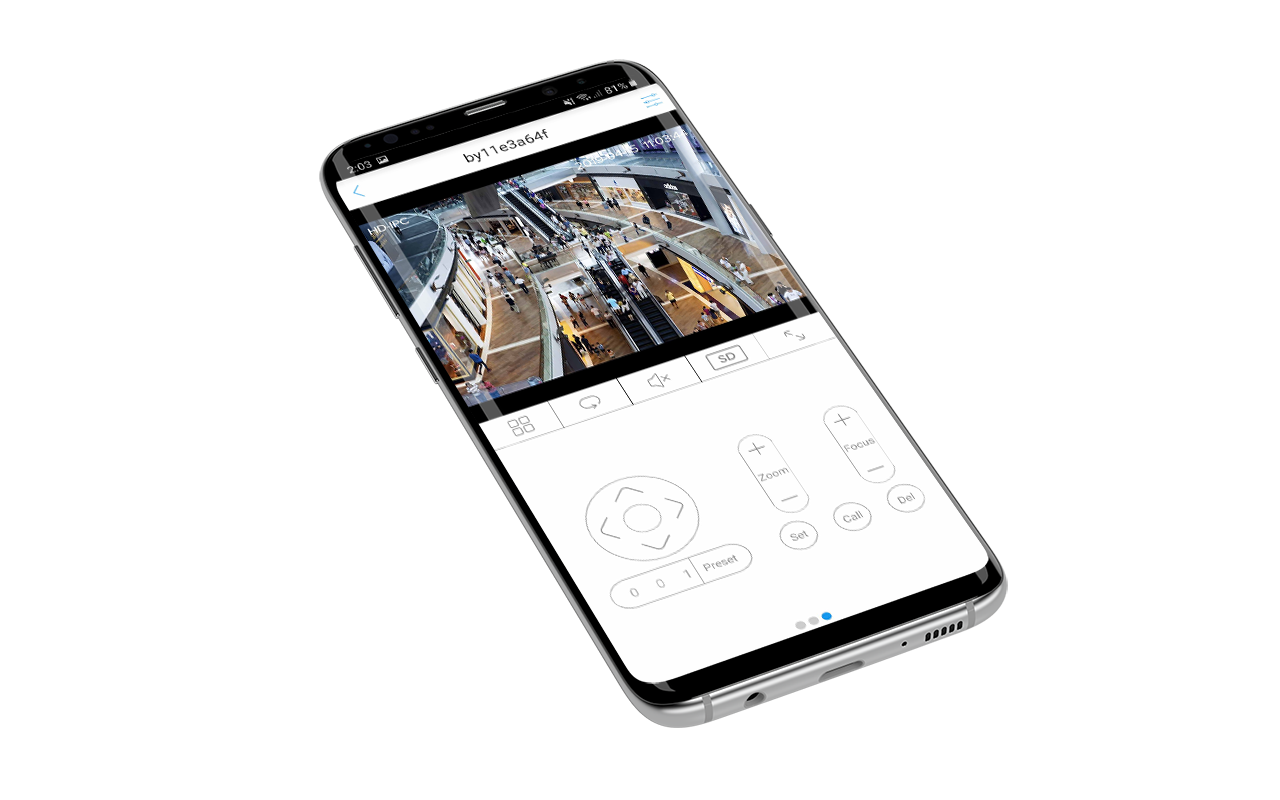

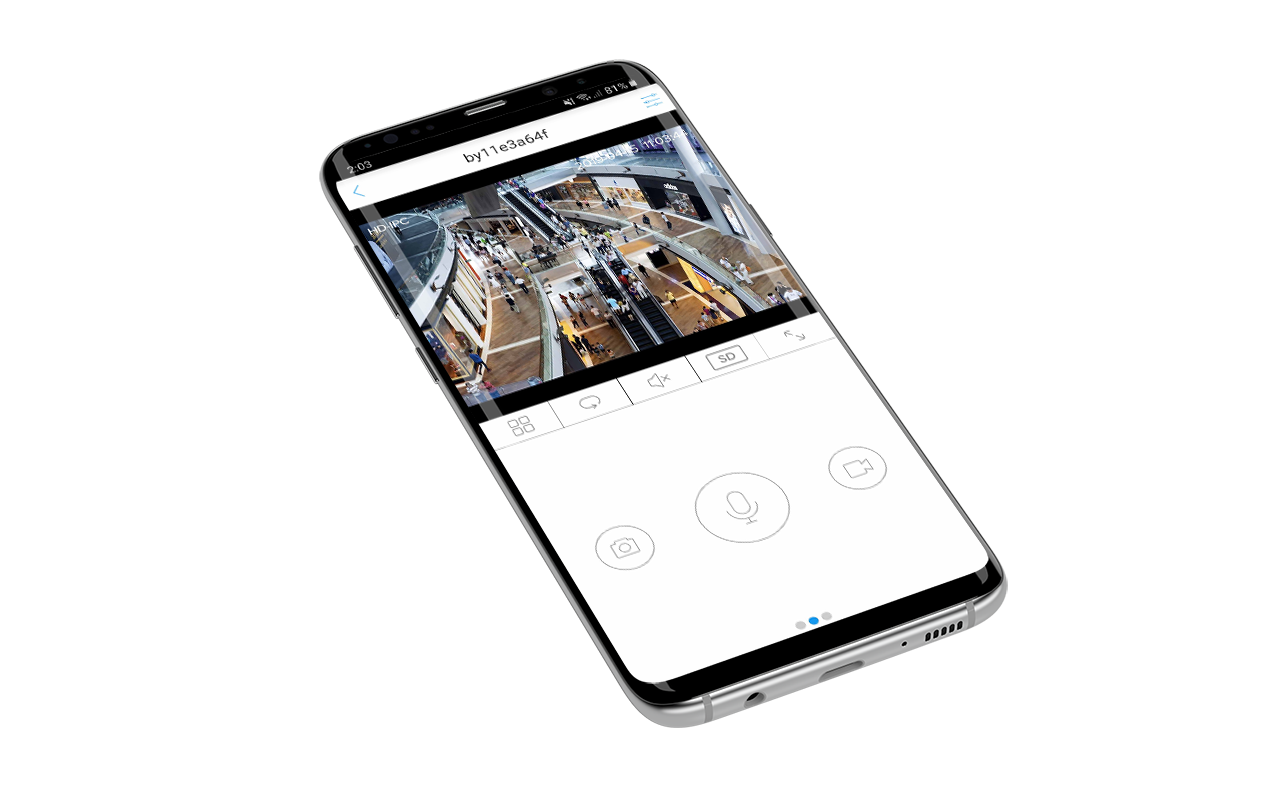

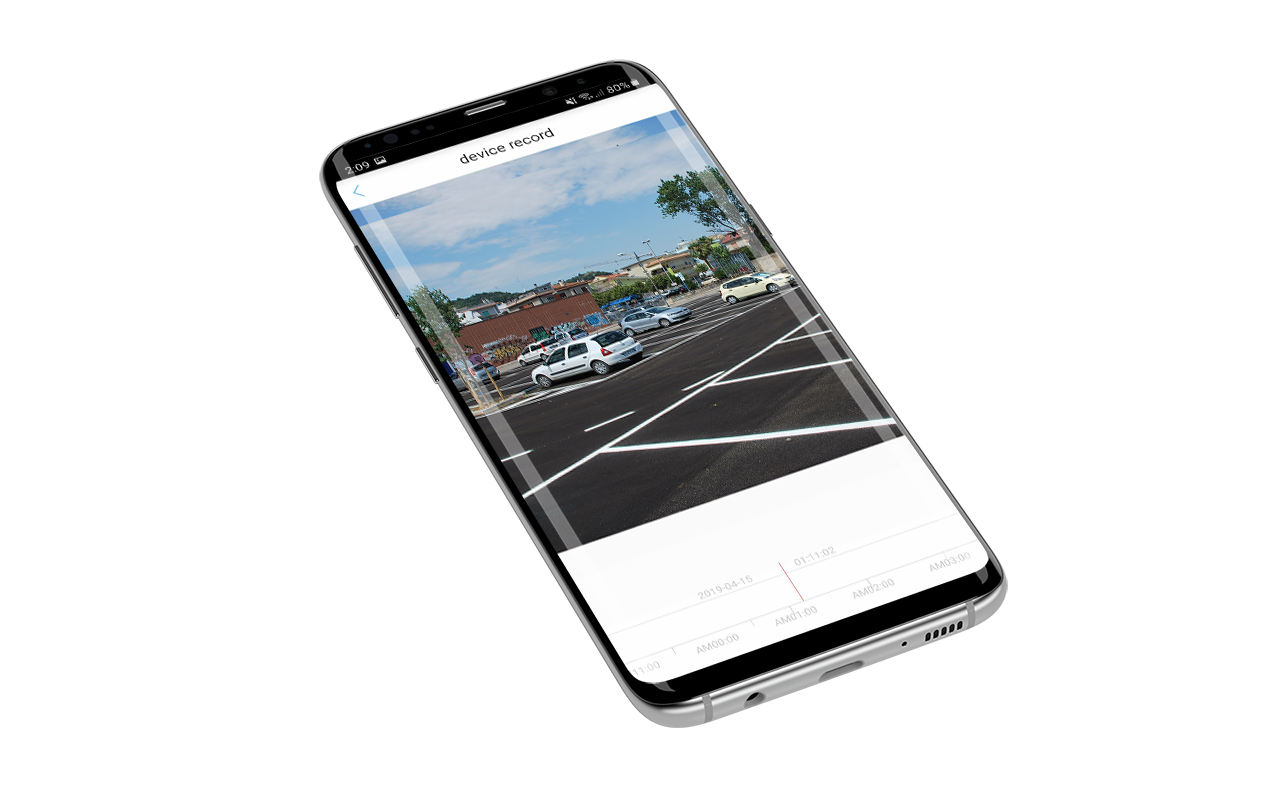

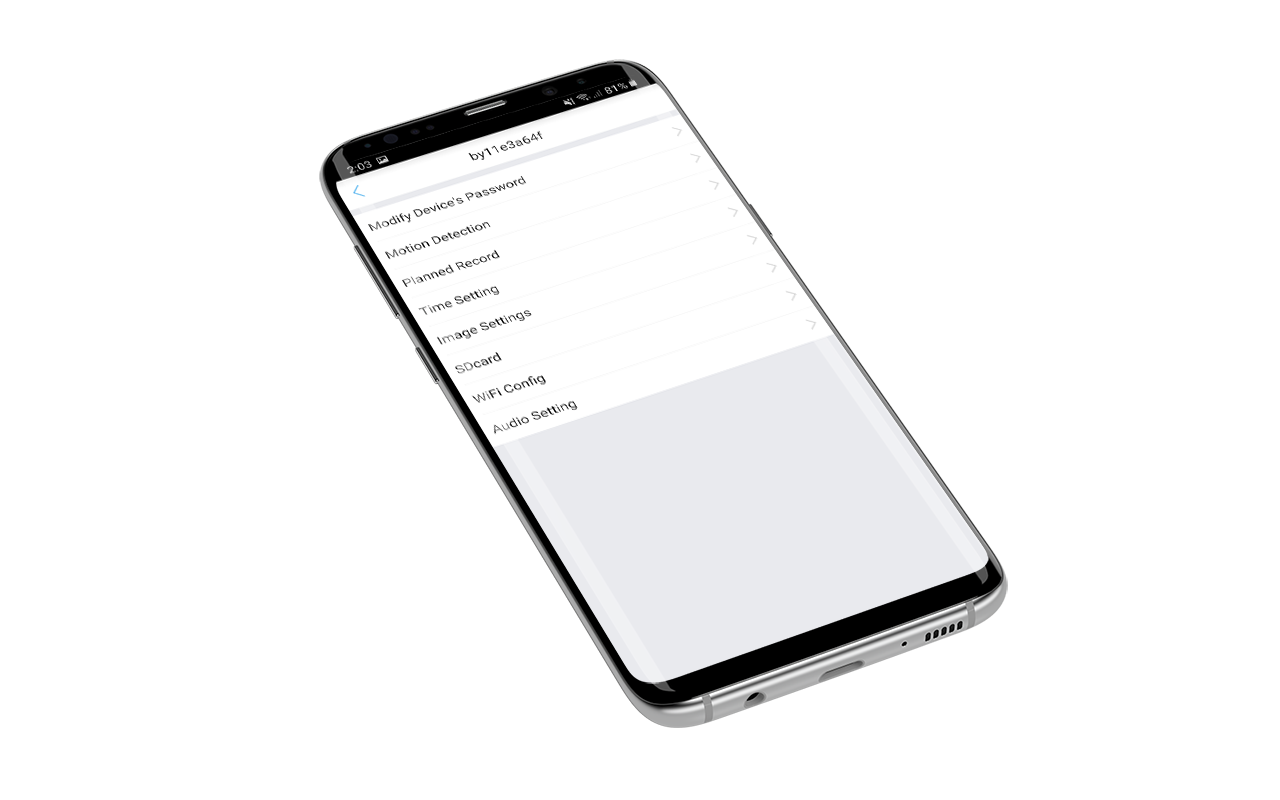

APP for smartphone and tablet

The RL series cameras can be controlled from a smartphone or tablet with the free APP. You can WATCH the live video, CONTROL THE MOVEMENTS of the camera and RECORD video and images. You can also PLAYBACK the videos recorded on the camera memory, by looking for the date and time you are interested in.

Free app for iOS and Android Live viewing from the app Audio in Bidirectional audio communication Motorized cameras control Recording control APP APP

VIDEO RECORDING


Compatible with all Onvif NVRs

These cameras are designed to work with a network video recorder, also known as NVR. You can use any ONVIF NVR video recorders on the market. If you are building a new system, we recommend our RK Series NVR for perfect compatibility. Through the NVR you can control all the movements of your motorized cameras either locally, using the mouse, or via WEB, by PC or smartphone.


128GB SD Card slot

Many cameras in this series have a built-in microSD card slot. You can insert a micro SD memory up to 128GB and record video clips straight in the camera. Once the memory card is full, the automatic overwriting of the oldest video files is usually set. The BUILT-IN MEMORY turns your IP camera into a stand-alone video surveillance system capable of recording even without a network video recorder. We recommend you still use the SD card, even if you have an NVR, because it record in every condition, even if the network is disconnected because of a failure or sabotage.


NVR software for Windows

If you want, you can use a computer to monitor and record the IP cameras of this range. You do not have to buy anything: just download the VMS, our free NVR software, which is suitable to all our IP cameras. You can install it on as many computers as you like and use it freely, either as a main NVR or as an additional control station. There is also a specific software, only for these RL Series cameras: it is our free CMS software. In addition to camera control, this software also allows you to configure options and assign the IP address during installation.

DOWNLOAD VMS DOWNLOAD CMS

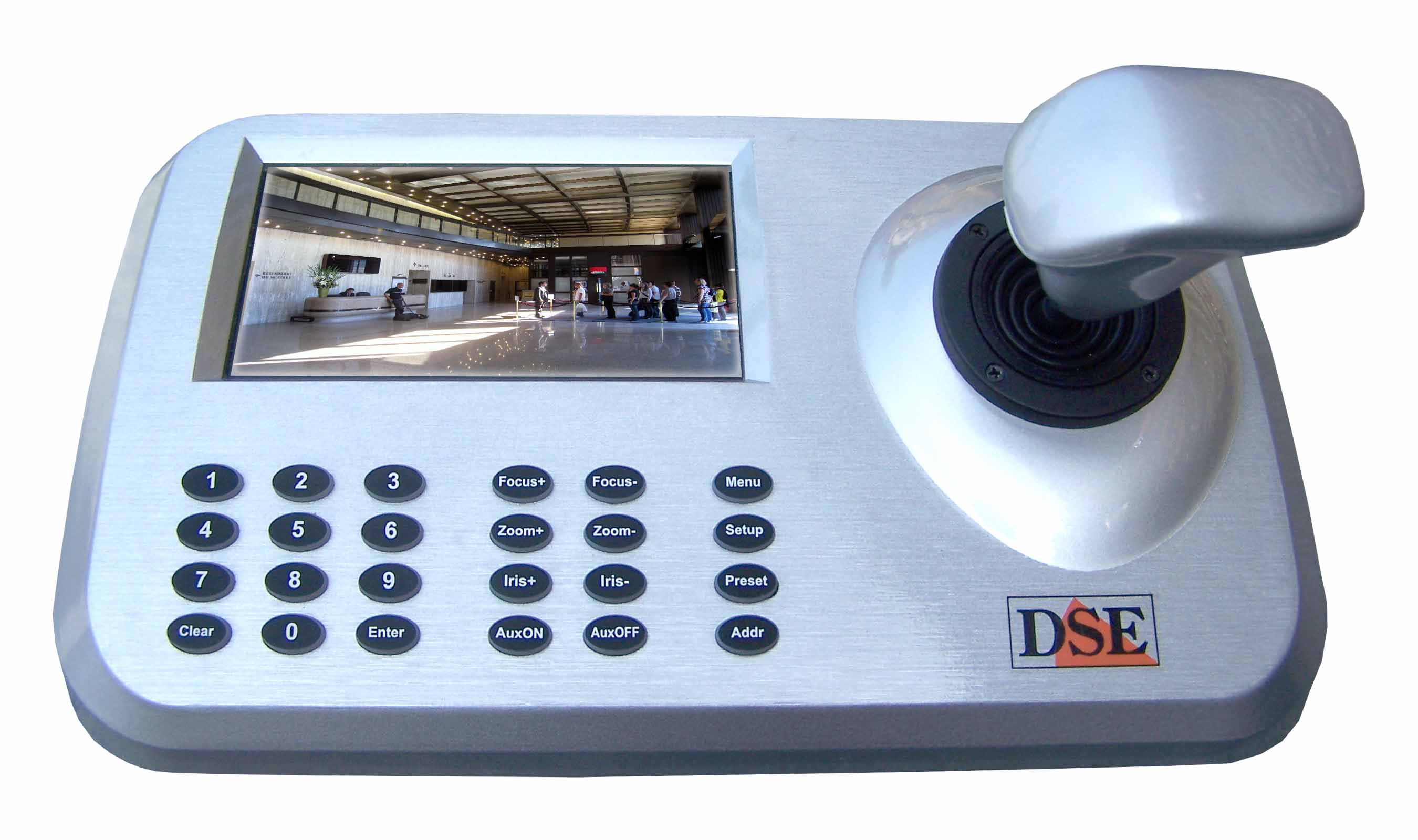

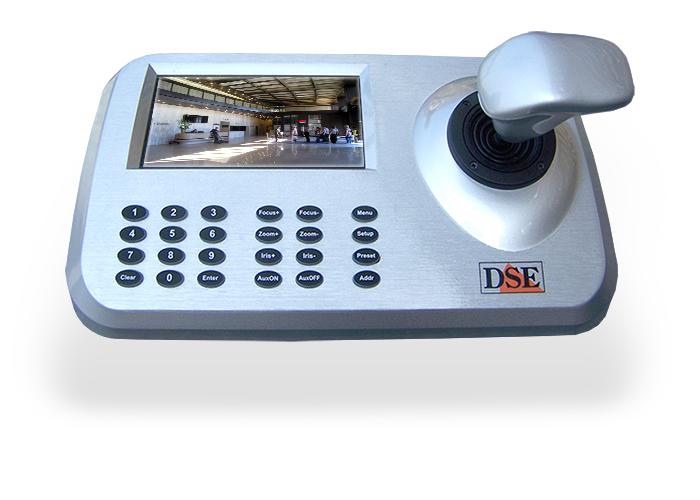

PC, NVR or KEYBOARD control

You can control the movements of our motorized IP cameras in many ways. You can connect to the camera with your computer and move the camera with the mouse. You can also control the camera via the NVR, locally with the mouse or via the web with a PC or mobile phone. If you want to create a standalone control point with joystick, you can purchase one of our PTZ IP keyboard . You can use several command units in the same the network, such as PC, NVR and a keyboards, using the one which is more conveniently, according to the situation.


TECHNICAL DATA



CODE RL-SD4 RL-SD4-5 RL-SDM20 RL-SDM20-5 RL-SD20 RL-SD20-5 RL-SD36-5
Descrption PTZ IP camera PTZ IP camera PTZ IP camera PTZ IP camera PTZ IP camera PTZ IP camera PTZ IP camera
Type Micro speed dome Micro speed dome Mini speed dome Mini speed dome High speed dome High speed dome High speed dome
CAMERA
Maximum resolution 2MP 5MP 2MP 5MP 2MP 5MP 5MP
Optical sensor 1/2.8" CMOS SONY Starvis IMX307 1/2.5" CMOS ON AR0521 1/2.8" CMOS SONY Starvis IMX307 1/2.5" CMOS ON AR0521 1/2.8" CMOS SONY Starvis IMX307 1/2.5" CMOS ON AR0521 1/2.8" CMOS SONY Starvis IMX335
Chipset HS Hi3516E HS Hi3516D HS Hi3516E HS Hi3516D HS Hi3516E HS Hi3516D HS Hi3516A
Video resolutions 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s 2592x1944 @ 25 f/s ... 2592x1520 @ 25 f/s ... 2048x1536 @ 25 f/s ... 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s 2592x1944 @ 25 f/s ... 2592x1520 @ 25 f/s ... 2048x1536 @ 25 f/s ... 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s 2592x1944 @ 25 f/s ... 2592x1520 @ 25 f/s ... 2048x1536 @ 25 f/s ... 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s 2592x1944 @ 25 f/s ... 2592x1520 @ 25 f/s ... 2048x1536 @ 25 f/s ... 1920x1080 @ 25 f/s ... 1280x720 @ 25 f/s
Video compression H264 H265 MJPEG H264 H265 MJPEG H264 H265 MJPEG H264 H265 MJPEG H264 H265 MJPEG H264 H265 MJPEG H264 H265 MJPEG
POE power supply POE+ IEEE802.3at 30W POE+ IEEE802.3at 30W POE+ IEEE802.3at 30W POE+ IEEE802.3at 30W POE+ IEEE802.3at 30W POE+ IEEE802.3at 30W POE+ IEEE802.3at 30W
Local power supply 12VDC 12VDC 12VDC 12VDC 12VDC 12VDC 12VDC
Infrared illuminator 30 m. (4LED d35 850nm) 30 m. (4LED d35 850nm) 60 m. (4LED d42 850nm) 60 m. (4LED d42 850nm) 120 m. (8LED d42 850nm) 120 m. (8LED d42 850nm) 120 m. (8LED d42 850nm)
ICR
Lens zoom 4x 2.8...12 mm. zoom 4x 2.8...12 mm. zoom 20x 4.7...94 mm. zoom 20x 4.7...94 mm. zoom 20x 4.7...94 mm. zoom 20x 4.7...94 mm. zoom 36x 4.6...165 mm.
Focus Autofocus Autofocus Autofocus Autofocus Autofocus Autofocus Autofocus
Shutter 1/25...1/12000 1/25...1/12000 1/25...1/12000 1/25...1/12000 1/25...1/12000 1/25...1/12000 1/25...1/12000
S/N ratio Over 52dB Over 52dB Over 52dB Over 52dB Over 52dB Over 52dB Over 52dB
HARDWARE
Network Port RJ45 10/100 T-Base RJ45 10/100 T-Base RJ45 10/100 T-Base RJ45 10/100 T-Base RJ45 10/100 T-Base RJ45 10/100 T-Base RJ45 10/100 T-Base
Audio Input 1 RCA
Audio Output 1 RCA
I/O Alarm
SD card Max. 128GB Max. 128GB Max. 128GB Max. 128GB
CVBS Output
MOVEMENT
Rotation speed Max. 30°/sec Max. 30°/sec Max. 60°/sec Max. 60°/sec Max. 200°/sec Max. 200°/sec Max. 200°/sec
Rotation range 360° PAN, 180° TILT with autoflip 360° PAN, 180° TILT with autoflip 360° PAN, 180° TILT with autoflip 360° PAN, 180° TILT with autoflip 360° PAN, 180° TILT with autoflip 360° PAN, 180° TILT with autoflip 360° PAN, 180° TILT with autoflip
Accuracy in positioning <0,5° <0,5° <0,5° <0,5° <0,5° <0,5° <0,5°
Automatic functions 255 preset, 3 cruise, scan 360°, scan between end of stroke 255 preset, 3 cruise, scan 360°, scan between end of stroke 255 preset, 3 cruise, scan 360°, scan between end of stroke 255 preset, 3 cruise, scan 360°, scan between end of stroke 255 preset, 3 cruise, scan 360°, scan between end of stroke 255 preset, 3 cruise, scan 360°, scan between end of stroke 255 preset, 3 cruise, scan 360°, scan between end of stroke
Home function
PTZ Timer
FUNCTIONS
Protocols TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP
Onvif Onvif Profile S v. 2.4 Onvif Profile S v. 2.4 Onvif Profile S v. 2.4 Onvif Profile S v. 2.4 Onvif Profile S v. 2.4 Onvif Profile S v. 2.4 Onvif Profile S v. 2.4
P2P
Browser IE9 or superior IE9 or superior IE9 or superior IE9 or superior IE9 or superior IE9 or superior IE9 or superior
Smartphone Free app for iOS, Android Free app for iOS, Android Free app for iOS, Android Free app for iOS, Android Free app for iOS, Android Free app for iOS, Android Free app for iOS, Android
Multi streaming 3 stream 3 stream 3 stream 3 stream 3 stream 3 stream 3 stream
Saving on the web cloud
Mirror Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal
Corridor
Overlays Date Time 5 descriptions Date Time 5 descriptions Date Time 5 descriptions Date Time 5 descriptions Date Time 5 descriptions Date Time 5 descriptions Date Time 5 descriptions
BLC
AWB
DNR
WDR
Anti fog
HSBLC
Starlight
Motion detection Adjustable with weekly scheduler Adjustable with weekly scheduler Adjustable with weekly scheduler Adjustable with weekly scheduler Adjustable with weekly scheduler Adjustable with weekly scheduler Adjustable with weekly scheduler
Privacy mask
Anti tampering
Alarm actions Recording Email FTP Recording Email FTP Recording Email FTP Recording Email FTP Recording Email FTP Recording Email FTP Recording Email FTP
Sending Time-Lapse pictures
GENERAL
Casing Aluminum and polycarbonate Aluminum and polycarbonate Aluminum and polycarbonate Aluminum and polycarbonate Aluminum and polycarbonate Aluminum and polycarbonate Aluminum and polycarbonate
Degree of protection IP67 for outdoor use IP67 for outdoor use IP67 for outdoor use IP67 for outdoor use IP67 for outdoor use IP67 for outdoor use IP67 for outdoor use
Supplied bracket Wall Wall Wall Wall Wall
Operating temperature -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max
Power supply POE+ or 12VDC +/-10% POE+ or 12VDC +/-10% POE+ or 12VDC +/-10% POE+ or 12VDC +/-10% POE+ or 12VDC +/-10% POE+ or 12VDC +/-10% POE+ or 12VDC +/-10%
Power consumption Max. 400 mA (600 mA IR ON) Max. 400 mA (600 mA IR ON) Max. 500 mA (1100 mA IR ON) Max. 500 mA (1100 mA IR ON) Max. 600 mA (1300 mA IR ON) Max. 600 mA (1300 mA IR ON) Max. 600 mA (1300 mA IR ON)
Dimensions 108 mm.(D) 93 mm (H) 108 mm.(D) 93 mm (H) 150 mm.(D) 245 mm (H) 150 mm.(D) 245 mm (H) 210 mm.(D) 320 mm (H) 210 mm.(D) 320 mm (H) 210 mm.(D) 320 mm (H)
Weight 490 gr. 490 gr. 2 Kg. 2 Kg. 5 Kg. 5 Kg. 5 Kg.

QUESTIONS & ANSWERS


What is included?

SPEED-DOME and MINI SPEED-DOME

CAMERA
BRACKET
POWER ADAPTER
L KEY
MANUALS
IP SETTING SW
NVR SW
APP

MICRO SPEED-DOME

CAMERA
WALL-PLUGS
MOUNTING BASE
MANUALS
IP SETTING SW
NVR SW
APP

What is not included?

The micro speed-dome cameras are supplied without the 12VDC power adapter. If you do not use POE, you can choose one from our POWER ADAPTERS. All speed dome and mini speed dome cameras come with a wall bracket, but if you need to mount them on a pole, ceiling or corner you should see our MOUNTING ACCESSORIES FOR SPEED DOME
