DOCK CHARGER SPY CAMERAS


DK-AL4EZ

CAMERA + DVR + WIFI

Hidden camera in power adapter

1.3MP 960P

Hidden camera in wireless mobile phone charging base with SD card and IR. Whit WiFi and app for remote control via the Internet.

3.7 mm 70° pin-hole lens Up to 128GB micro SD card slot Up to 700 hours video storage on SD card Built-in microphone for audio Built-in micro speaker for audio 10 m. invisible IR illuminator Motion detection Recording on mains power Wi-Fi for mobile control with app Free P2P Cloud Server for Internet Control

INVISIBLE CAMERAS WITH IR


The hidden camera for every environment



These cameras are hidden in a modern, fully working smartphone dock station. This is an excellent object for investigation as it is connected to the power socket, which allows you to keep the camera always on . This charging base can be placed anywhere without arousing suspicion. Any table, shelf or bedside table is a perfect spot for this camera. It will go unnoticed as it is really useful to recharge your mobile phone at home or at work.

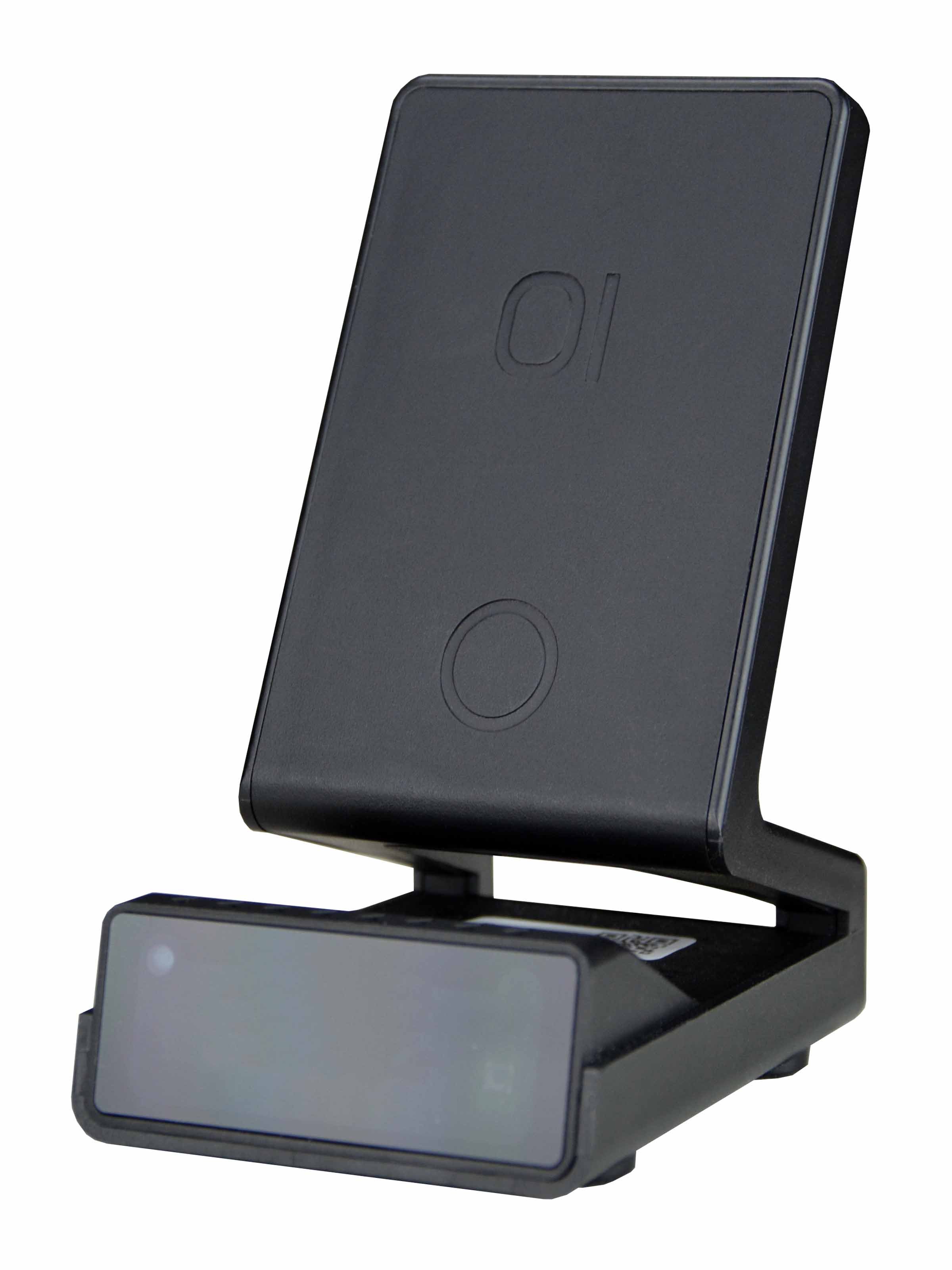

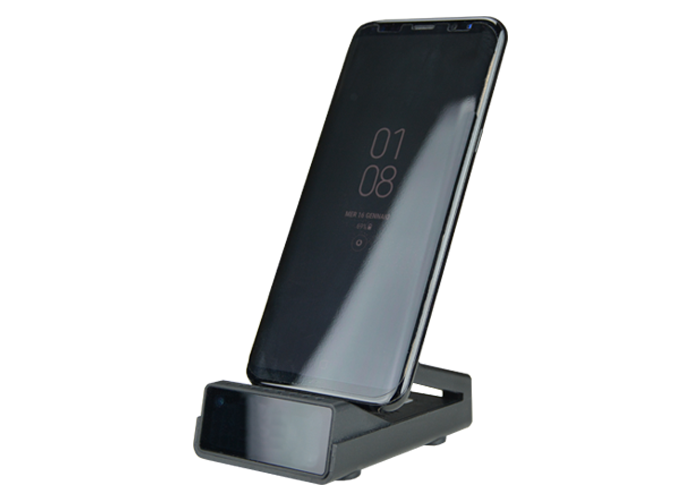

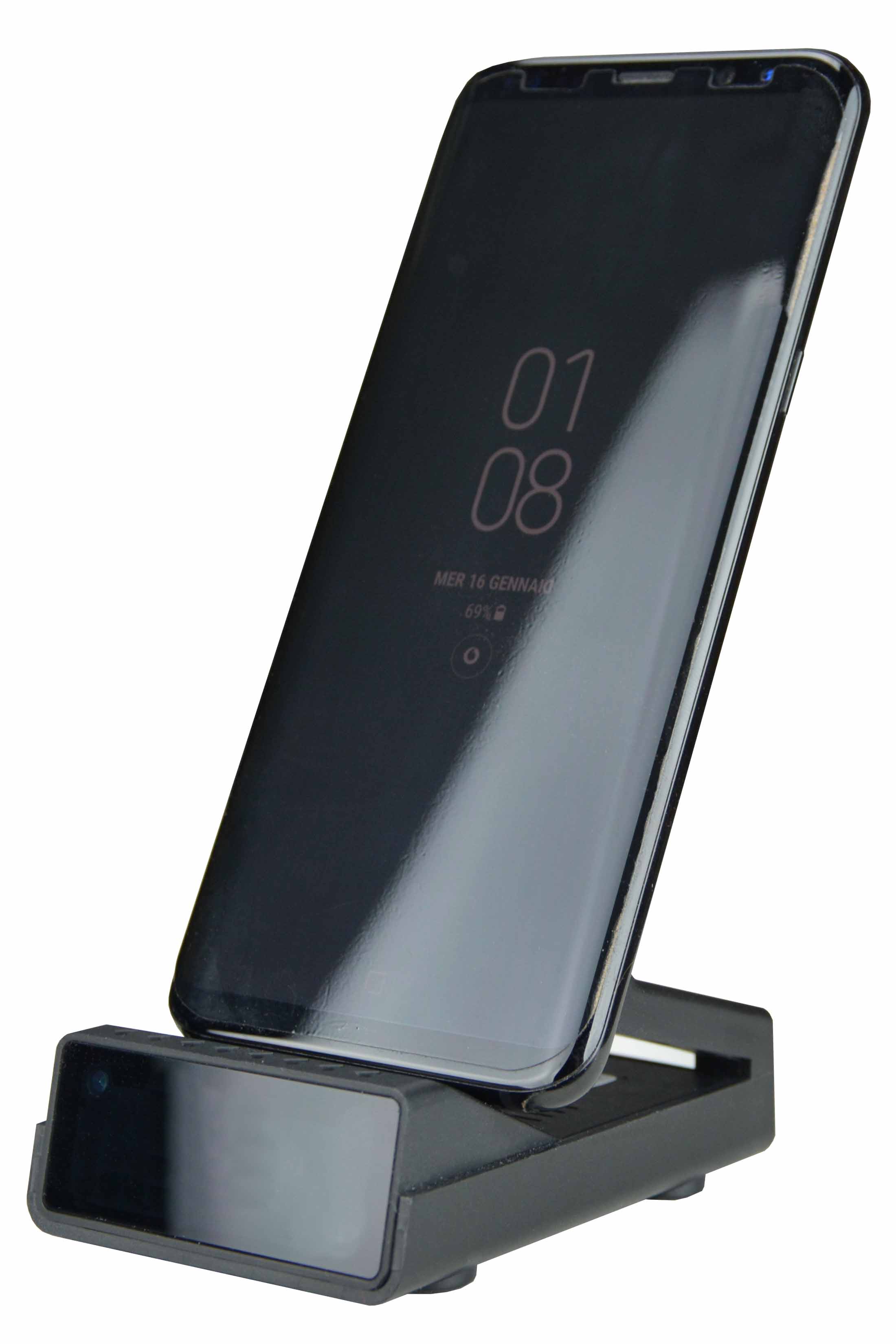

Fully working wireless mobile phone dock charger



These cameras are hidden in a phone base that is a real, fully working, wireless charger for your mobile phone, of any brand. Just put your phone on the base and the recharging will start automatically, without wires. These cameras are ready to work in minutes. Just insert the sd card into the slot and your hidden video surveillance system is ready to be placed wherever you like: on a shelf, bedside table or desk. This hidden camera does not require any technical knowledge and can be used in minutes by anyone.

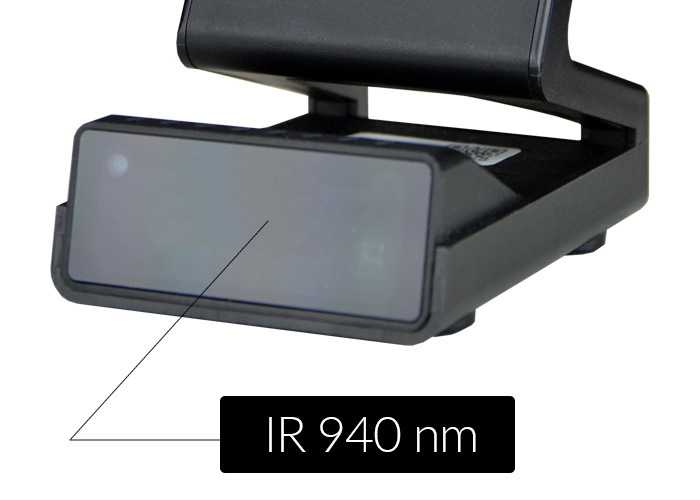

Invisible infrared illuminator to record in the dark



These cameras are among the very few spy cameras capable of recording in total darkness. Behind the glossy front surface is an infrared illuminator with 940 nm LEDs, absolutely invisible in the dark. When the ambient brightness is insufficient for normal color shooting, the camera switches to black / white mode and the IR illuminator is turned on. This camera records at night up to 10 meters .


VIDEO AND AUDIO


Invisible lens with no shooting hole



All our mini-cameras with SD memory have a wide-angle lens with a 70° coverage. These models in mobile phone charger stand out because the lens is placed behind the glossy front surface and there is no visible hole. The camera lens cannot be noticed, even if the object is observed closely. This feature makes these hidden cameras very safe and suitable for professional use.

HD 960P video resolution



These hidden cameras for investigation provide 1.3 MP @ 25 fps video resolution. The 1.3MP resolution, also called 960P (1280x960 pixels), is excellent for investigation because it combines good video quality with high storage capacity. To ensure maximum performance, we use in these hidden cameras the same high-level CMOS and HiSilicon processors as our traditional CCTV surveillance IP cameras.


Built-in microphone and speaker

These hidden mini cameras also record audio. All models in this range come with a built-in microphone able to cover a medium-sized room. The high sensitivity microphone allows you to record any sound up to 10-15 meters. The audio is recorded together with the video and is also available in live view on mobile phone. These cameras also feature a built-in micro speaker that allows you to communicate with people in front of the camera from your mobile phone.


THE RECORDING


Up to one month on SD memory card

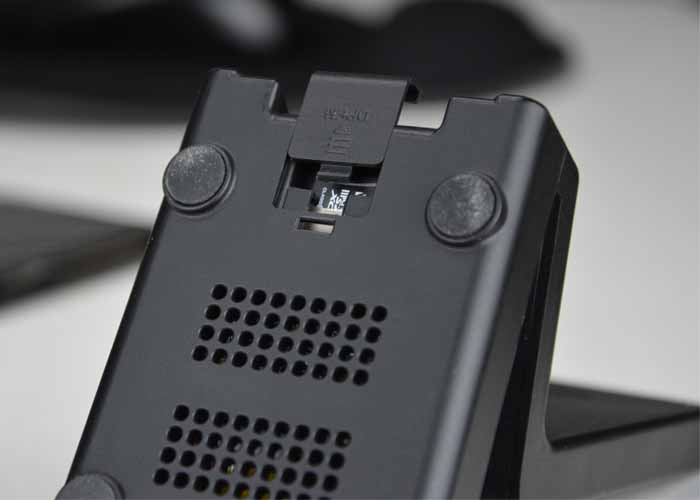

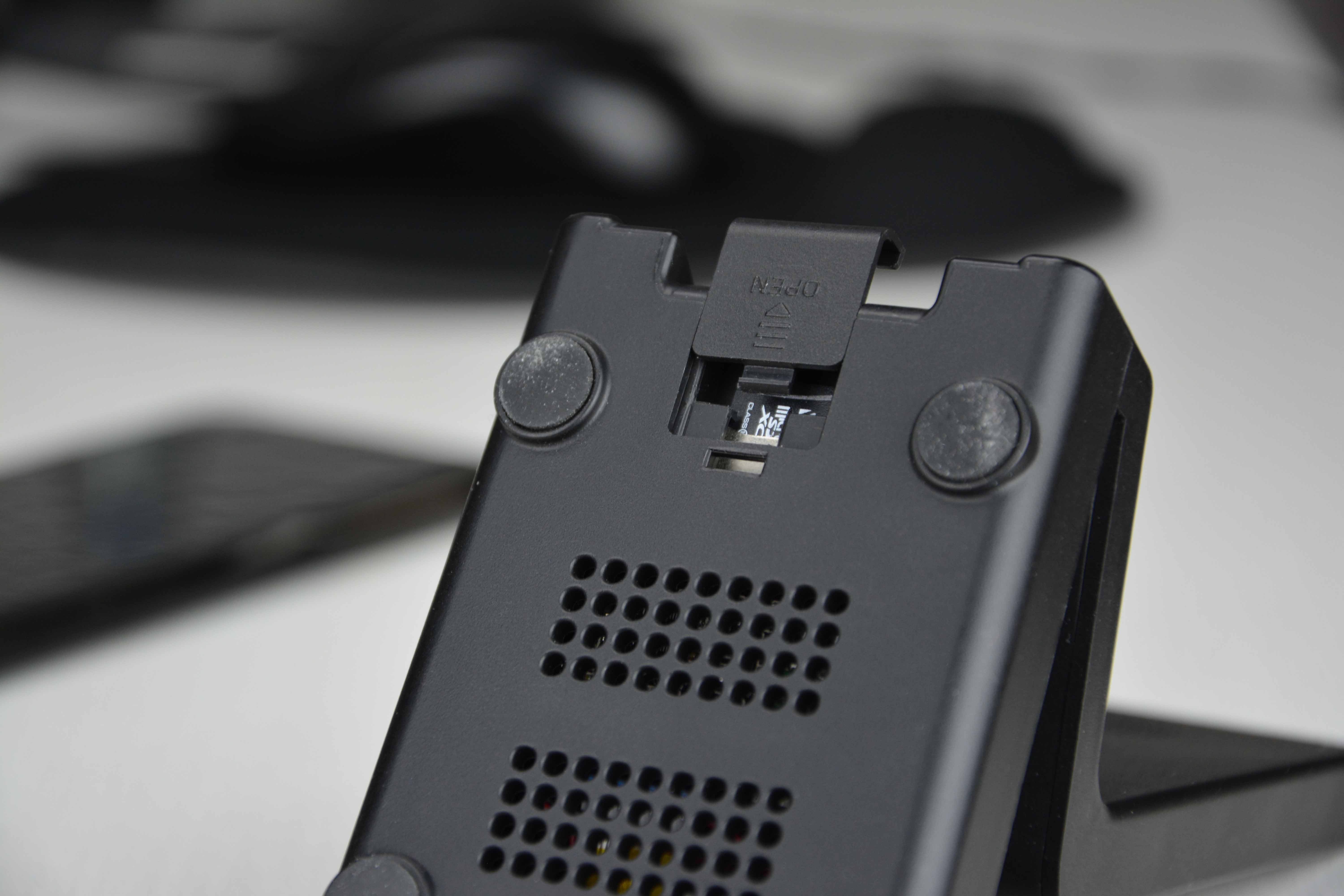

Spy cameras record videos on a removable micro SD card, which is not included in the package. To use these cameras you need to buy a Class 10 or higher micro SD card, of the maximum size supported by the camera. These hidden cameras provide a remarkable video storage capacity and are, therefore, suitable to monitor a room for many days. You can store up to one month of video footage. No other investigative camera in our range reaches a similar storage capacity.

DK-AL4EZ
SD max. 128GB
Max. archive 700 hours (on 128GB SD card)

Video playback and download

To playback the video footage you must remove the SD card from the camera and insert it into a PC. If your PC does not have an SD card slot you can use the USB reader included in the package. You can play the videos with any free video player, such as VLC or Windows Media Player and download the ones you want to keep. If you connect to Wi-Fi with your mobile phone, you can download the video files on your mobile phone, without removing the card from the camera.


Motion detection

These hidden cameras record in 3 ways: continuously, in motion detection or by scheduler. In CONTINUOUS RECORDING mode, many video files are stored in the memory, one after the other. Once the memory is full, the camera continues to record, automatically overwriting the oldest files. In MOTION DETECTION mode, the camera only records if there is a movement in front of the lens. Motion detection is a very convenient function to avoid wasting precious memory space by recording non-relevant scenes. It is also possible to record using the TIME SCHEDULER which activates the recording according to the time of the day..


POWER SUPPLY


Mains power supply



These cameras hidden in a mobile phone base do not have an internal battery because they draw power from the socket. You can keep them on 24 hours a day , like a real CCTV system for video surveillance. The large video storage capacity allows you to record for several days. A tiny switch on the back allows you to turn off the camera when you do not need it, while still using the base as a phone charger. These table cameras are an excellent solution to monitor a room 24/7. They are safe and easy to set up.


CONTROLS


Rear control panel

On the back of the mobile phone dock station there are a few push buttons and LEDs for camera control.

A CAMERA ON/OFF SWITCH
B USB PORT FOR POWER ADAPTER
C RESET BUTTON
D RED/BLUE LED - ON/OFF RECORDING
E RED/GREEN LED - PHONE CHARGING


WIFI WITH APP

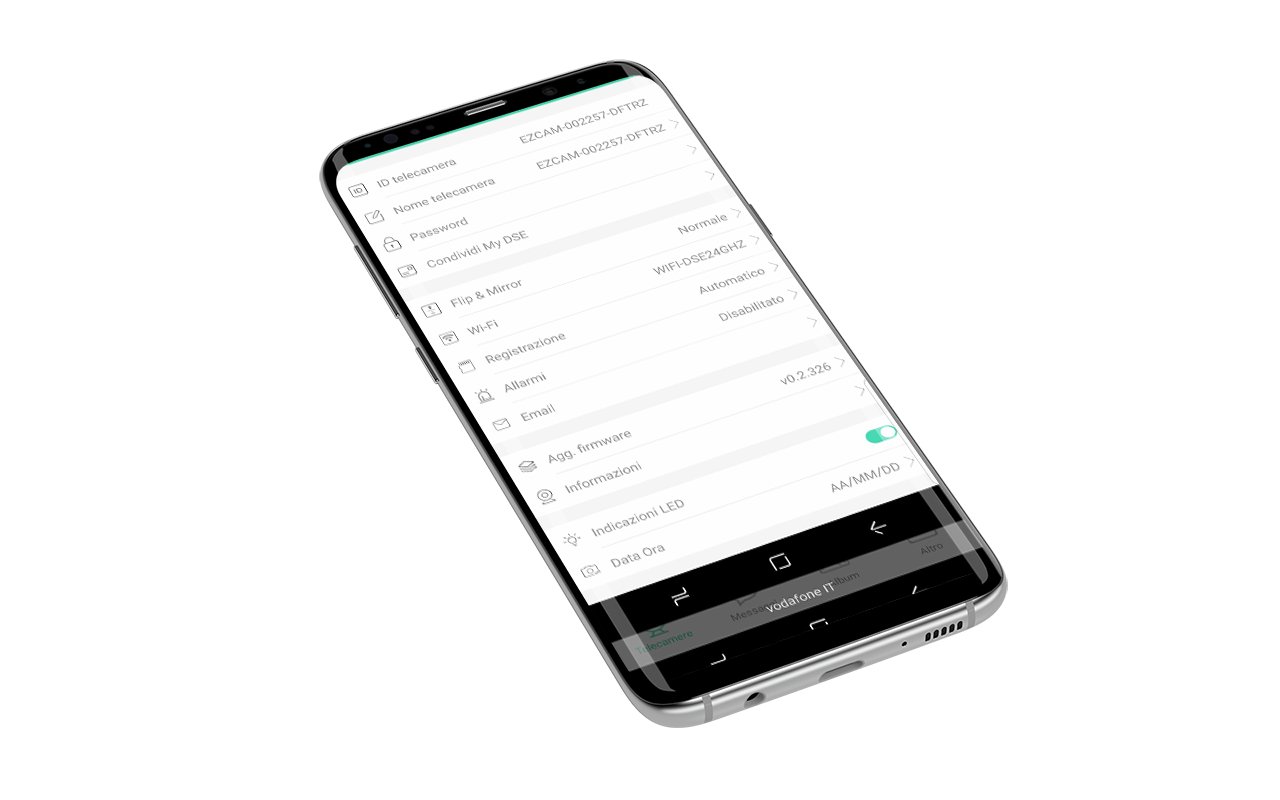

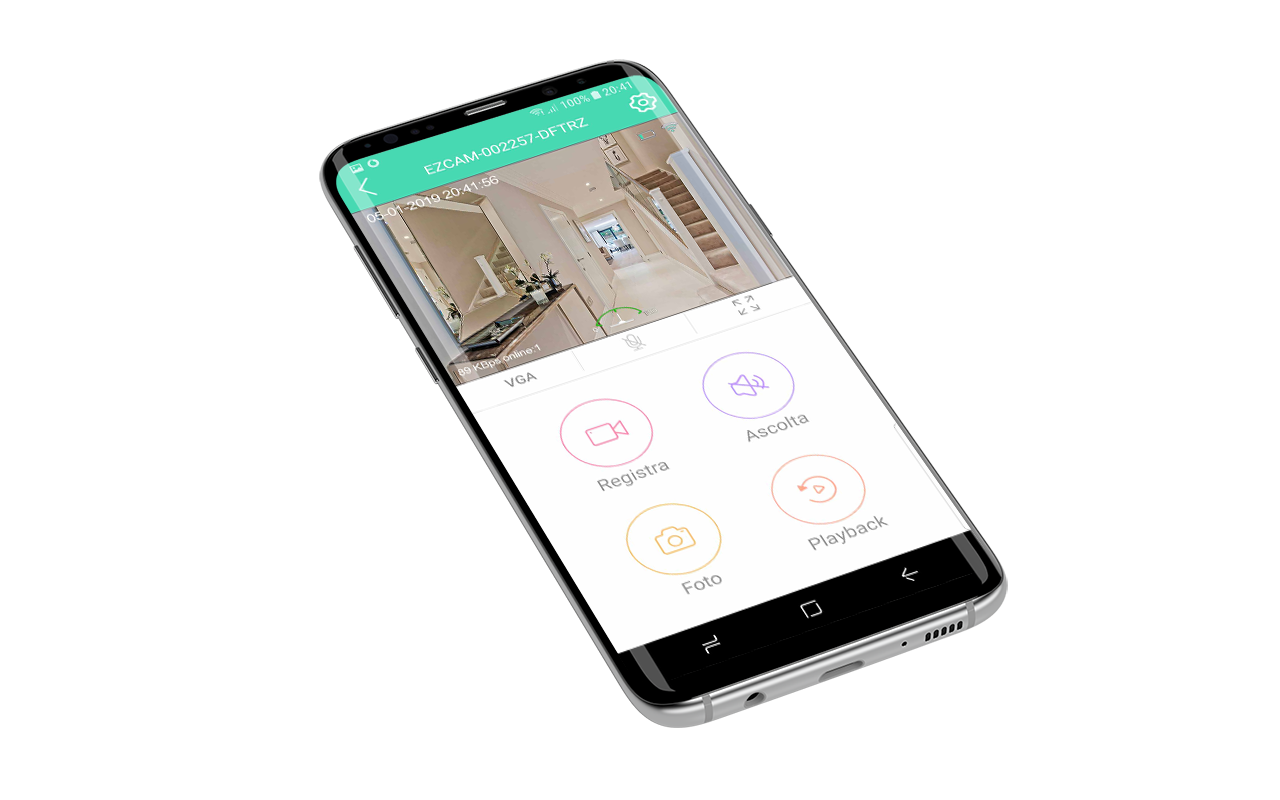

WiFi and APP for smartphones

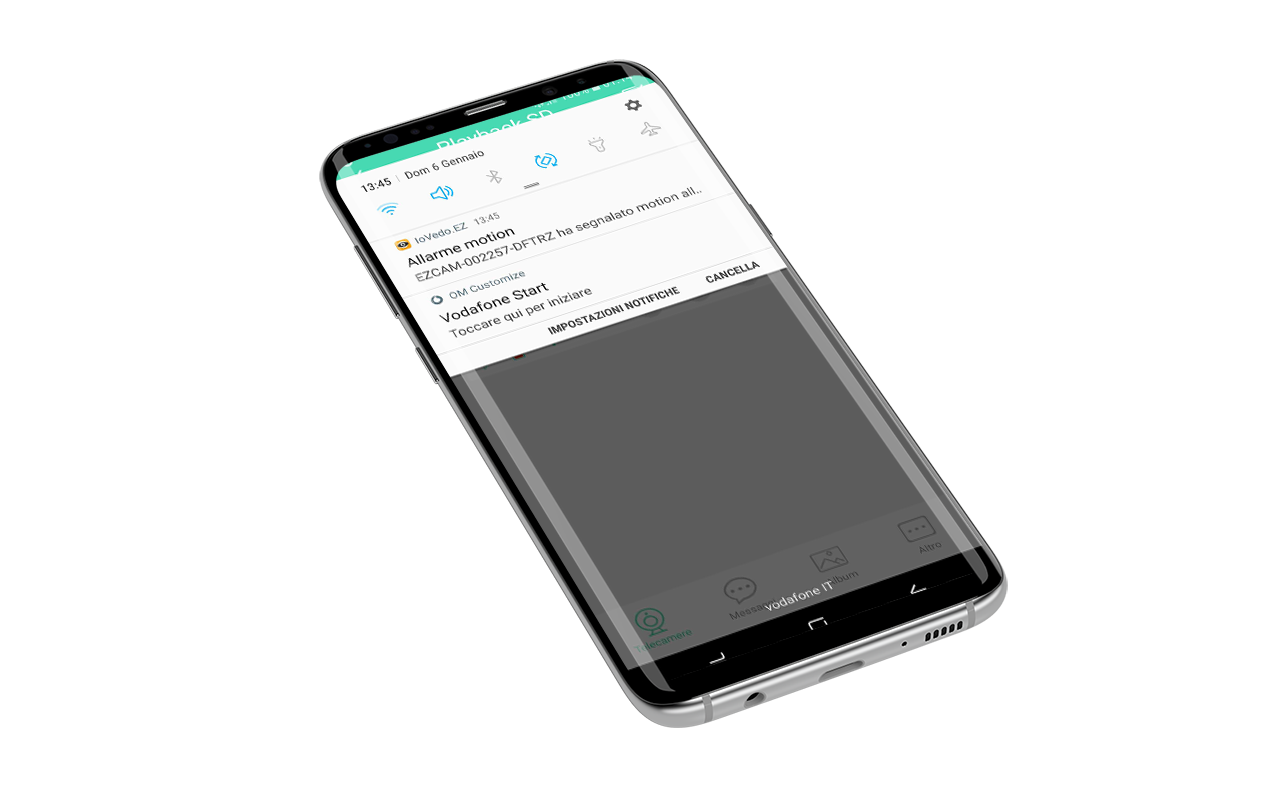

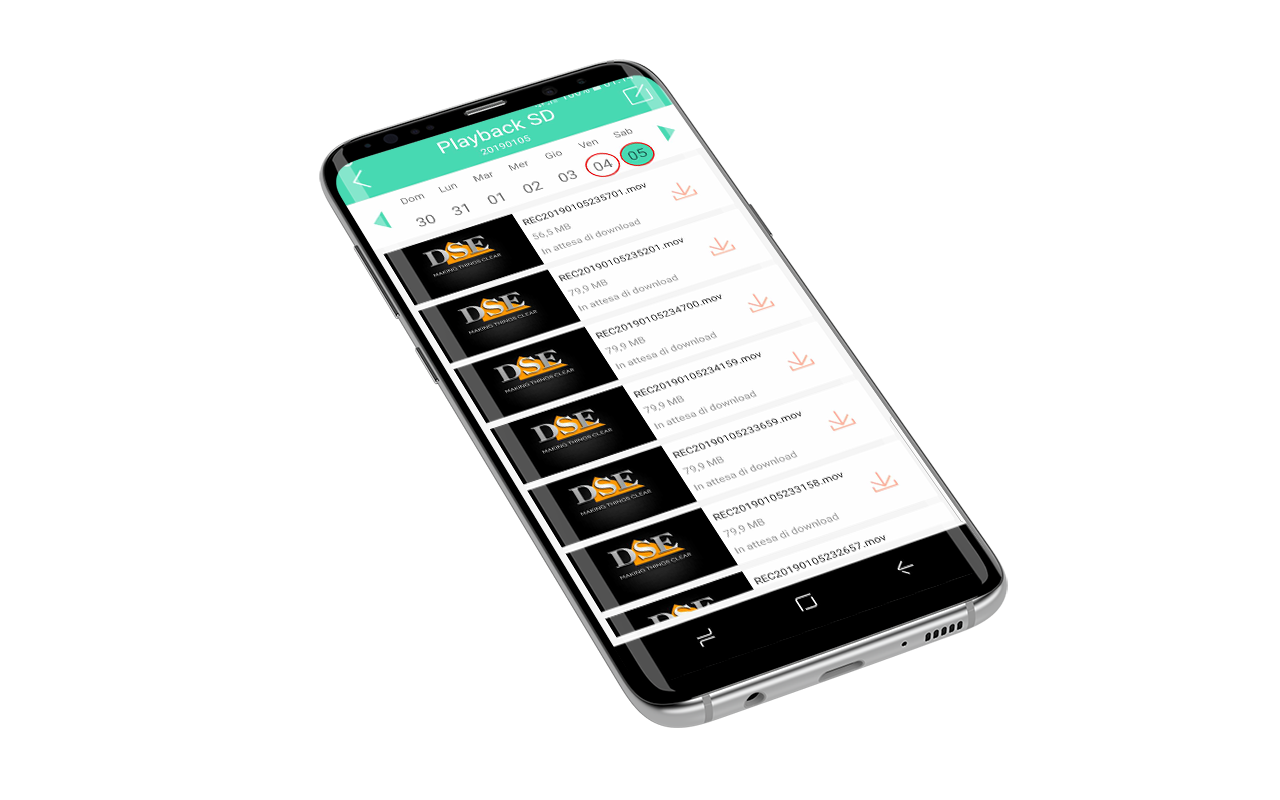

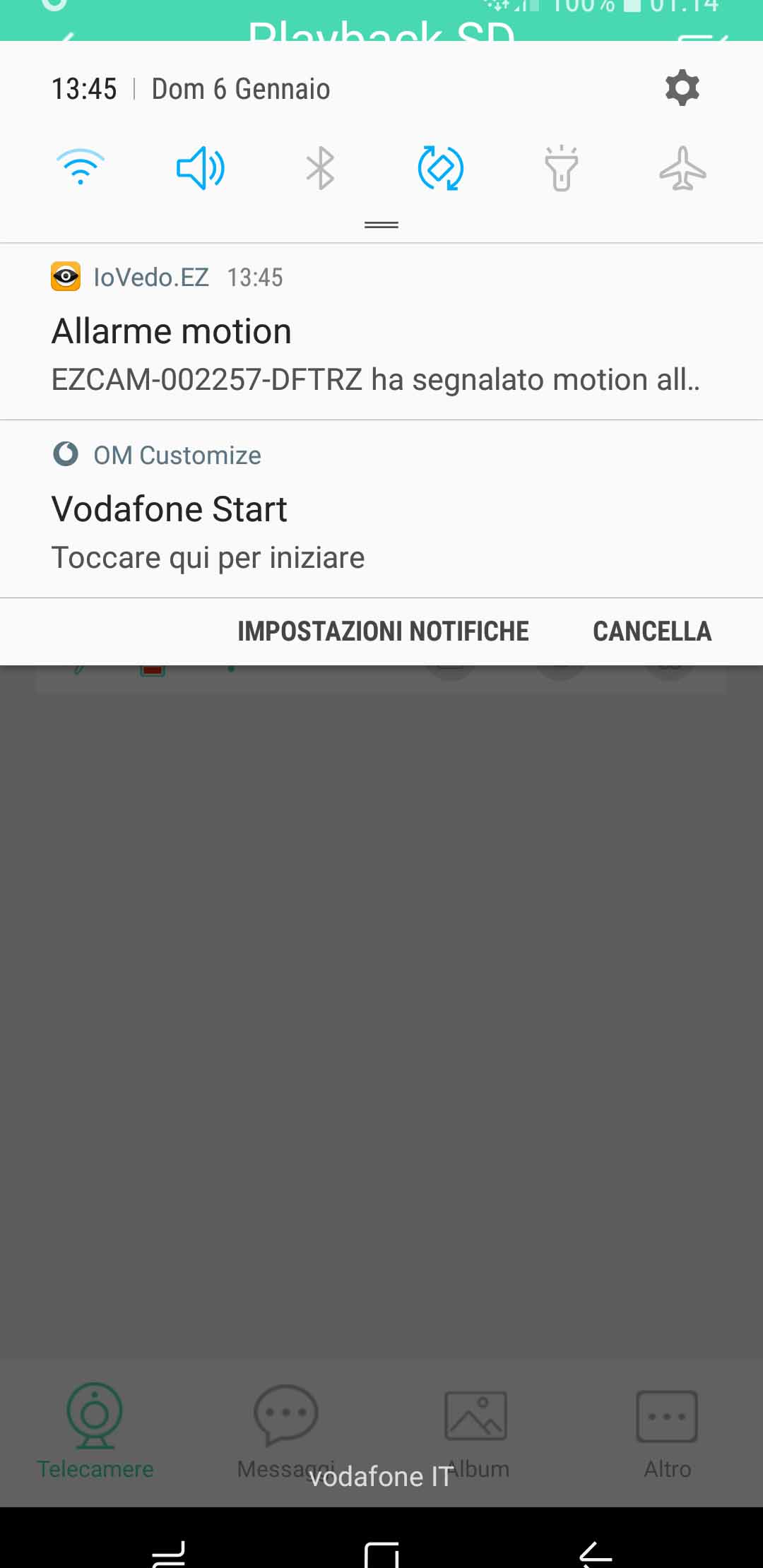

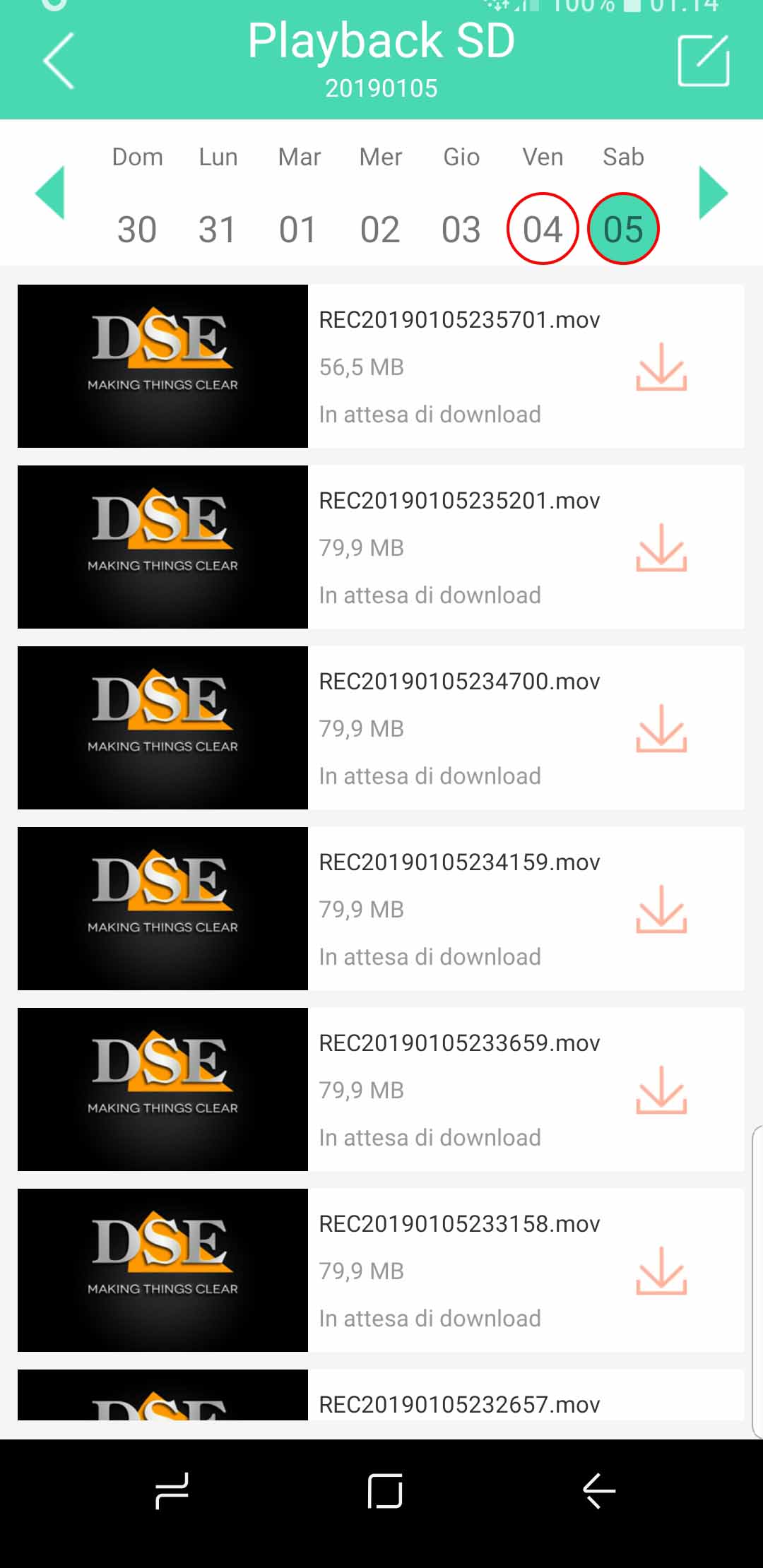

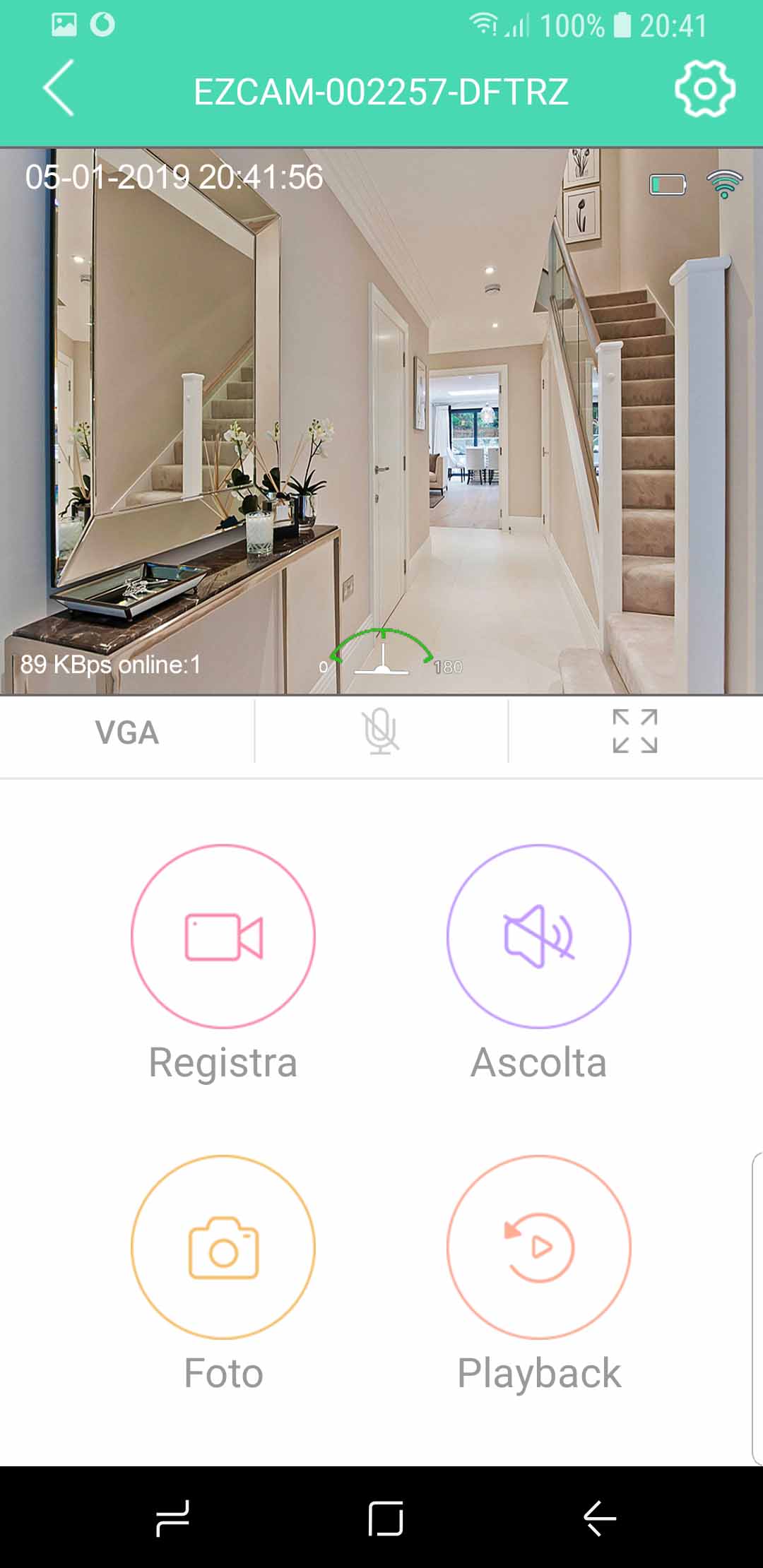

These investigation cameras are equipped with a Wi-Fi transmitter for Smartphone control. You can connect locally to the Wi-Fi network generated by the camera, or you can connect the camera to your home Wi-Fi to access via the Internet with our free P2P cloud server . With our free APP for Android and iOS, you can control these cameras with a mobile phone or tablet. You can SEE AND LISTEN IN live. You can RECORD and take snapshots. You can also PLAYBACK AND DOWNLOAD the videos recorded, searching for date and time. If you enable motion detection, you can RECEIVE a push notification on your mobile phone when an intrusion occurs.

IoVedo.EZ Free app for iOS and Android Live with the app Listen in Dialogue via the camera speaker Recording control Video files download P2P cloud server for easy web access Alarm  push notifications IoVedo.EZ IoVedo.EZ

TIPS


Make a perfect hidden camera

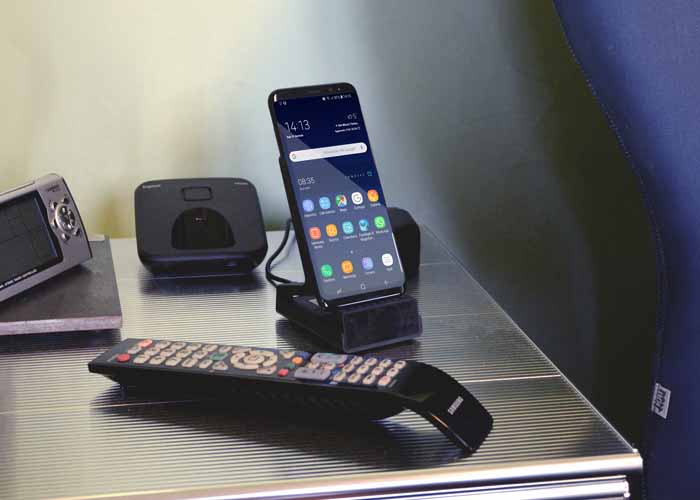

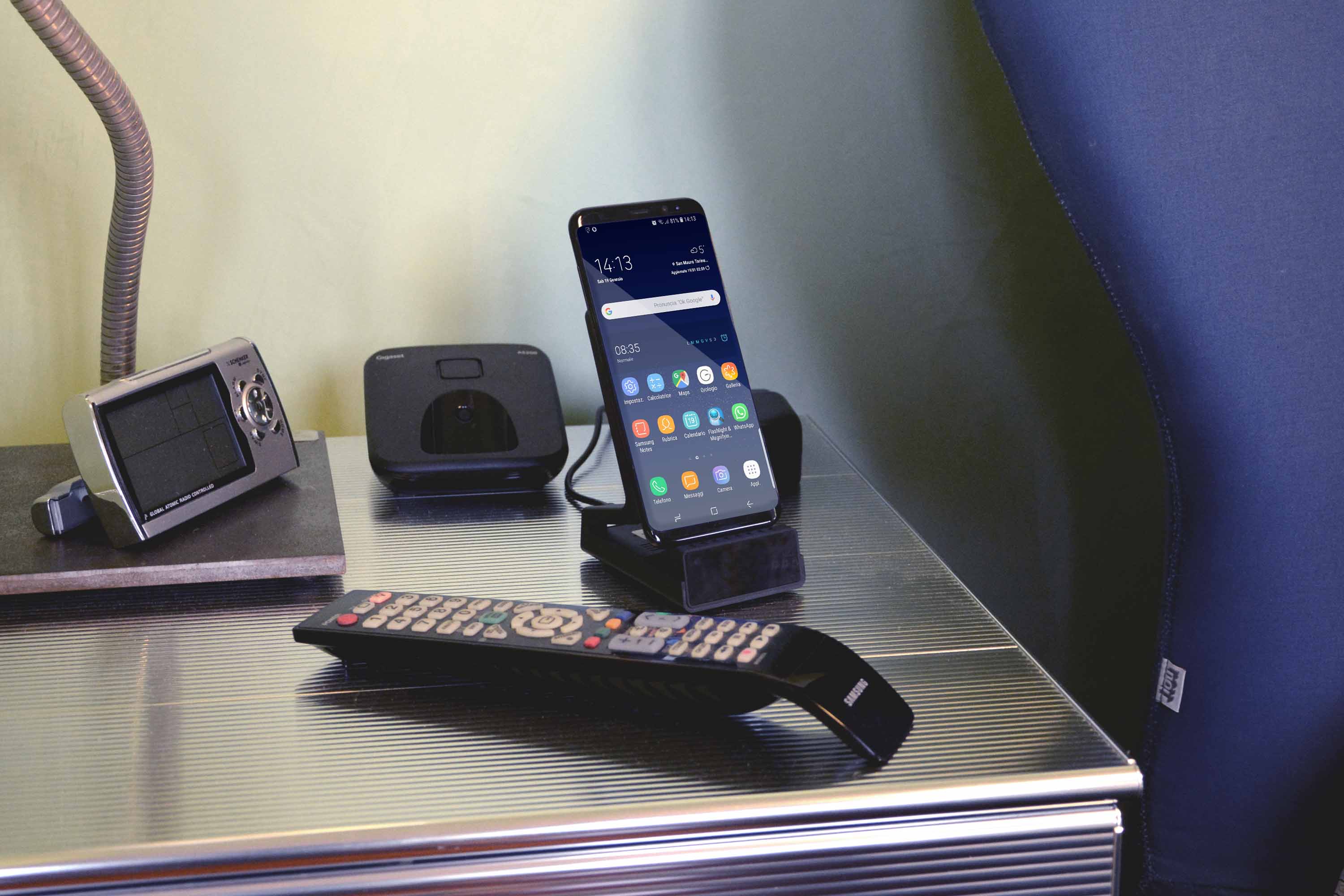

To make a perfect hidden camera, you have to choose a good position for your mobile charging base. With this type of camera it's very easy because you can point it in any direction. Only a few other spy cameras in our range are as easy to move as this one. Nobody will notice the presence of this object because it is absolutely suitable for every environment. You can leave it at home, at the office or in your shop without arousing any suspicion.


Connect the camera to your WiFi network

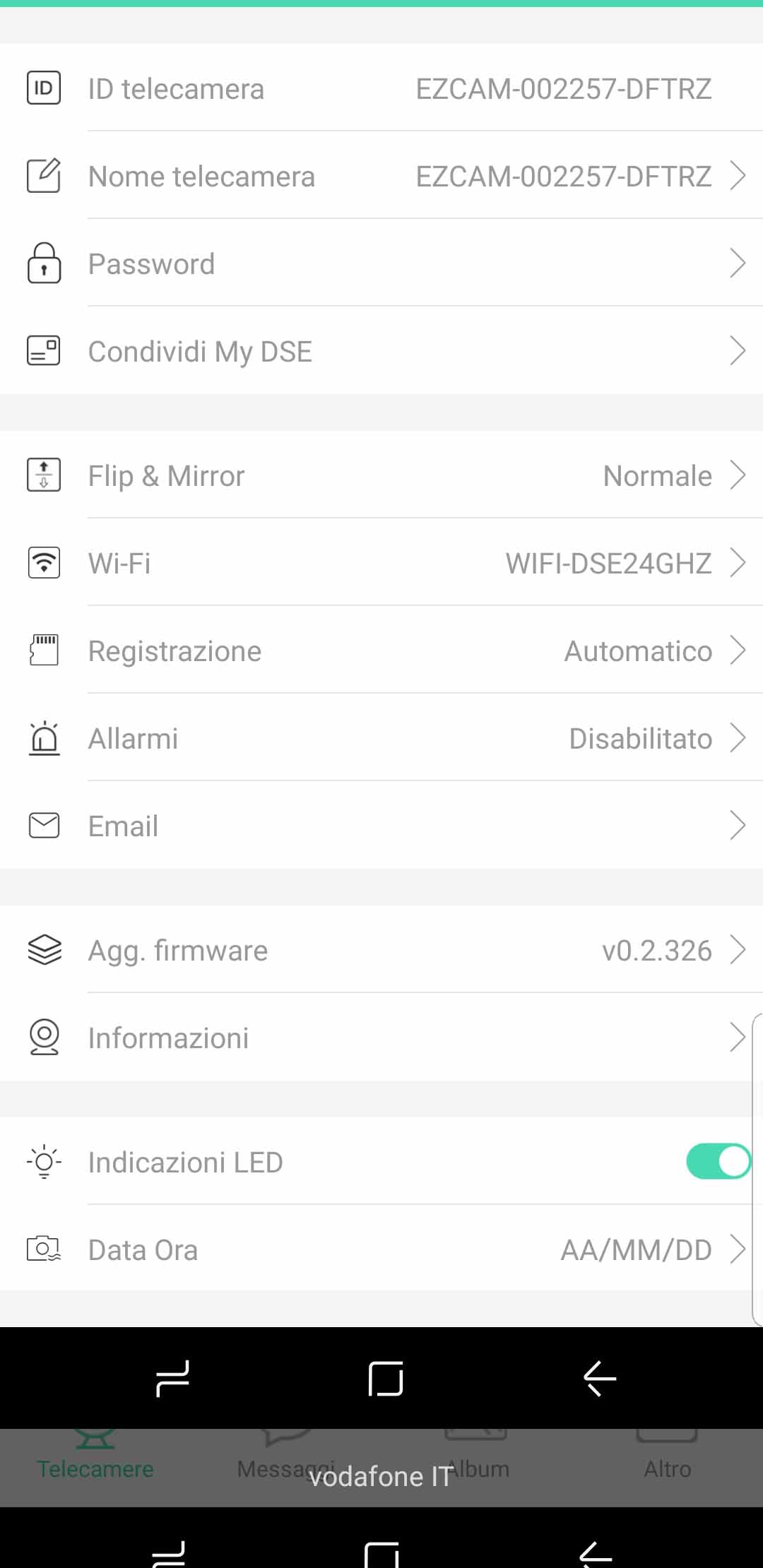

These cameras come with WiFi. You will have great advantages if you connect them to your home WiFi network. It's easy to do with our app and it allows you to control your camera through the Internet, wherever you are. Thanks to our free P2P cloud server , you do not need to configure anything in your router. On first use, you are asked to set a secret password to protect your privacy. With our app you can watch and listen in real time, playback your video footage and even receive real-time push notifications if an intrusion occurs.


TECHNICAL DATA



CODE DK-AL4EZ
Description Camera in mobile phone dock charger with SD and WiFi
Type Control with Smartphone
CAMERA
Maximum resolution 1.3MP HD 960P
Optical sensor 1/3" CMOS ON AR0130
Chipset HD3518
Video resolutions 1280x960 @ 25 f/s
Video compression H264 Dual
Infrared illuminator 2 invisible LEDs (940 nm) 10 m. range
ICR
Lens 3.7 mm (70°) flat pin-hole lens
Focus Fixed
Shutter 1/25...1/12000
S/N ratio Over 50dB
Video files format MOV 5/10/15 minutes
SET UP
LAN port
Wi-Fi 802.11 b/g/n 2.4GHz (AP or Client mode)
USB port Micro USB for power supply
Audio microphone
Audio speaker
SD card slot Max. 128GB Class 10 or higher
TV CVBS output
POWER SUPPLY
Standard battery
Recording on mains power
FUNCTIONS
Recording mode Continuous, Motion, Time scheduler
Automatic overwrite Yes (excludable)
Camera control Smartphone/Tablet via WiFi
Protocols TCP/IP HTTP FTP DHCP DNS DDNS RTP RTSP NTP SMTP
Onvif
P2P
Browser
Smartphone Free APP for iOS Android
Multi streaming
Saving on web cloud
Mirror
Corridor
Overlays Date and Time (excludable)
BLC
AWB
DNR
WDR
Anti fog
HSBLC
Starlight
Motion detection
Privacy mask
Anti tampering
Alarm actions Start recording, Email, Push notifications
Time-Lapse snapshots
GENERAL
Casing Fully working wireless charging base
Protection degree IP40
Operating temperature -5°C +40°C RH95% Max
Power supply 220V AC
Power consumption Max. 400mA
Overall dimensions 95x65x124 mm
Weight 142 gr.

QUESTIONS & ANSWERS


What is included?

CAMERA
USB CABLE
SD CARD READER
USB POWER ADAPTER
APP
MANUALS

What is not included?

Cameras record on MicroSD card. The micro SD card is not included. On our website you can buy a perfectly compatible micro SD card of the capacity you prefer. Check the maximum memory size supported by the camera in the technical data table above.
