FAKE DETECTOR CAMERAS


DK-SF2-TUY

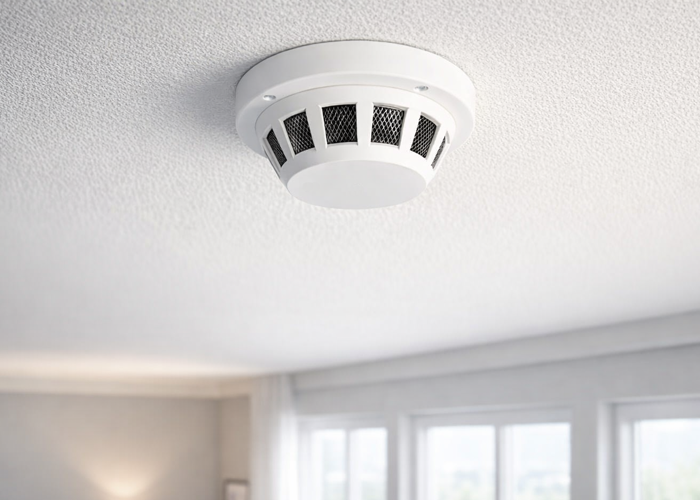

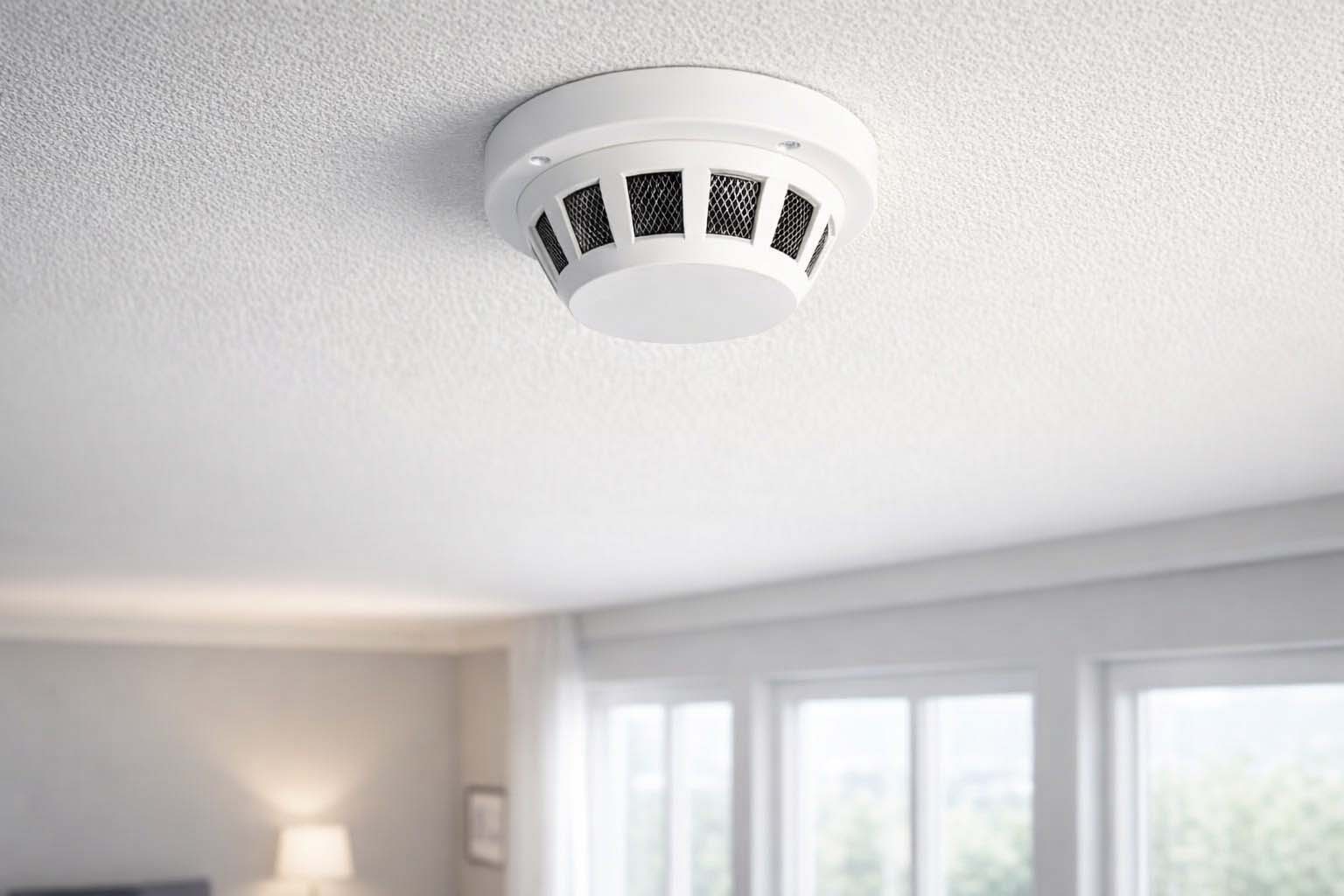

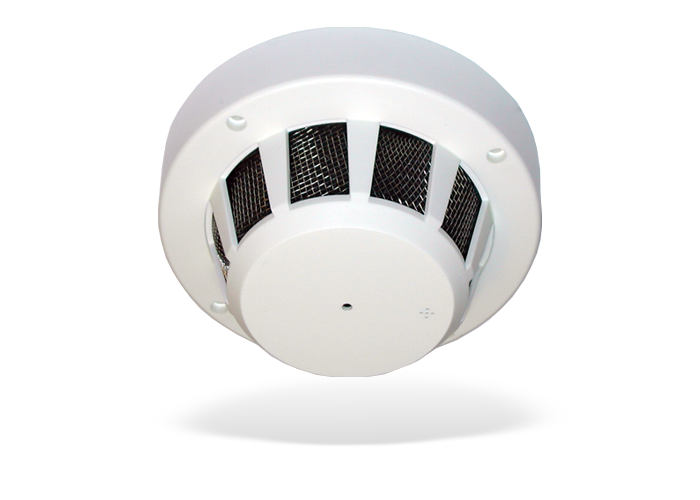

Camera in fire detector

6MP TUYA App

Smoke detector camera with SD card. WiFi control via Internet.

Pin-hole lens 90° Micro SD card slot up to 128GB 500-hour video file storage on SD card of maximum capacity Motion detection Recording also with mains power adapter Wi-Fi for mobile control with app Free P2P Cloud Server for Internet Control Free App

DK-PIR1-TUY

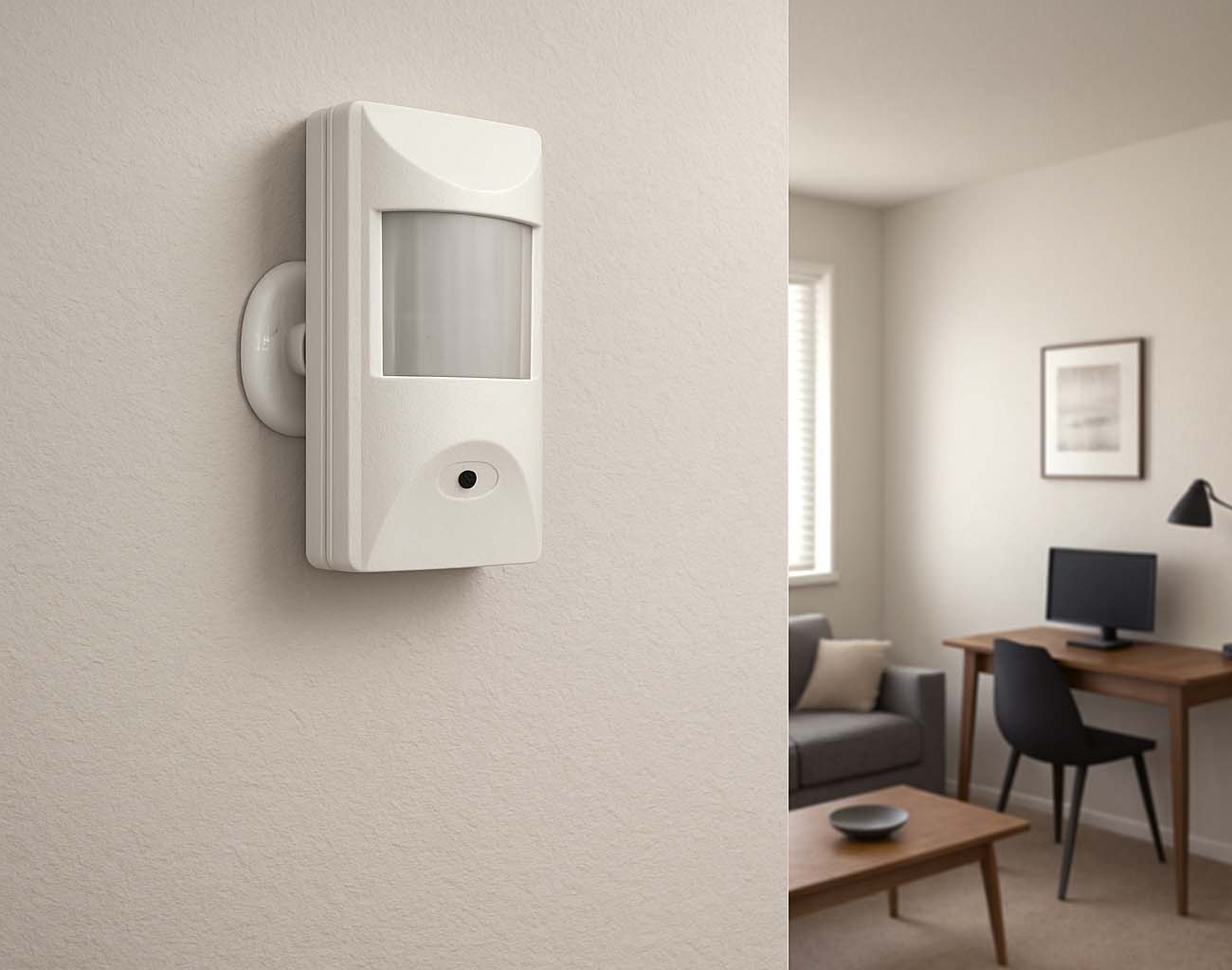

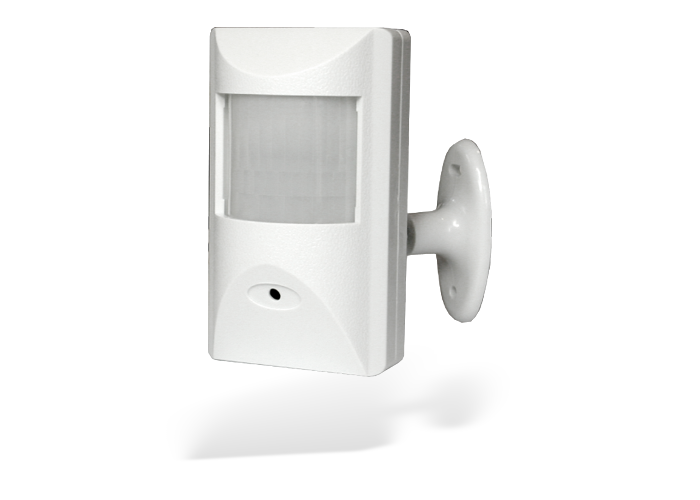

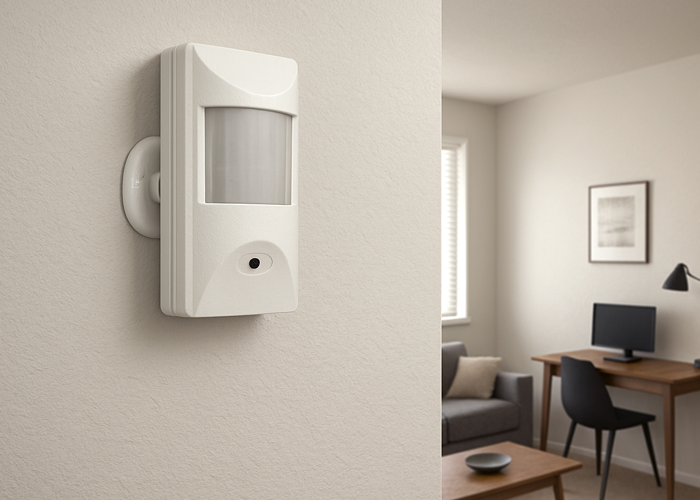

Telecamera nascosta in alimentatore

4MP TUYA App

Intruder detector camera with SD card, Audio, IR illuminator. WiFi control via Internet.

Pin-hole lens 90° Micro SD card slot up to 128GB 500-hour video file storage on SD card of maximum capacity Built-in microphone for audio Built-in speaker for audio 2-ways audio 10 m. IR illuminator Motion detection Recording also with mains power adapter Wi-Fi for mobile control with app Free P2P Cloud Server for Internet Control Free App

SPYCAM FOR HOME AND OFFICE


The fire/intruder detector camera

These WiFi spy cameras are hidden inside fake security sensors, similar to those commonly used in homes or businesses. You can choose between the fake smoke detector, designed for ceiling installation, and the fake motion sensor, intended for wall mounting. These hidden cameras can record video and audio onto a memory card inserted inside. They work connected to your home WiFi, allowing you to access them anytime via your smartphone and receive notifications.

VIDEO AND AUDIO


Up to 6MP high video resolution

These hidden investigation cameras deliver a video resolution of 4MP or 6MP at 25 fps, on par with our top-of-the-line video surveillance cameras. Keep in mind that 2MP resolution—also known as 1080P or Full HD (1920×1080 pixels)—is the current standard for high-definition digital TV. The video resolution of these models is higher than that offered by most of our other spy cameras, resulting in greater detail, especially when zooming in.


High brightness pin-hole lens

These mini cameras are equipped with a high-brightness hidden pinhole lens, perfectly concealed within the standard appearance of the sensor. This type of disguise allows the use of slightly larger and brighter lenses compared to those used in our other spycams. As a result, these sensor-concealed hidden cameras deliver the highest image quality for covert recording. All models allow the camera angle to be adjusted to perfectly frame the room.


Invisible IR and Audio

(DK-PIR1-TUY only)

Only the alarm-sensor models are equipped with invisible infrared LEDs for night vision in complete darkness. Thanks to the IR LEDs, the camera is able to record clearly in total darkness, up to a distance of 10 meters. This is a feature that is very rarely found in investigative cameras of this kind. The IR LEDs automatically activate as light levels drop and remain completely invisible, even when observed up close. These alarm-sensor models are also equipped with two-way audio.

VIDEO RECORDING


Storage on SD card with H265 compression

The spy micro cameras in this range record video footage onto a removable internal Micro SD memory card. The Micro SD card is not included. To use these cameras, you must purchase a separate Micro SD card with a capacity up to the maximum supported by the camera. Thanks to H.265 video compression, you can store many hours of recorded footage. Video files are stored in encrypted format and can only be played back and downloaded in MP4 via the dedicated app.

DK-SF2-TUY DK-PIR1-TUY
SD max. 128GB 128GB
Max. video storage 500 hours 500 hours

Motion detection

These cameras support 3 recording modes: continuous, timer and motion detection. In CONTINUOUS mode the camera records 24/7. Once the memory is full the oldest files are automatically overwritten. In TIMER mode the device start recording automatically at a certain time fo the day. These cameras also support the MOTION DETECTION function which allows you to record only if there is movement in front of the lens. It is a very convenient function to avoid wasting precious memory space by recording irrelevant scenes.

POWER SUPPLY

Mains power supply

These cameras are designed to operate using a constant power supply, with an adapter that must remain plugged in (not included). This allows the camera to stay operational 24/7, just like a real CCTV surveillance system. These mains powered cameras are an excellent solution for equipping your premises with hidden surveillance that is always active and easy to set up.

DK-SF2-TUY DK-PIR1-TUY
Power adapter 12VDC 12VDC
Adapter included No No

REMOTE CONTROL

SmartLife, the Internet Of Things mobile app

These hidden cameras are equipped with a Wi-Fi transmitter for Smartphone control. You can connect the camera to your home Wi-Fi network and control your spy camera over the Internet with the free P2P cloud server. These cameras support the powerfull Smartlife app by Tuya, the popular app for domotics that we also use for all our smarthome products. With the APP you can WATCH AND HEAR in real time. You can RECORD and take pictures. You can even PLAYBACK AND DOWNLOAD your footage. If you enable Motion Detection you can RECEIVE real time push notification on your mobile phone all the time that an intrusion occurs. On models with audio, the app also enables TWO-WAY COMMUNICATION with anyone near the camera.

Free app for iOS or Android Real time live view Playback Listen-in 2-ways audio PTZ motor camera control Push notifications Cloud P2P Smartlife Smartlife Powered by Tuya

EASY TO INSTALL

Based on TUYA platform

All products in this range are based on TUYA home automation platform and its IOT app Smart-Life which is very popular all over the world. With this system you can fully automate your home , simply by purchasing devices and connecting them to your WiFi in a matter of seconds. Supervise your properties with our 220V cameras or battery cameras; control your lights, pumps, irrigation with our remote controls or interact with people with our intercoms. Our Smart Home devices are wireless, easy to install and really inexpensive.


Connect to your WiFi without PC

Unlike our Onvif cameras for CCTV systems, these cameras are designed to be installed without the aid of a computer and without knowing anything about networks or IP. You just need a mobile phone to connect the cameras to your home wifi in a few minutes. Download the free Smart Life app on your smartphone and show the QR code that pop up on the screen in front of the camera. In just a few easy steps your camera is ready to work via the Internet. The P2P cloud server avoid difficult router settings and support any Internet connection, even 4G or satellite.

POWERFUL TO USE

Monitor via Internet by PC

Although these home automation cameras are mainly designed for control by smartphone or tablet, you can also monitor via computer. It can be useful to comfortably control your home while you are at work. No software is required to access from a computer, just use any browser and connect to protect-eu.ismartlife.me logging in with your smartphone. All browser are supported: Chrome, Firefox or even Safari for Mac.


Save videos on Cloud

These cameras can save recorded video in the event of an intrusion on a cloud server via the web. Unlike other feature of Smaertlife, that are free, this service has an annual fee. You can playback the video recordings at any time, via app or computer. You can choose among several subscription options at a reasonable fee.


Supporting ONVIF protocol

Unlike most spy cameras you find online, our investigative cameras support not only the Tuya protocol but also the Onvif protocol. You can add them to one of our surveillance NVRs, together with standard IP cameras. This is a very important feature for professional use, as it allows you to connect these cameras to a video recorder and integrate the hidden camera into a complete CCTV system. DSE is one of the very few companies in Italy that is a member of the international ONVIF association, which brings together the leading manufacturers in the industry and sets the communication standard for IP security devices.


Hardwired cabling option

Like all devices based on the Tuya platform, these cameras are designed to operate primarily via a Wi-Fi connection. However, they also feature a wired RJ45 network port, which can be used by enabling the ONVIF protocol in the settings. Unlike our other spy and smart home cameras, when using a wired connection you can also manage the camera via a web browser or with an RTSP client such as VLC within your local network.

TIPS


Make a perfect hidden camera

To make an effective covert shot, you need to choose a favorable position for your camera. By their nature, these cameras are hung to the ceiling by screws or by means of the sticker included. The lens angle can be adjusted to get full coverage of the room. These spycams are absolutely unsuspected objects that normally do not draw attention.


Check your WiFi coverage

To choose the best place for your wifi camera you must first check the coverage of your WiFi signal. In fact, these devices must connect to your WiFi network in order to work. You can easily check the coverage of your wifi network with your mobile phone just checking the available signal where you want to install the device. If you can surf the Internet smoothly with your phone, then the signal is good for your smart home device. In general, a normal WiFi Hot Spot, such as your Internet router, allows you to reach devices up to 3 or 4 rooms away. If your WiFi does not cover the area where you would like to install the device, you can extend your WiFi network by installing additional Hot Spots or WiFi repeaters.

TECHNICAL DATA


CODE DK-SF2-TUY DK-PIR1-TUY
Description Smoke detector camera with SD and WiFi Intruder detector camera with SD and WiFi
Type Mains power - Tuya-based Mains power - Tuya-based
CAMERA
Maximum resolution 6MP 4MP
Optical sensor CMOS CMOS
Video resolution 3200x1800 2880x1616 2560x1440 2304x1296 1920x1080 1280x720 @ 25 f/s 2560x1440 2304x1296 1920x1080 1280x720 @ 25 f/s
Video compression H264 H265 H264 H265
Infrared illuminator 940nm invisible IR LED 10 m. range
ICR
Lens Low lux minilens 90° Low lux minilens 90°
Focus Fixed Fixed
Rotating motor lens
Video files format Tuya (Export to MP4 via app) Tuya (Export to MP4 via app)
Video storage About 500 hours on 128GB @ 6MP About 500 hours on 128GB @ 4MP
HARDWARE SETUP
Network port RJ45 RJ45
Wi-Fi 802.11 b/g/n 2.4GHz 802.11 b/g/n 2.4GHz
USB port
Audio microphone
Audio speaker
SD card slot Max. 128GB Class 10 or superior Max. 128GB Class 10 or superior
TV CVBS output
POWER SUPPLY
Standard battery
Mains power supply 12VDC adapter not included 12VDC adapter not included
FUNCTIONS
Recording mode Continuous, Motion, Scheduler Continuous, Motion, Scheduler
Automatic overwrite Yes Yes
Camera control Smartphone/Tablet/PC via WiFi/Ethernet Smartphone/Tablet/PC via WiFi/Ethernet
Protocols Tuya Tuya
Onvif
P2P
Browser Via Tuya cloud and local GUI Via Tuya cloud and local GUI
Smartphone Free APP Tuya SmartLife for iOS Android Free APP Tuya SmartLife for iOS Android
Multi streaming
Saving on the web cloud Optional Optional
Mirror Horizontal and vertical Horizontal and vertical
Corridor
Overlays Date and Time (excludable) Date and Time (excludable)
BLC
AWB
DNR
WDR
Anti fog
HSBLC
Starlight
Motion detection
Privacy mask
Anti tampering
Alarm actions Start recording, Push notifications on mobile Start recording, Push notifications on mobile
Sending Time-Lapse photos
GENERAL DATA
Casing False fire detector False intruder detector
Degree of protection IP40 IP40
Operating temperature -5°C +40°C RH95% Max -5°C +40°C RH95% Max
Supply 12VDC (220V AC adaptor not included) 12VDC (220V AC adaptor not included)
Power consumption Max. 3W Max. 3W
Overall dimension 121(D)x58 mm 70x120x48 mm
Weight 102 gr. 176 gr.

QUESTIONS & ANSWERS


What is included?

DK-SF2-TUY

APP
USER MANUAL

What is not included?

Cameras record on MicroSD card. The micro SD card is not included. You can buy in our price list a perfectly compatible micro SD card of the capacity you prefer. Check the maximum memory size supported by the camera in the technical data table above. These cameras also need a 12VDC power adaptor that you can find among our power supply units

What's the price

Find all prices in our e-commerce portal CCTVSTOREPRO.COM.
