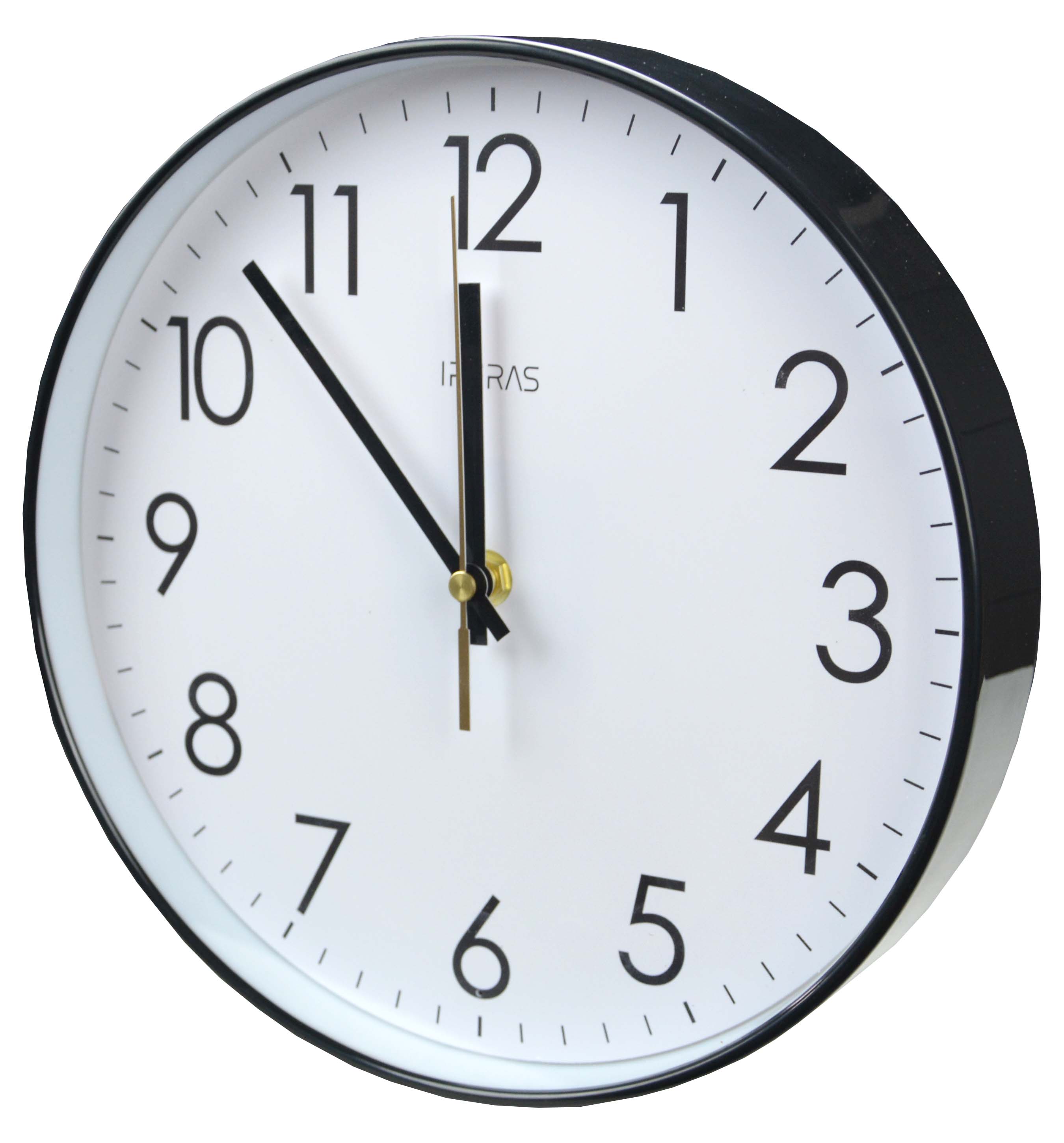

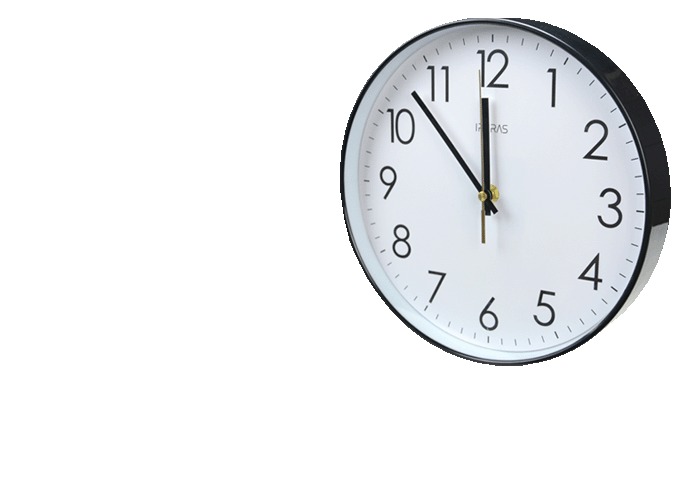

WALL CLOCK SPYCAMS


DK-WP1-TUY

CAMERA WITH SD CARD + WIFI

Hidden camera in power adapter

3MP TUYA App

Wall clock camera with SD card and WiFi for control via Internet.

Pin-hole lens 110° Micro SD card slot up to 128GB 300-hour video file storage on SD card of maximum capacity Built-in microphone for audio Built-in speaker for audio 2-ways audio Motion detection Rechargeable battery with 6 hours time Wi-Fi for mobile control with app Free P2P Cloud Server for Internet Control Free App

DK-WP4-DVR

CAMERA WITH SD CARD (NO WIFI)

Hidden camera in wall clock

2MP

Camera hidden in wall clock with SD card (no WiFi). With PIR for long battery life.

Pin-hole lens 110° Micro SD card slot up to 128GB 19-hour video file storage on SD card of maximum capacity Built-in microphone for audio Motion detection PIR Recording on mains power supply Rechargeable battery with 120 days standby time

WALL MOUNTING SPYCAMS


The hidden clock cameras

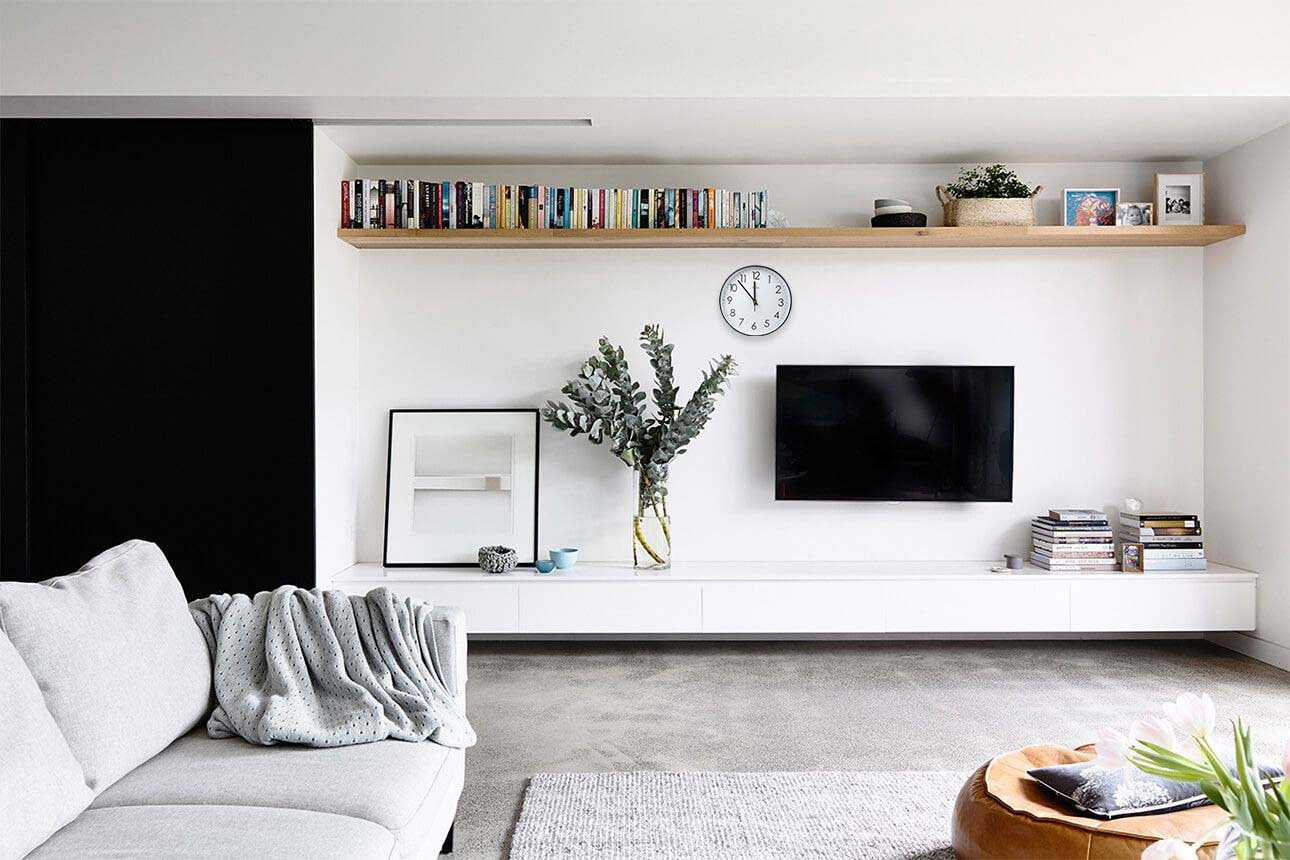

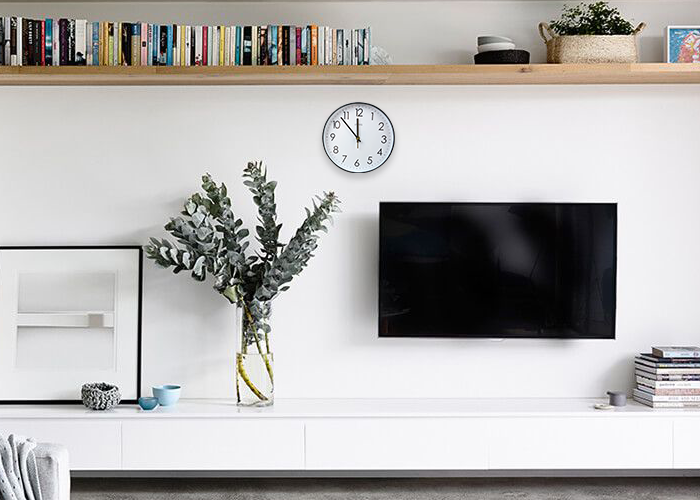

These investigative cameras are hidden inside ordinary wall clocks. You can choose between two versions: with or without Wi-Fi for remote access. Since they need to be mounted on a wall, these cameras are powered by an internal battery. Hidden in such a common object and fully functional as clocks, they are ideal for discreetly monitoring an entire room, at home or in the office, without raising suspicion.

CAMERA DK-WP1-TUY DK-WP4-DVR
Object Wall clock Wall clock
Working Yes, as a clock with AA battery Yes, as a clock with AA battery
WiFi Yes No
Battery Yes Yes with PIR for long time motion recording

VIDEO AND AUDIO


Hidden cameras Ready-To-Go

These hidden clock cameras are ready to use in just a few minutes. Insert a micro SD card into the slot, charge the battery, and your hidden video surveillance system is ready to be hanged to the wall. The Wi-Fi models easily connect to your home Wi-Fi and can be controlled remotely via the powerful Tuya Smartlife smart home app. If you don't need app control and only want to record, it's better to choose the non-Wi-Fi models, which can record for many days by activating only when someone passes by.


Invisibile lens and audio

These mini cameras are equipped with a wide-angle lens with an approximate 110° field of view, ideal for covering the entire room. We use professional pinhole lenses that allow for a recording hole of just 1 mm, virtually invisible from the outside. The lens records frontally and cannot be tilted.
The camera also features a high-sensitivity microphone for recording ambient audio. The Wi-Fi models, even come with a built-in speaker that you can use to speak through the app with anyone near the camera.


Up to 3MP video resolution

These hidden investigative cameras provide video resolution of 2-3MP at 25 fps (2304x1296 pixels), which is higher than most bigger security cameras. The footage offers exceptional sharpness and detail, especially considering that the current standard for high-definition digital TV is 2MP (1080P or Full HD – 1920x1080 pixels). Very few other investigative cameras on the market today offer this level of video quality. These models do not have a built-in illuminator and can record in low-light conditions, but not in complete darkness. Here you can watch some demo videos recorded with our hidden cameras.

WATCH DEMO CLIPS

RECORDING


Video storage on SD card

The spy micro cameras in this range record footage onto a removable Micro SD memory card that must be inserted into the dedicated hidden slot. The Micro SD card is not included. To use these cameras, you need to purchase a Micro SD card separately, considering the maximum capacity supported by the camera. The video files saved on the SD card can be played back on a computer with an SD card reader in the non-Wi-Fi versions, while in the Wi-Fi versions, the app allows both viewing on your phone with a timeline and downloading the files.

DK-WP1-TUY DK-WP4-DVR
SD max. 128GB 128GB
Max. video storage 300H on 128GB 19H on 128GB
Playback Via APP Smarlife Via PC with SD card reader
Download Via APP Smarlife Via PC with SD card reader

Motion detection

These cameras support 3 recording modes: continuous, timer and motion detection. In CONTINUOUS mode the camera records 24/7. Once the memory is full the oldest files are automatically overwritten. In TIMER mode the device start recording automatically at a certain time of the day. These cameras also support the MOTION DETECTION function which allows you to record only if there is movement in front of the lens. It is a very convenient function to avoid wasting precious memory space by recording irrelevant scenes.

POWER SUPPLY

Battery power with PIR

These wall clock cameras are equipped with an internal 3000 mAh rechargeable battery which allows approximately 6 hours of continuous recording. Models without Wi-Fi also have a front PIR detector which allows much longer battery life. In the absence of people, these cameras work in stand-by, consuming very little battery. If an intrusion occurs, they "wake up" and start recording. In stand-by mode these camera can operate for up to 4 months. The internal battery recharges in a few hours by connecting the included power adapter.

DK-WP1-TUY DK-WP4-DVR
Battery 3000 mAh 3000 mAh with PIR
Battery life 6 hours 4 months in stand-by

220V power supply

These clock cameras normally run on battery power, since they are wall-mounted. However, if you can hang the clock above an electrical box, you can place a USB power adapter there and provide continuous power to the camera, giving it unlimited operating time. When powered by electricity, the camera can remain operational 24/7, just like a real CCTV surveillance system.

REMOTE CONTROL

* WIFI VERSIONS ONLY

Dual Band WiFi

All these spy cameras are equipped with Wi-Fi to connect to your router and be controlled remotely over the Internet. Unlike many other Wi-Fi cameras on the market, these models support both 2.4 GHz and 5 GHz Wi-Fi networks, making them compatible with any router. They also work with any type of Internet connection, including 4G and satellite. Wi-Fi network is required for the initial setup; however, the camera can still record without a Wi-Fi connection, so you can configure it in one location and then move it elsewhere for offline operation.

SmartLife, the Internet Of Things mobile app

These hidden cameras are are also available with a Wi-Fi transmitter for Smartphone control. You can connect the camera to your home Wi-Fi network and control your spy camera over the Internet with the free P2P cloud server. These cameras support the powerfull Smartlife app by Tuya, the popular app for domotics that we also use for all our smarthome products. With the APP you can WATCH AND HEAR in real time. You can RECORD and take pictures. You can even PLAYBACK AND DOWNLOAD your footage. If you enable Motion Detection you can RECEIVE real time push notification on your mobile phone all the time that an intrusion occurs. This app is also supporting 2-ways audio

Free app for iOS or Android Real time live view Playback Listen-in 2-ways audio Push notifications Cloud P2P Smartlife Smartlife Powered by Tuya

EASY TO INSTALL

Based on TUYA platform

* WIFI VERSIONS ONLY

All wifi products in this range are based on TUYA home automation platform and its powerful IOT app Smart-Life which is very popular all over the world. With this system you can fully automate your home , simply by purchasing devices and connecting them to your WiFi in a matter of seconds. Supervise your properties with our 220V cameras or battery cameras; control your lights, pumps, irrigation with our remote controls or interact with people with our intercoms or doorbells. Our Smart Home devices are wireless, easy to install and really inexpensive.


Connect to your WiFi without PC

Unlike our Onvif cameras for CCTV systems, these cameras are designed to be installed without the aid of a computer and without knowing anything about networks or IP. You just need a mobile phone to connect the cameras to your home wifi in a few minutes. In just a few easy steps in the Smartlife app, your camera will be ready to work via the Internet.

TIPS


Save videos also on Cloud

* WIFI VERSIONS ONLY

These cameras can also save recorded videos on a cloud server via the web. It's an interesting feature, if you are concerned that your cameras could be stolen by the intruders. You can playback the video recordings at any time, via app or computer. The cloud storage is an optional service, not included in the free services. You can choose among several subscription options at a reasonable fee.

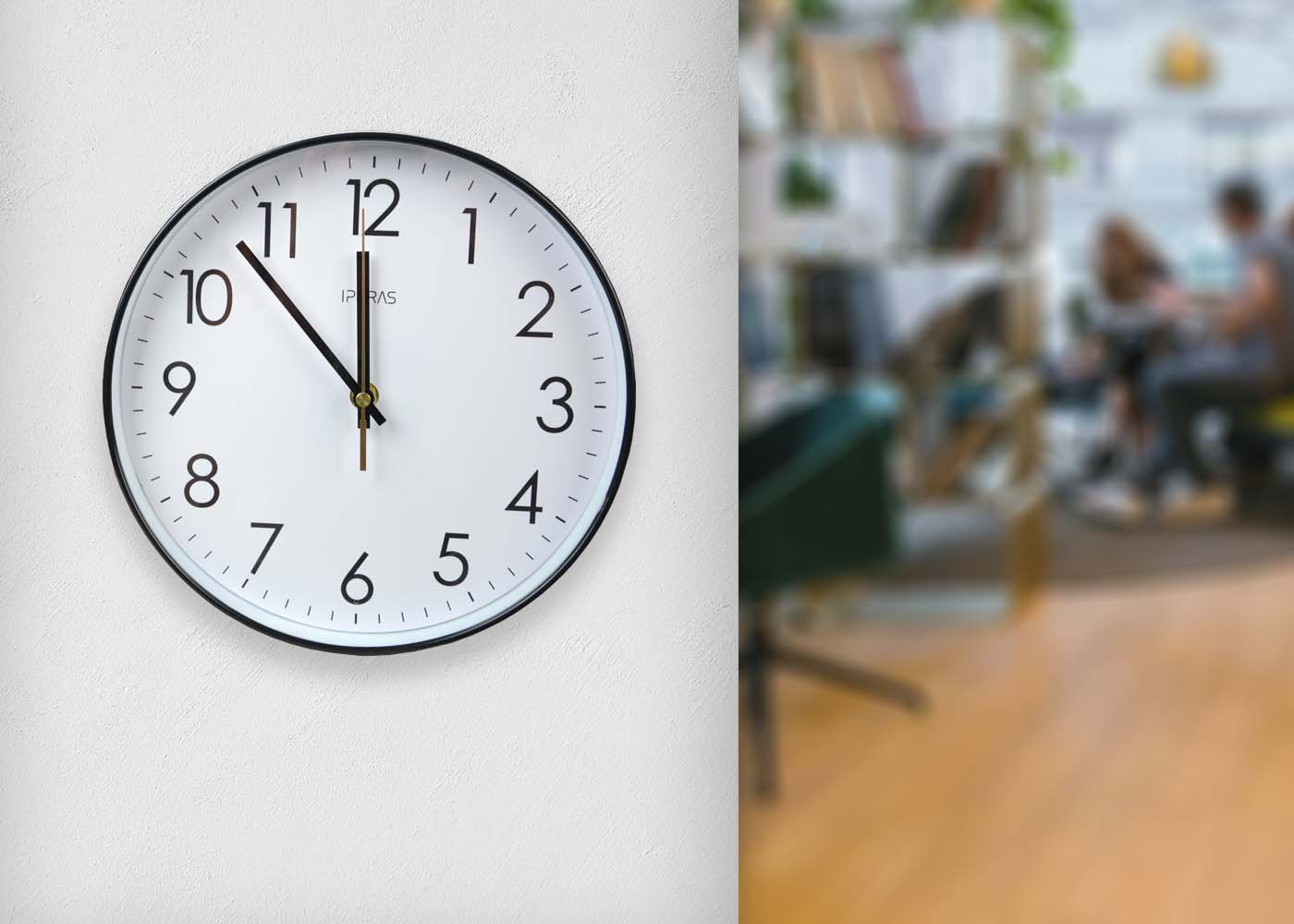

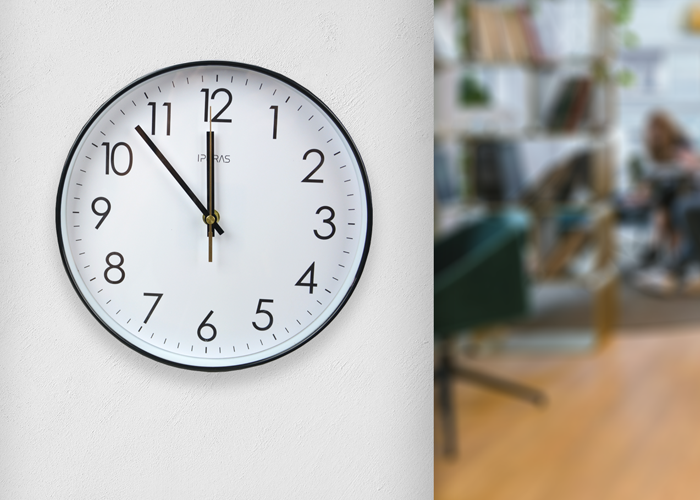

Make a perfect hidden camera

To achieve effective hidden recording, you need to choose a suitable position for your camera. By design, these devices must be hanged to a wall. Select a location that allows you to capture a good view of the room and has strong Wi-Fi coverage. The clock is fully working and the camera is invisible from the outside.


Check your WiFi coverage

To choose the best place for your wifi camera you must first check the coverage of your WiFi signal. In fact, these devices must connect to your WiFi network in order to work. You can easily check the coverage of your wifi network with your mobile phone just checking the available signal where you want to install the device. If you can surf the Internet smoothly with your phone, then the signal is good for your smart home device. In general, a normal WiFi Hot Spot, such as your Internet router, allows you to reach devices up to 3 or 4 rooms away. If your WiFi does not cover the area where you would like to install the device, you can extend your WiFi network by installing additional Hot Spots or WiFi repeaters.

TECHNICAL DATA


CODE DK-WP1-TUY DK-WP4-DVR
Description Working wall clock with SD and WiFi Working wall clock with SD without WiFi
Type Battery power - Tuya-based Battery power
CAMERA
Maximum resolution 3MP 2MP
Optical sensor 3MP CMOS 2MP CMOS
Video resolution 2304x1296 @ 25 f/s 1920x1080 @ 25 f/s
Video compression H264 Dual H264 Dual
Infrared illuminator
Lens Low lux pin-hole lens 110° Low lux pin-hole lens 110°
Focus Fixed Fixed
Rotating motor lens
Video files format Tuya, Download MP4 MOV duration 1/3/5/10 minutes
Video storage About 300 hours on 128GB @ 1080P About 19 hours on 128GB @ 1080P
HARDWARE SETUP
Network port
Wi-Fi 802.11 b/g/n 2.4GHz | 802.11 ac/a 5 GHz
USB port USB Type-C for charger Micro USB for charger
Audio microphone
Audio speaker
SD card slot Max. 128GB Class 10 or superior Max. 128GB Class 10 or superior
TV CVBS output
POWER SUPPLY
Standard battery Li-Po 3.7V 3000mAh Li-Po 3.7V 3000mAh
Battery life 6H continuous recording 6H continuous recording - 4 months stand-by with PIR
Other suitable batteries
Battery charge With power adapter included With power adapter included
Mains power supply if back box available if back box available
FUNCTIONS
Recording mode Continuous, Motion, Scheduler Motion on PIR intruder detection
Automatic overwrite Yes Yes
Camera control Smartphone/Tablet via WiFi Pushbuttons
Protocols Tuya
Onvif
P2P
Browser
Smartphone Free APP Tuya SmartLife for iOS Android
Multi streaming
Saving on the web cloud
Mirror Horizontal and vertical
Corridor
Overlays Date and Time (excludable) Date and Time (excludable)
Motion detection PIR detector
Privacy mask
Alarm actions Start recording, Push notifications on mobile Start recording
Sending Time-Lapse photos
GENERALITIES
Casing Plastic Plastic
Degree of protection IP40 IP40
Operating temperature -5°C +40°C RH95% Max -5°C +40°C RH95% Max
Power supply USB 5VDC (adapter included) USB 5VDC (adapter included)
Power consumption Max. 3W Max. 3W
Overall dimension 254x42 mm 180x35 mm
Weight 552 gr. 372 gr.

QUESTIONS & ANSWERS


What is included?

CAMERA
POWER ADAPTER
USB/POWER CABLE
APP
PC SOFTWARE
USER MANUAL

What is not included?

Cameras record on MicroSD card. The micro SD card is not included. You can buy in our price list a perfectly compatible micro SD card of the capacity you prefer. Check the maximum memory size supported by the camera in the technical data table above.
