Naked IP cameras RK range


Our IP cameras for residential market. Superb video quality with basic hardware setup. The best quality-price ratio for your IP CCTV systems with NVR.

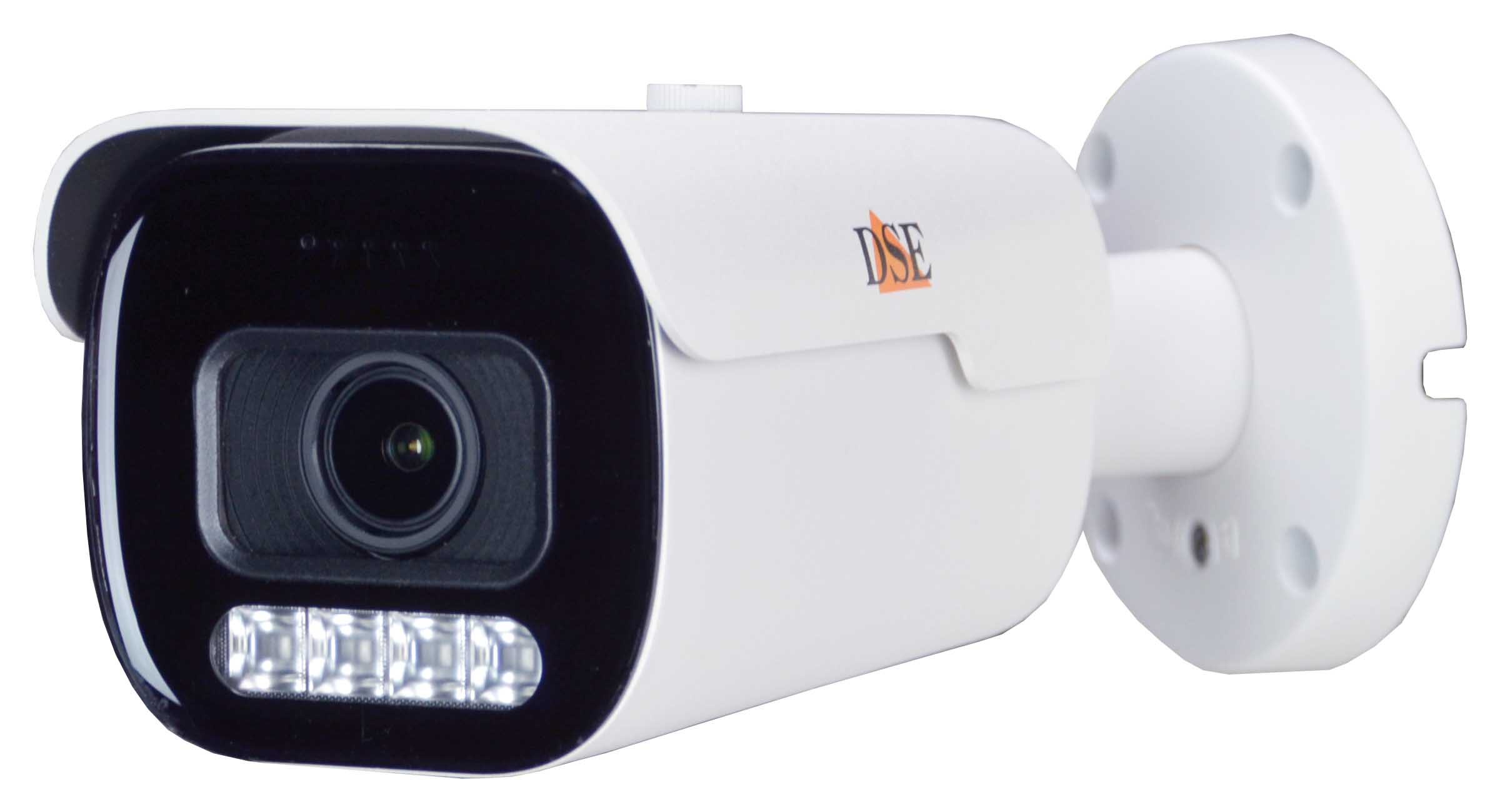

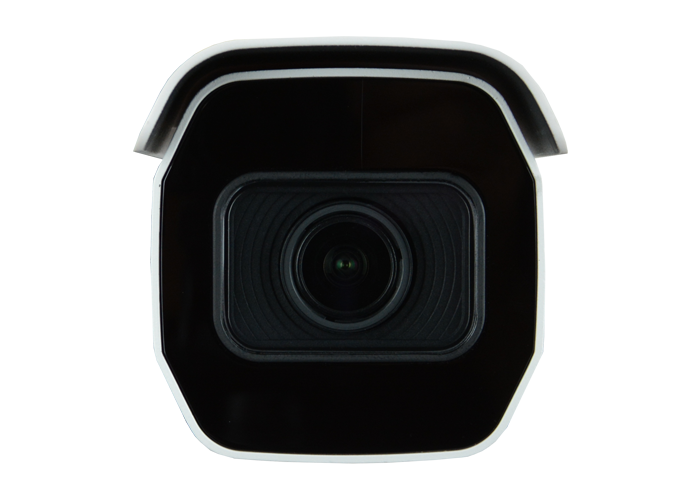

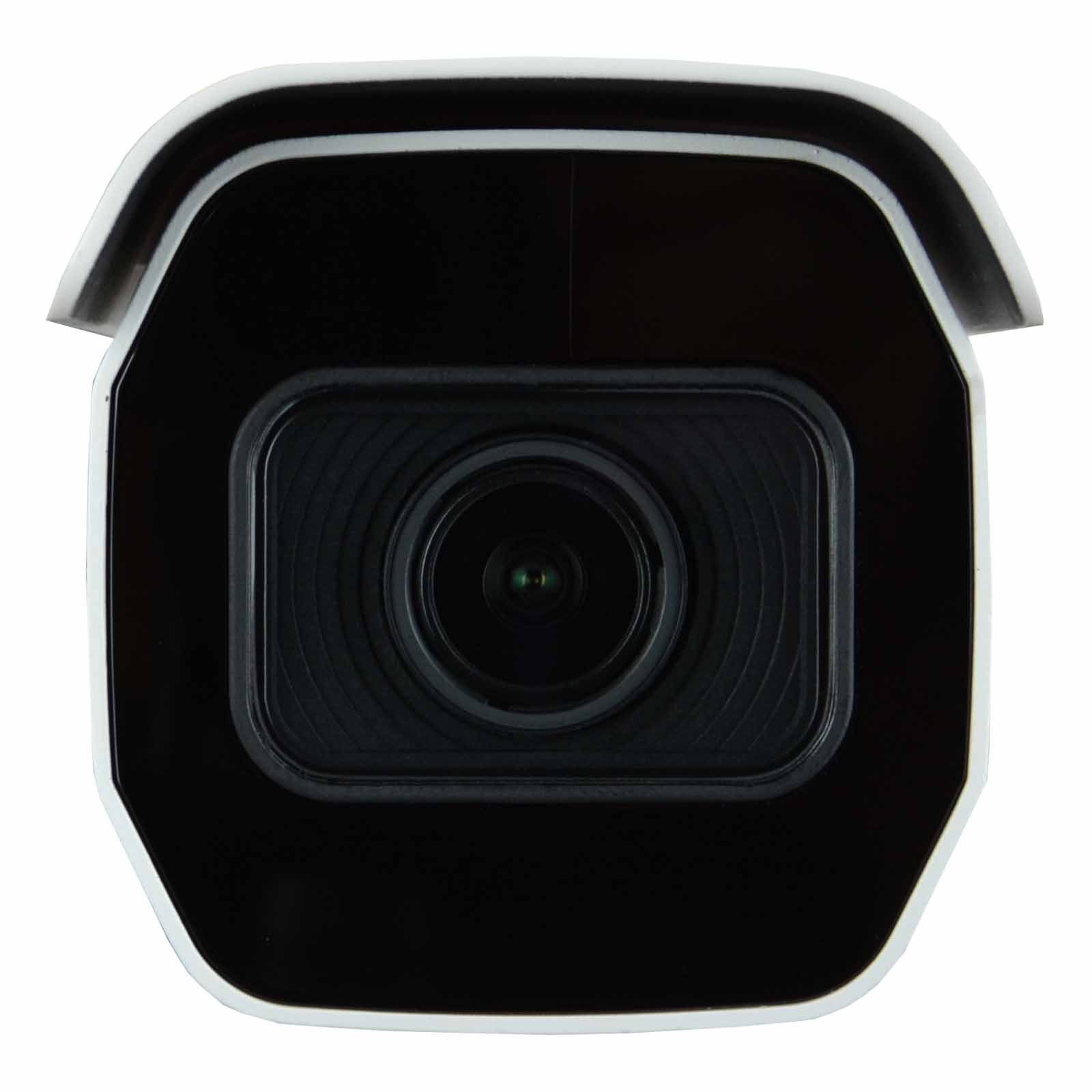

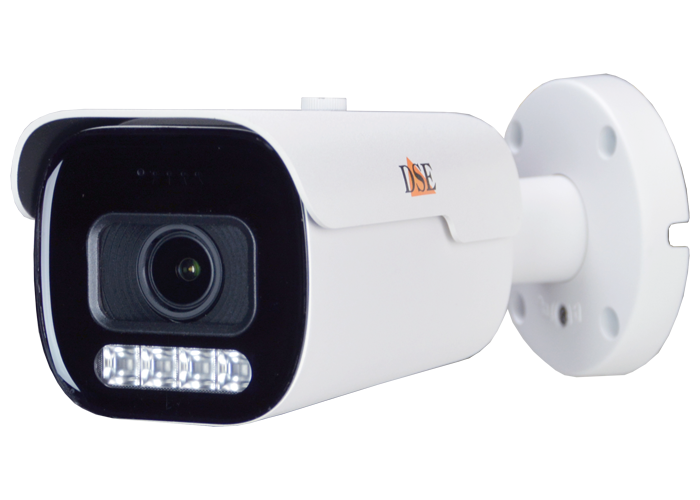

BULLET


FIXED LENS
IR 20 m.

IP camera outdoor onvif
RK-BCC2-4 4MP

Waterproof casing suitable for outdoor 20 m. Smart IR illuminator 2.8 mm. fixed lens POE or 12VDC power ICR (IR Cut-Filter Removable) H264 H265 video compression Free P2P Cloud Server Free APP for smartphone and tablet

FIXED LENS
IR 30 m.

IP camera outdoor onvif
RK-BCC2B 2MP

Waterproof casing suitable for outdoor 30 m. Smart IR illuminator 3.6 mm. fixed lens POE or 12VDC power ICR (IR Cut-Filter Removable) H264 H265 video compression SD card slot (max 128GB) Free P2P Cloud Server Free APP for smartphone and tablet

VARIFOCAL LENS
IR 40 m.

IP camera outdoor onvif
RK-BCC5B 2MP
RK-BCC5B-4 4MP

Waterproof casing suitable for outdoor 40 m. Smart IR illuminator 2.8-12 mm manual varifocal lens POE or 12VDC power ICR (IR Cut-Filter Removable) H264 H265 video compression SD card slot (max 128GB) Free P2P Cloud Server Free APP for smartphone and tablet

VARIFOCAL LENS
IR 60 m.

IP camera outdoor onvif
RK-BCC6B 2MP
RK-BCC6B-4 4MP

Waterproof casing suitable for outdoor 60 m. Smart IR illuminator 2.8-12 mm manual varifocal lens POE or 12VDC power ICR (IR Cut-Filter Removable) H264 H265 video compression SD card slot (max 128GB) Free P2P Cloud Server Free APP for smartphone and tablet

ZOOM MOTOR LENS
IR 60 m.

IP camera outdoor onvif zoom
RK-BCC6C-5Z 5MP

Waterproof casing suitable for outdoor 60 m. Smart IR illuminator 2.7-13.5 mm manual varifocal lens Motorized zoom lens Autofocus lens POE or 12VDC power ICR (IR Cut-Filter Removable) H264 H265 video compression SD card slot (max 128GB) Free P2P Cloud Server Free APP for smartphone and tablet

FIXED LENS IR 60 m. STARLIGHT FULL COLOR

IP camera starlight
RK-BCC6C-SL 2MP

Waterproof casing suitable for outdoor 60 m. Smart IR illuminator 6 mm. fixed lens Telecamera starlight bassa luminosità Ripresa notturna a colori POE or 12VDC power ICR (IR Cut-Filter Removable) H264 H265 video compression SD card slot (max 128GB) Free P2P Cloud Server Free APP for smartphone and tablet

FIXED LENS IR 60 m.
4K STARLIGHT

IP camera 4K
RK-BCC6C-8 8MP

Waterproof casing suitable for outdoor 60 m. Smart IR illuminator 5 mm. fixed lens Telecamera starlight bassa luminosità POE or 12VDC power ICR (IR Cut-Filter Removable) H264 H265 video compression SD card slot (max 128GB) Ingresso e uscita per audio Ingresso e uscita allarme Free P2P Cloud Server Free APP for smartphone and tablet

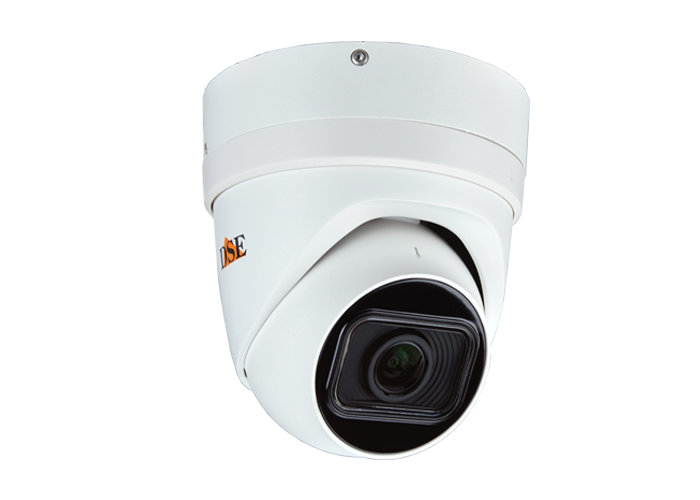

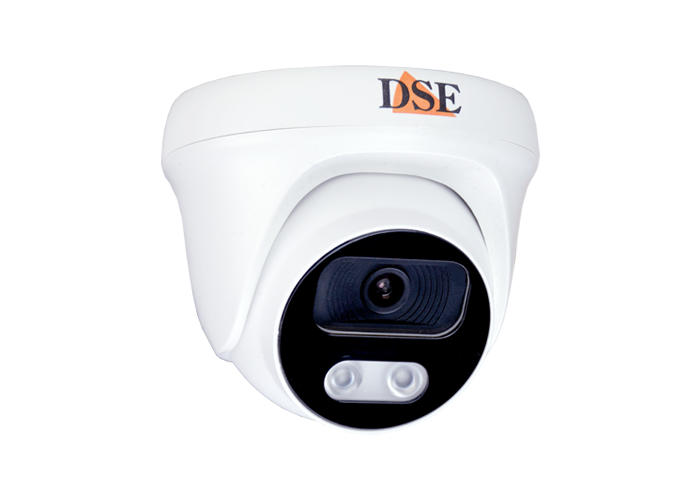

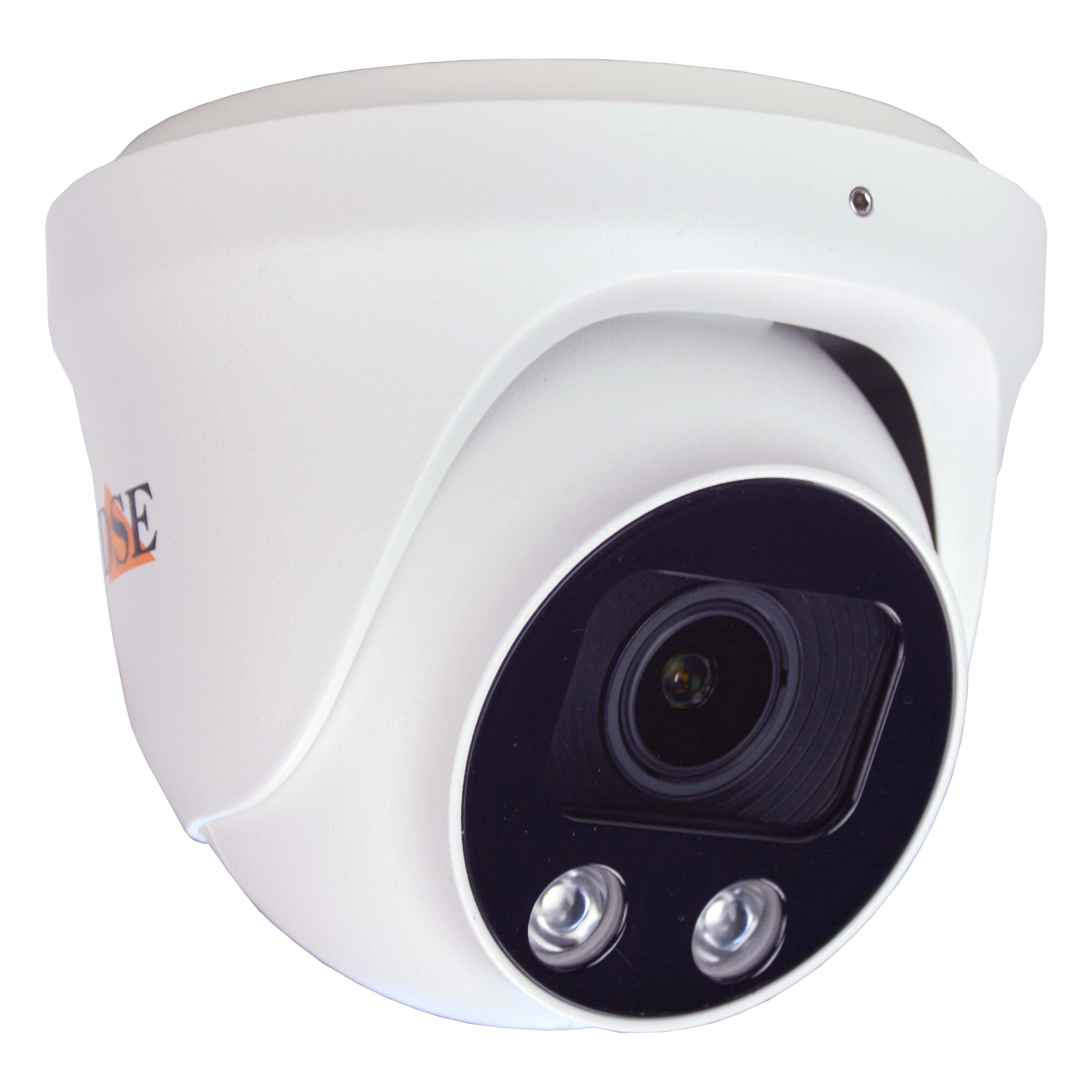

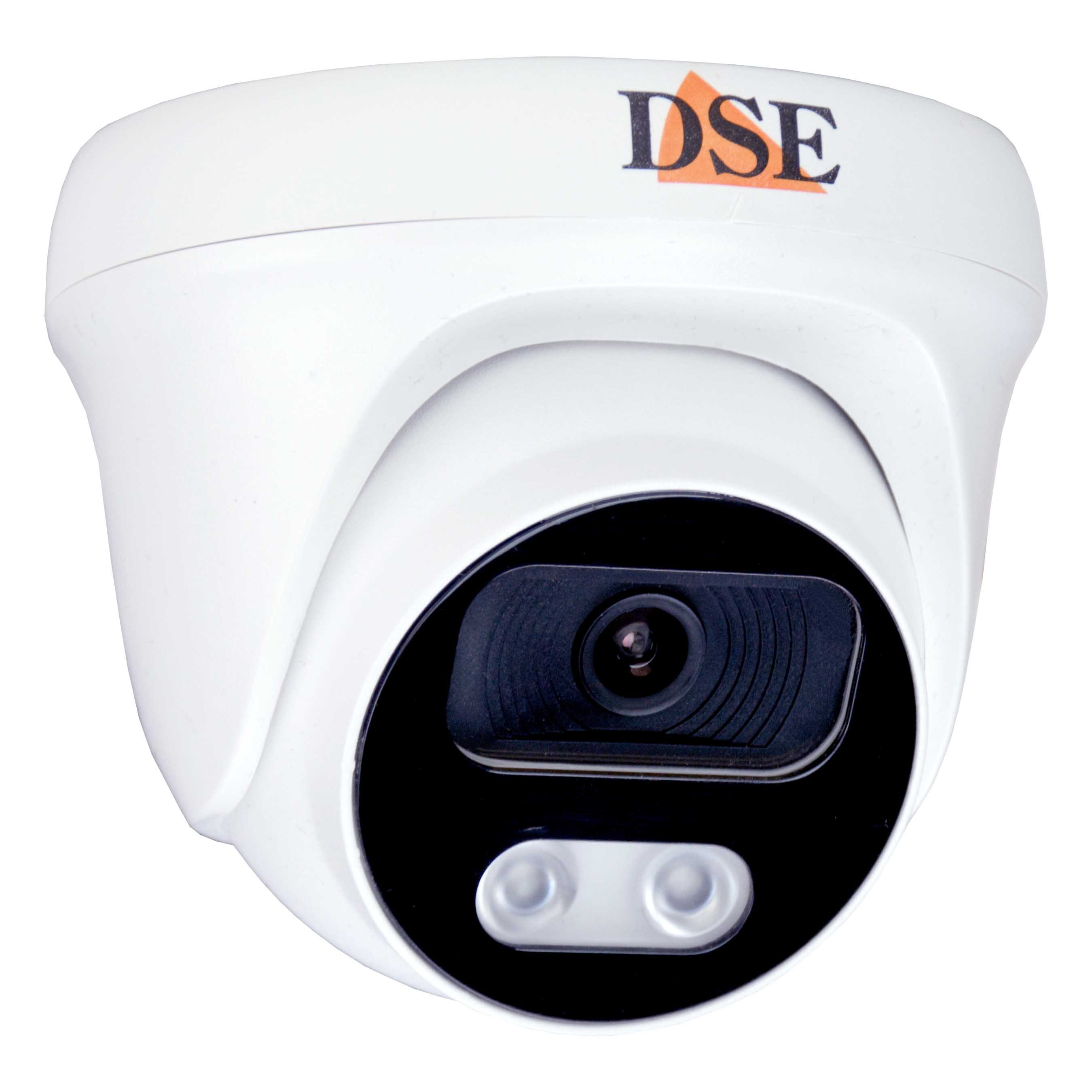

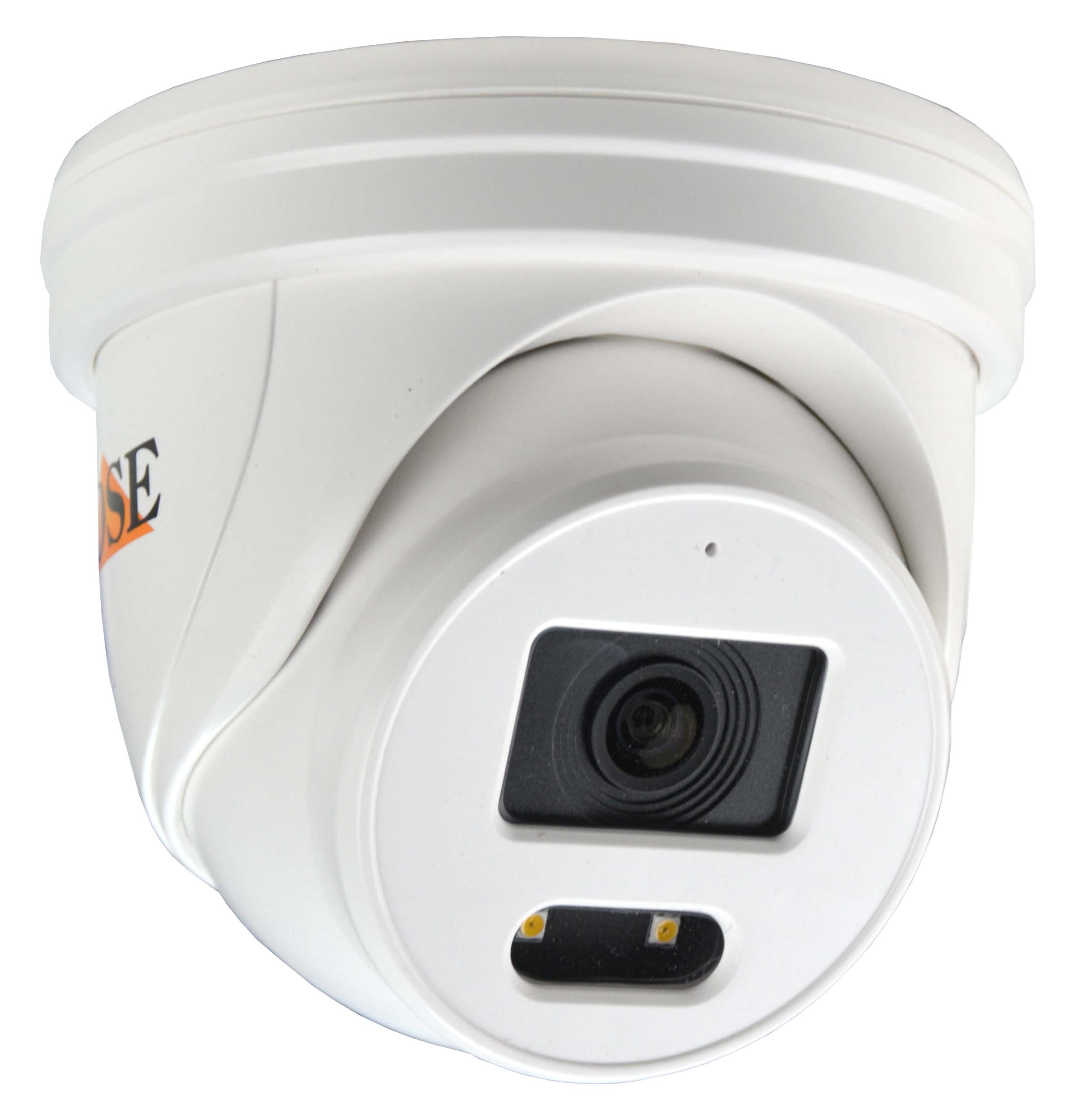

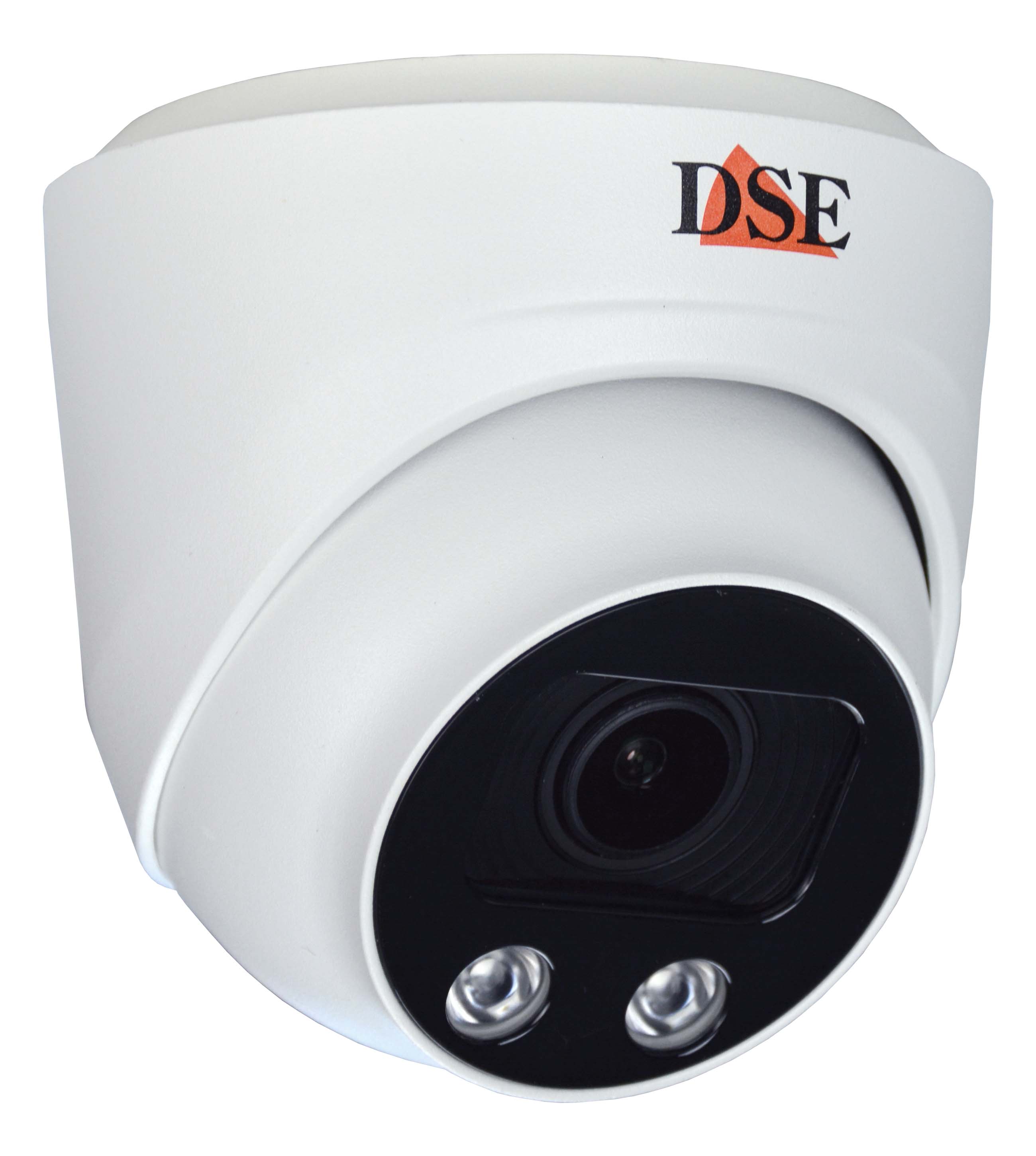

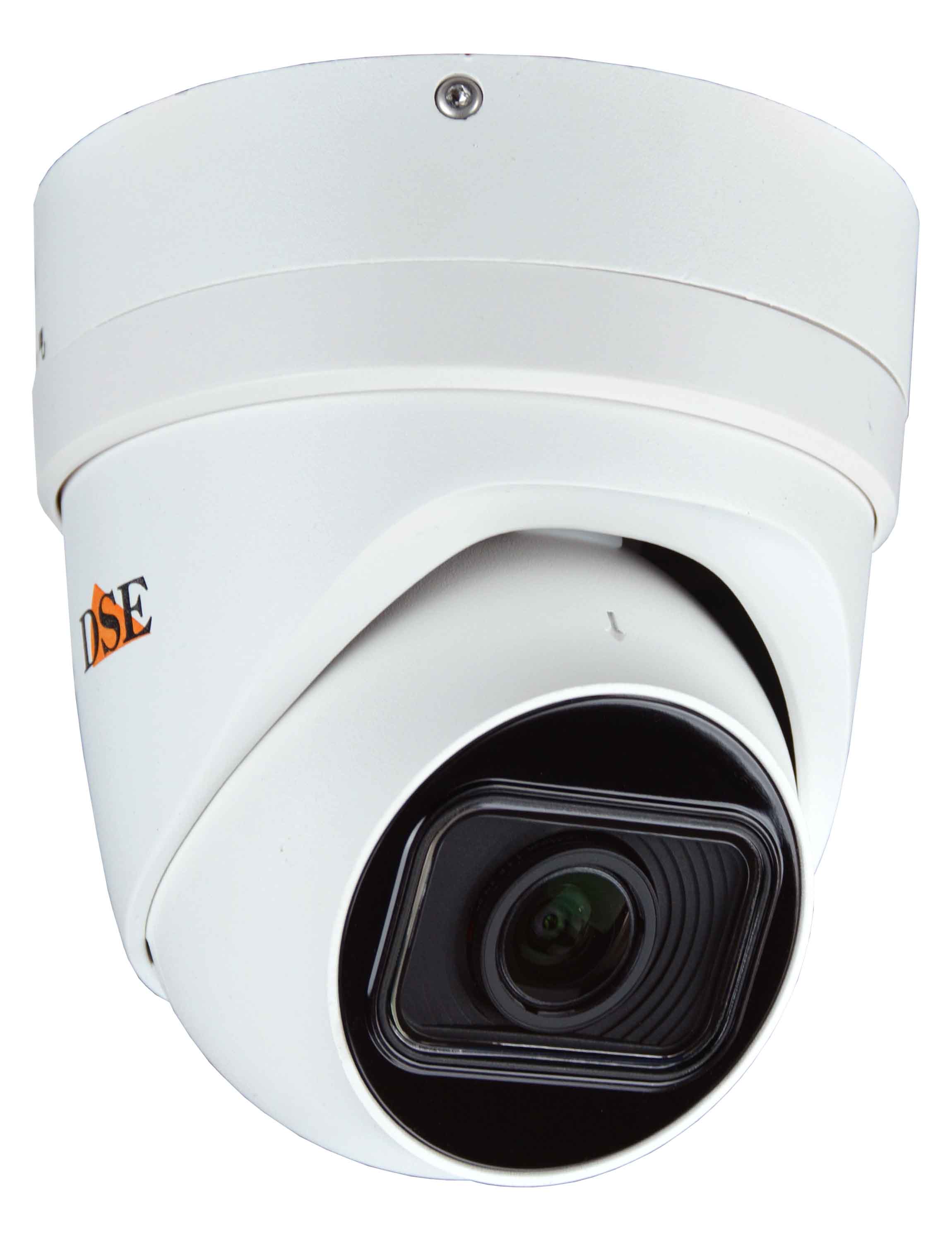

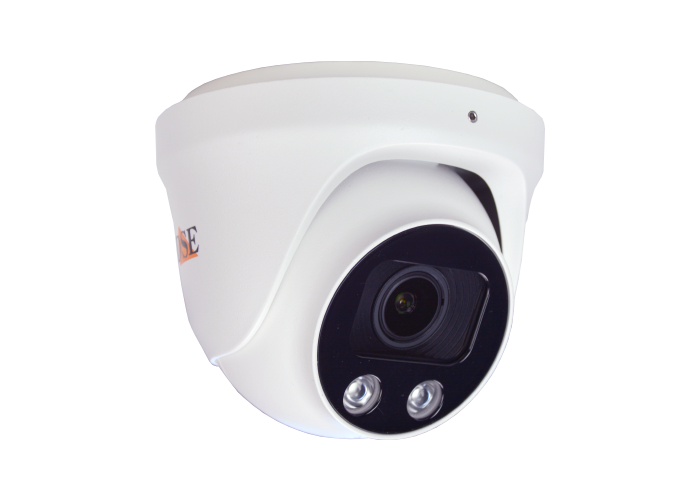

DOME


VARIFOCAL LENS
IR 30 m.

IP camera outdoor onvif
RK-DCC5 2MP
RK-DCC5-5 5MP

Waterproof casing suitable for outdoor 30 m. Smart IR illuminator 2.8-12 mm manual varifocal lens POE or 12VDC power ICR (IR Cut-Filter Removable) H264 H265 video compression Free P2P Cloud Server Free APP for smartphone and tablet

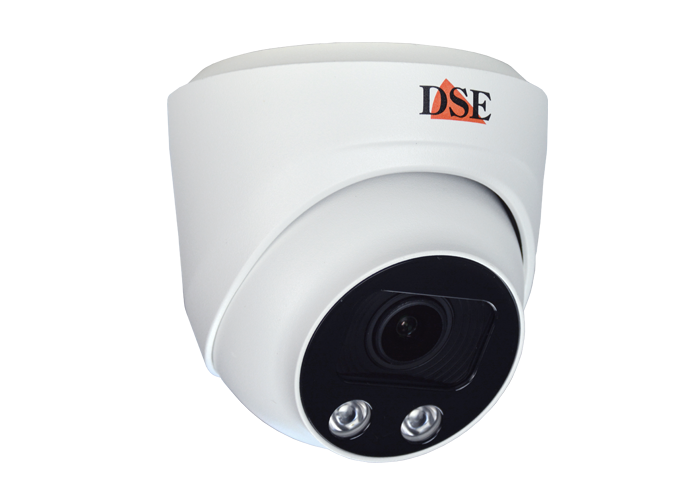

ZOOM MOTOR LENS
IR 30 m.

IP camera outdoor zoom
RK-DCC5-5Z 5MP

Waterproof casing suitable for outdoor 30 m. Smart IR illuminator 2.7-13.5 mm manual varifocal lens Motorized zoom lens Autofocus lens POE or 12VDC power ICR (IR Cut-Filter Removable) H264 H265 video compression Free P2P Cloud Server Free APP for smartphone and tablet

IP DIGITAL CCTV


IP cameras for CCTV over network

The cameras in this range are network digital cameras, also called IP cameras. With these cameras you can create a fully digital video surveillance system that works over a network. Each camera has a LAN port and an IP address, that you can set just like you do with computers or other network devices. You can monitor your cameras with PC or you can consider to purchase a network video recorder (NVR) to comfortably manage many cameras.


Change to digital. Get the benefits of IP CCTV

Compared to traditional analog technology (nowadays AHD), IP technology offers many advantages and is therefore increasingly used in CCTV systems of any size. The main advantage of IP cameras lies in the network cabling that can be branched out with switches and allows you to connect many cameras with just one cable. You can also use wireless Wi-Fi cameras to reach places that are not easy to wire. In addition, unlike analog cameras, IP cameras produce a digital video stream that is ready to be stored. For this reason NVR video recorders are efficient and inexpensive even when they have to manage high resolution cameras over 2MP. See below an example of a small IP CCTV system.


RK RANGE naked IPC: what is that?

We call these RK Series IP cameras "Naked". In our product range this term identifies cameras for residential systems, designed to provide high quality video and reliability in a compact, basic hardware with competitive price. In this Naked range you will not find the vandal-proof IK10 casings and the advanced video analysis of our RH range, which is designed for the projects market. Our naked cameras are strong, but small. They are powerful, but without the expensive advanced features, which are rarely used. These RK Series IP cameras are the best choice for residential and commercial installations, especially if you plan to manage your system with an NVR. Our Naked IP cameras are designed to provide the BEST VIDEO QUALITY AT THE BEST PRICE.

IPCam for NVR

THE VIDEO


2-4-5-8 Megapixel video resolution

The cameras in this RK series allow you to choose the best video quality in relation to your budget. You can choose among 2MP, 4MP, 5MP and 8MP resolution cameras. 2MP video resolution, also called 1080P or Full HD (1920x1080 pixels), is the current standard of high resolution digital TV and meets the needs of most security systems. If you can afford a slightly higher budget, consider our 4MP and 5 MP cameras, which provide more details while zooming-in. This range also includes a 8MP (4K) camera that you can consider for critical areas that requires the highest definition of tiny details. (DS range 4K NVR required). When designing your system you can mix different resolution cameras based on the importance of the area to monitor. Here on the side you can download a few demo movies showing the most common video resolutions.


Member of ONVIF

You can buy your IP products from us with confidence. DSE is one of the few companies in Italy that is a member of the ONVIF international association, which includes all the main IP security manufacturers and set the standard of communication protocol in this field. Our IP products, perfectly suits the latest ONVIF standard, so you can use our cameras with any NVR.


H264 H265 Video compression

The cameras in this range support H264 H265 video compression, including the latest upgrades, in order to combine high quality video stream and low bandwidth consumption. These cameras can manage 3 VIDEO STREAMING with different compression and resolution, that you can choose from the client device. The frame rate is also adjustable up to 30 frames / second (real-time). Choose the well-established H264 format for maximum compatibility with all NVRs, or use the latest H265 to increase the video storage capacity. Here on the side you can download two similar clips in H264 and H265 format: please note the different file size.


12VDC and POE power supply

All cameras in this range support POE power via the network cable (IEEE 802.3af Class 3). To make them work, all you have to do is connect one POE switch or a POE NVR using standard, 8 cores, UTP cable. This type of power supply supports up to 100 meters cabling in normal conditions. If for some reason you can not use POE power, all cameras also have a local power jack that you can connect to a 12VDC adapter. In the picture you can see the connection cable coming out of the camera, with the RJ45 network plug and the 12V auxiliary power connector.


Infrared illuminator SMART IR with ICR

To be able to work in total darkness, these cameras are equipped with infrared LEDs that provide invisible night illumination FROM 20 TO 60 METERS depending on the model. Thanks to Smart IR technology, the LED power adapts automatically to the subject distance avoiding overexposure on closed targets. The cameras in this range come with high performance 14μ and 42μ LEDs that provide a high illuminating power while maintaining a relatively low energy consumption. The LEDs turn on automatically below 10 lux. In night mode the camera works in Black White thanks to an ICR mechanism (Infrared Cut-Filter Removable). If you want, you can set the camera to work only in color mode, excluding the infrared night function.


STARLIGHT Full color in the dark

This range of cameras includes a few STARLIGHT models, based on the SONY STARVIS ™ back-illuminated CMOS sensor. Starlight cameras are designed to produce clear full color view at night taking advantage of every minimal source of natural light. Starlight cameras are highly recommended when shooting large outdoor areas at night.


Mirror, WDR, BLC, DNR, Antifog

The RK Series IP cameras come with a full pack of advanced features. With an Internet browser you can set the options as you like so as to adapt the camera to your needs. You can adjust the image and rotate it, with the MIRROR and CORRIDOR functions, in order to suit to the area to be monitored. The WIDE DYNAMIC RANGE (WDR) function is useful if you shoot bright areas together with darker areas. With the BLC you can enhance subject on a bright background. The ANTIFOG and DIGITAL NOISE REDUCTION functions allow you to improve shooting in difficult conditions with poor visibility.


Motion detection, privacy, tamper detection

All cameras in this range can generate alarms and perform actions such as recording, sending emails, uploading files via FTP, notify cell phones etc. With the MOTION DETECTION you can detect intrusions in the camera's field of view. With the TAMPER DETECTION you can detect if the camera is moved from its normal position. You can enable or disable these features based on a week scheduler. The PRIVACY masks are used to obscure parts of the video in order to respect other people privacy.


THE HARDWARE


IP67 casings with Black Glass

All RK cameras are water-proof, with IP67 protection degree. You can install them both inside or outside exposed to rain. We do not use cheap plastic enclosures for our RK cameras, but only robust die-cast, fire painted, aluminum casing. That's why you can use these cameras anywhere, without worrying about extreme temperature or corrosion. All the cameras in this range come with Black Glass front covers which increase the efficiency of LEDs (about 8% more than normal glass) and reduce the attraction of insects at night.


Dome or Bullet with QuickLock

This range includes bullet and dome cameras. Both types can be mounted on the wall or ceiling and can be easily oriented in all directions. All bullet cameras come with the innovative QuickLock bracket, a remarkable step forward compared to our previous systems. Thanks to its innovative steel grooved ball (A) the QuickLock bracket rotates in all directions, but when you tighten the retaining screw (B), it locks solidly preventing the camera from tampering. In all models the connection cable protrudes from the camera base in order to protect the wiring.


Camera mounting boxes

To make the installation of the cameras easier, we developed a range of mounting bases that you can buy as an optional accessory. The DEEP BASE is useful for spacing the camera from the mounting wall in order to avoid obstacles. The WATERPROOF JUNCTION BOX is ideal to contain the terminals, protecting them from water and wearing. Both the deep bases and the waterproof junction boxes come with holes on the front cover for the camera. For the dome cameras, a WALL MOUNTING BRACKET is also available.


THE LENS


Fixed or Varifocal lenses

In this range of IP cameras you will find models with fixed lens and models with adjustable focal length. Adjustable lenses, also called varifocal, allow you to adjust the angle of view of the camera. Small cameras for short distance come with FIXED LENS 3.6 or 2.8 mm. These cameras provide a wide-angle view, between 70 and 80°, which is optimal for short distance. The special starlight and 4K cameras come with 5-6 mm. fixed lens. In this case the fixed lens is used for best video quality and offers an angle of view of about 43°. All the other models in this range have ADJUSTABLE LENS from 2.8 to 12 mm or from 2.7 to 13.5 mm. With these cameras you can adjust the angle of view from wide angle (about 80°) to zoom (about 20°).


Manual or Motorized lenses

Most of our cameras come with MANUAL VARIFOCAL LENS. These cameras have 2 waterproof screws which allow you to adjust zoom and focus. The MOTOR ZOOM models, with motorized lens, allow you to adjust the lens from remote, by computer or NVR. These motorized versions also include AUTOFOCUS so they do not require any manual adjustment, saving a lot of time for installation. We recommend these zoom models if you install cameras in hard-to-reach locations.


CONTROL BY PC


Full camera control by browser

Every computer on the network is a perfect monitor for your IP cameras. No software needs to be installed. Just use your Internet Explorer browser and enter the login password for WATCHING live video. You can RECORD , take snapshots and ZOOM-IN by dragging the mouse. A user friendly menu, available in many languages, allows you to SET all system options. You can also PLAYBACK the videos which have been recorded in the camera memory, searching date and time over the timeline. The cameras in this range also support the RTSP protocol, which allows you to watch live video with ordinary players such as VLC.

CONTROL BY APP


Remote control by smartphone

With our free APP for Android and iOS, you can control your IP cameras with a mobile phone or tablet. You can use the app within your Wi-Fi network, calling the IP address of the camera, or via the Internet, calling the camera CLOUD ID. You can WATCH up to 16 cameras on the screen. You can RECORD , take snapshots and ZOOM IN with the classic two-finger gesture. You can also PLAYBACK the videos which have been recorded in the camera memory, searching date and time over the timeline. If you enable motion detection, you can receive NOTIFICATION on your mobile phone at every event.

NETWORK SERVICES


Free P2P Cloud server

With your smartphone and your computer you can control your cameras easily over the Internet. Each camera has an ID number and is registered on our P2P cloud server with unlimited access. Thanks to the PEER-TO-PEER (P2P) technology, you can connect via the Internet in seconds, even if your Internet connection does not have static IP address. No special router settings, such as port forwarding, are required. The P2P cloud server allows you to use these cameras even with mobile or satellite Internet connection that usually do not accept direct link.


Saving videos on Cloud, FTP, E-mail

These cameras allow you to save video files on an Internet cloud server. In this way the most important data are kept safe from tampering attempts. RK cameras support the most popular and reliable cloud services on the WEB: GOOGLE and DROPBOX . In the event of an alarm, the cameras can also send photos and videos via e-mail or upload files to FTP servers.


RECORDING


Compatible with all Onvif NVR

These "Naked" cameras are designed to work best with a network video recorder, also called NVR. You can use all ONVIF NVR video recorders on the market. If you are making a new CCTV system we recommend ours DN Range NVR or our DS Range POE NVR for perfect compatibility. Although IP cameras support several kinds of video recording, buying an NVR is always recommended, because it has many useful features that makes life easier for the user. Besides, modern NVRs are really inexpensive.


128GB SD Card slot

Many cameras in this series have a built-in micro SD card slot. You can insert a micro SD memory up to 128GB and record video clips straight in the camera. In the camera configuration you can define the period of the day you want to record. Once the memory card is full, the automatic overwriting of the oldest video files is usually set. The BUILT-IN MEMORY turns your IP camera into a stand-alone video surveillance system capable of recording even without a network video recorder. Even if you have an NVR, we recommend you still use the SD card, because it record in every condition, even if the network is disconnected because of a failure or sabotage.

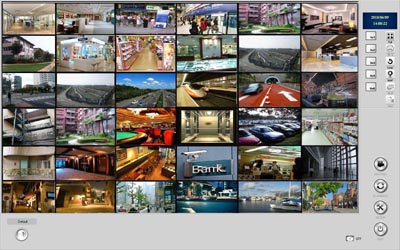

Windows based NVR Software

If you want, you can use a computer to monitor and record the IP cameras of this range. You do not have to buy anything, just download the VMS, our free NVR software, which is suitable to all our IP cameras. You can install it on as many computers as you like and use it freely, either as a main NVR or as an additional control station. VMS supports up to 256 cameras.

DOWNLOAD VMS

QUALITY - PRICE


Get your money worth

These "Naked" IP cameras are designed to give you the best value for money for residential systems. But they are still professional cameras with the best CMOS and Chipset to provide superb video quality. Please do not compare this range of cameras with the entry level products of other manufacturers where the cheapest sensors are used to sell at the lowest possible price. Check in the datasheets the brand of the sensor and chipset and if it is not declared ask yourself why.


TECHNICAL DATA



CODE RK-BCC2-4 RK-BCC2B RK-DCC5 RK-DCC5-5 RK-DCC5-5Z RK-BCC5B RK-BCC5B-4 RK-BCC6B RK-BCC6B-4 RK-BCC6C-5Z RK-BCC6C-SL RK-BCC6C-8
Description IP camera IP camera IP camera IP camera IP camera IP camera IP camera IP camera IP camera IP camera IP camera IP camera
CAMERA
Maximum resolution 4MP 2MP 1080P 2MP 1080P 5MP 5MP 2MP 1080P 4MP 2MP 1080P 4MP 5MP 2MP 1080P 8MP
Image sensor 1/3" CMOS OV OV4689 1/2.9" CMOS SONY IMX323 Low lux 1/2.9" CMOS SONY IMX323 Low lux 1/2.7" CMOS OV OS05A10 1/2.7" CMOS OV OS05A10 1/2.9" CMOS SONY IMX323 Low lux 1/3" CMOS OV OV4689 1/2.9" CMOS SONY IMX323 Low lux 1/3" CMOS OV OV4689 1/2.7" CMOS OV OS05A10 1/2.8" CMOS SONY Starvis IMX290 1/2.5" CMOS SONY Starvis IMX274
Chipset HS Hi3516D HS Hi3516C HS Hi3516D HS Hi3516D HS Hi3516D HS Hi3516C HS Hi3516D HS Hi3516C HS Hi3516D HS Hi3516D HS Hi3516C HS Hi3516A
Video resolution 2560x1440 @ 20 f/s ... 2304x1296 @ 30 f/s ... 1920x1080 @ 30 f/s 1920x1080 @ 30 f/s ... 1280x720 @ 30 f/s 1920x1080 @ 30 f/s ... 1280x720 @ 30 f/s 2592x1944 2560x1920 @ 15 f/s ... 2560x1440 @ 30 f/s ... 1920x1080 @ 30 f/s 2592x1944 2560x1920 @ 15 f/s ... 2560x1440 @ 30 f/s ... 1920x1080 @ 30 f/s 1920x1080 @ 30 f/s ... 1280x720 @ 30 f/s 2560x1440 @ 20 f/s ... 2304x1296 @ 30 f/s ... 1920x1080 @ 30 f/s 1920x1080 @ 30 f/s ... 1280x720 @ 30 f/s 2560x1440 @ 20 f/s ... 2304x1296 @ 30 f/s ... 1920x1080 @ 30 f/s 2592x1944 2560x1920 @ 15 f/s ... 2560x1440 @ 30 f/s ... 1920x1080 @ 30 f/s 1920x1080 @ 30 f/s ... 1280x720 @ 30 f/s 3840x2160 @ 15 f/s ... 3072x2048 @ 30 f/s ... 2592x1440 2560x1920 2560x1440 1920x1080 @ 30 f/s
Video compression H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG H264 H265 H264+ H265+ MJPEG
POE IEEE 802.3af IEEE 802.3af IEEE 802.3af IEEE 802.3af IEEE 802.3af IEEE 802.3af IEEE 802.3af IEEE 802.3af IEEE 802.3af IEEE 802.3af IEEE 802.3af IEEE 802.3af
Local power supply 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC
Infrared illuminator 20 m. (18LED 14µ 850nm) 30 m. (4LED 42µ 850nm) 30 m. (24LED 14µ 850nm) 30 m. (24LED 14µ 850nm) 30 m. (24LED 14µ 850nm) 40 m. (4LED 42µ 850nm) 40 m. (4LED 42µ 850nm) 60 m. (6LED 42µ 850nm) 60 m. (6LED 42µ 850nm) 60 m. (6LED 42µ 850nm) 60 m. (6LED 42µ 850nm) 60 m. (6LED 42µ 850nm)
ICR
Lens Fixed 2.8 mm. Fixed 3.6 mm. Manual 2.8-12 mm. Manual 2.8-12 mm. Motorized 2.7-13.5 mm. Manual 2.8-12 mm. Manual 2.8-12 mm. Manual 2.8-12 mm. Manual 2.8-12 mm. Motorized 2.7-13.5 mm. Fixed 6 mm. Fixed 5 mm.
Focus Fixed Fixed Manual Manual Autofocus Manual Manual Manual Manual Autofocus Fixed Fixed
Shutter 1/25...1/10000 1/25...1/10000 1/25...1/10000 1/25...1/10000 1/25...1/10000 1/25...1/10000 1/25...1/10000 1/25...1/10000 1/25...1/10000 1/25...1/10000 1/25...1/10000 1/25...1/10000
S/N ratio Above 52dB Above 52dB Above 52dB Above 52dB Above 52dB Above 52dB Above 52dB Above 52dB Above 52dB Above 52dB Above 52dB Above 52dB
HARDWARE
LAN port RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T RJ45 10/100 Base-T
Audio input Minijack 3.5 mm.
Audio output Minijack 3.5 mm.
Alarm I/O 1I+1O
SD card Max. 128 GB Max. 128 GB Max. 128 GB Max. 128 GB Max. 128 GB Max. 128 GB Max. 128 GB Max. 128 GB
CVBS output BNC
FUNCTIONS
Protocols TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP NTP SMTP
Onvif Onvif Profile S v. 2.4 Onvif Profile S v. 2.4 Onvif Profile S v. 2.4 Onvif Profile S v. 2.4 Onvif Profile S v. 2.4 Onvif Profile S v. 2.4 Onvif Profile S v. 2.4 Onvif Profile S v. 2.4 Onvif Profile S v. 2.4 Onvif Profile S v. 2.4 Onvif Profile S v. 2.4 Onvif Profile S v. 2.4
P2P Free with QRcode Free with QRcode Free with QRcode Free with QRcode Free with QRcode Free with QRcode Free with QRcode Free with QRcode Free with QRcode Free with QRcode Free with QRcode Free with QRcode
Browser IE8 or above IE8 or above IE8 or above IE8 or above IE8 or above IE8 or above IE8 or above IE8 or above IE8 or above IE8 or above IE8 or above IE8 or above
Smartphone iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad iPhone iPad Android Android-Pad
Multi streaming 3 stream 3 stream 3 stream 3 stream 3 stream 3 stream 3 stream 3 stream 3 stream 3 stream 3 stream 3 stream
WEB cloud storage Google Dropbox Google Dropbox Google Dropbox Google Dropbox Google Dropbox Google Dropbox Google Dropbox Google Dropbox Google Dropbox Google Dropbox Google Dropbox Google Dropbox
Mirror Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal Vertical and/or Horizontal
Corridor 90° - 270° 90° - 270° 90° - 270° 90° - 270° 90° - 270° 90° - 270° 90° - 270° 90° - 270° 90° - 270° 90° - 270° 90° - 270° 90° - 270°
Overlay Date Time Label Date Time Label Date Time Label Date Time Label Date Time Label Date Time Label Date Time Label Date Time Label Date Time Label Date Time Label Date Time Label Date Time Label
BLC Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable
AWB Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable
DNR 2D 3D 2D 3D 2D 3D 2D 3D 2D 3D 2D 3D 2D 3D 2D 3D 2D 3D 2D 3D 2D 3D 2D 3D
WDR Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable
Anti Fog Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable Automatic or Adjustable
HSBLC
Starlight
Motion detection Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler
Privacy mask 3 adjustable areas 3 adjustable areas 3 adjustable areas 3 adjustable areas 3 adjustable areas 3 adjustable areas 3 adjustable areas 3 adjustable areas 3 adjustable areas 3 adjustable areas 3 adjustable areas 3 adjustable areas
Anti tamper Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler Adjustable with week scheduler
Alarm actions Recording Email FTP Cloud Push norification Recording Email FTP Cloud Push norification Recording Email FTP Cloud Push norification Recording Email FTP Cloud Push norification Recording Email FTP Cloud Push norification Recording Email FTP Cloud Push norification Recording Email FTP Cloud Push norification Recording Email FTP Cloud Push norification Recording Email FTP Cloud Push norification Recording Email FTP Cloud Push norification Recording Email FTP Cloud Push norification Recording Email FTP Cloud Push norification
GENERAL
Casing Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
Protection rating IP67 Water-proof IP67 Water-proof IP67 Water-proof IP67 Water-proof IP67 Water-proof IP67 Water-proof IP67 Water-proof IP67 Water-proof IP67 Water-proof IP67 Water-proof IP67 Water-proof IP67 Water-proof
Swivel bracket Wall + Ceiling Wall + Ceiling Wall + Ceiling Wall + Ceiling Wall + Ceiling Wall + Ceiling Wall + Ceiling Wall + Ceiling Wall + Ceiling Wall + Ceiling Wall + Ceiling Wall + Ceiling
Operating temperature -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max -20°C +60°C RH95% Max
Power supply 12VDC +/-10% or POE 12VDC +/-10% or POE 12VDC +/-10% or POE 12VDC +/-10% or POE 12VDC +/-10% or POE 12VDC +/-10% or POE 12VDC +/-10% or POE 12VDC +/-10% or POE 12VDC +/-10% or POE 12VDC +/-10% or POE 12VDC +/-10% or POE 12VDC +/-10% or POE
Power consumption Max 1.2W (5W IR on) Max 1.2W (6W IR on) Max 1.2W (5W IR on) Max 1.2W (5W IR on) Max 2W (5W IR on) Max 1.2W (6W IR on) Max 1.2W (6W IR on) Max 1.2W (8W IR on) Max 1.2W (8W IR on) Max 2W (8W IR on) Max 1.2W (8W IR on) Max 1.2W (8W IR on)
Dimensions 65 x 65 x 142 mm. 176 x 75 x 71 mm. 119 (D) x 98 mm. 119 (D) x 98 mm. 119 (D) x 98 mm. 211 x 92 x90 mm. 211 x 92 x90 mm. 211 x 92 x90 mm. 211 x 92 x90 mm. 220 x 105 x 109 mm. 220 x 105 x 109 mm. 220 x 105 x 109 mm.
Weight 500 gr. 500 gr. 600 gr. 600 gr. 600 gr. 700 gr. 700 gr. 700 gr. 700 gr. 1400 gr. 1400 gr. 1400 gr.

QUESTION & ANSWER


What's included?

CAMERA
WATERPROOF RJ45
L TOOL
SCREWS
HOLE TEMPLATE
MANUALS
SW IP SETTING
SW NVR

What's not included?

All cameras can be powered with a 12VDC power supply. However, the power adapter is not included since POE power is widely used. If you need a power supply, see ours POWER SUPPLY UNITS
